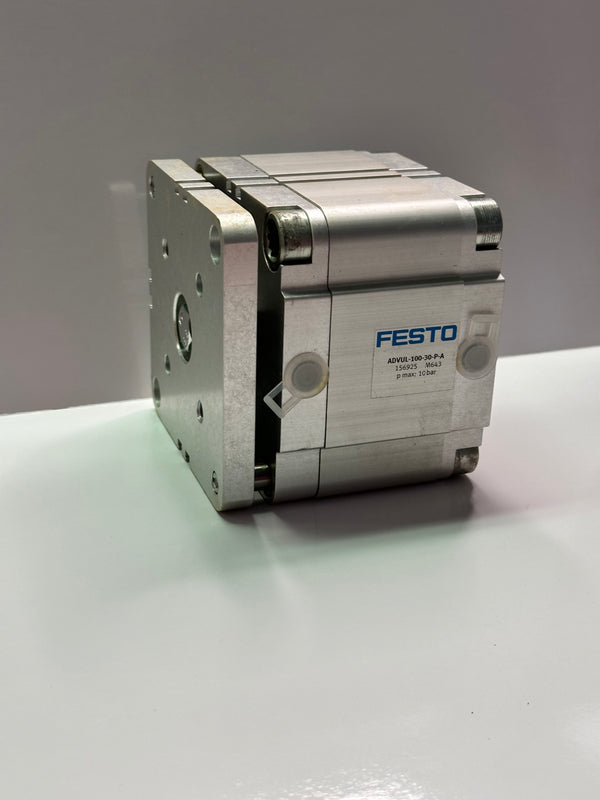

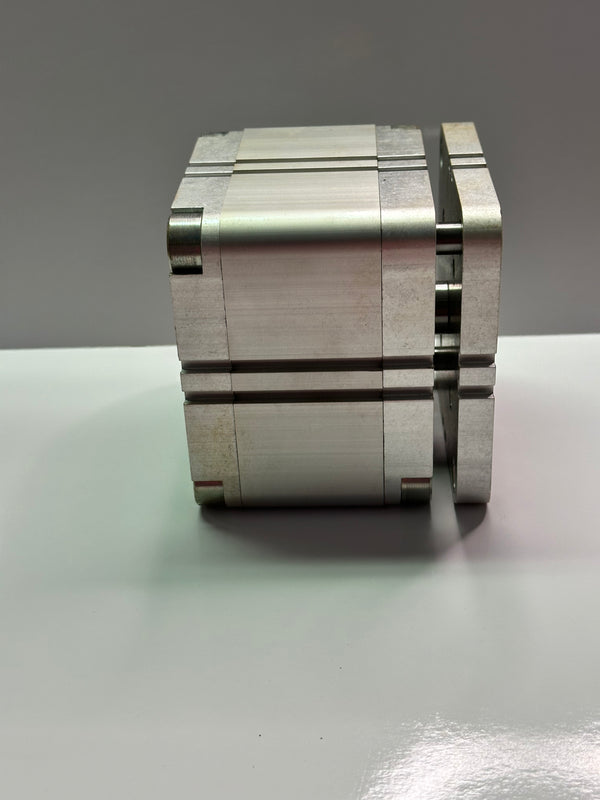

Festo ADVUL-100-30-P-A Compact Double Acting Single Ended Pneumatic Air Cylinder 156925

FESTO SKU: P-FE-F-4587

$595.00

Tax included

Only 1 left!

Product series / family name
Cylinders - Pneumatic Compact air cylinder - double-acting - secured against twisting by guide rod and yoke plate series.
Sub-range name
ADVUL series
Bore size.
100mm bore (B100mm)
Stroke length.
30mm stroke (S30mm)
Functions
Compact double-acting non-rotating single-ended guided piston-rod pneumatic air cylinder
Design
built-in magnet
anti-rotation/torsion protection via guide rods + yoke plate
elastic cushioning at both ends.
operation with oil lubrication possible
position sensing via proximity sensor.
Double-acting
Compressed air as per ISO8573-1;2010 [7;4;4]
Pressure
+1...+10bar (operating pressure)
Shape
round cylindrical
Connection type
Female threaded rod
1/4" BSPP / G1/4" threaded pneumatic port
Mounting mode
through-hole mount
mount via accessories.
Material
Nitrile rubber (NBR) / thermoplastic polyurethane (TPE-U(PU)) dynamic seals
Wrought Aluminum alloy cylinder barrel.
Wrought Aluminum alloy cover.
Galvanized steel flange
High-alloy steel piston rod
Ambient air temperature for operation
-20°C... +80 °C
Chemical resistance
CRC Class 2 - Moderate-corrosion stress
GTIN code
4052568121754
Order code / Manufacturer SKU
156925
Manufacturer product status
Commercialized
Benefits
Piston rod secured against rotation by a guide rod and yoke plate.
Plain bearing
Available with through piston rod
Magnetic piston for position sensing
Marking
Symbol 00991737
