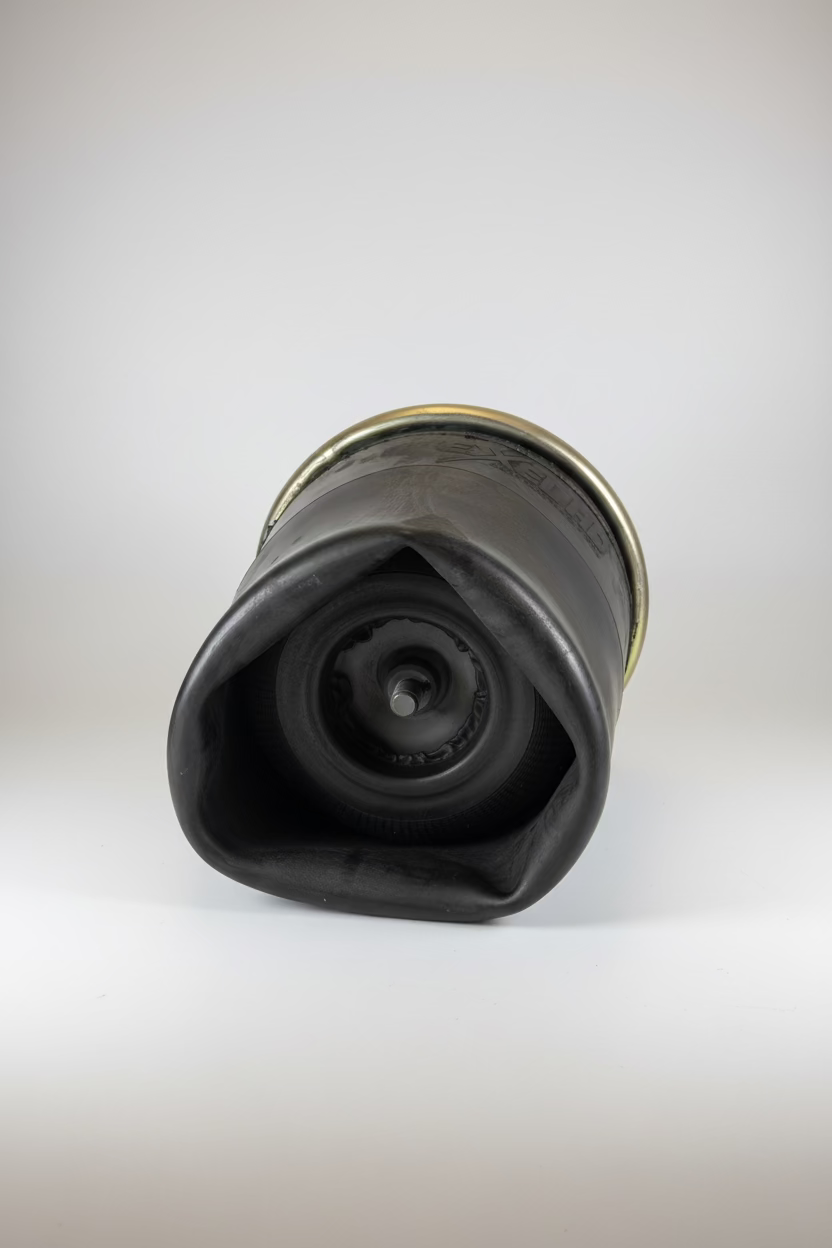

Exxel 1K8613 Air Spring / Bellows — 250 mm Diameter
- SKU
- P-EX-E-8815
- Weight
- 8.0 kg
Specifications
| Manufacturer | EXXEL |
|---|---|
| Product type | AUTOMOTIVE & TRUCK PARTS |
| SKU | P-EX-E-8815 |
| Weight | 8.0 kg |
Description
Exxel 1K8613 air spring / bellows. Source condition: brand new; quantity: one piece. Natural rubber construction with internal jounce bumper recorded as included.
Recorded dimensions and connections
- Diameter 250 mm / 9.8 in; design height 425 mm / 16.7 in.

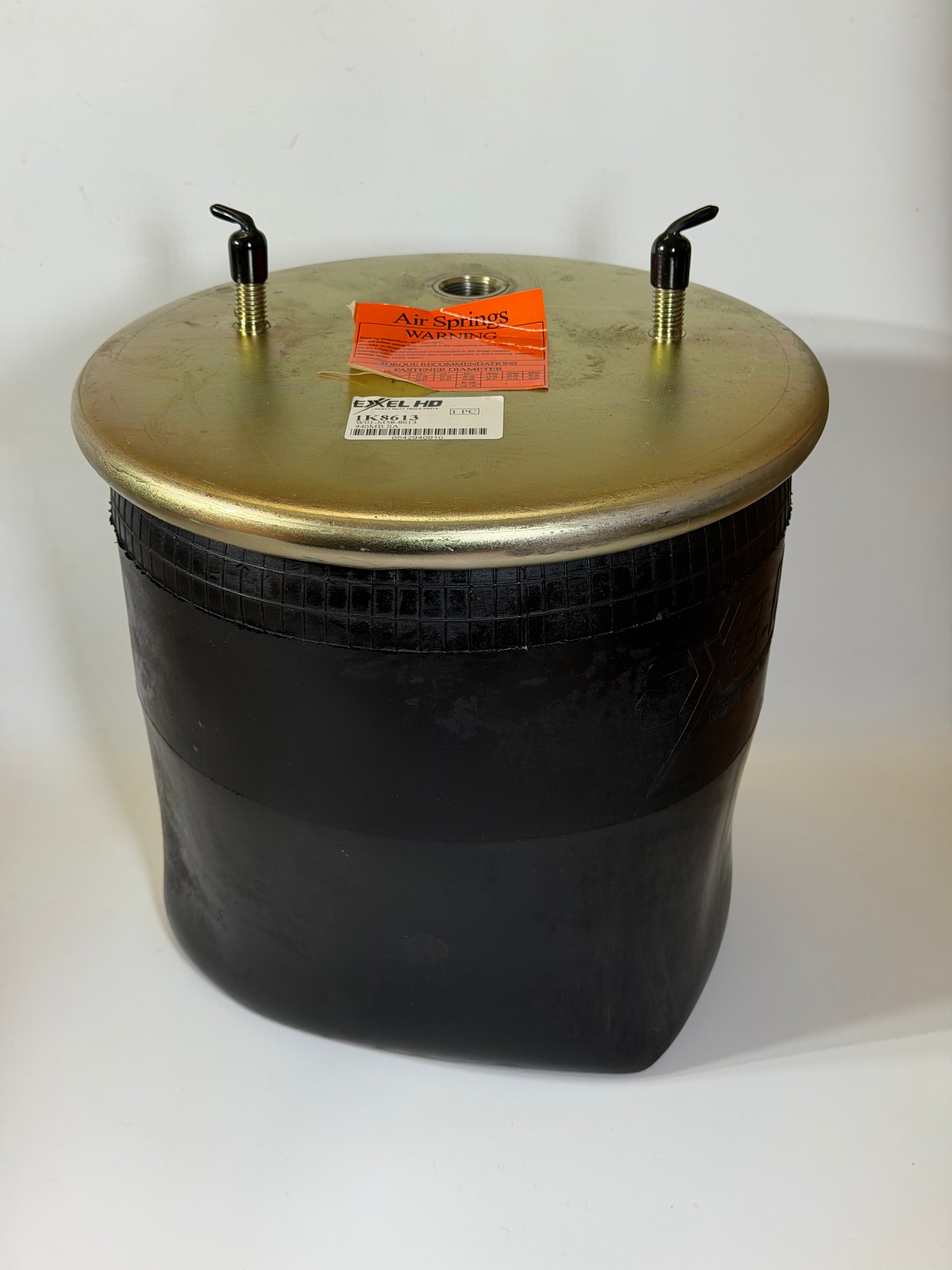

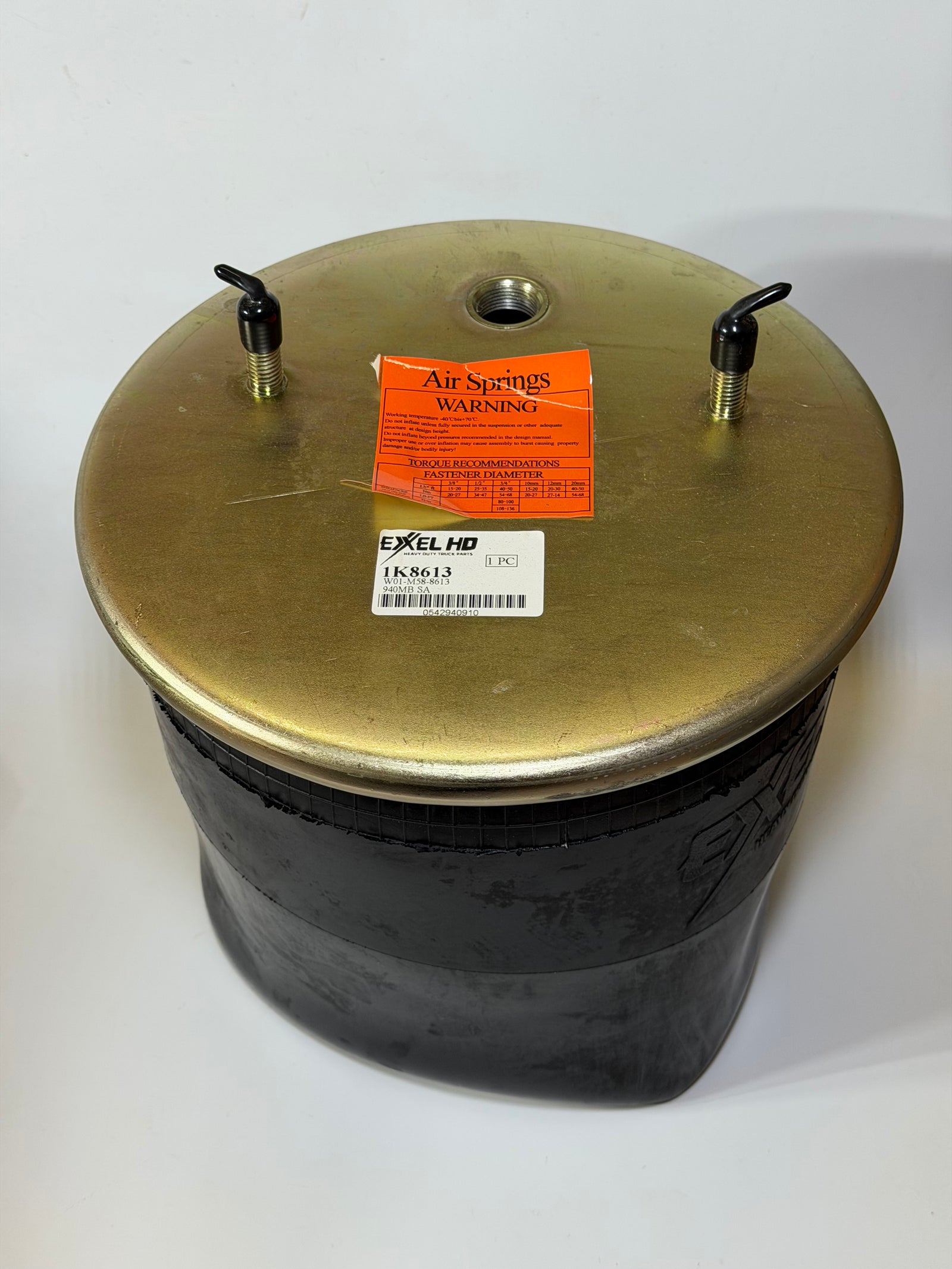

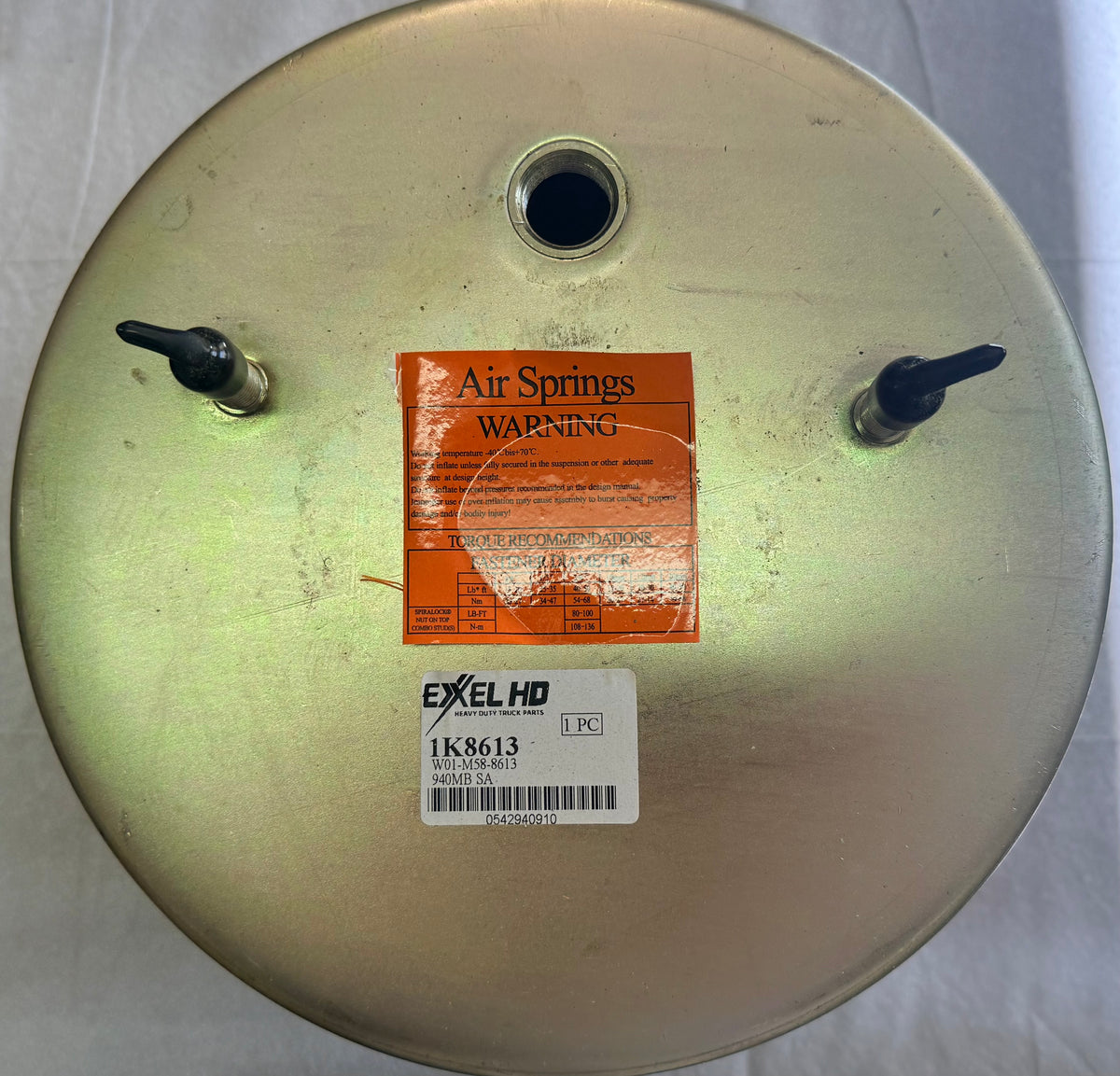

- Top plate: 2 × M12x1.75 threaded fixings, 150 mm / 5.9 in centre distance.

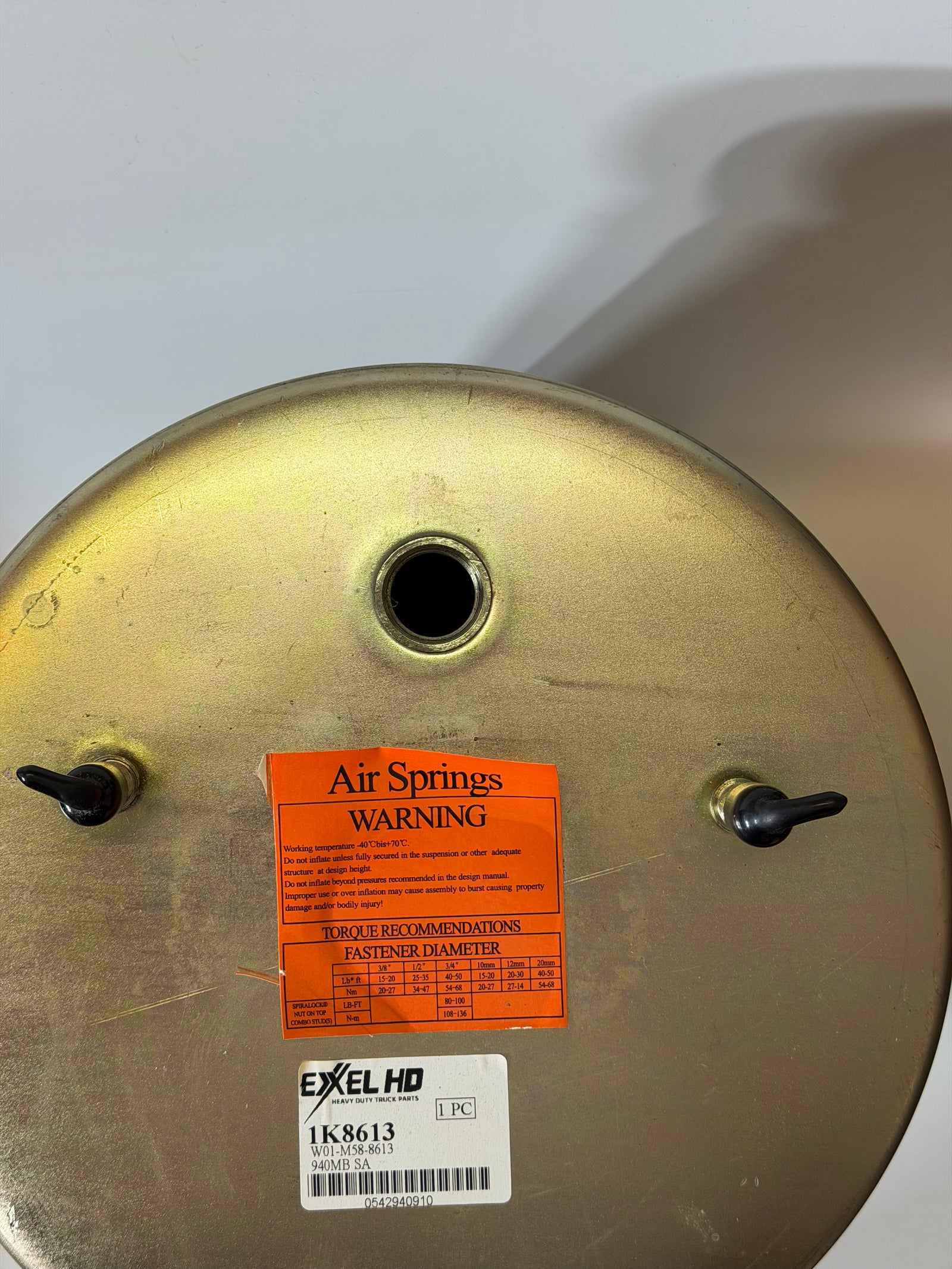

- Bottom plate thread M16x2; air inlet M22x1.5.
- Package: 38 × 36 × 36 cm / 15 × 14.2 × 14.2 in.
Source cross-references
Firestone: W01-M58-8613, 1T17D-4.3, 1T17J-6.8, 1T17J SERIES CO1-M58-4861.
Goodyear: 1R11-703, 566-22-3-501.
ContiTech: 940 MB, 67205, 40910 N PO2.
Dunlop: D11U31.
Airtech: 120242, 3940 P.
Blacktech: RML7051.
CF Gomma: 205536, 1TC300-30.
Gart: 293.0.411, C293/A.
Neotec: ABM 530 30 A.
Phoenix: 1 DK 21 K.
Primeride: 5940 A PO2, 1R11-703, 566-22-3-501.
Springride: 1R11-703, 566-22-3-501.
Vibracoustic: V1DK21K.
BPW: 05.429.40.91.
Schmitz: 013 769.
Scania: 2406164.
Additional source tag: 940MB SA.
These references are identification leads, not guaranteed interchangeability. The BPW entry ends with a full stop in the source and may be incomplete; confirm the full reference, mounting dimensions and required application before ordering.
