EPIROC
Epiroc 6060005494 Load-Cell Amplifier / Transmitter Module
- SKU
- P-EP-E-7723
- Weight
- 1.5 kg
Specifications
| Manufacturer | EPIROC |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-EP-E-7723 |
| Weight | 1.5 kg |
Description

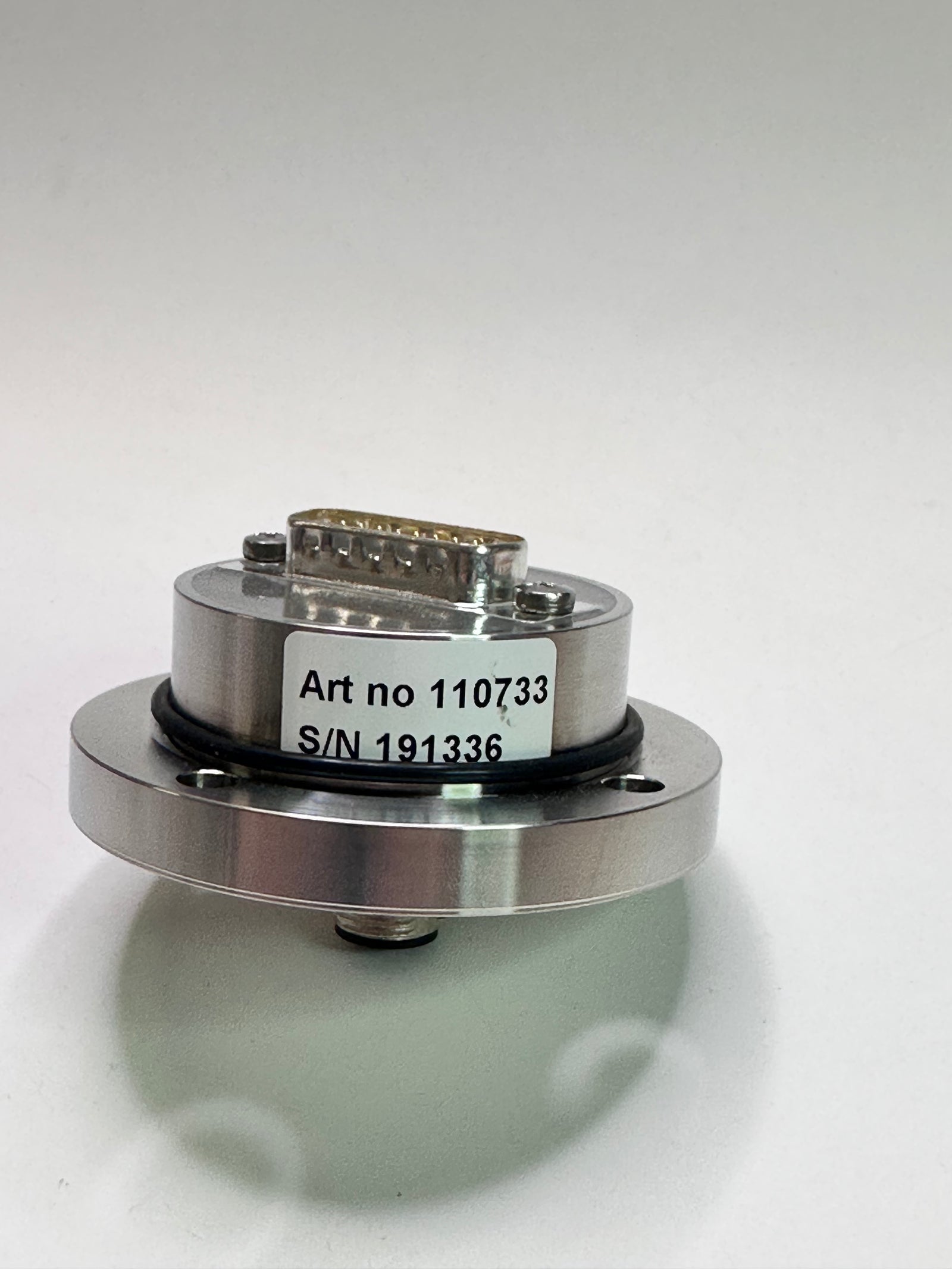

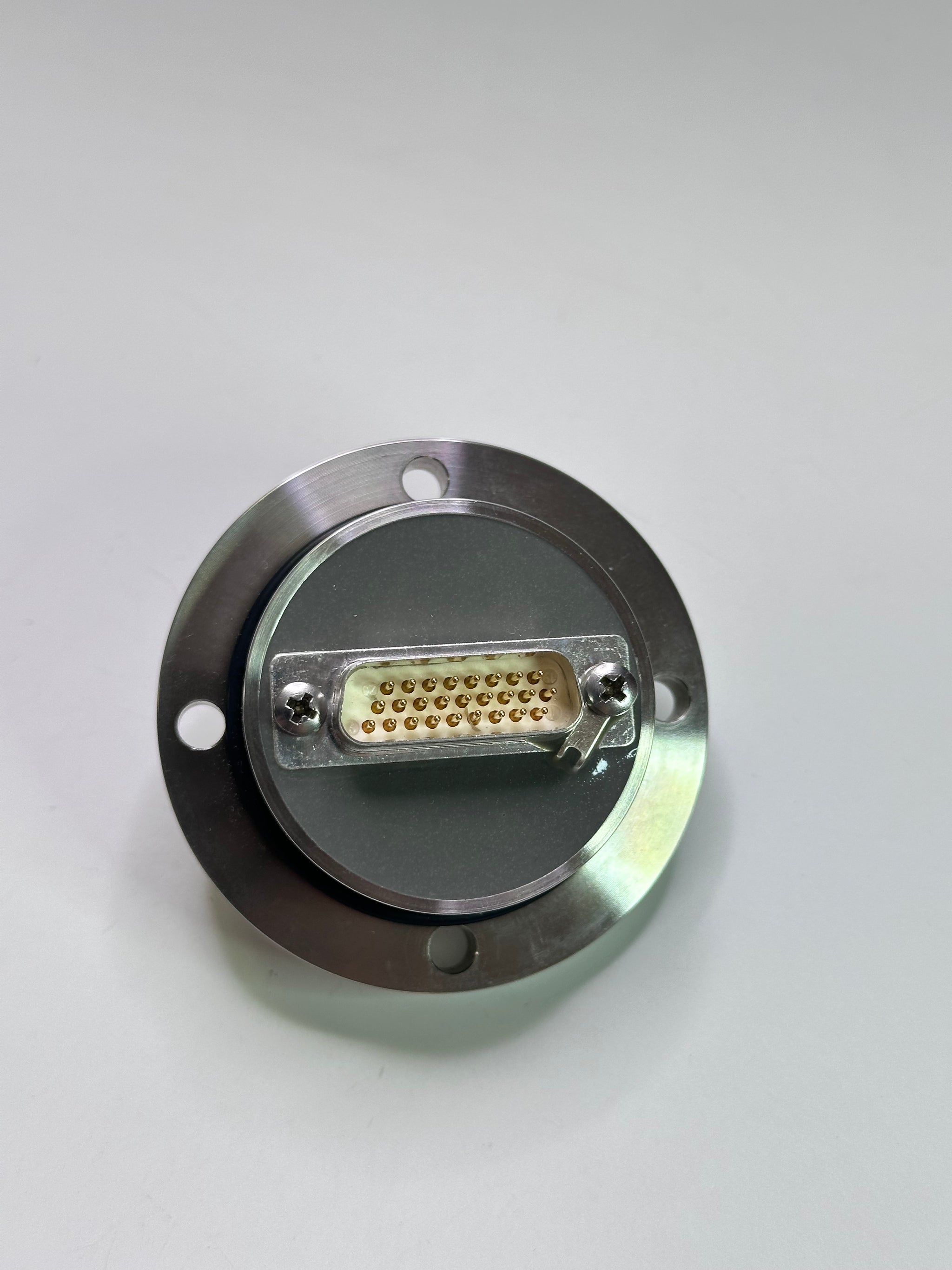

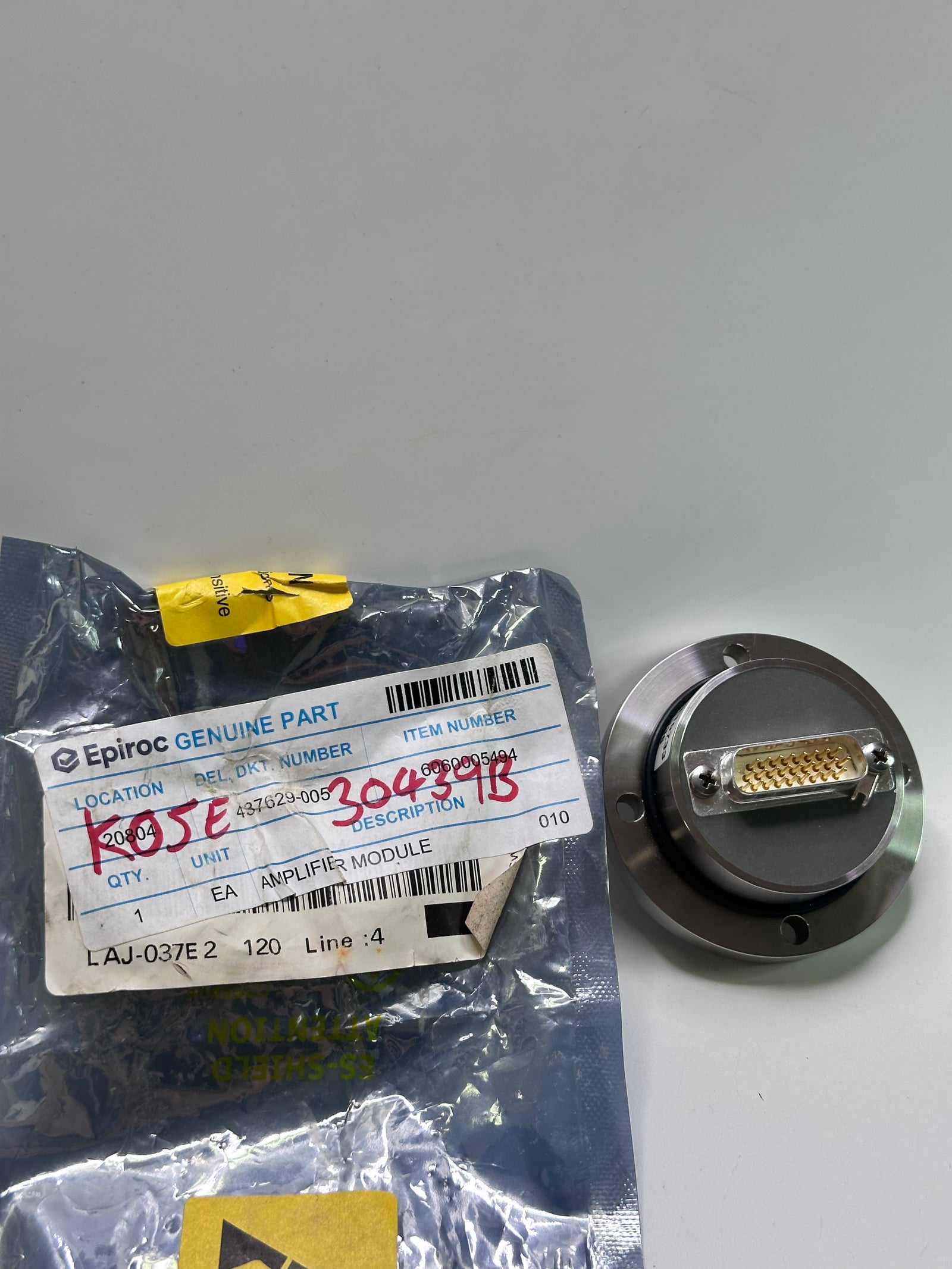

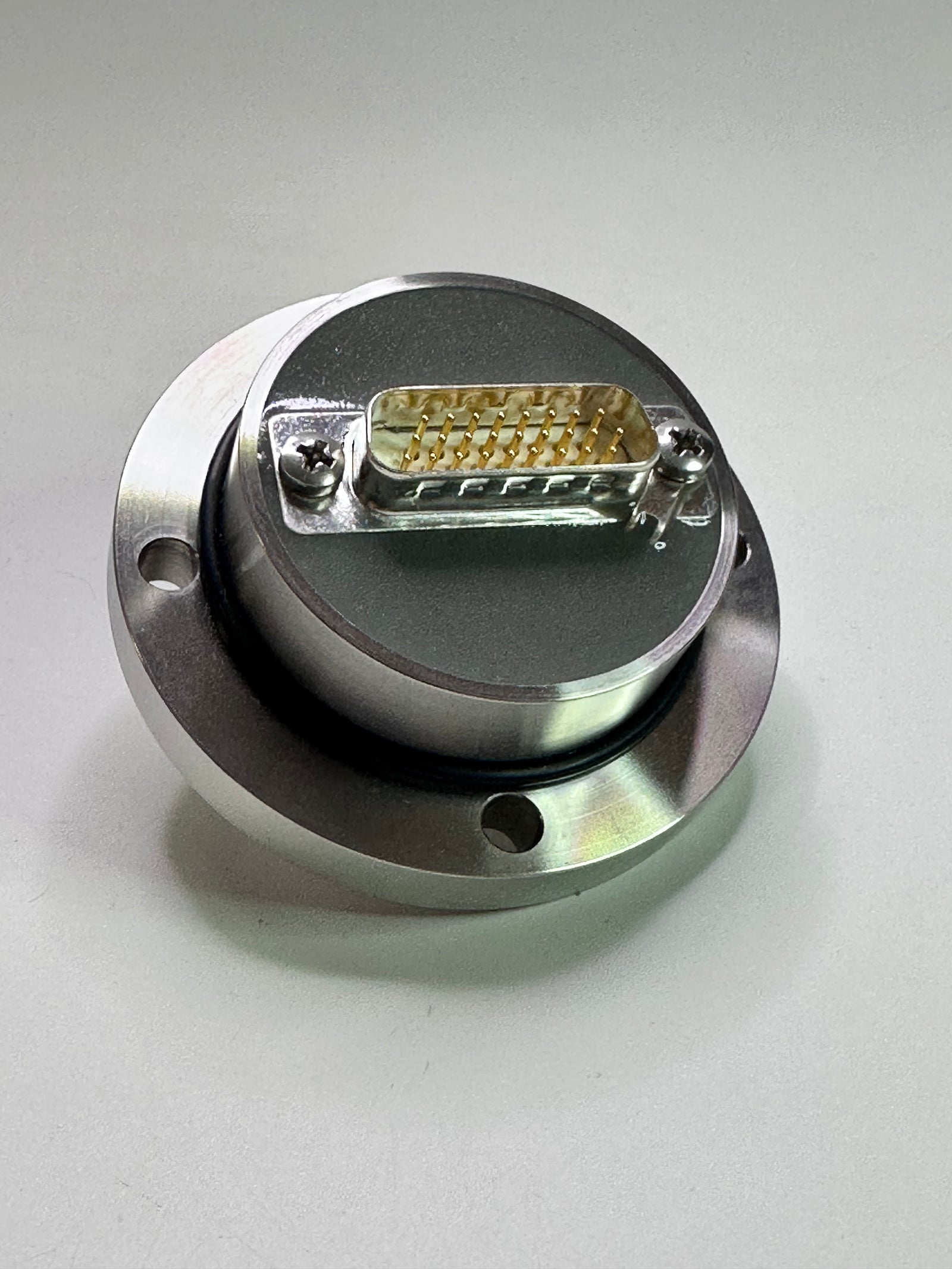

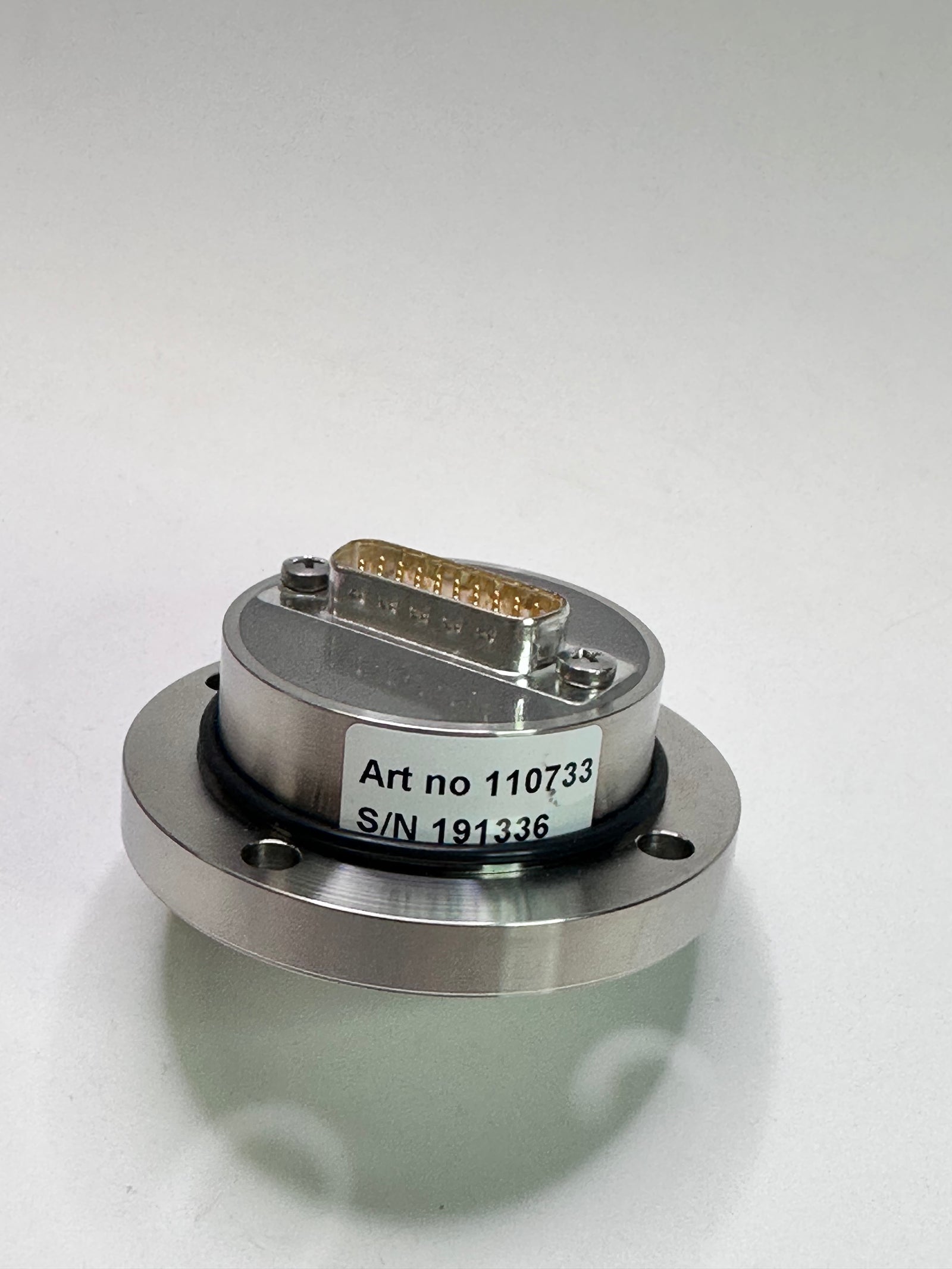

Epiroc 6060005494 amplifier module. The source identifies Vishay Nobel AB - LCAMP 110 (2019), with LCAMP110 and BLH NOBEL also recorded in tags.
Recorded transmitter features
- Two-wire 4 mA–20 mA output with error signaling
- HART 7 communication for system diagnostics and process data
- IP67 protection level when mounted in a load cell
- M12 connector or fixed cable through a cable gland; confirm which connection is supplied
Recorded application and approval notes
The source lists cranes, winches, mooring, chain stoppers and tension applications, and describes a transmitter embedded in load cells for offshore and harsh industrial use. Atlas Copco and epiroc mt2010 tags do not identify a confirmed machine configuration.

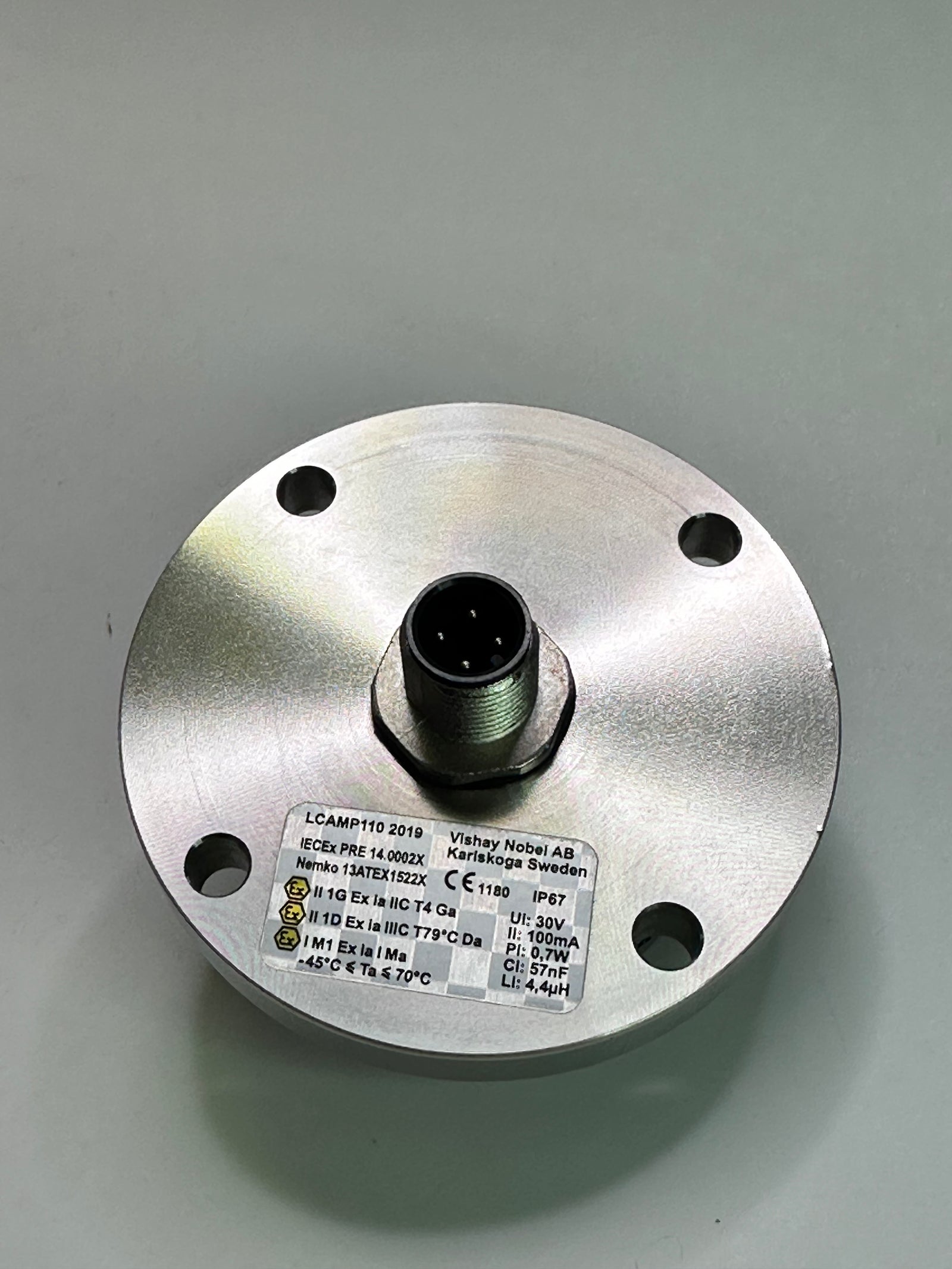

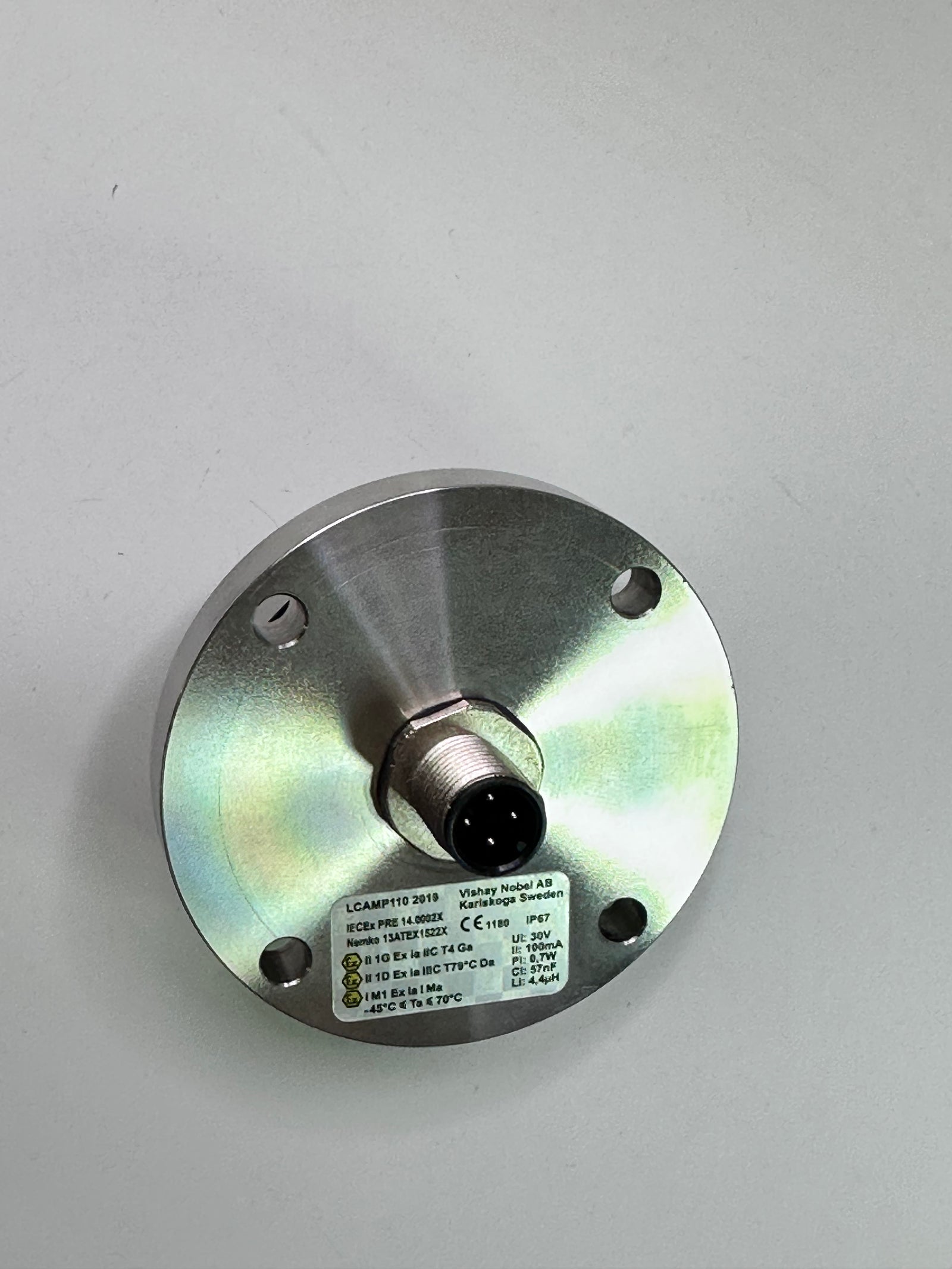

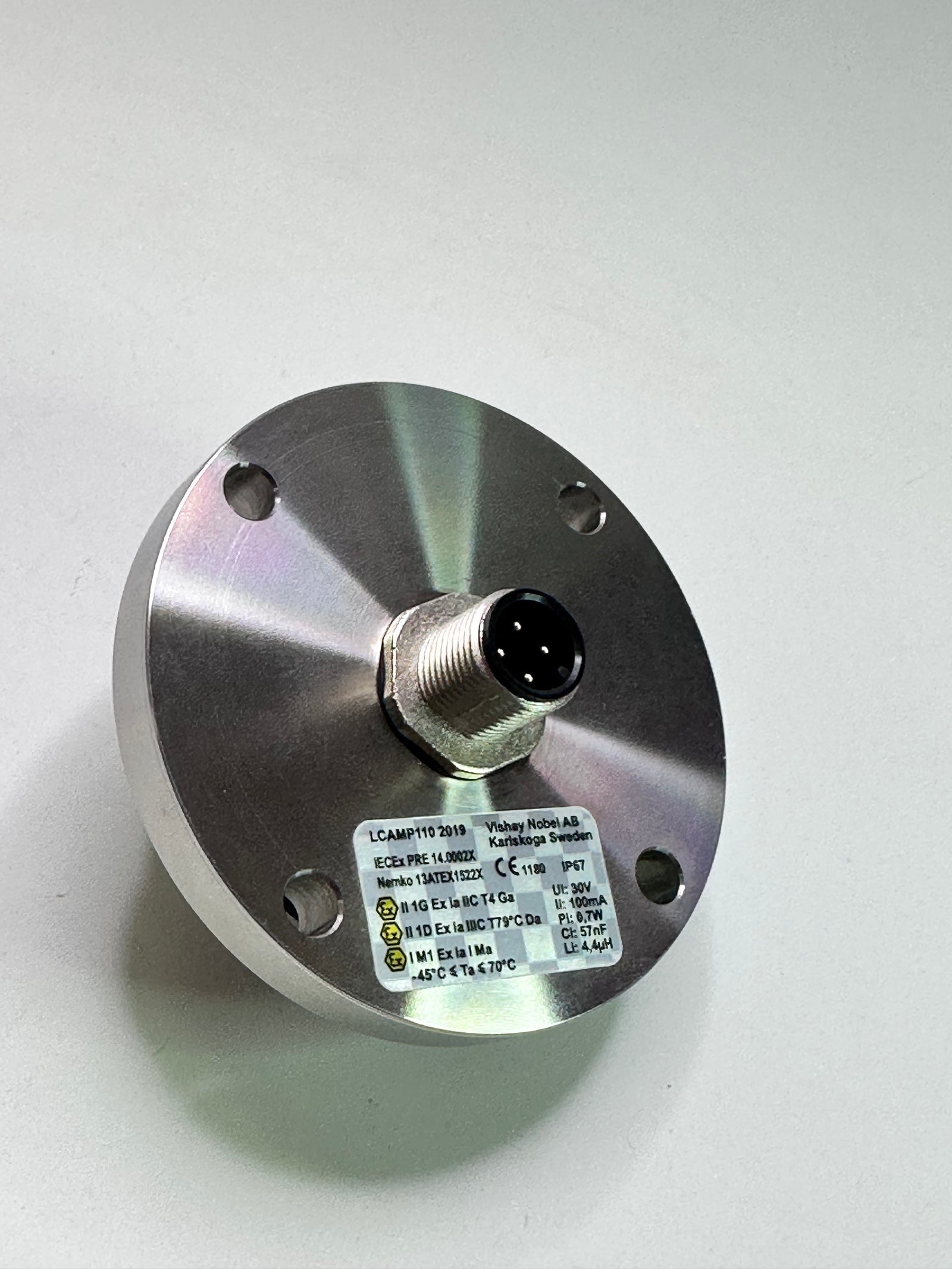

The source claims ATEX approved Ex IIC and hazardous-area use, and states field replacement without recalibration of the transmitter or load cell. These claims require matching unit/system documentation; they are not independently verified for this item. IP67 is conditional on installation in the load cell, not an unconditional rating of the loose module.
Confirm the exact module label, connection, system compatibility and any required certification/calibration evidence with MIS before purchase. This is a module, not a complete load cell or weighing system.
