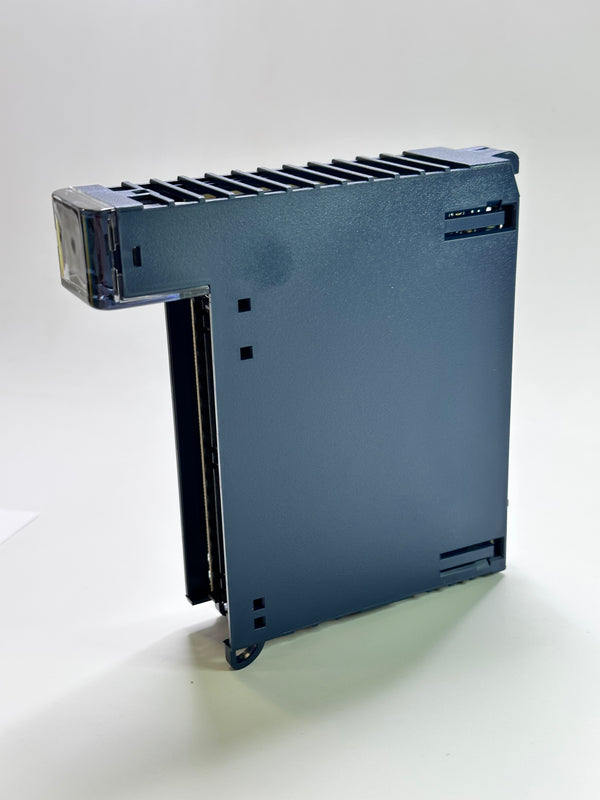

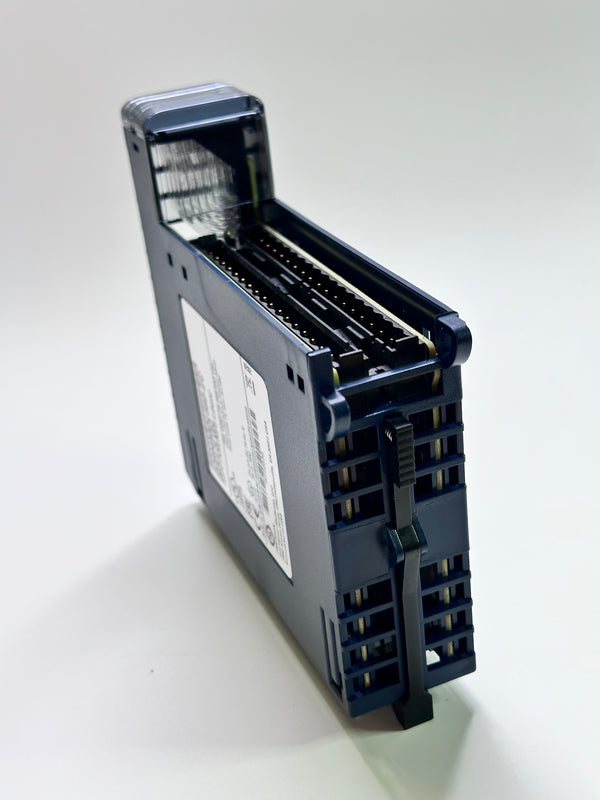

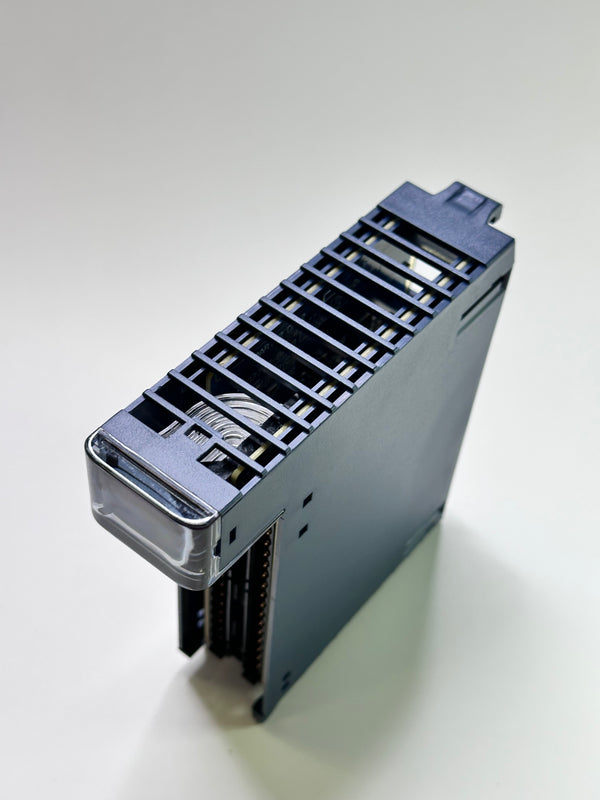

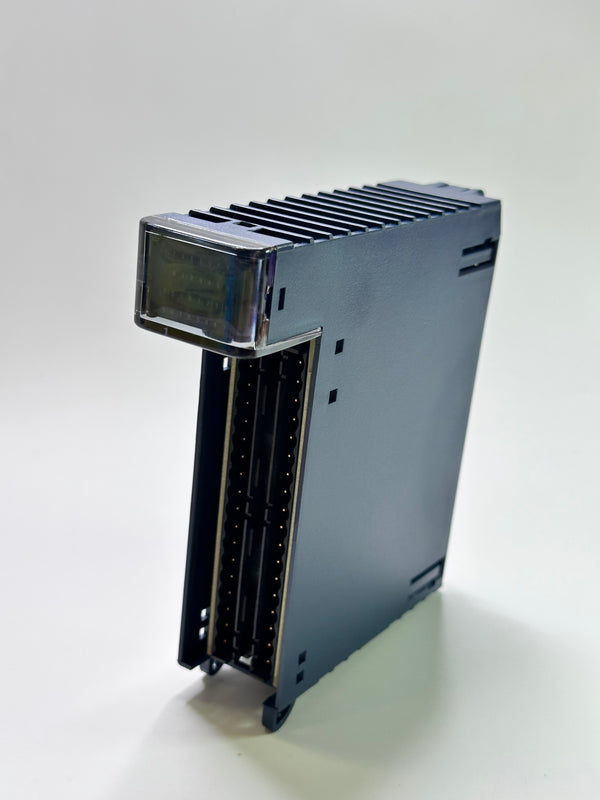

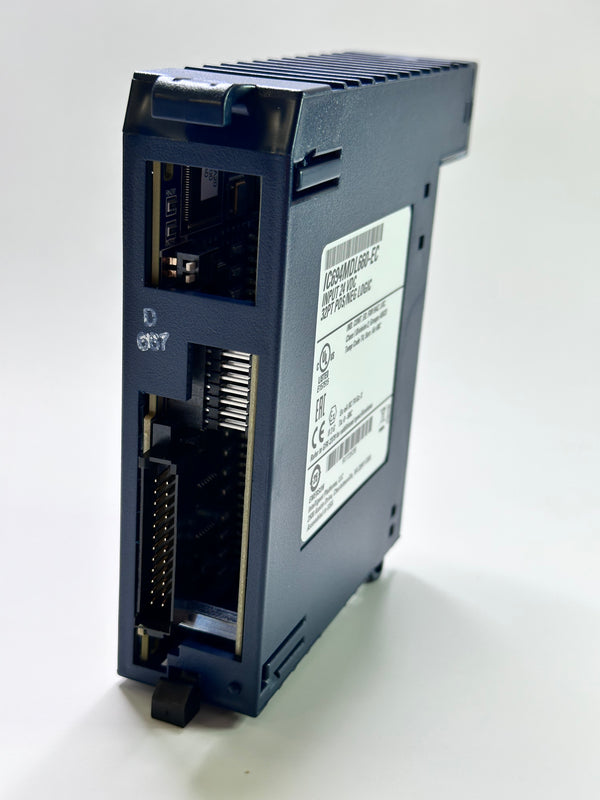

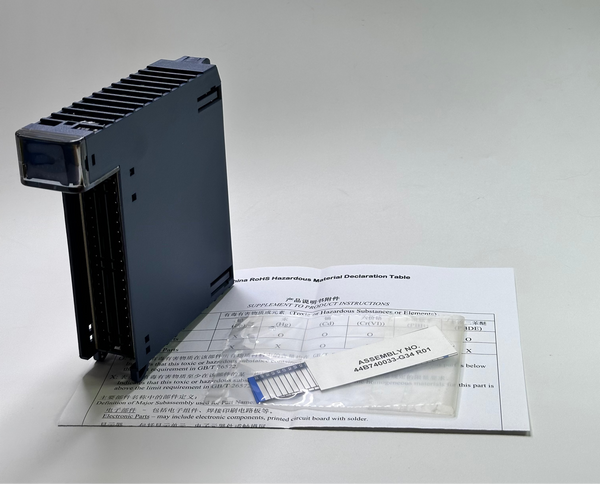

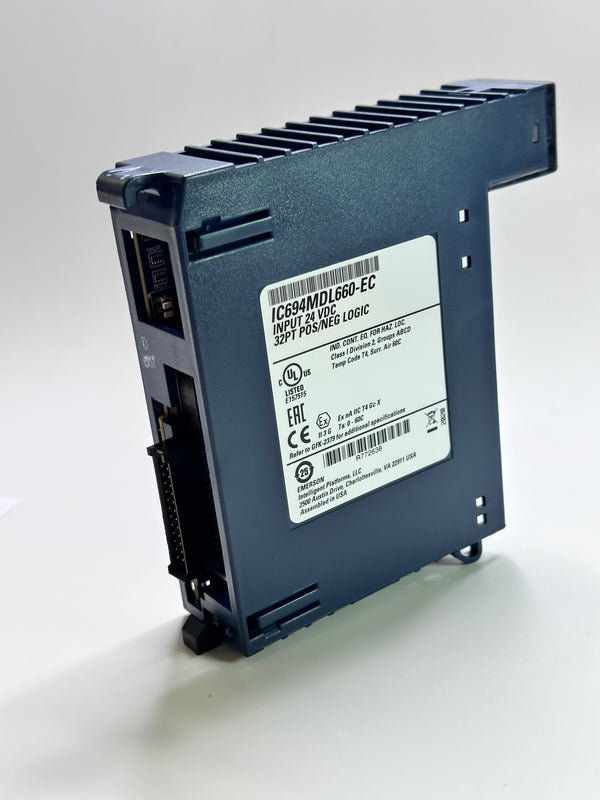

Emerson IC694MDL660-EC RX3i 32-Point Logic Input Module, 24VDC
- SKU
- P-EM-E-7806
- Weight
- 2.0 kg
Specifications
| Manufacturer | EMERSON |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-EM-E-7806 |
| Weight | 2.0 kg |
Description
Emerson IC694MDL660-EC PACSystem RX3i discrete input module, nominally 24VDC, for positive/negative logic. The source identifies the base IC694MDL660 family as previously GE Intelligent Platforms / GE Fanuc.
The numeric channel count and source table specify 32 inputs in four groups of eight, correcting the opening text's “Thirty (32)” wording. Listed input range is 0-30 VDC, with 7.0 mA per point at rated voltage.
Original source specifications — ambiguous fields retained for checking
The table's “No. of output groups” wording does not turn this input module into an output module. The 300 mA field labelled “Power Consumption” is a current figure, not a wattage; its relationship to the separately listed current draws needs confirmation. Verify the -EC revision and applicable specifications against the unit documentation.
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Line | RX3i PACSystem |
| Part Number | IC694MDL660 |
| Weight | 0.50 lbs (0.23 kg) |
| Series | PACSystem RX3i |
| Product Description | Discrete input module |
| Type | Input module |
| No of Channels | Thirty-Two (32) |
| Inputs | 32 |
| No. of groups | Eight (8) channels per group |
| No. of output groups | Four (4) |
| Rated Voltage | 24V DC |
| Wiring configuration | Positive / Negative Logic |
| Channels per group | Eight (8) |
| Input Voltage Range | 0-30 VDC |
| Input signal range | 0-30 VDC |
| Isolation | Field to Backplane (optical) -250 VAC continuous; 1500 VAC for one minute; Group to Group - 250VAC continuous; 1500 VAC for one minute |
| Nominal Input voltage | 24 VDC |
| Input Filter Times | 0.5ms, 1.0ms, 2.0ms, 5ms, 10ms, 50ms and 100ms |
| Current draw | 195 mA @ 5VDC; 224 mA @ 24 VDC |
| Input current | 7.0 mA at rated voltage |
| Power Consumption | 300 mA |
| On State Voltage | 11.5 - 30 VDC |
| Maximum inrush current | 4.78 A For 10 ms |
| Diagnostic Tools | Yes. Terminal block that reports to CPU |
| Off state voltage | 0 - +5 VDC |
| On state current | 3.2 mA |
| Compatibility | RX3i CPU 2.90 or greater |
| Off state current | 1.1 mA |
| On response time | 0.5ms, 1.0ms, 2.0ms, 5.0ms, 10.0ms, 50.0ms & 100.0ms (as per filter setting) |
| On response time, typical | Depending on the selected filter time |
| Off response time | 0.5ms, 1.0ms, 2.0ms, 5.0ms, 10.0ms, 50.0ms & 100.0ms (as per filter setting) |
| On response time, maximum | Depending on the selected filter time |

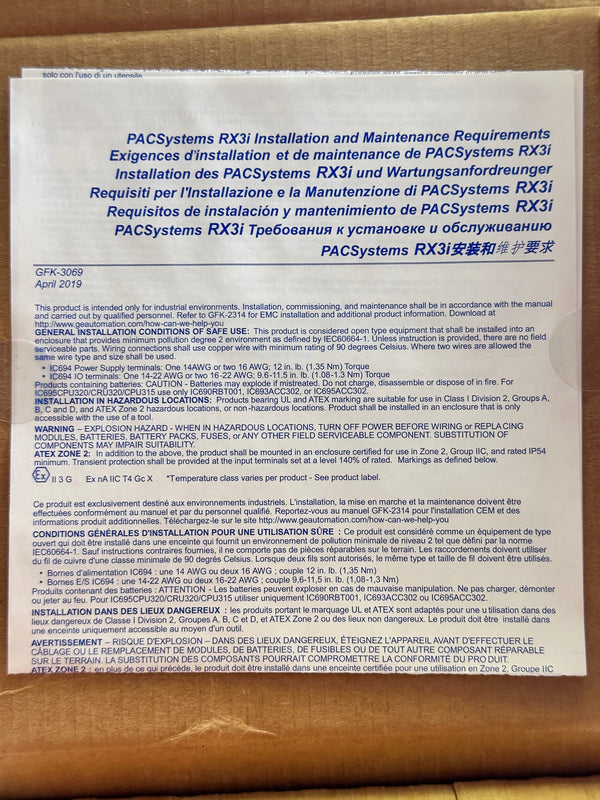

Source isolation, response and CPU-version figures are not a new test or a guarantee of compatibility with every RX3i installation. Confirm the rack/CPU revision and terminal-block requirements. A CPU, rack and terminal block are not established as included.
