EMERSON
Emerson 3051S Coplanar Pressure Transmitter 3051S1CG4AB11A1KB4C4D1K7M5P1Q4Q8QTQ15A0350
- SKU
- P-EM-E-6386
- Weight
- 10.0 kg
Specifications
| Manufacturer | EMERSON |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-EM-E-6386 |
| Weight | 10.0 kg |
Description

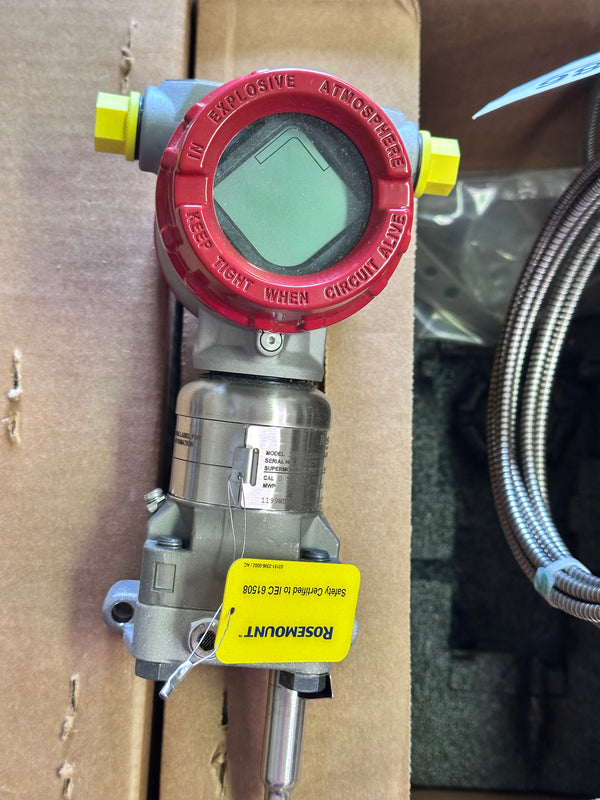

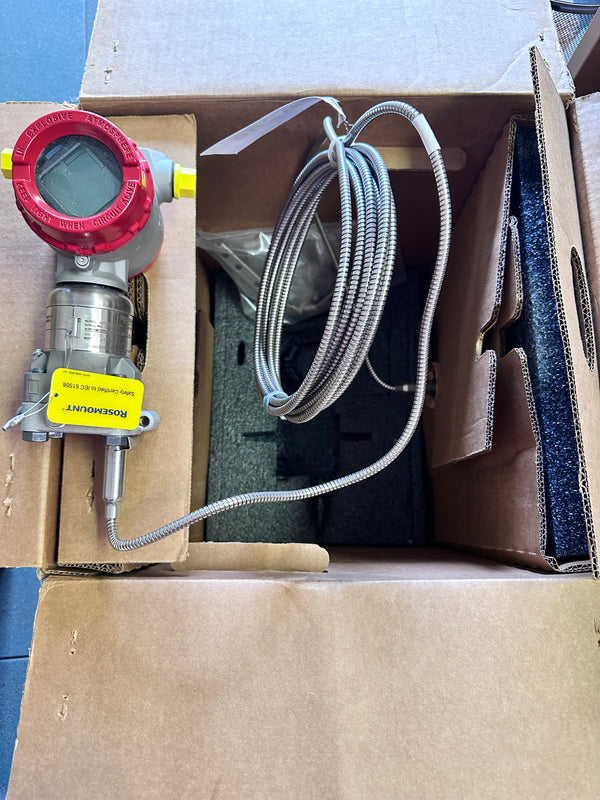

Emerson 3051S coplanar pressure transmitter. Recorded full configuration: 3051S1CG4AB11A1KB4C4D1K7M5P1Q4Q8QTQ15A0350.

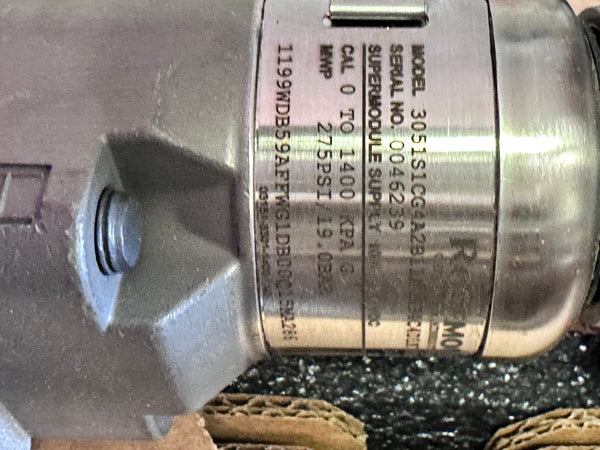

The following is the source's recorded configuration/option breakdown. Confirm the actual unit nameplate, configured measurement range, assembled seal and available certificates before selection. Order-option descriptions do not confirm that certificates or accessories accompany this surplus unit.
1 : Ultra: 0.025 percent span accuracy, 200:1 rangedown
C : Coplanar
G : Gage
4 : -14.2 to 300 psig (-0.97 to 20.68 bar)
A : None,Single-Variable Device
2 : 316L SST
B11 : Assemble to one Model 1199 Diaphragm Seal
A : 4-20 mA with digital signal based on HART protocol

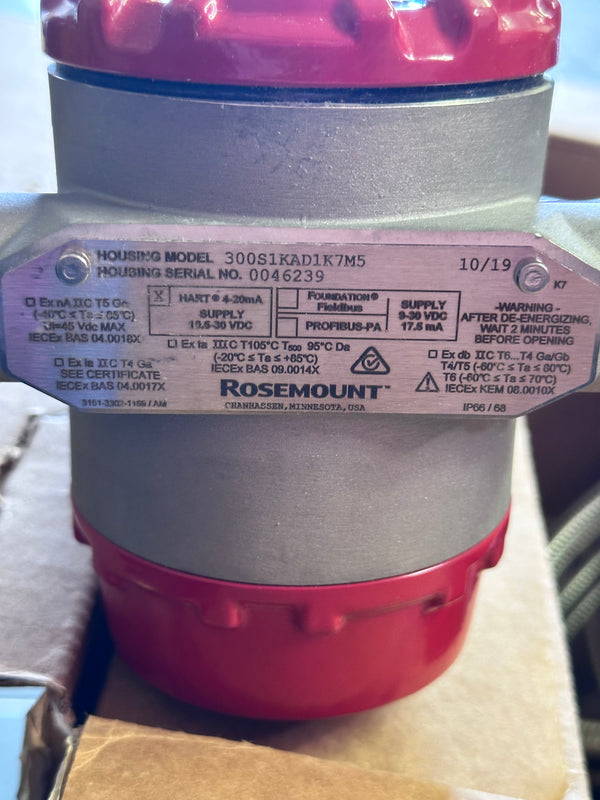

1K : PlantWeb housing | SST | M20 x 1.5
|
B4
|

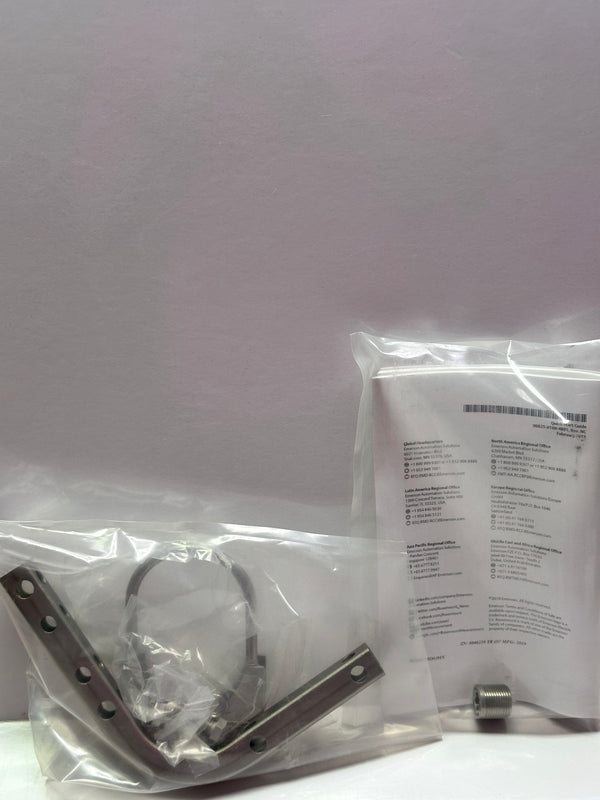

Coplanar flange bracket, all SST, 2-in. pipe and panel
|
C4 : NAMUR alarm and saturation levels, high alarm
D1 : Hardware adjustments (zero, span, alarm, security)
K7 : IECEx Flameproof, Dust Ignition-proof, Intrinsic Safety, Type n
M5 : PlantWeb LCD Display
P1 : Hydrostatic testing with certificate

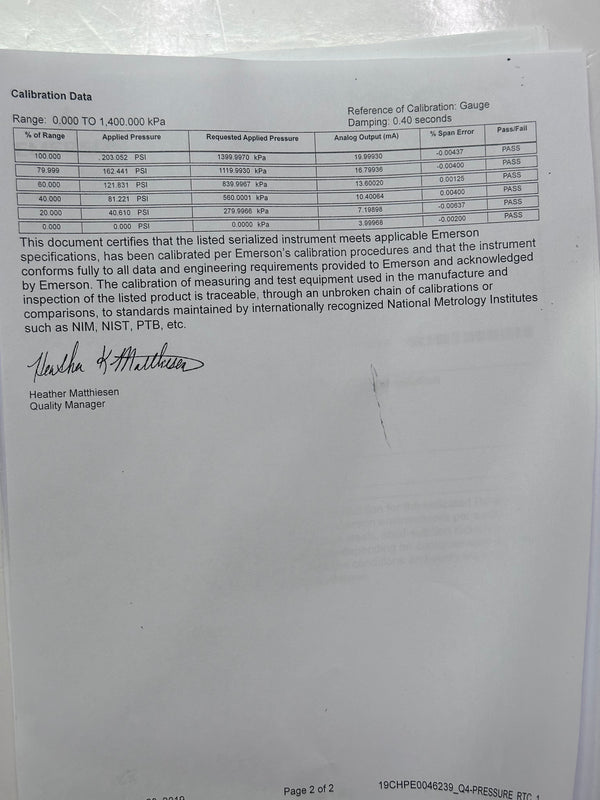

Q4 : Calibration certificate

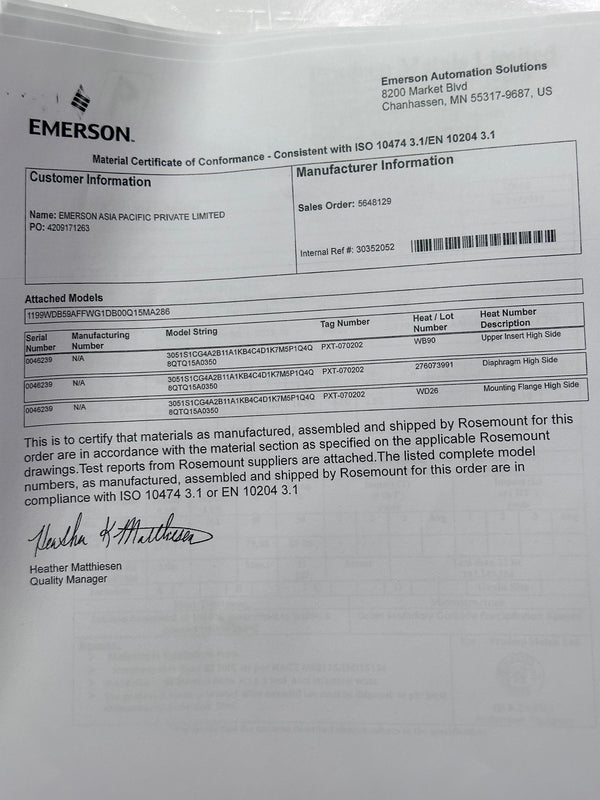

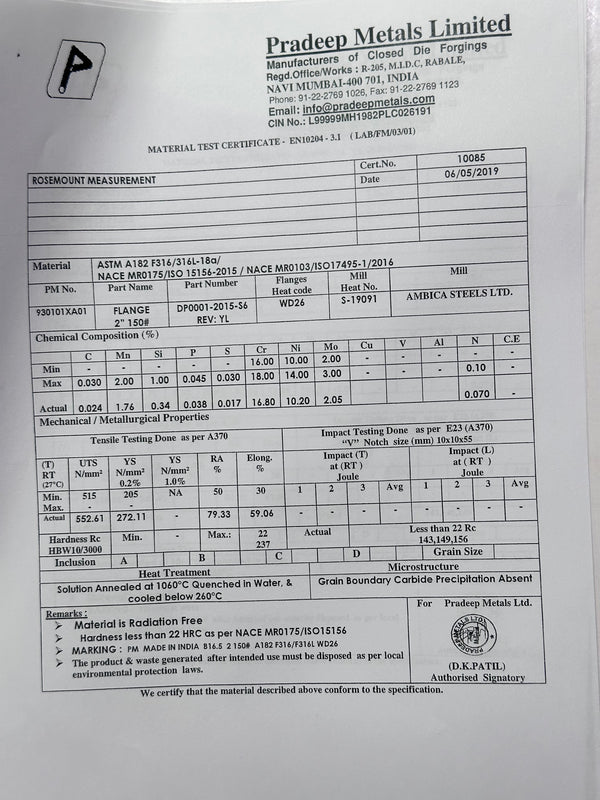

Q8 : Material traceability certification per EN 10204 3.1B

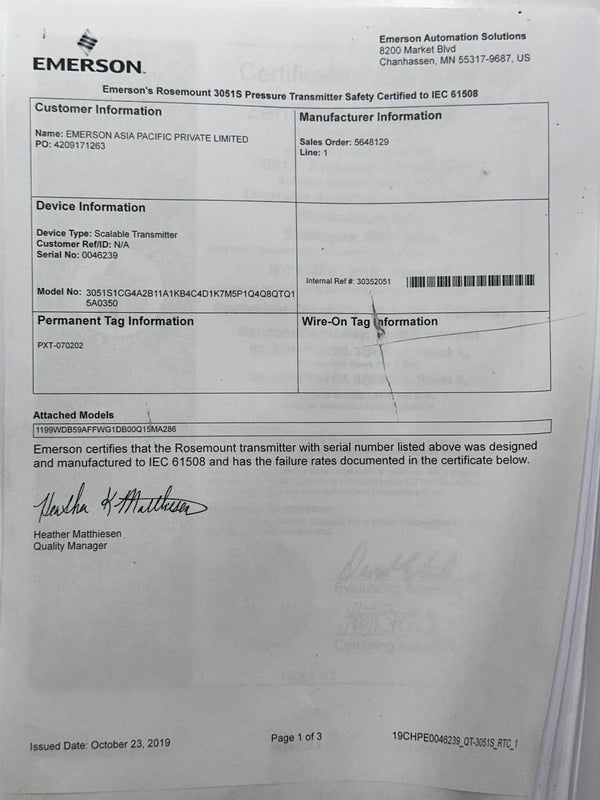

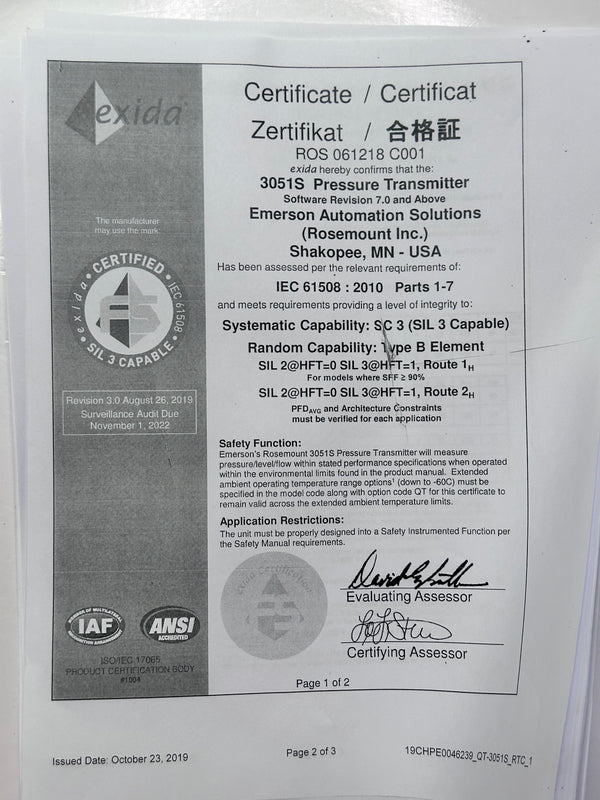

QT : Safety certified to IEC 61508 with certificate of FMEDA data
Q15 : Certificate of Compliance to NACE MR0175/ISO 15156 for wetted materials
