CARLO GAVAZZI
Carlo Gavazzi EI1808PPCSS Inductive Proximity Switch – M18, PNP NC
- SKU
- P-EI-A-7687
$95.00
Price includes GST.
Low stock: 2 left
Warehouse pickup available
- Weight
- 2.0 kg
Specifications
| Manufacturer | CARLO GAVAZZI |
|---|---|
| Product type | SENSOR |
| SKU | P-EI-A-7687 |
| Weight | 2.0 kg |
Description

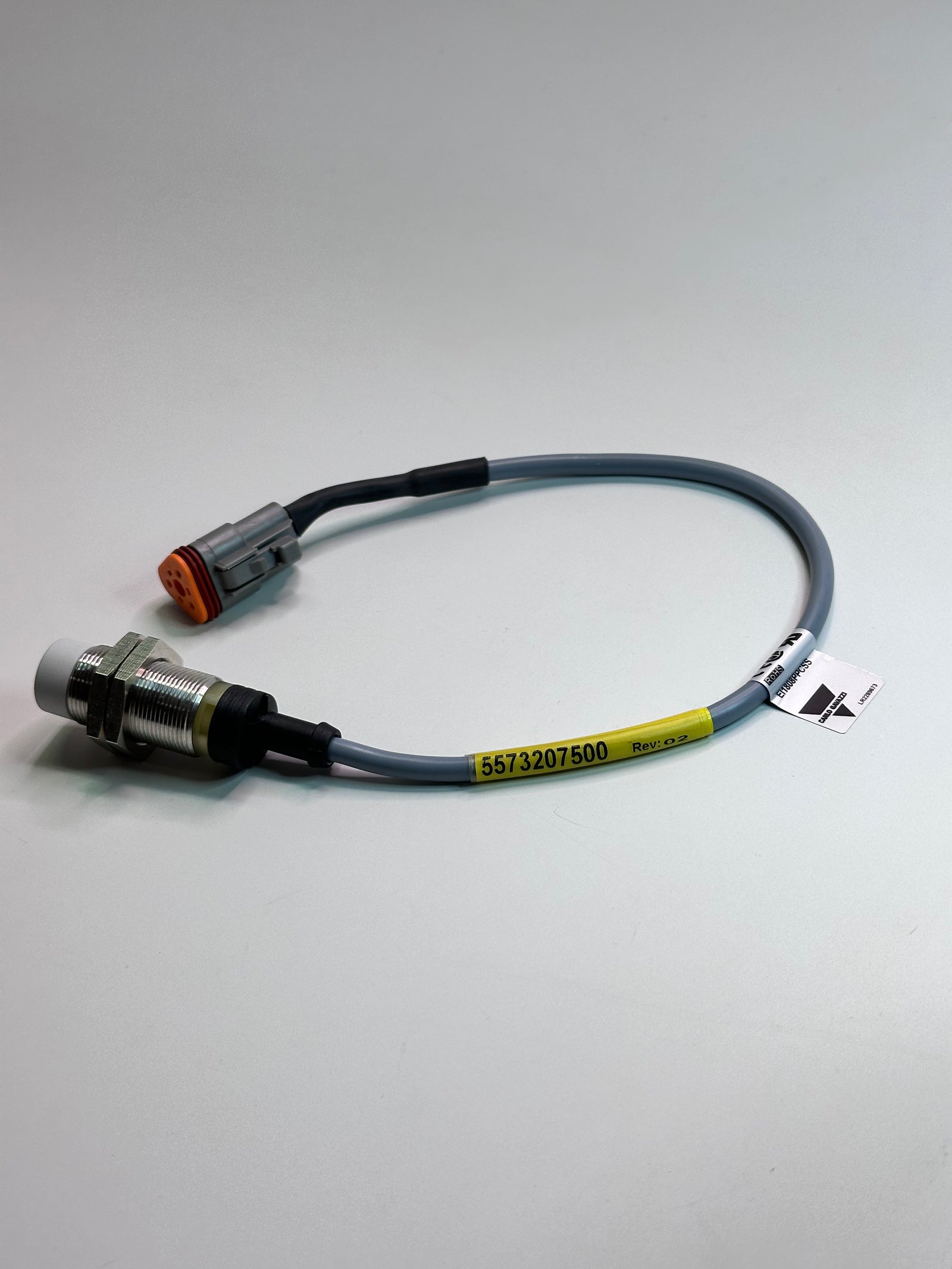

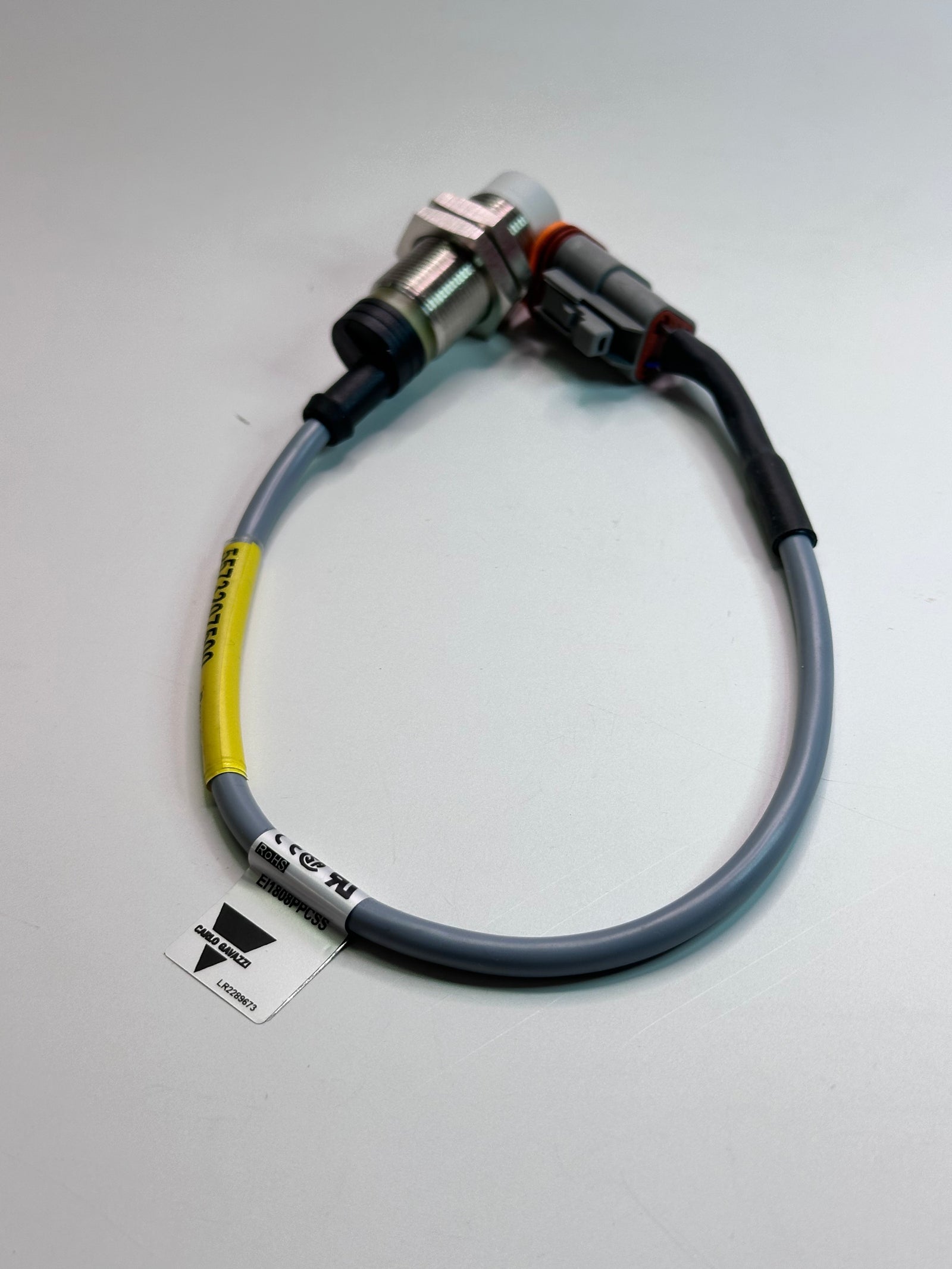

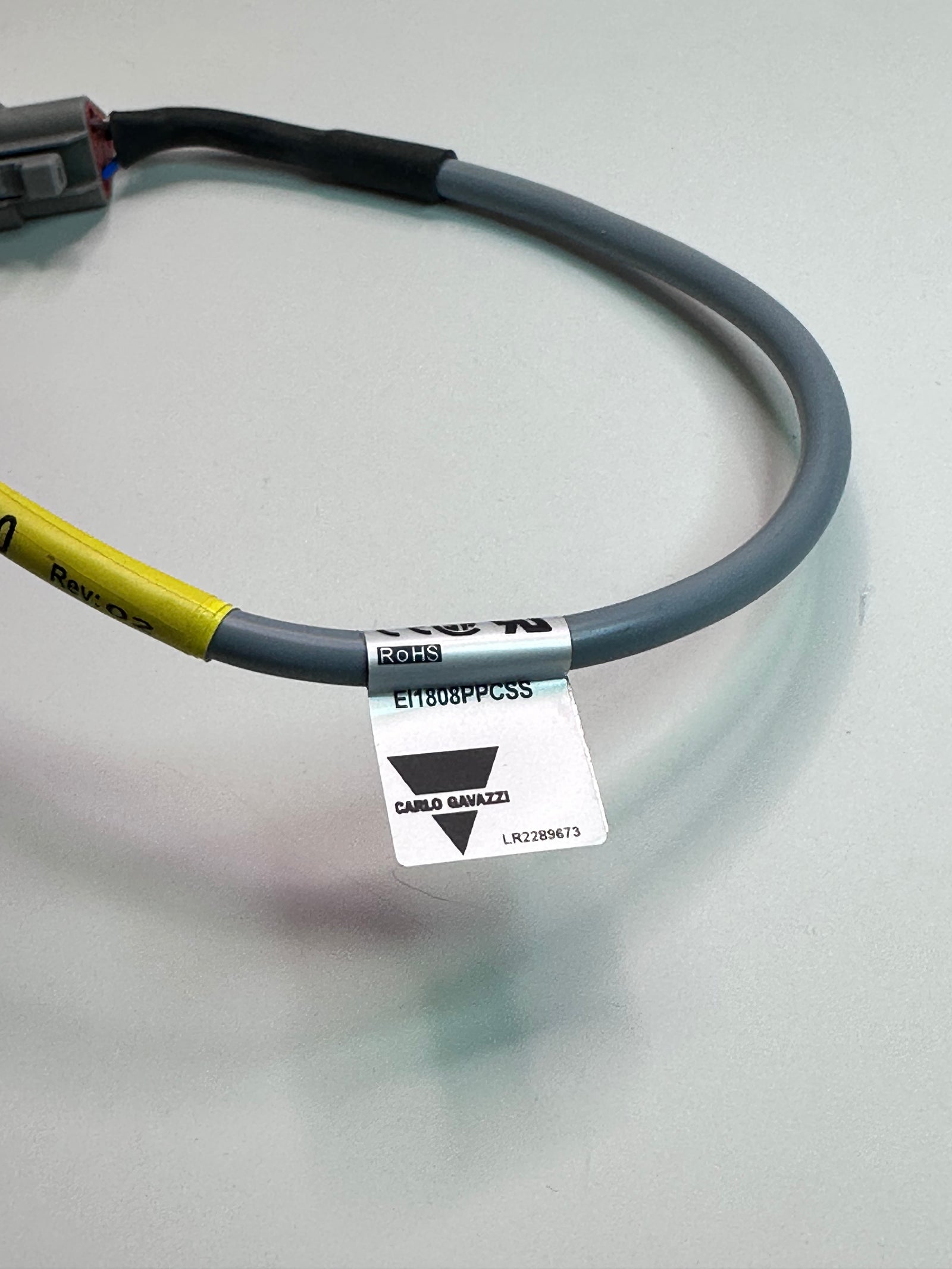

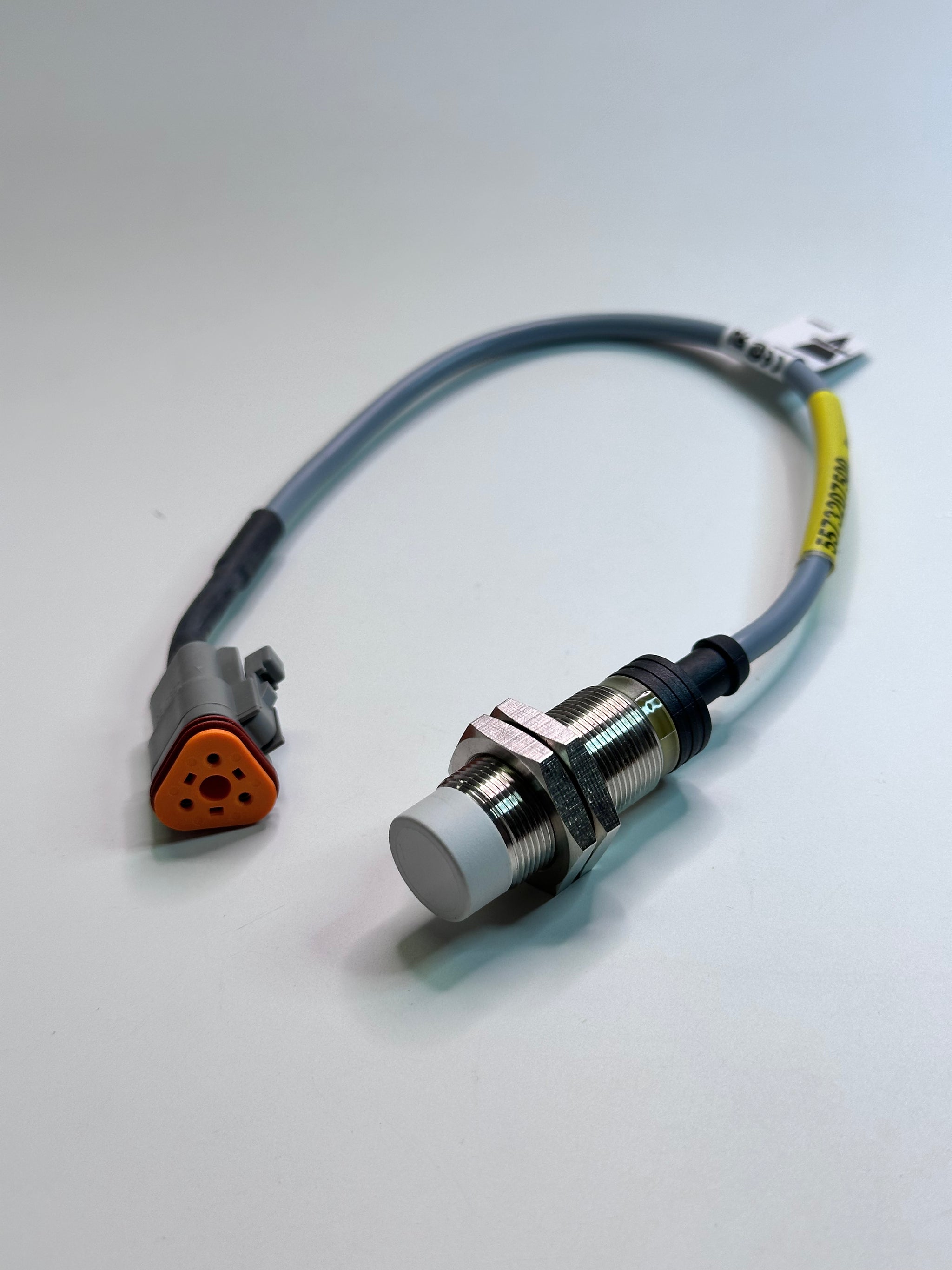

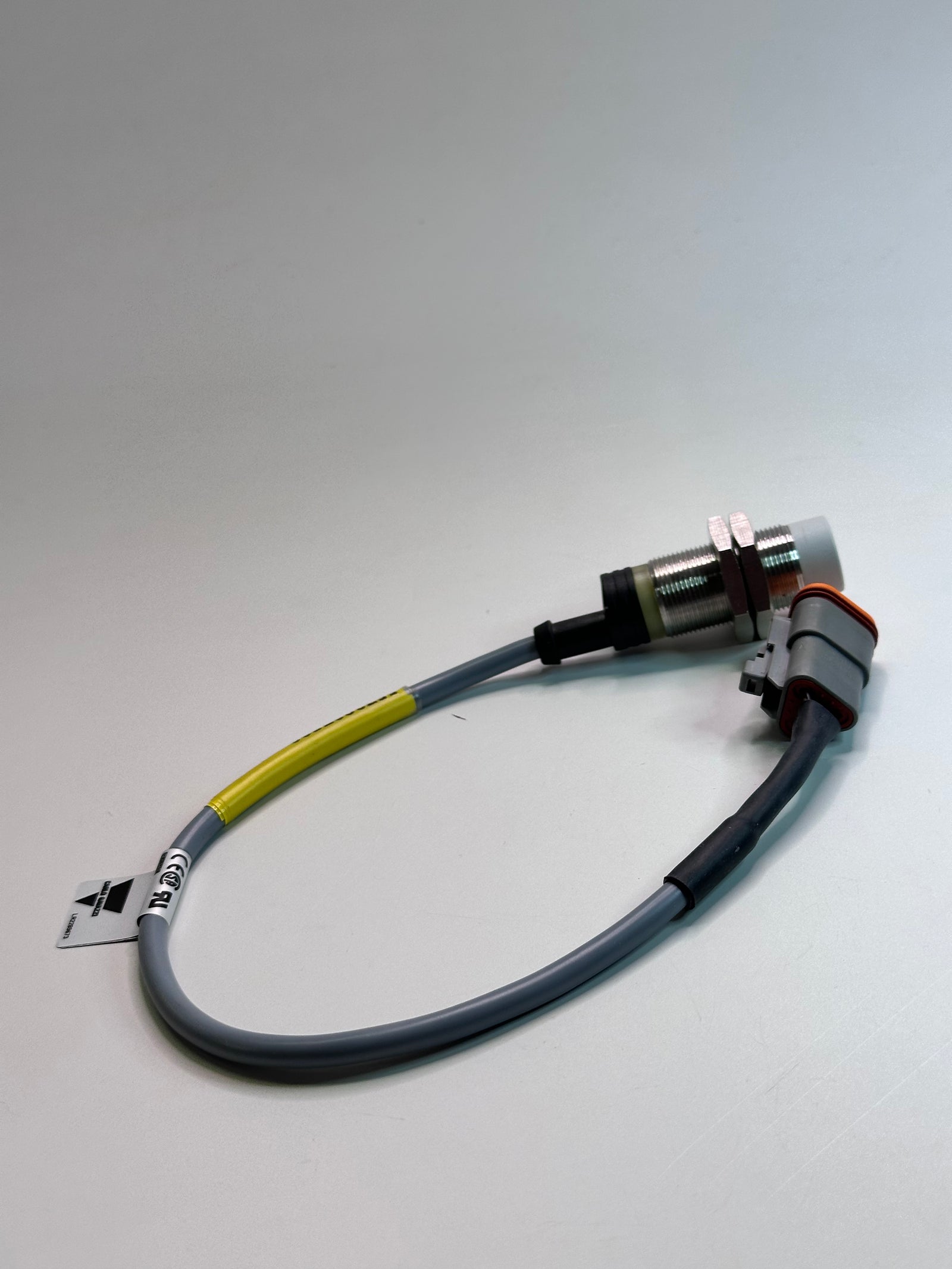

Carlo Gavazzi EI1808PPCSS inductive proximity switch
EI18-series shielded threaded-barrel sensor with a PNP normally closed (NC) switching output. The source title identifies an Atlas Copco application reference of 5573207500.
Source specifications
| Model | EI1808PPCSS |
|---|---|
| Thread / body | M18 / threaded barrel |
| Technology / range | Inductive / 8 mm |
| Output | PNP, NC |
| Connection | Pre-cabled, 2 m cable |
| Supply | 10–40 V DC; maximum DC voltage 40 V |
| Protection | IP67 |
| Listed length | 30 mm |
| Mounting / shielding | Flush / shielded |
| Operating temperature | −25°C to +70°C |
| Switching frequency | 400 Hz maximum |
| Switching current | 200 mA |
Application checks
The original tags also contain 278-0226, EPIROC and Sandvik. These are retained as source references, not confirmed interchangeability. Match the model, wiring, output logic, mounting arrangement and equipment part reference before ordering.
