EATON VICKERS

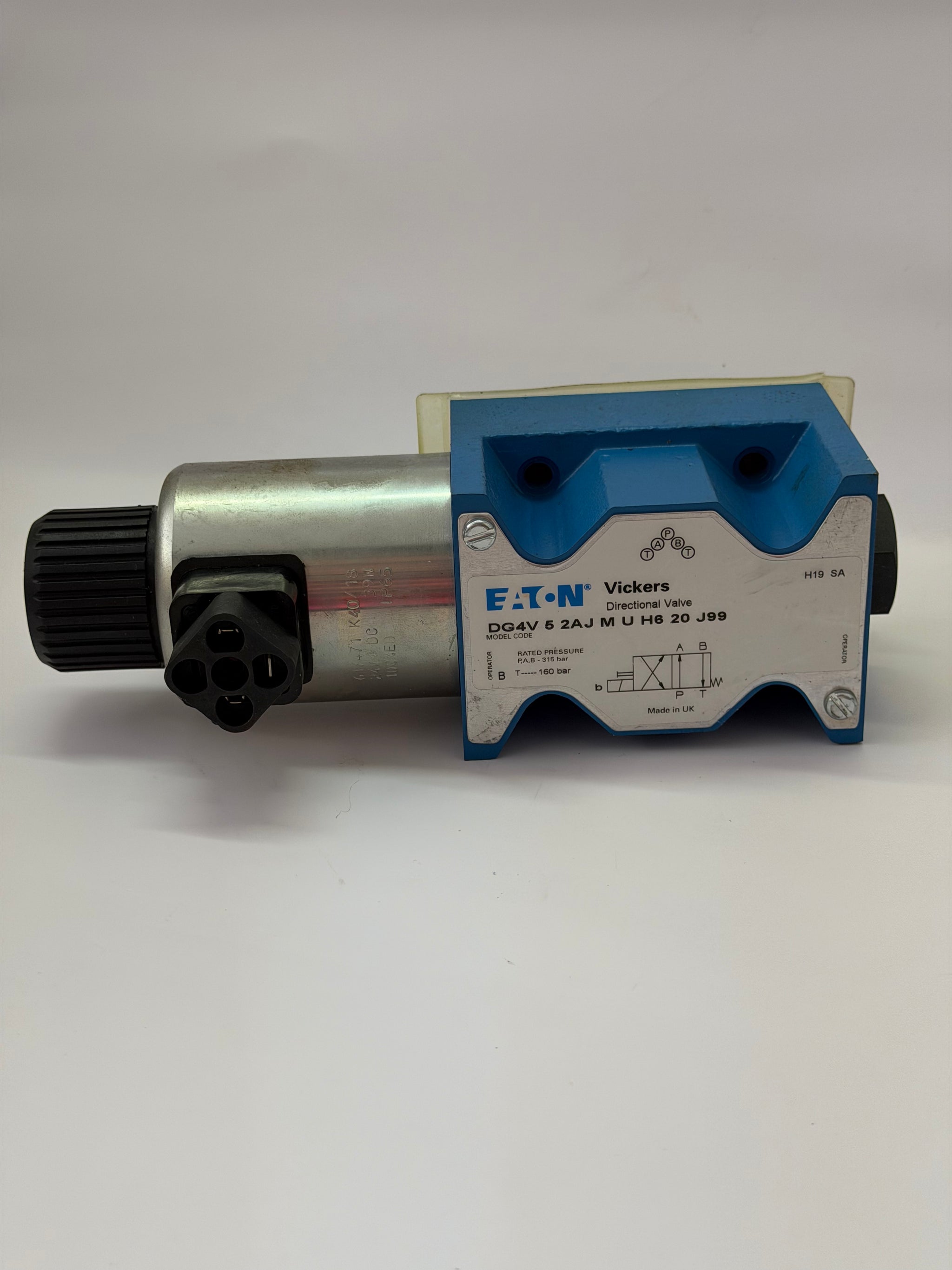

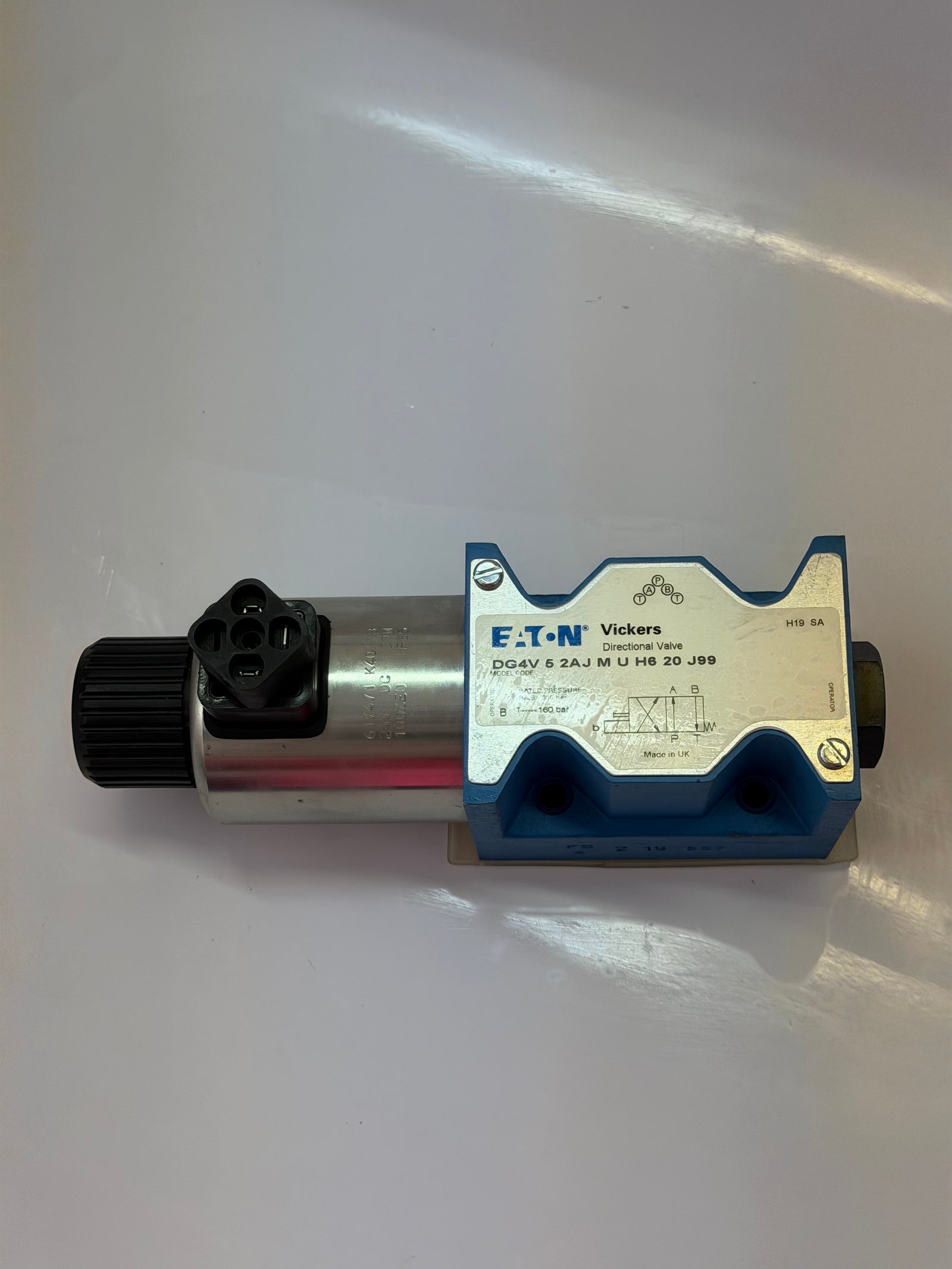

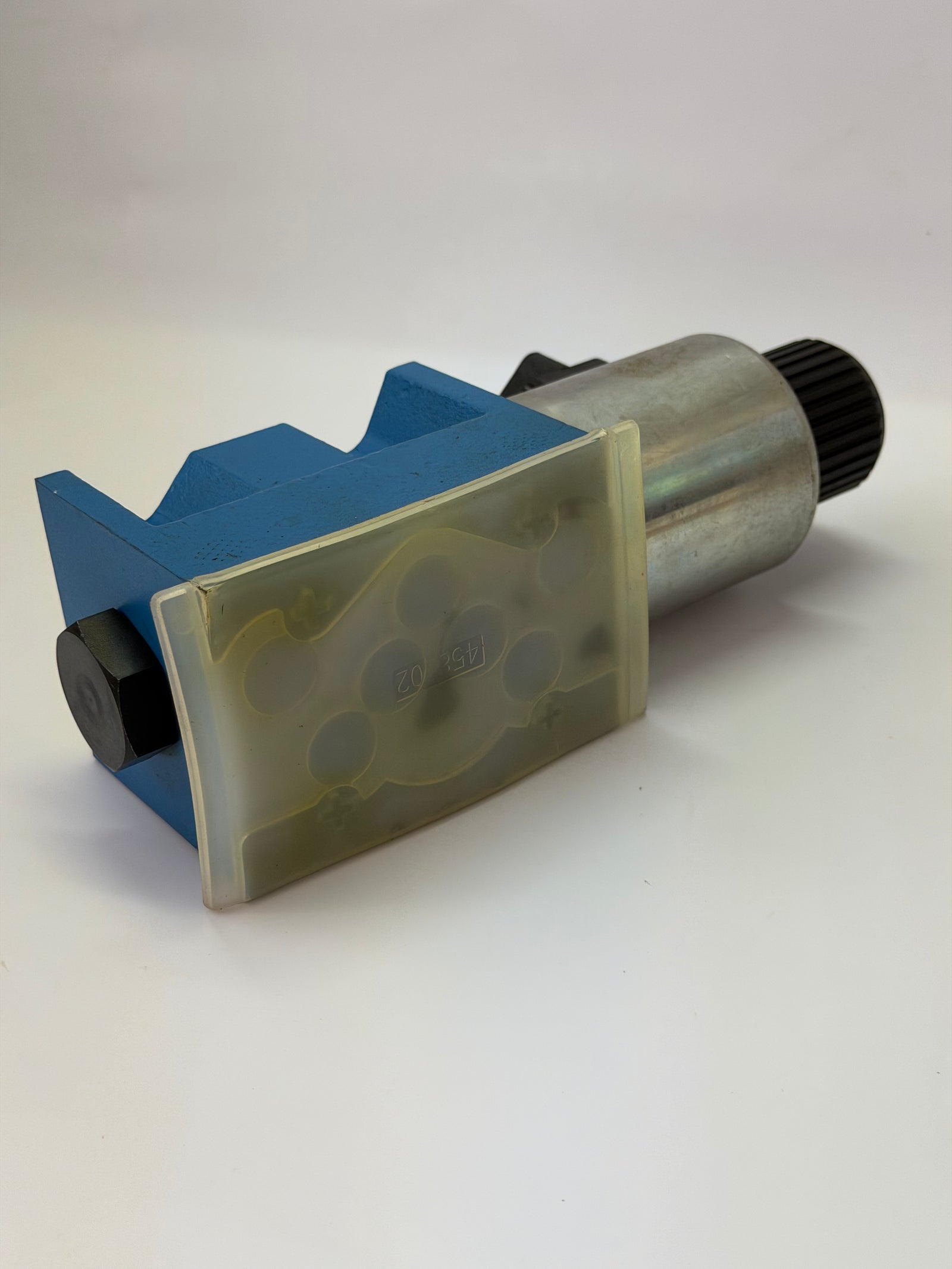

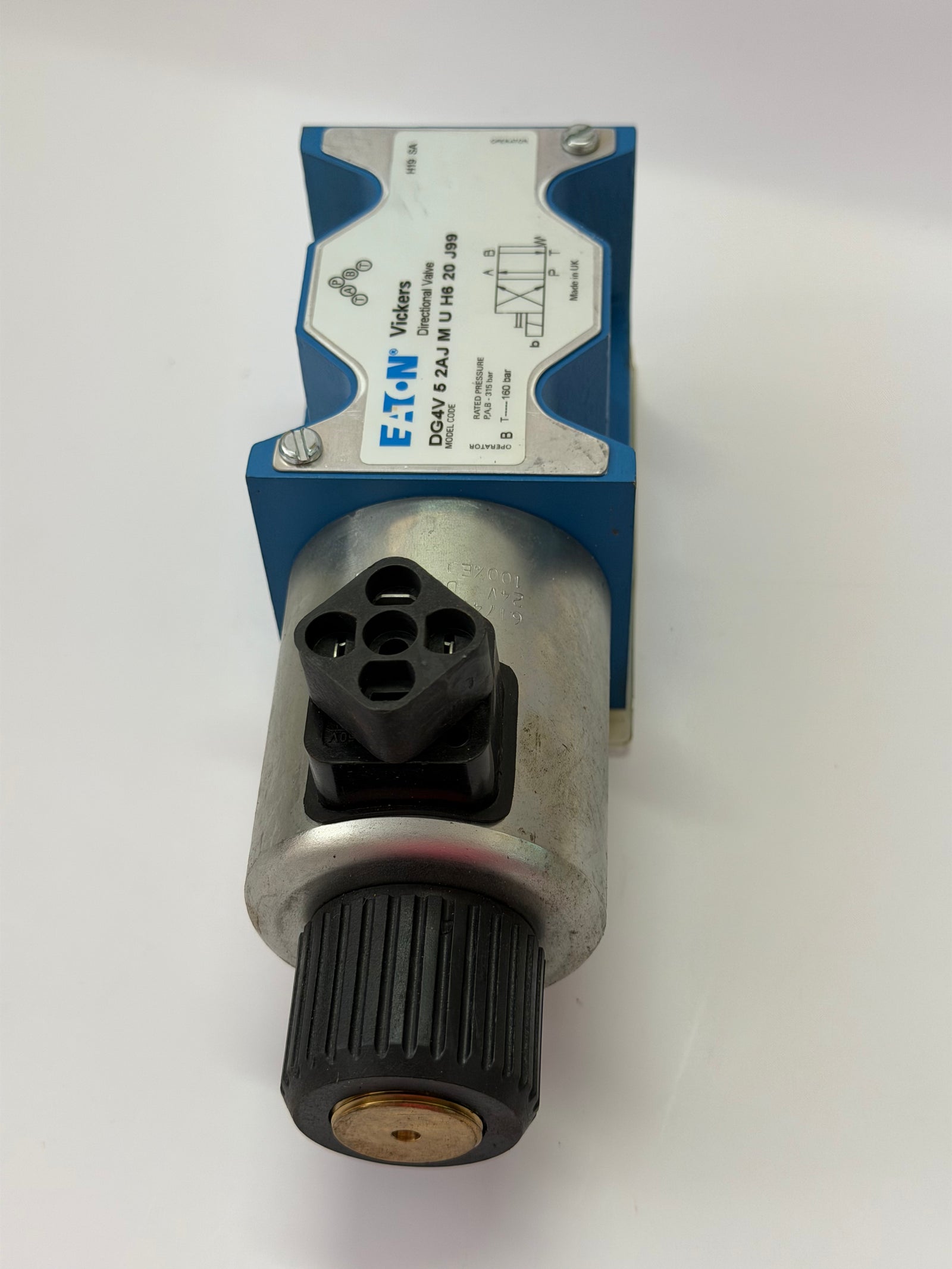

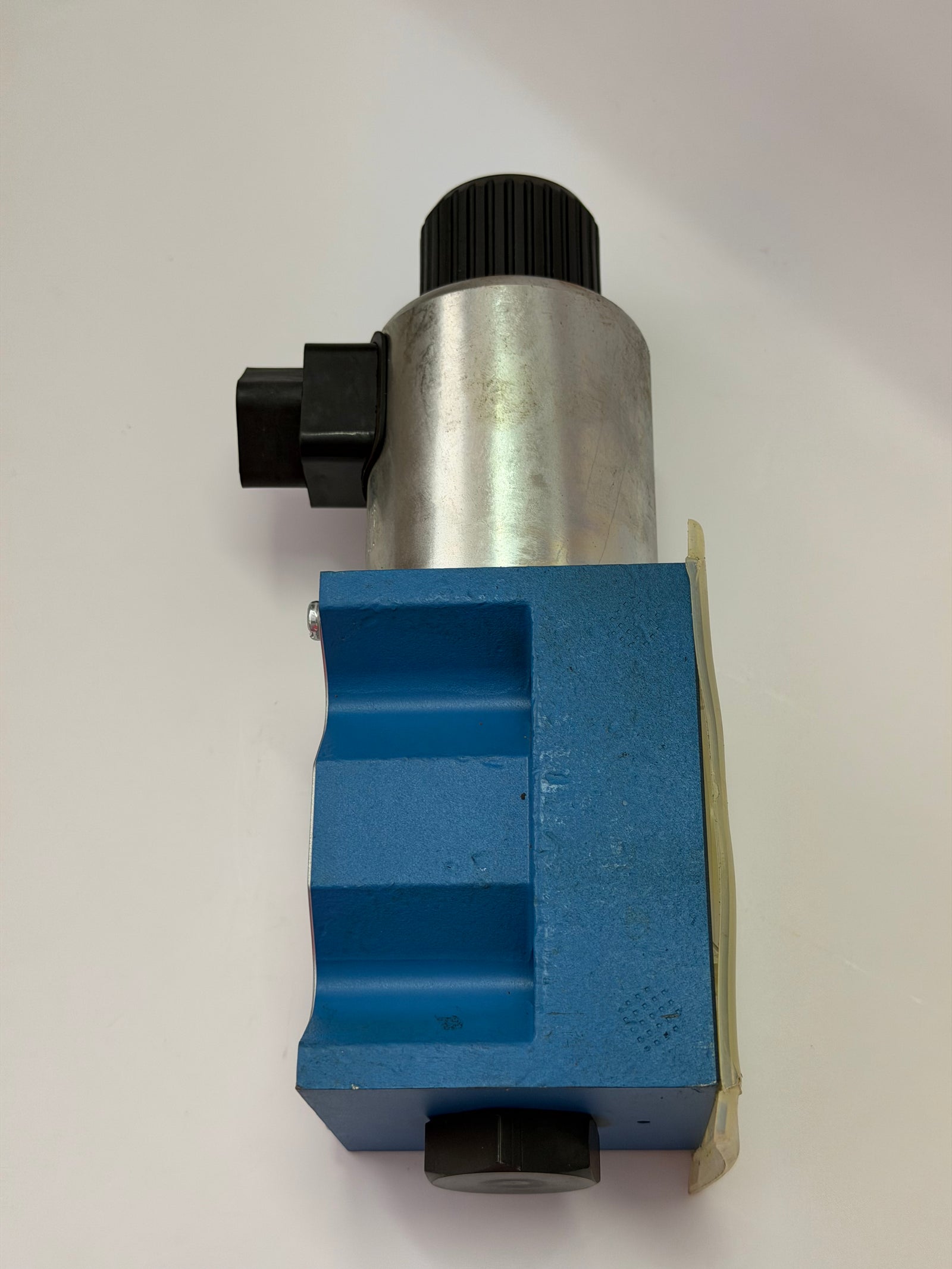

Eaton Vickers DG4V52AJMUH620 Solenoid Operated Direction Valve, 24V - 616768
- SKU
- P-EA-E-8986
$420.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 5.0 kg
Specifications
| Manufacturer | EATON VICKERS |
|---|---|
| Product type | HYDRAULICS & PNEUMATICS |
| SKU | P-EA-E-8986 |
| Weight | 5.0 kg |
Description
DG4V52AJMUH620 J99
Brand: Eaton Vickers (by Danfoss)
Valve Type: Single-stage, four-port directional control valve
Spool Configuration: Spool type 2, spring offset to A

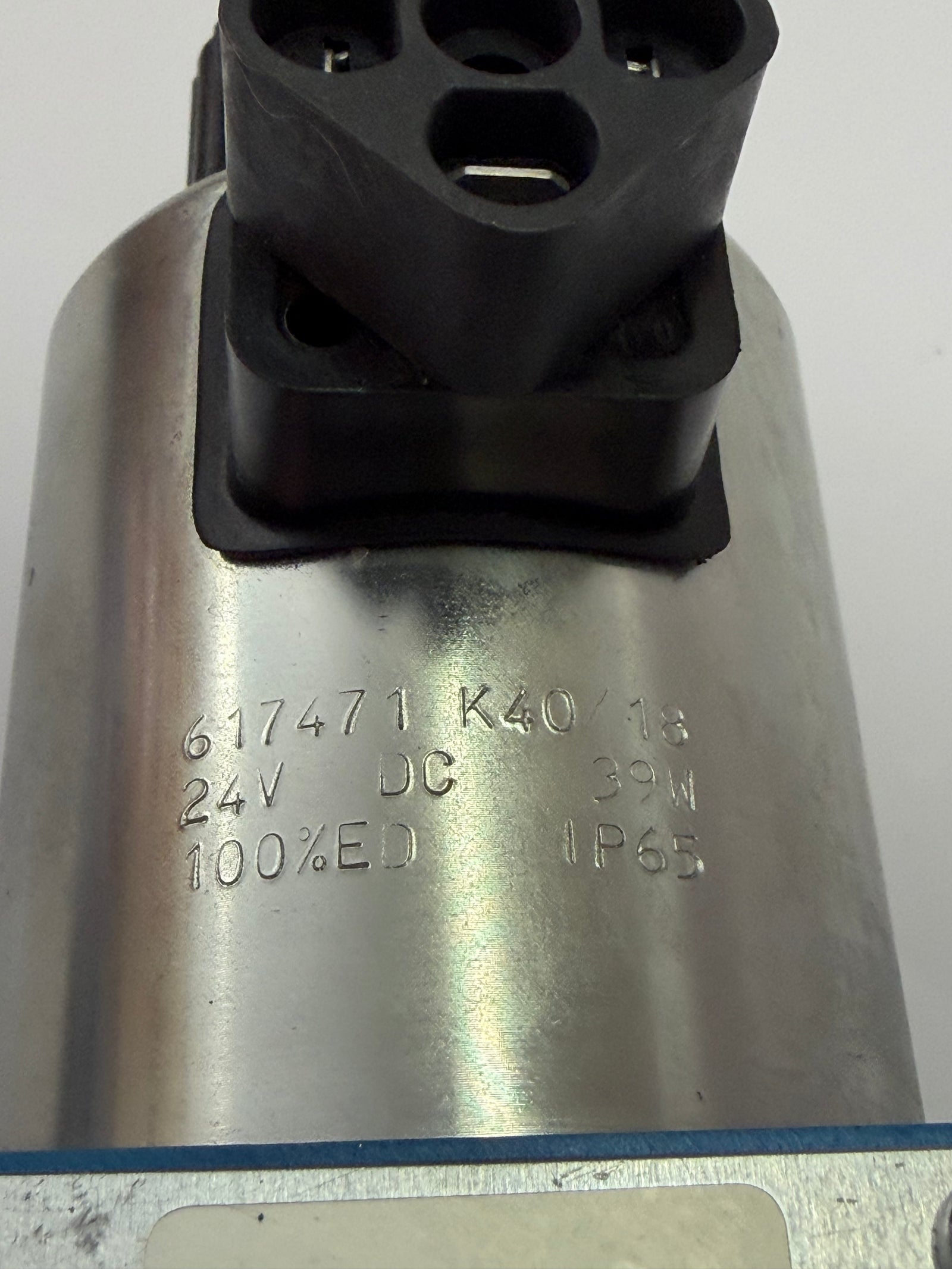

Coil Rating / Voltage: 24 VDC with ISO 4400 (DIN 43650) electrical connection
Maximum Flow Rate: Up to 120 Liters per minute (LPM)
Pressure Rating: 315 bar (4,500 PSI) operating pressure; tank port rated up to 160 bar (2,300–2,400 PSI)
Mounting Interface: ISO 4401-05 (subplate or manifold mounted)
Suffix J99: Indicates a specific factory modification or customer-specific variant option from the standard 20-series build.
