| Actuation type |
Pressure operated
|
| Adjustment location |
Adjuster - B port end of valve
|
| Adjustment type |
Screw and locknut
|
| Brand |
Vickers by Danfoss
|
| Design series |
40 Series
|
| Flow rate upto LPM |
60
|
| Flow rate upto USGPM |
16.0
|
| Fluid cleanliness |
19/17/14 micron
|
| Fluid compatibility |
Petroleum Oils
|
| Function ports |
Reducing line P, pilot line P
|
| Gauge port thread type |
G1/8" (1/8" BSPF)
|
| Interface |
ISO4401-03
|
| Maximum pressure upto bar |
315
|
| Maximum pressure upto psi |
4500
|

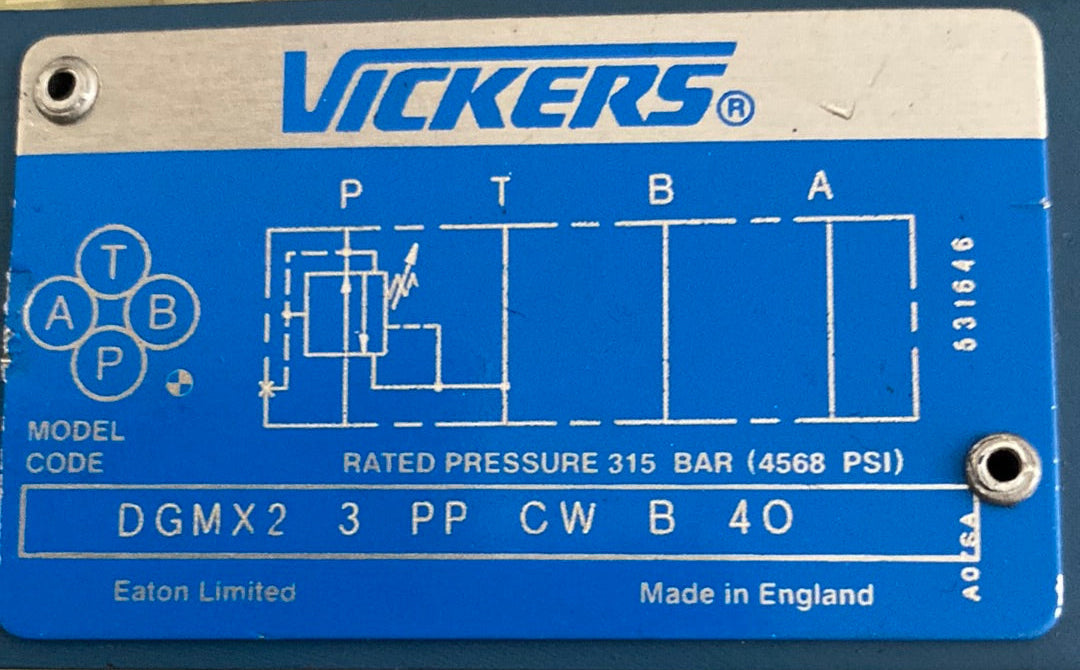

| Model Code |
DGMX23PPCWB40
|
| Model Code 1 |
DGMX23PPCWB40
|
| Performance |
Standard
|
| Pressure adjustment range |
10-140 bar (145-2000 psi)
|
| Seal type |
Viton
|
| Special features |
None
|
| Valve mount type |
Subplate/manifold mounted
|
| Valve type |
Reducing-relieving overlapped
|
| Working temp max C |
80
|
| Working temp max F |
176
|
| Working temp min C |
-20
|
| Working temp min F |
-4
|
