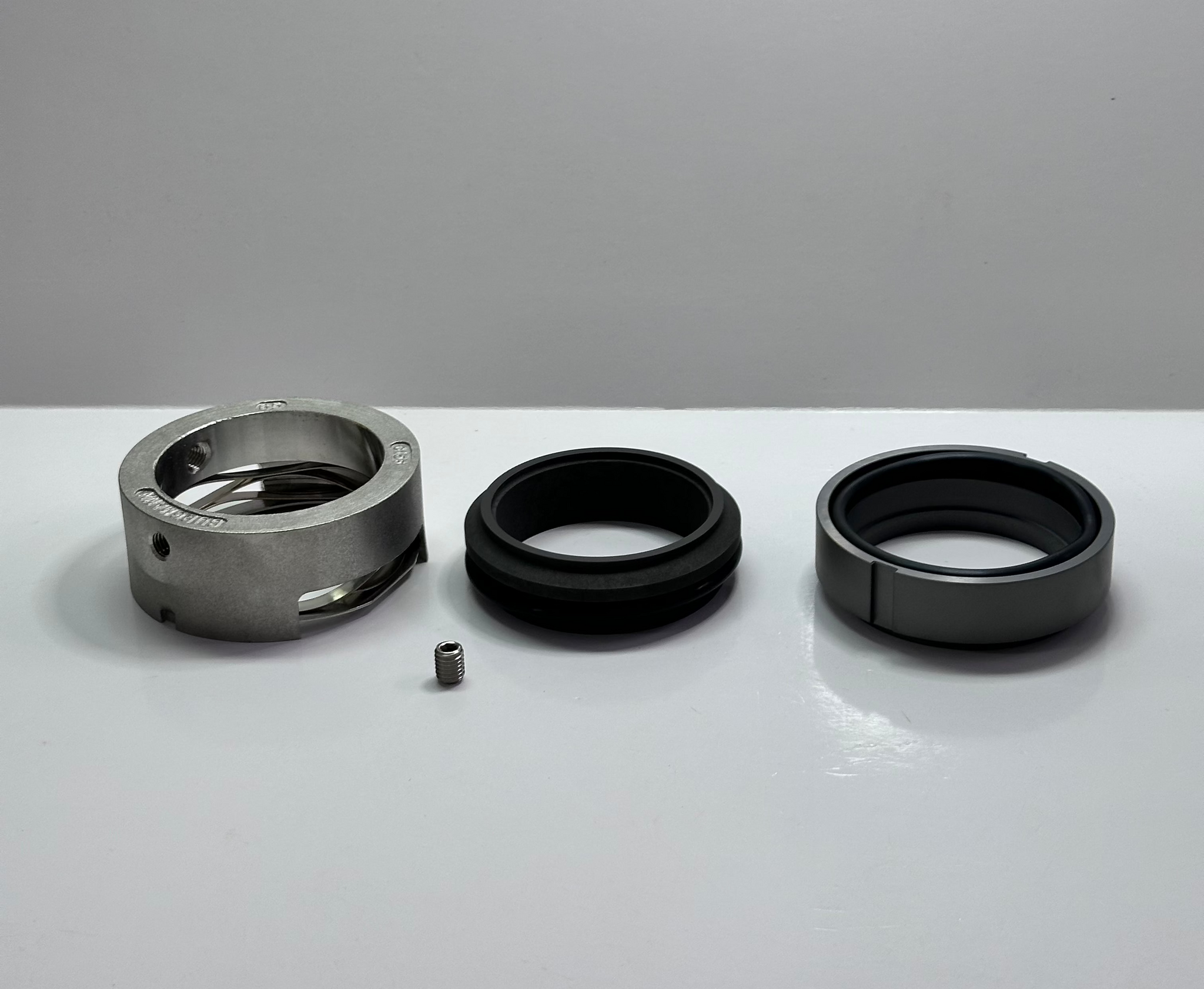

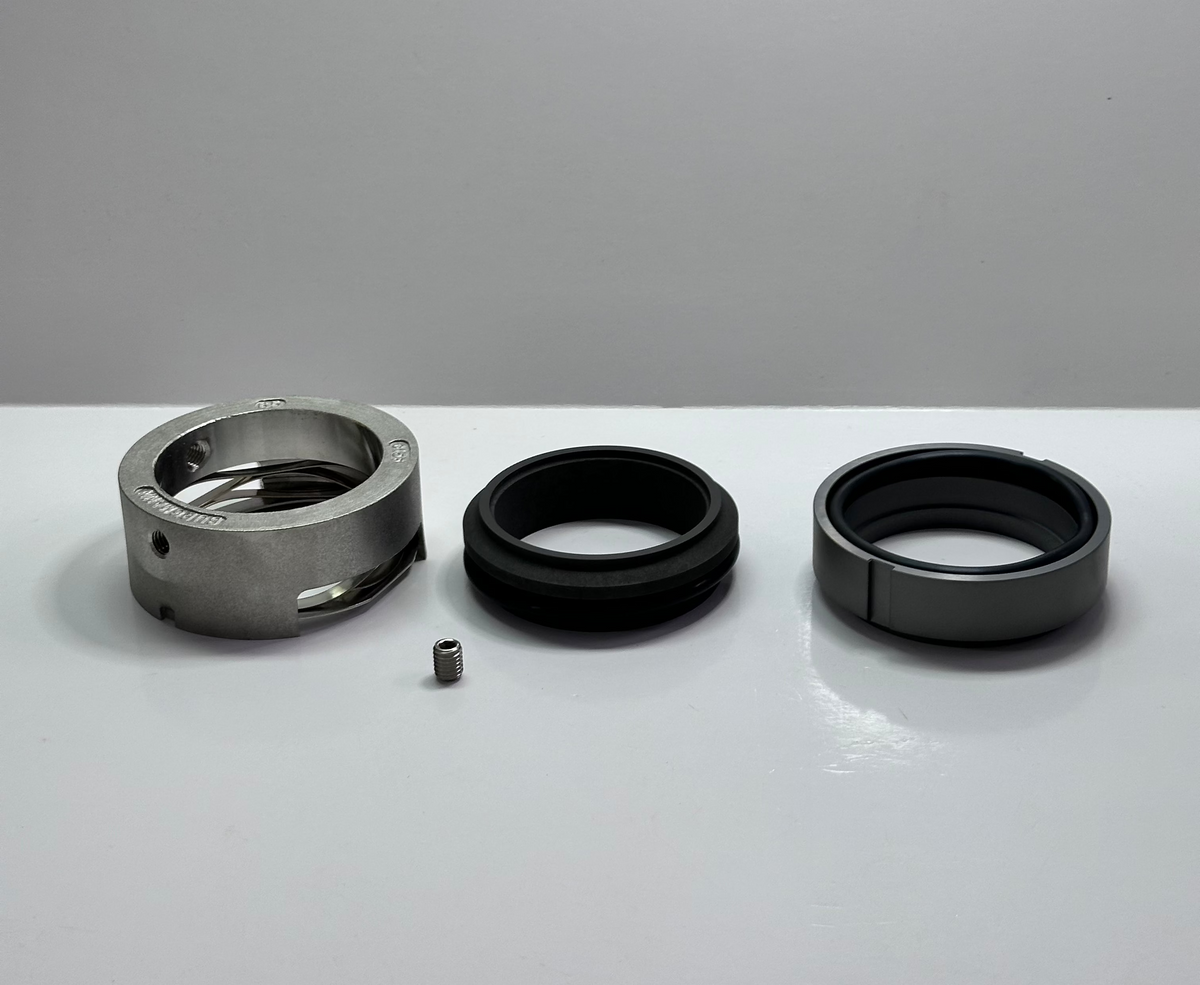

EagleBurgmann H7N/60-00 Q1BE4GG Mechanical Seal

SKU
P-EA-E-7022
$185.00 Price includes GST.
Low stock: 1 left Warehouse pickup available

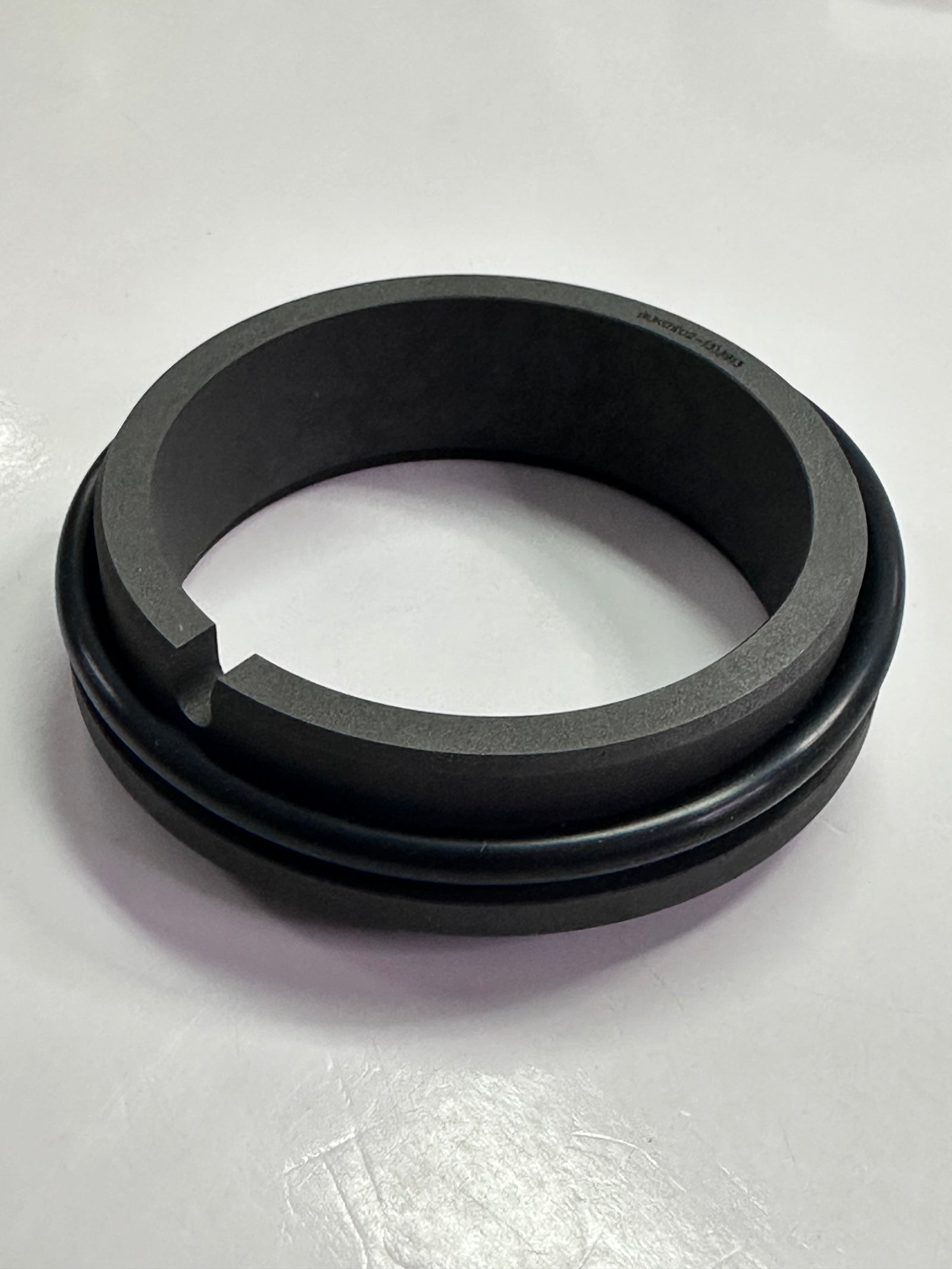

EagleBurgmann H7N/60-00 Q1BE4GG Mechanical Seal

Ask about this part

Weight
1.5 kg

Specifications

Manufacturer EAGLEBURGMANN
Product type SEALS & GASKETS
SKU P-EA-E-7022
Weight 1.5 kg

Description

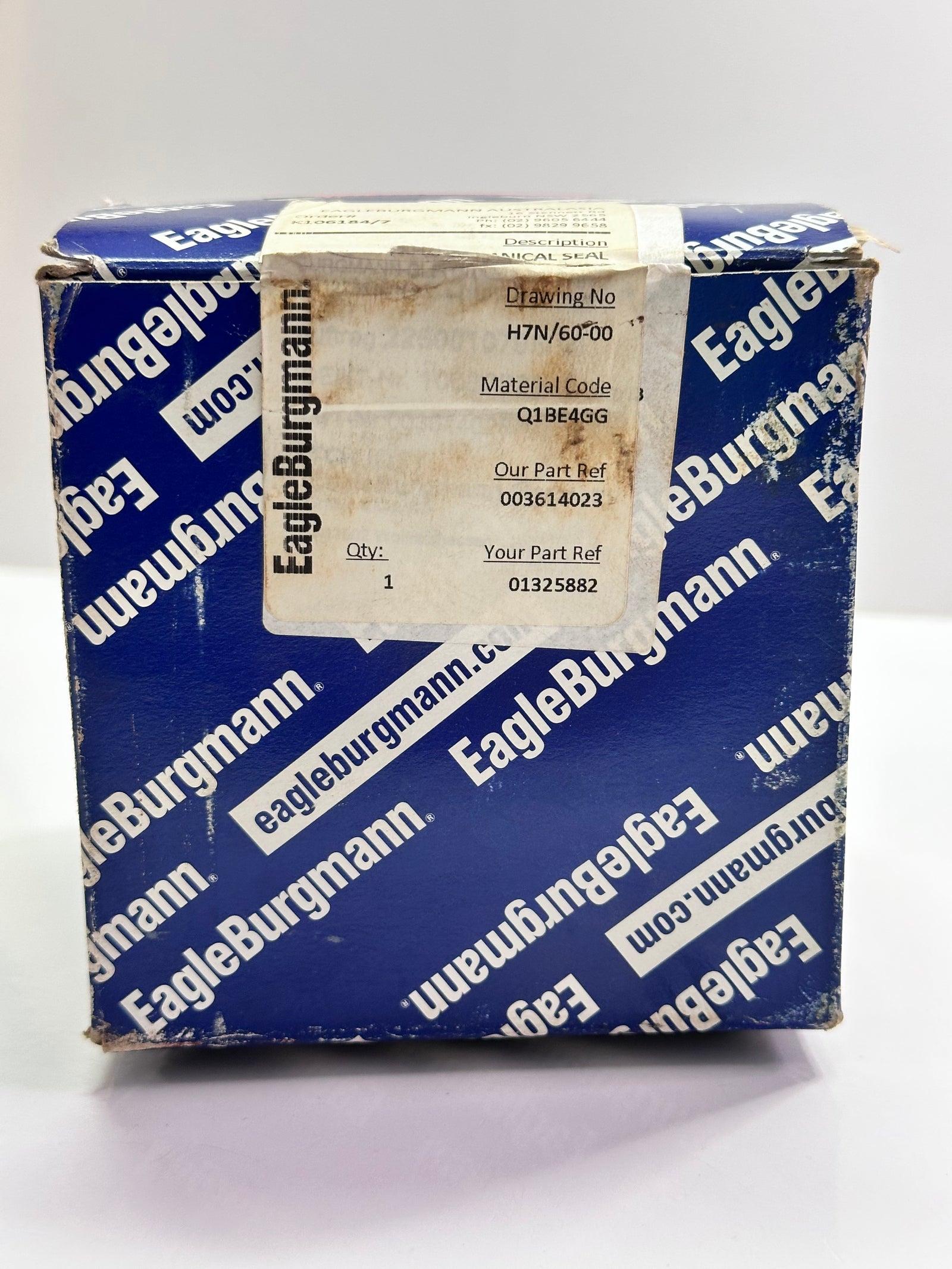

Drawing No. H7N/60-00

Material No. Q1BE4GG

Operating range

Shaft diameter:
d1 = 14 ... 100 mm (0.55" ... 3.94")
(Single spring: d1 = max. 100 mm (3.94"))
Pressure:
p1 = 80 bar (1,160 PSI) for d1 = 14 ... 100 mm,
p1 = 25 bar (363 PSI) for d1 = 100 ... 200 mm,
p1 = 16 bar (232 PSI) for d1 > 200 mm
Temperature:
t = -50 °C ... 220 °C (-58 °F ... 428 °F)
Sliding velocity: vg = 20 m/s (66 ft/s)
Axial movement:
d1 up to 22 mm: ± 1.0 mm
d1 24 up to 58 mm: ± 1.5 mm
d1 from 60 mm: ± 2.0 mm

Materials

Seal face: Silicon carbide (Q1, Q2), Carbon graphite antimony impregnated (A), Aluminium oxide (V), CrMo cast steel (S)
Seat G9: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (Q1*, Q2*)
Secondary seals: EPDM (E), NBR (P), FKM (V), FFKM (K)
Springs: CrNiMo steel (G)
Metal parts: CrNiMo steel (G), Duplex (G1)
* Cannot be combined with seal face made of S

Standards and approvals

  • EN 12756
