BURGMANN
EagleBurgmann MG1/65-G6 AQ1PGG Mechanical Seal
- SKU
- P-EA-B-6739
$550.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 2.0 kg
Specifications
| Manufacturer | BURGMANN |
|---|---|
| Product type | MECHANICAL DRIVE PARTS |
| SKU | P-EA-B-6739 |
| Weight | 2.0 kg |
Description

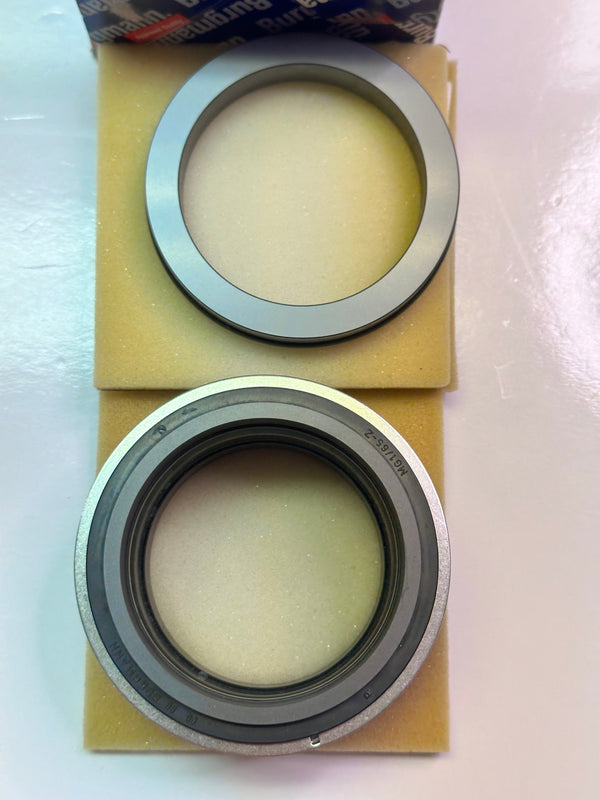

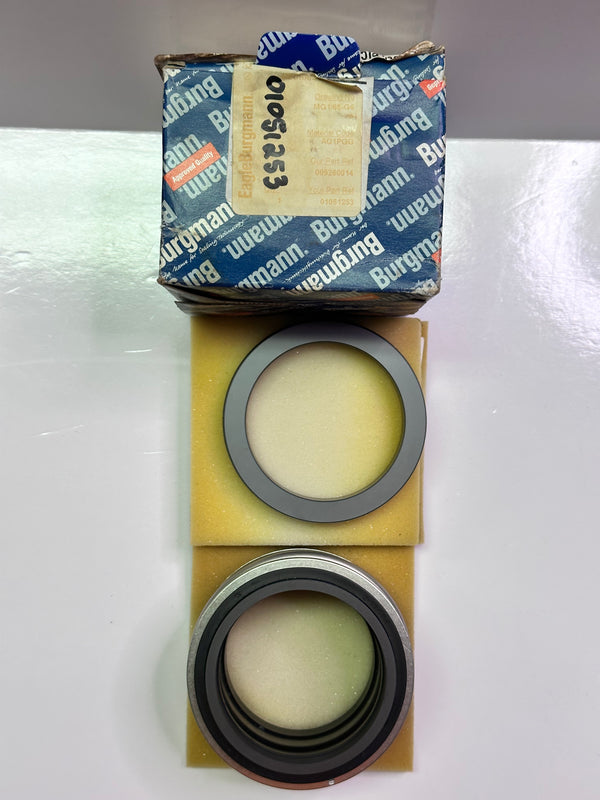

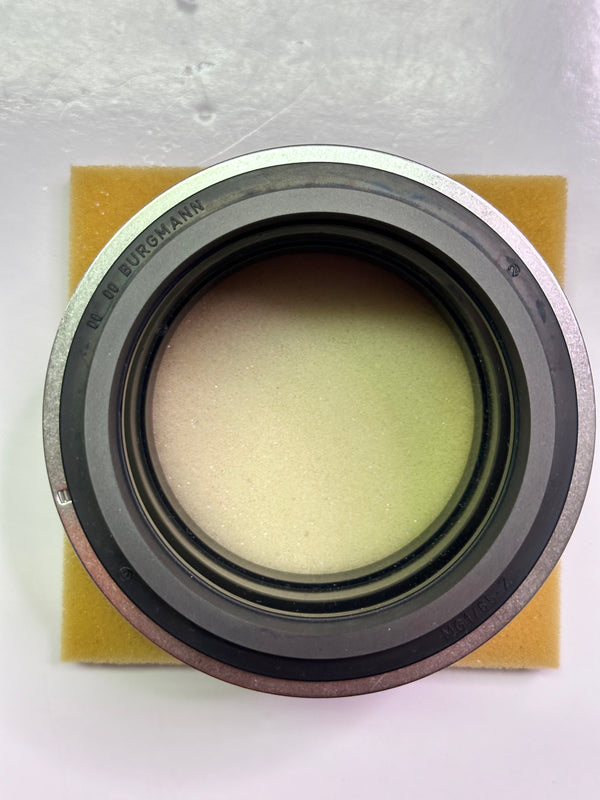

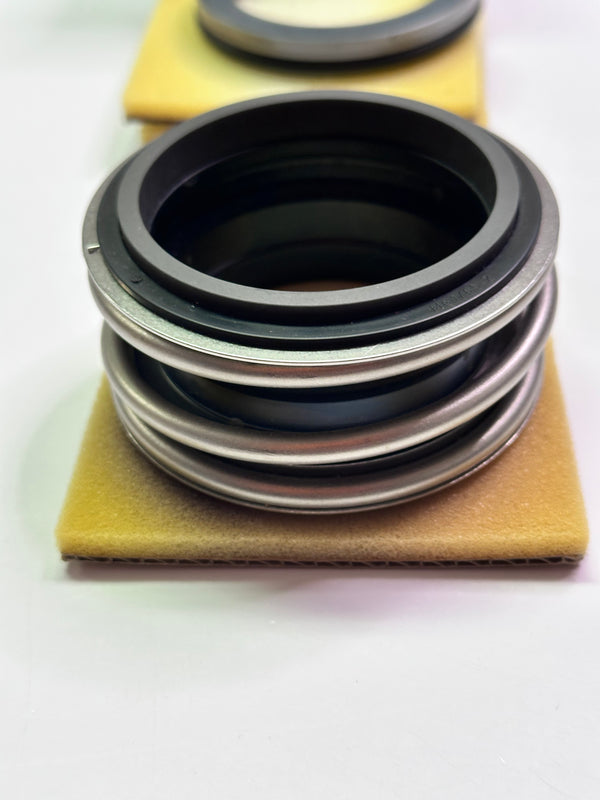

Genuine Burgmann MG1 Mechanical Seal with O-ring mounted seat.
Now supplied as BQ7EGG material code.
65mm Mechanical Seal Carbon Silicon EP
Shaft Diameter: 65 mm
Seal Face Material: Special Carbon graphite (A)
Seat Material: Silicon carbide (Q1)
Elastomer Material: NBR (P)

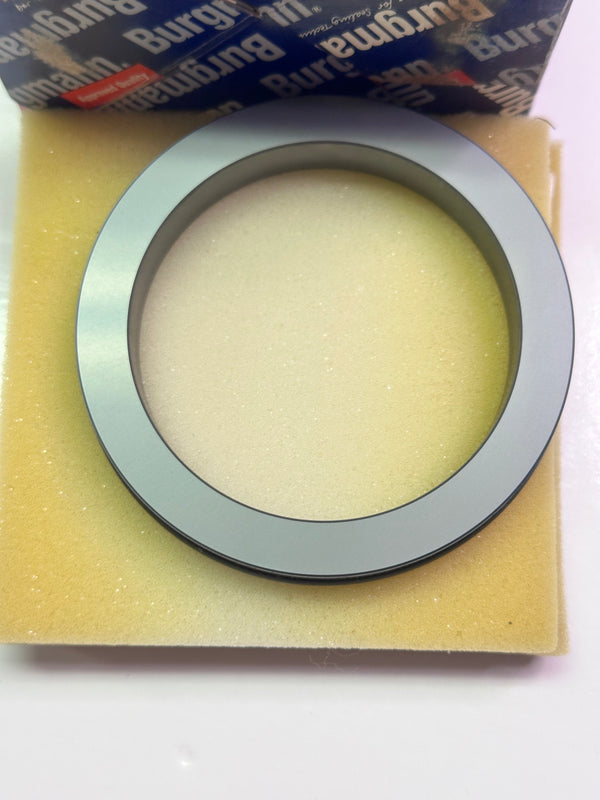

Stationary Seat Type: G6 (O-ring mounted)
Design Code: GG (Metal parts in CrNiMo steel)
Operating Limits
Temperature: -20°C to +120°C
Pressure: Up to 12 bar
Speed: Up to 10 m/s
