CROMPTON INSTRUMENTS
Crompton E243-03AG-LS-C5 Long-Scale Panel Meter — Range to Confirm
- SKU
- P-E--C-7542
$45.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 2.0 kg
Specifications
| Manufacturer | CROMPTON INSTRUMENTS |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-E--C-7542 |
| Weight | 2.0 kg |
Description

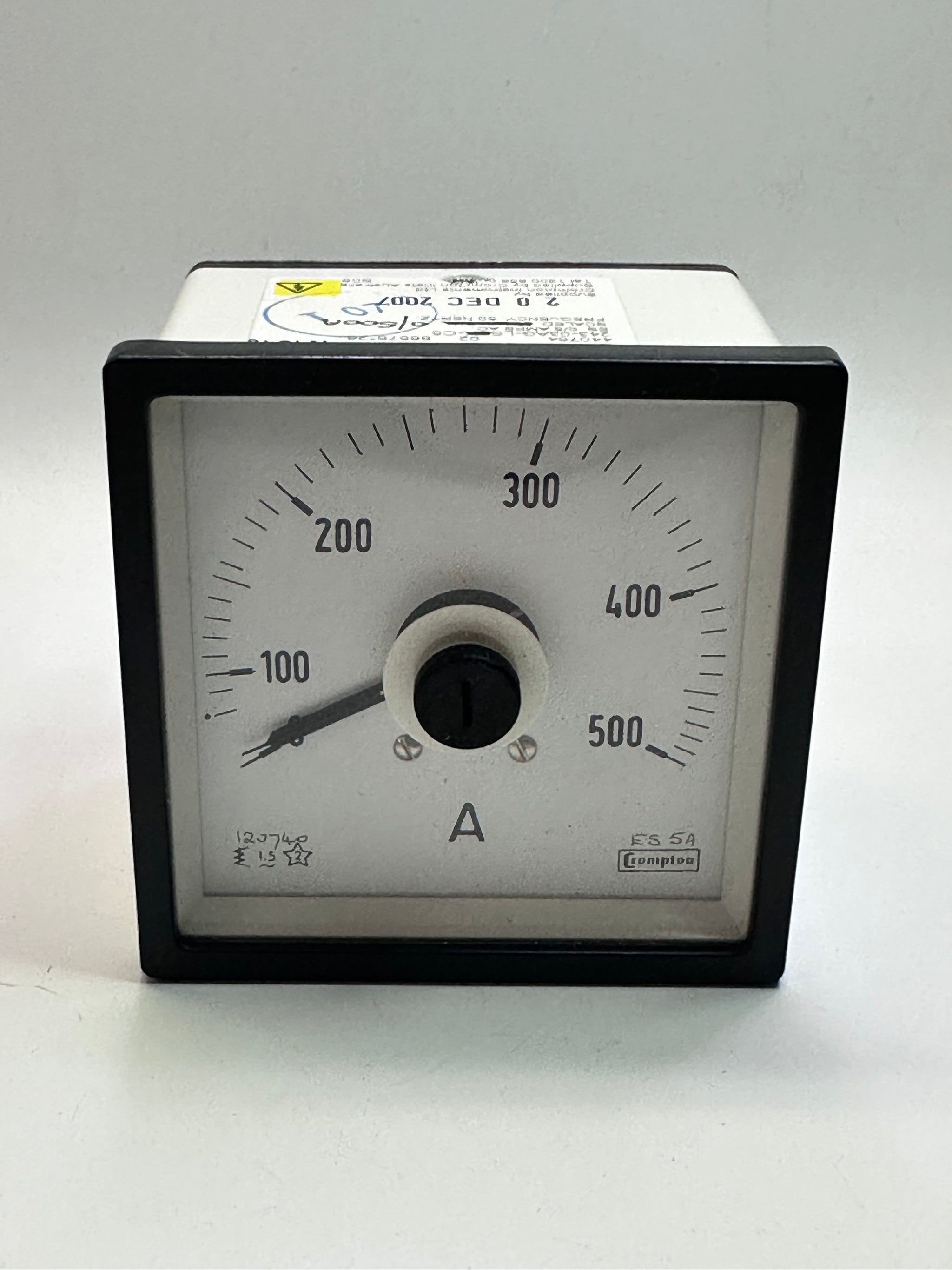

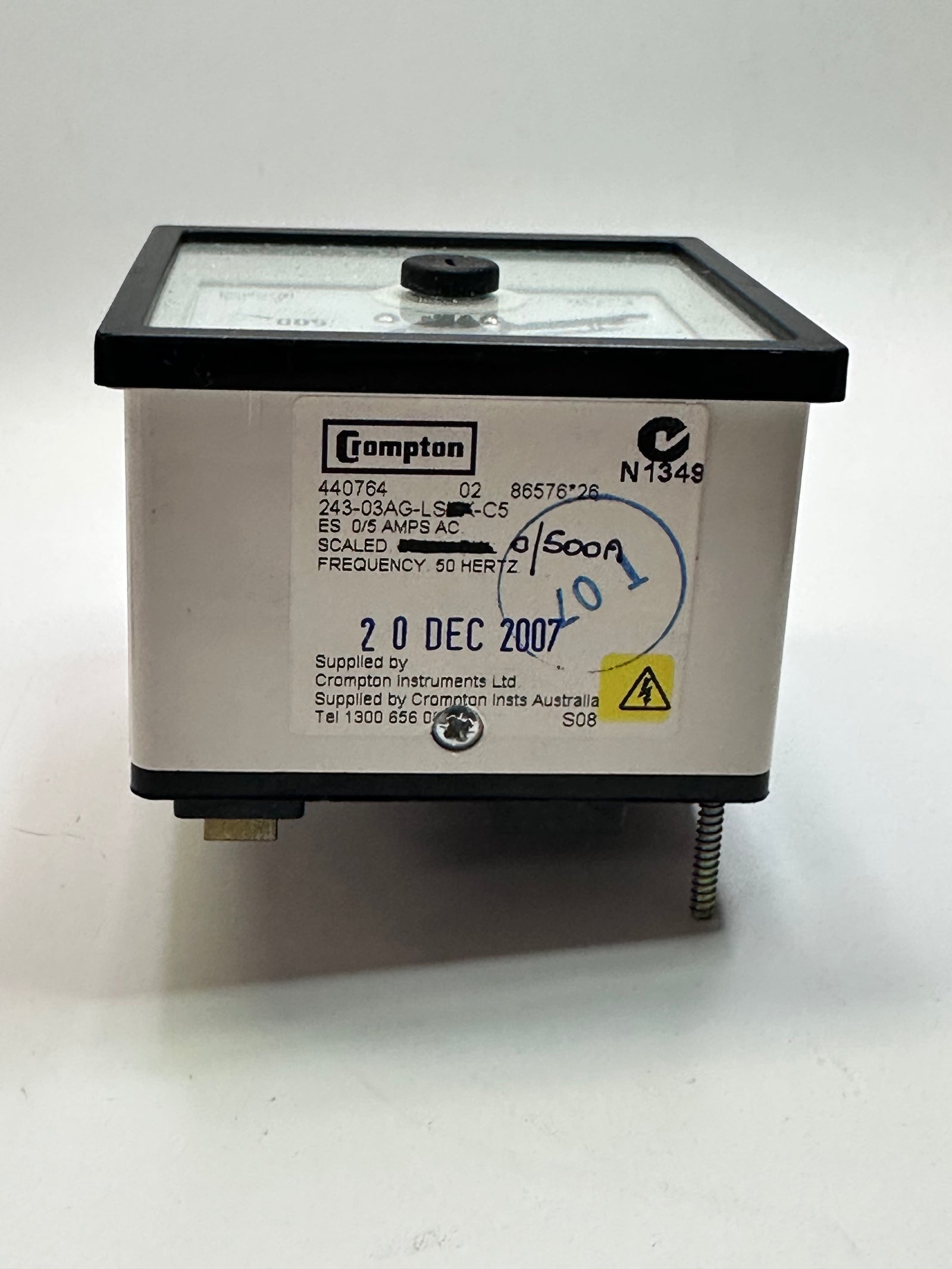

Crompton Instruments E243-03AG-LS-C5 long-scale moving-iron panel meter. The source title calls it an AC ammeter, but the original tag says 0/500V; the actual meter function and range require confirmation.
Recorded source specifications
- Accuracy: class 1.5
- Frequency: 50 or 60 Hz; 400 Hz on request, not confirmed for this unit
- Bezel size: 72 mm; scale length: 112 mm
- Family burden at 50 Hz: ammeters 1.5 VA; voltmeters 4.5 VA maximum
- Family ammeter rating text: 0.5–25A AC DC; maximum system voltage 720V AC
- Additional source text: Low load / high middle (maximum 10A)
- Family voltmeter range: 6–600V AC
The source combines ammeter and voltmeter family information. Do not use these ranges as the supplied unit's confirmed ratings. Check the dial, terminal markings and exact model documentation before ordering.
