DYNAPAC
Dynapac 4700100040 Steering Hitch Bearing — 100040 / GACZ63S
- SKU
- P-DY-D-7387
$75.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 2.5 kg
Specifications
| Manufacturer | DYNAPAC |
|---|---|
| Product type | EARTHMOVING PARTS |
| SKU | P-DY-D-7387 |
| Weight | 2.5 kg |
Description

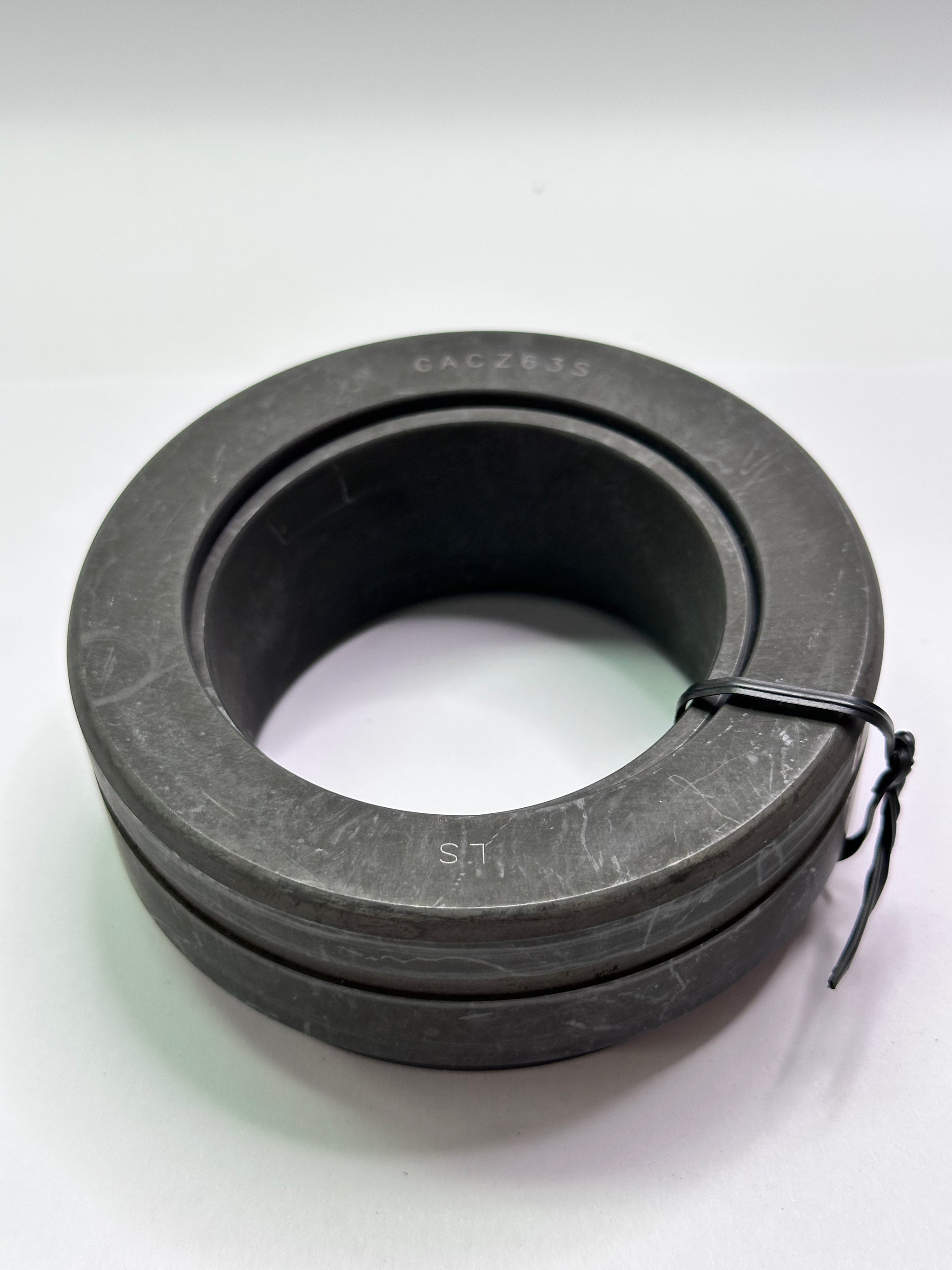

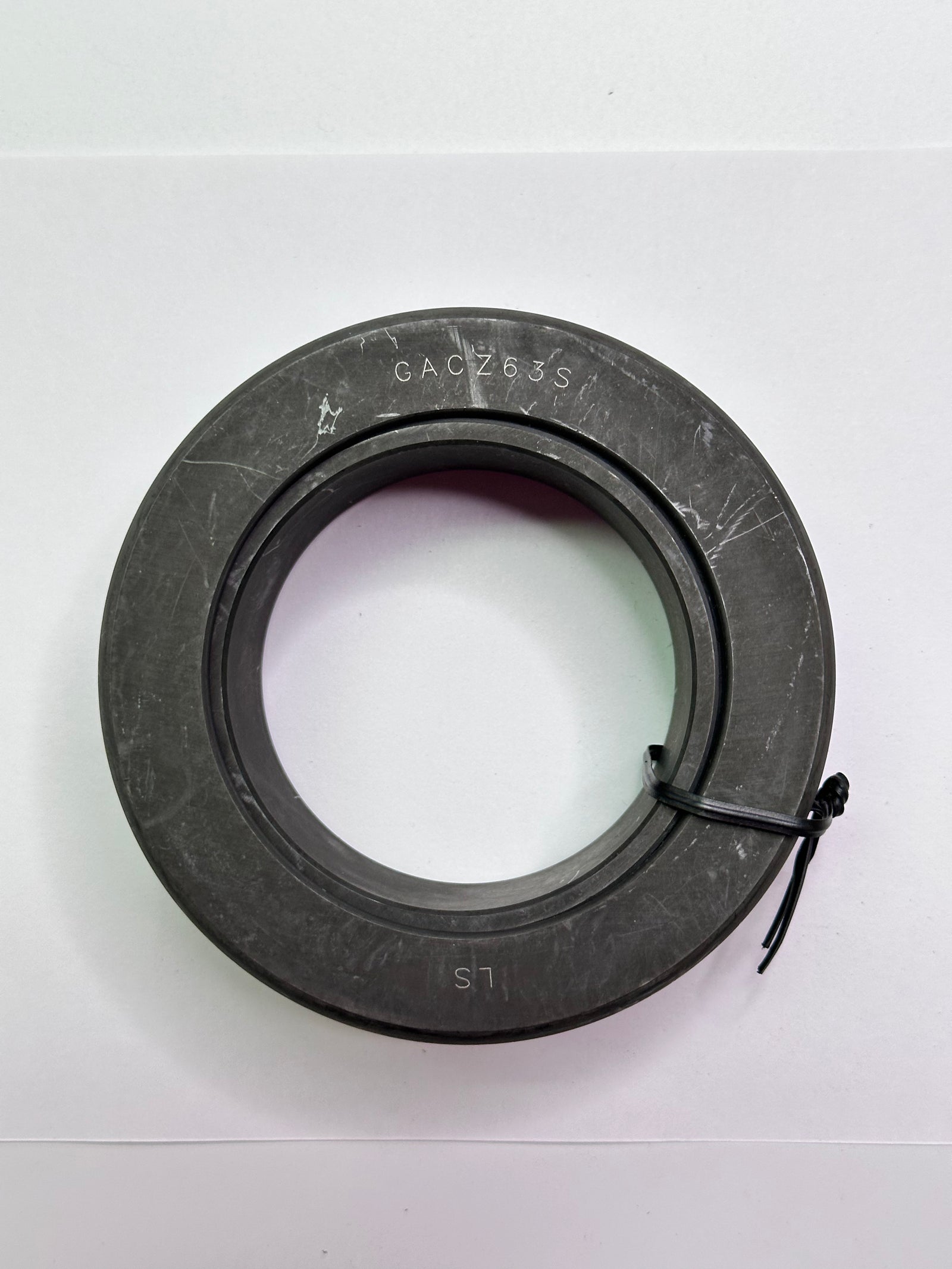

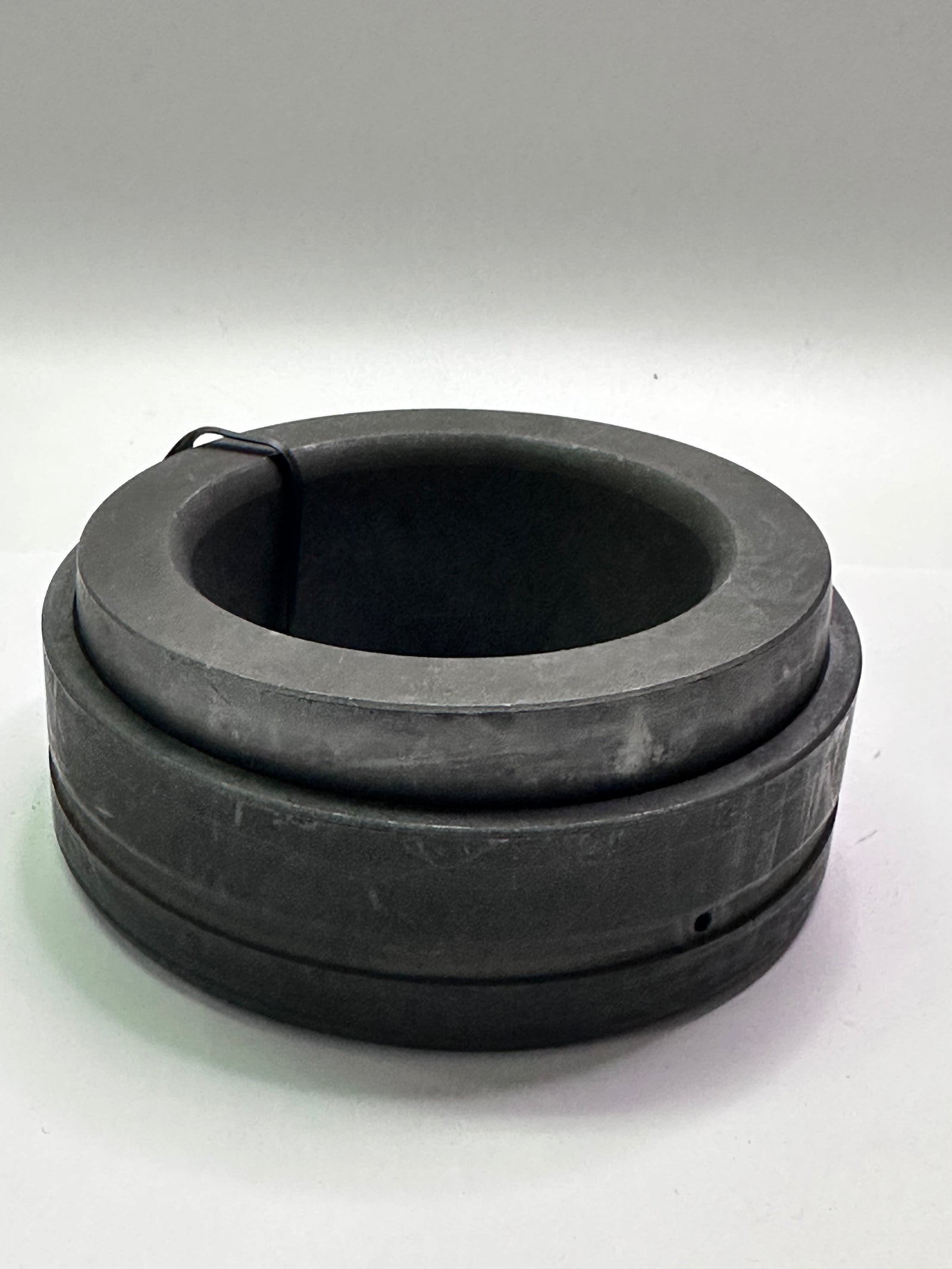

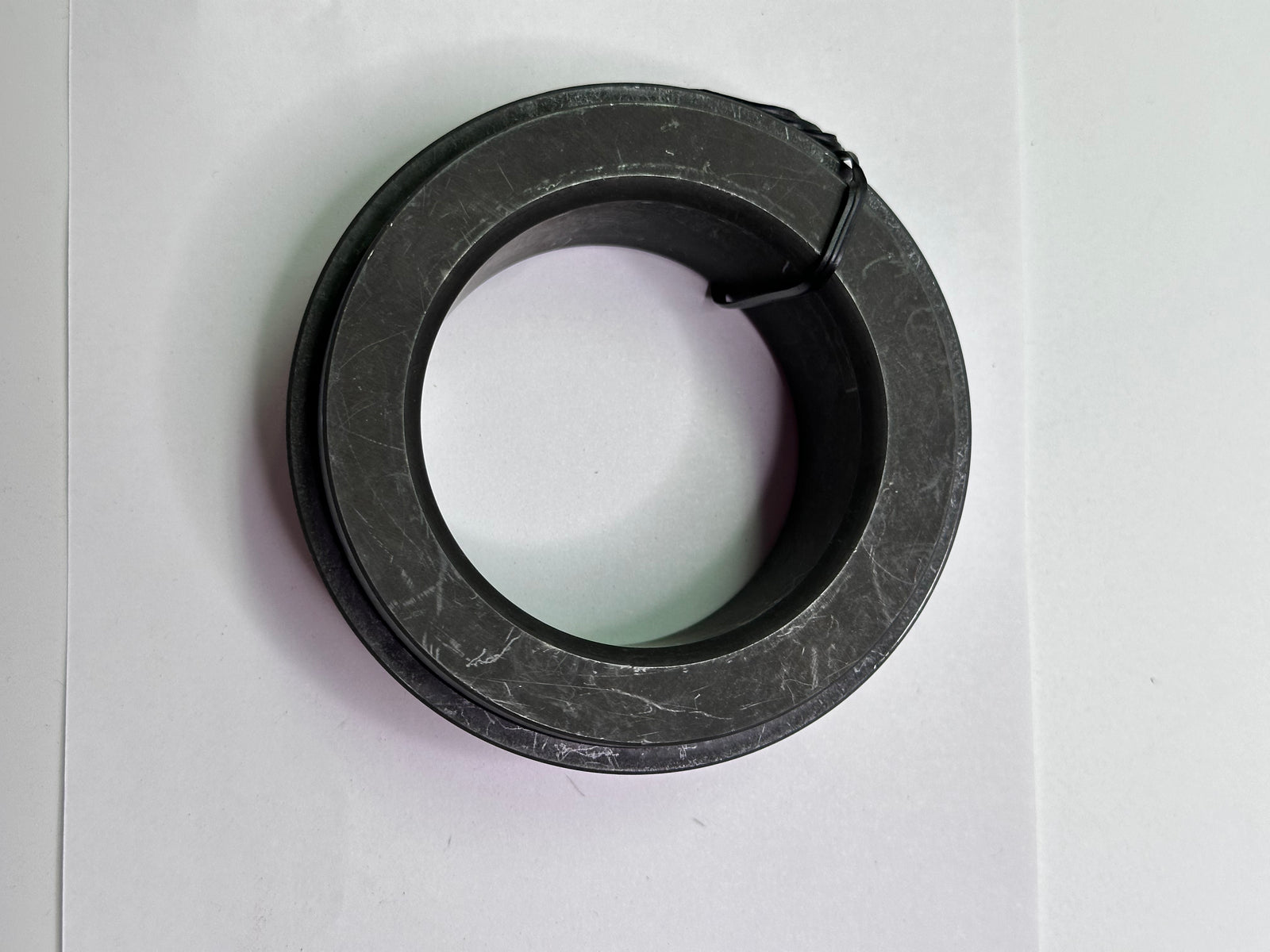

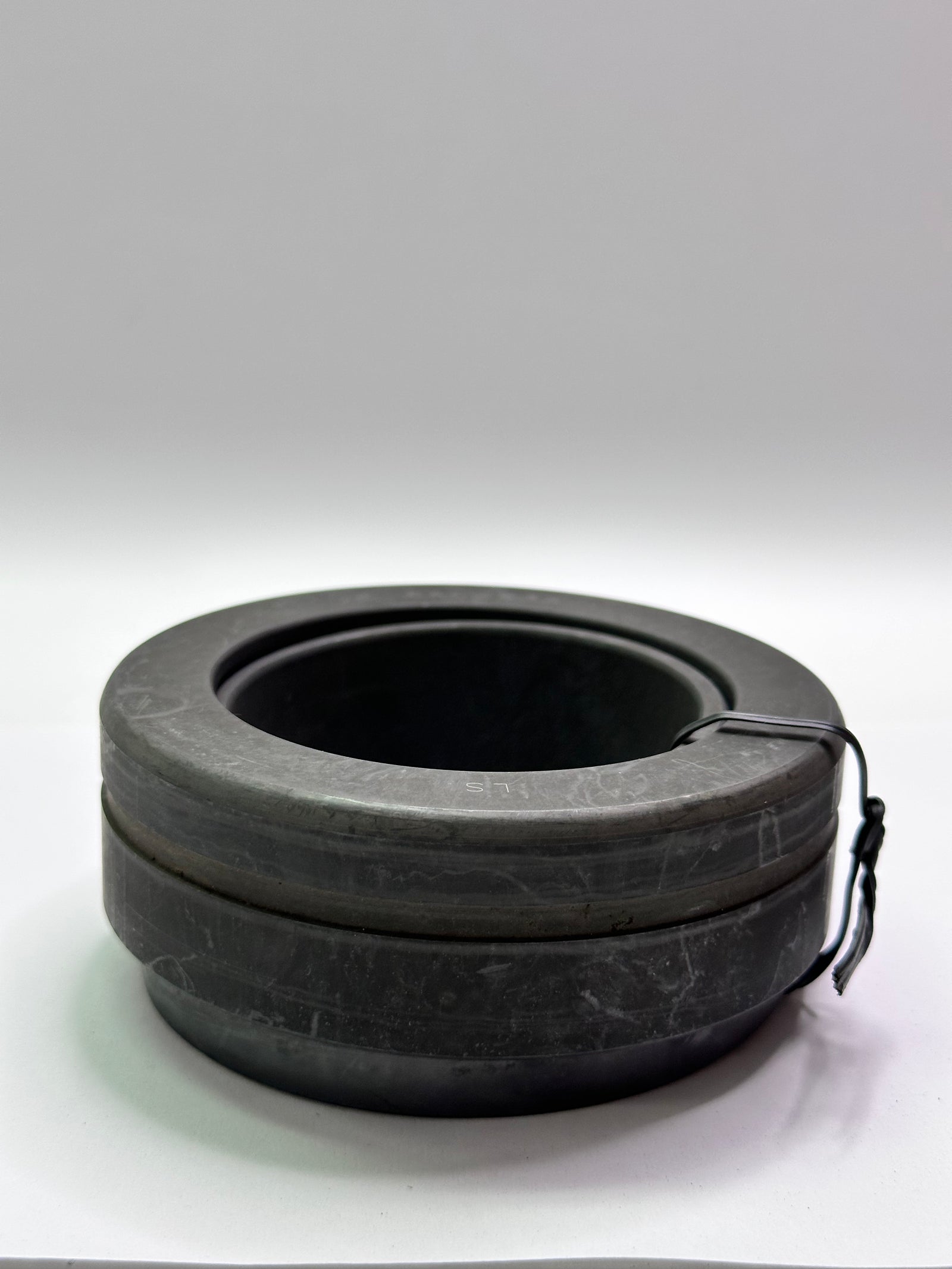

Dynapac 4700100040 steering-hitch bearing, with recorded references 100040 and GACZ63S.
Dimension units require verification: the original table is labelled Dimensions(mm), but its numerical values are reproduced without conversion. Do not select the bearing by those dimensions until checked.
Recorded equipment and specification data:
CA150 CA152 CA151 CA250 CA25 CA251 CA255 CA260 CA262 CA270 CA280 CA300 CA282 CA301 CA302 CA362 CA402 CA500 CA510 CA511 CA512 CA600 CA602 CA610 CC222 CC232 CC422 CC501 CC522 CC622 CC7200 CC722 CC7200
Bearing No : GACZ63S
Dimensions(mm)
d :2.5
D :3.9375
B :1.42
C :1.18
T :1.54
dk :3.59
S :0.267
A :0.5
rsr1s max :0.14
a° :5
Basic Load Rating (kN)
Cr :196
Cor :589
Weight
kg :1.13
Confirm bearing type, dimensions/units, load ratings and machine serial number before ordering. This is a steering-hitch component, not towing equipment.
