SUN HYDRAULICS

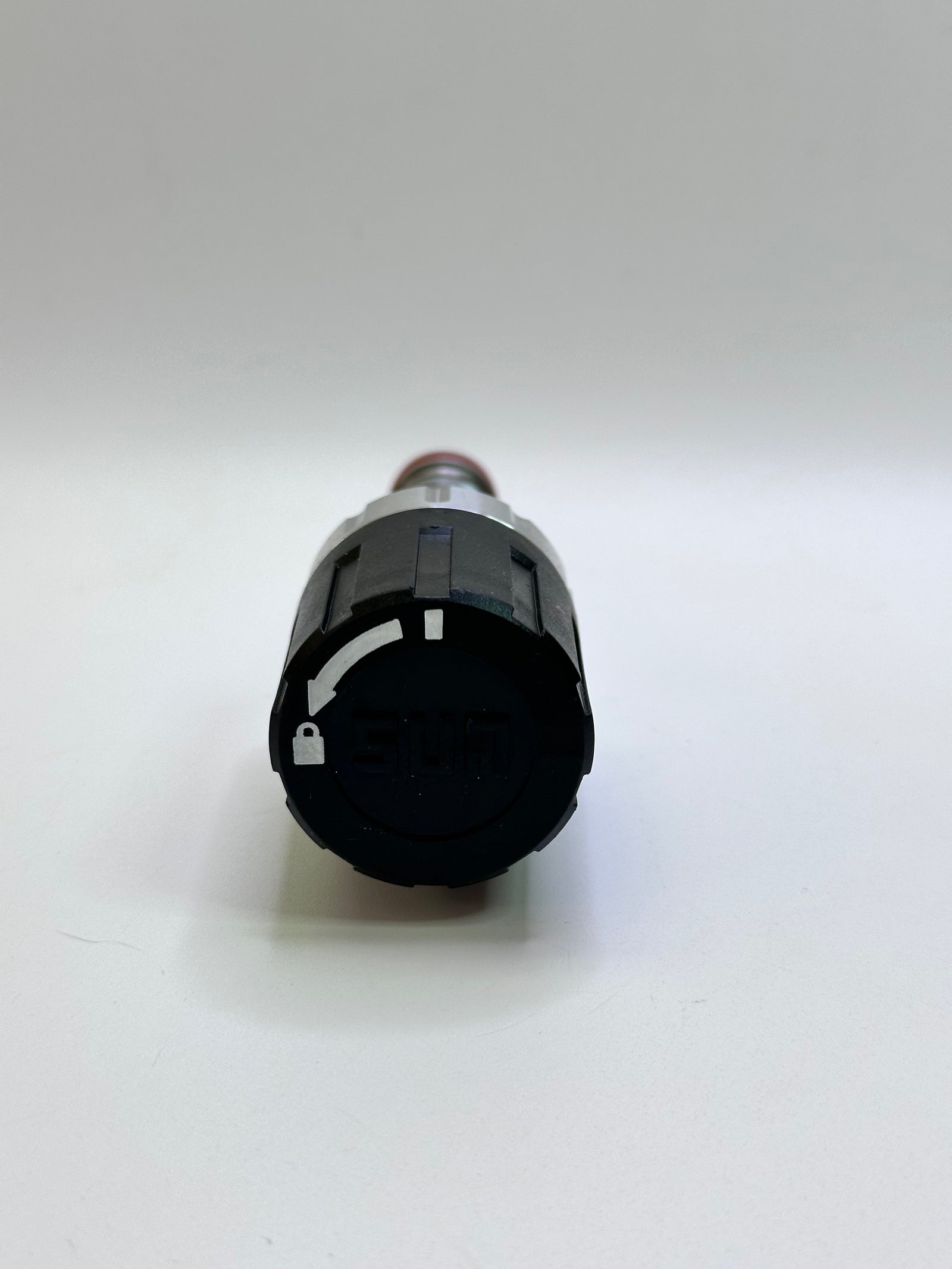

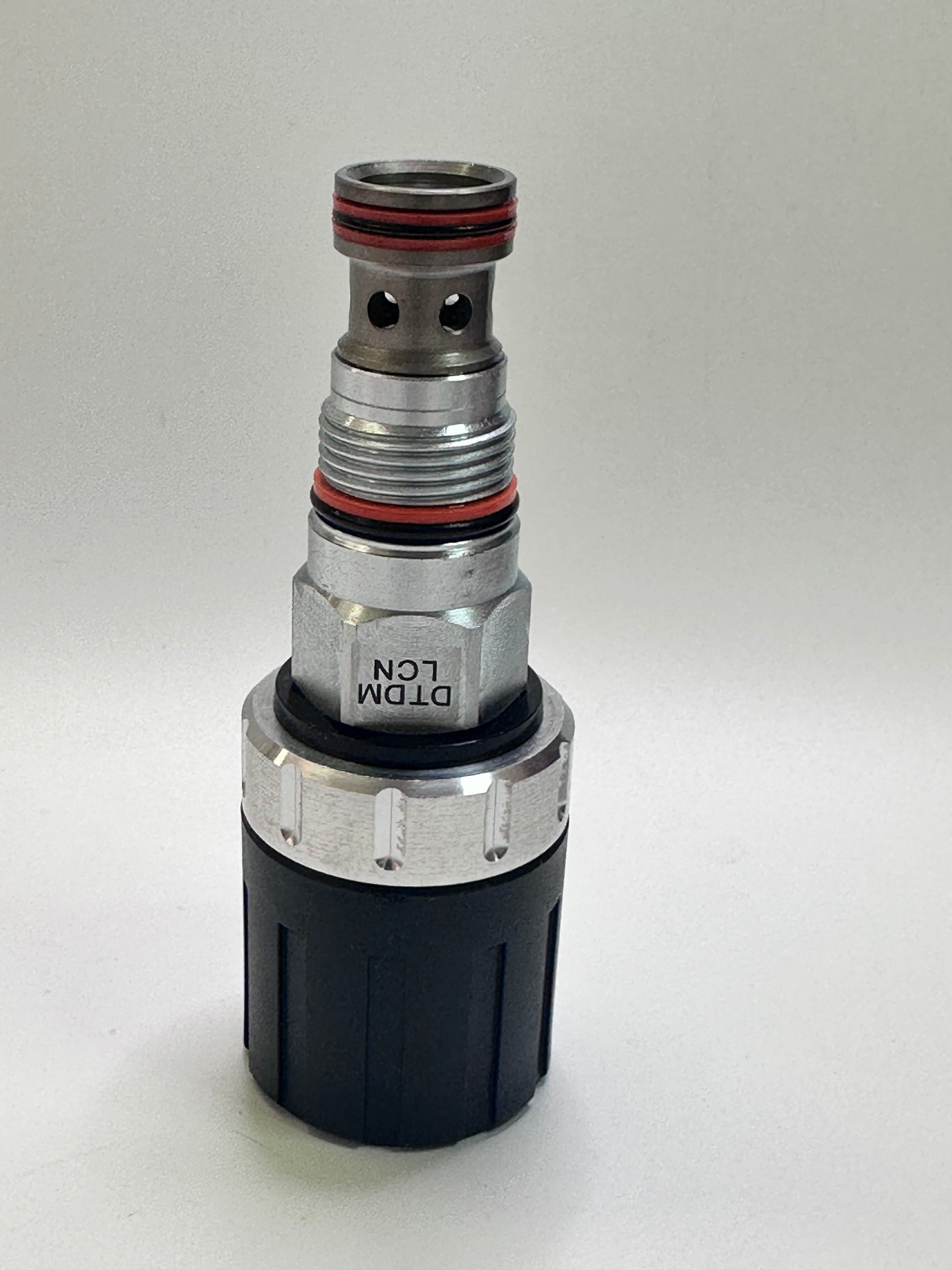

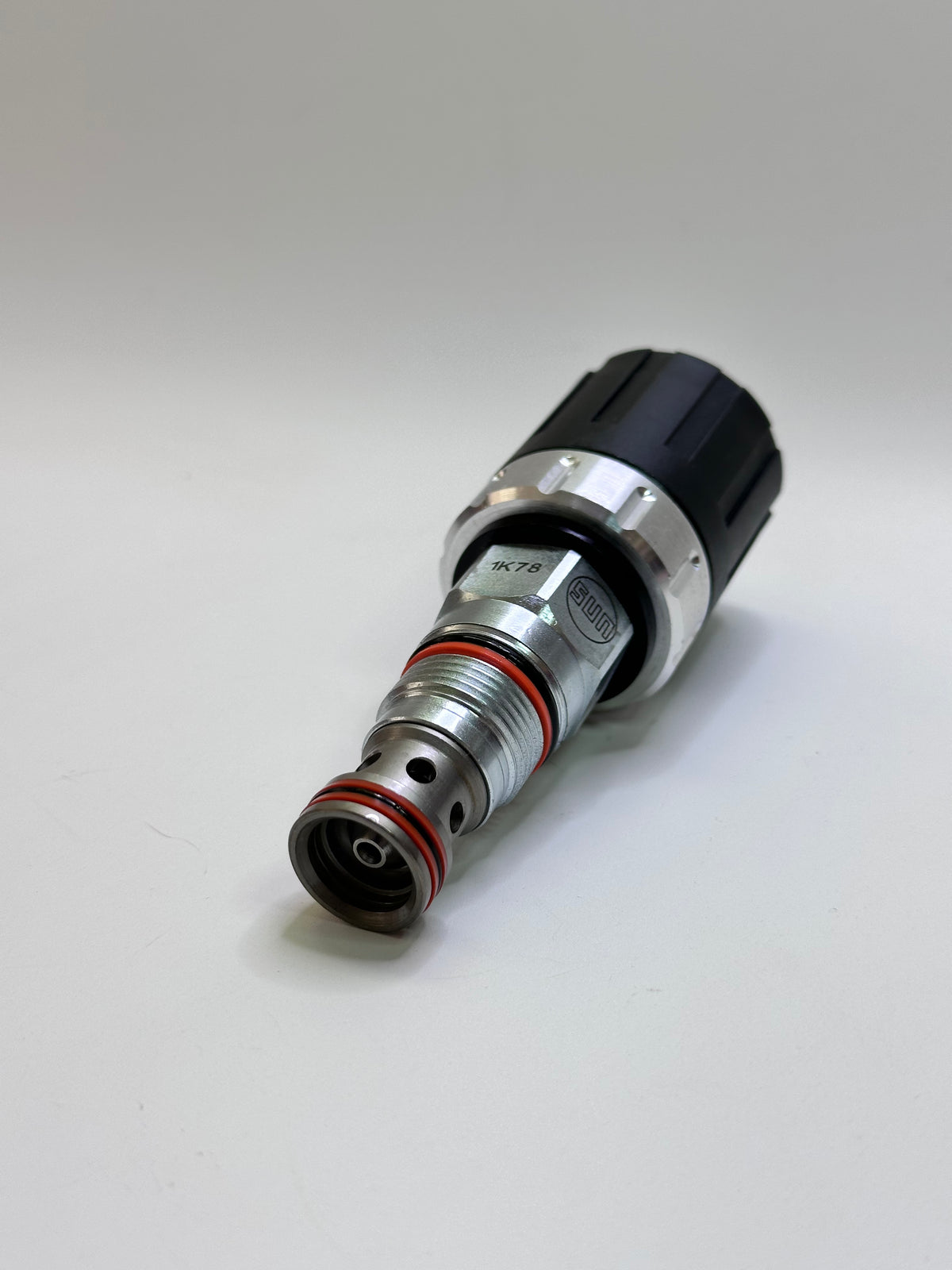

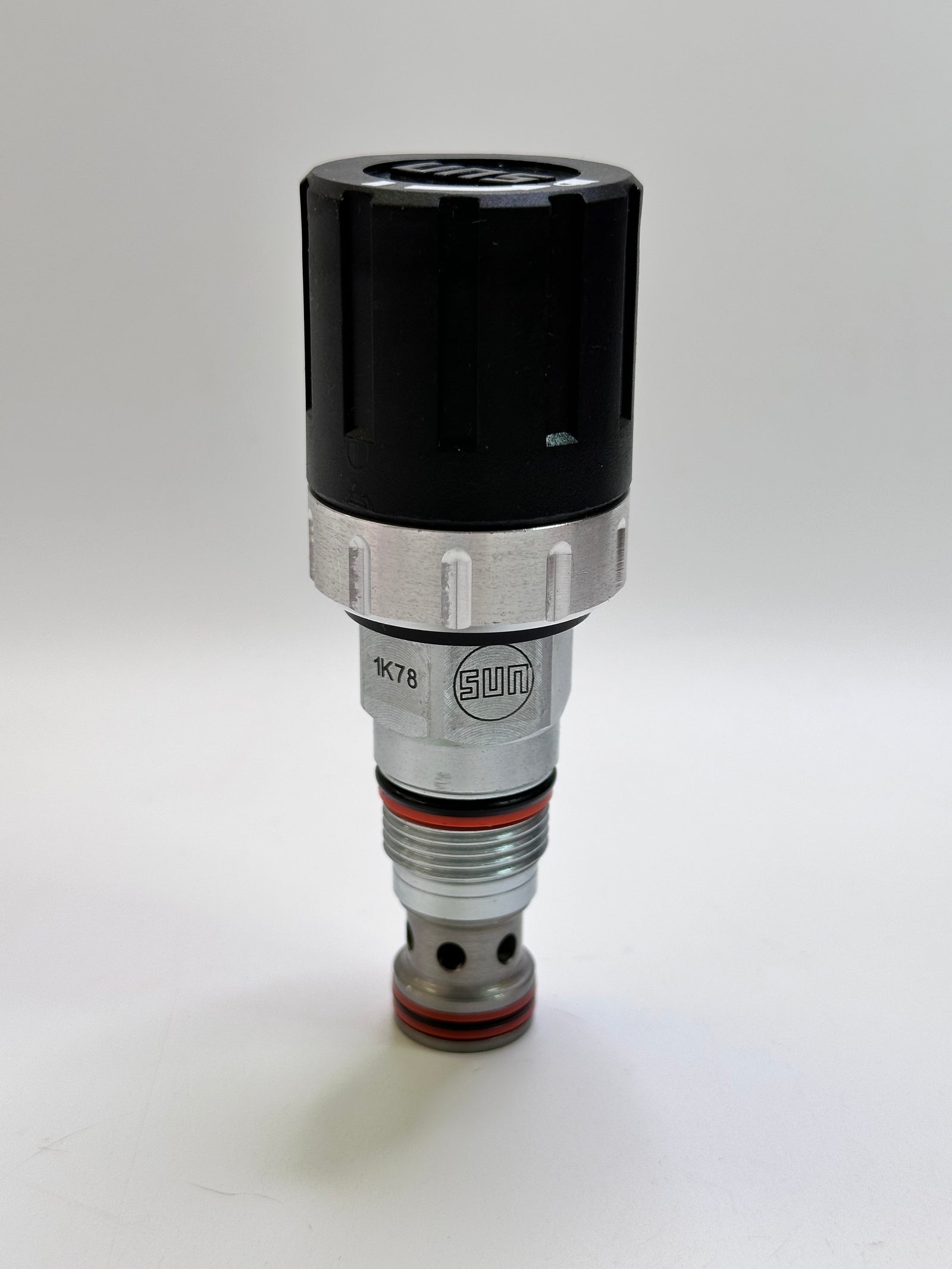

Sun Hydraulics DTDM-LCN Two-Way Manual Poppet Valve – Epiroc 5580103931
- SKU
- P-DT-S-7473
This one has sold, but we regularly land similar stock and can often source an equivalent.
Request this part or an equivalent- Weight
- 2.0 kg
Specifications
| Manufacturer | SUN HYDRAULICS |
|---|---|
| Product type | HYDRAULICS |
| SKU | P-DT-S-7473 |
| Weight | 2.0 kg |
Description
Sun Hydraulics DTDM-LCN / DTDMLCN two-way manually operated directional poppet valve, captured with Epiroc reference 5580103931 and catalogue reference 793204*34.
Listed cavity T-13A, series 1; capacity 10 gpm / 40 L/min and maximum operating pressure 5000 psi / 350 bar. Leakage is specified at 110 SUS (24 cSt), not as an unconditional zero-leakage claim.
Operating torque 10 lbf·in / 1.2 Nm is distinct from installation torque 30–35 lbf·ft / 41–47 Nm. The listed Viton cartridge seal kit 990-413-006 is a service reference, not confirmation that a separate kit is included.
Match the cavity and hydraulic circuit. Earlier Atlas Copco and Sandvik tags do not identify additional verified machine applications.

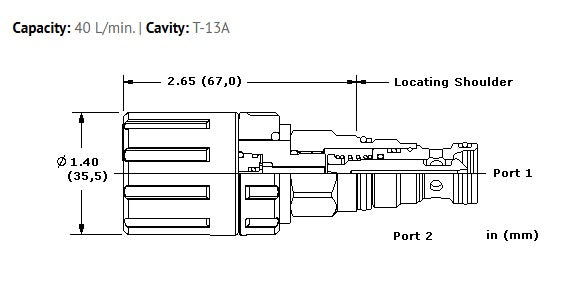

Original valve specification table
| Cavity | T-13A |
| Series | 1 |
| Capacity | 10 gpm40 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi0,7 cc/min.@350 bar |
| Operating Torque | 10 lbf in.1,2 Nm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-413-006 |
