UES INTERNATIONAL
UES DT120A Locking Drop T Handle — Bent Tongue, Two CH501 Keys
- SKU
- P-DT-U-7875
$25.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 2.0 kg
Specifications
| Manufacturer | UES INTERNATIONAL |
|---|---|
| Product type | AUTOMOTIVE & TRUCK PARTS |
| SKU | P-DT-U-7875 |
| Weight | 2.0 kg |
Description

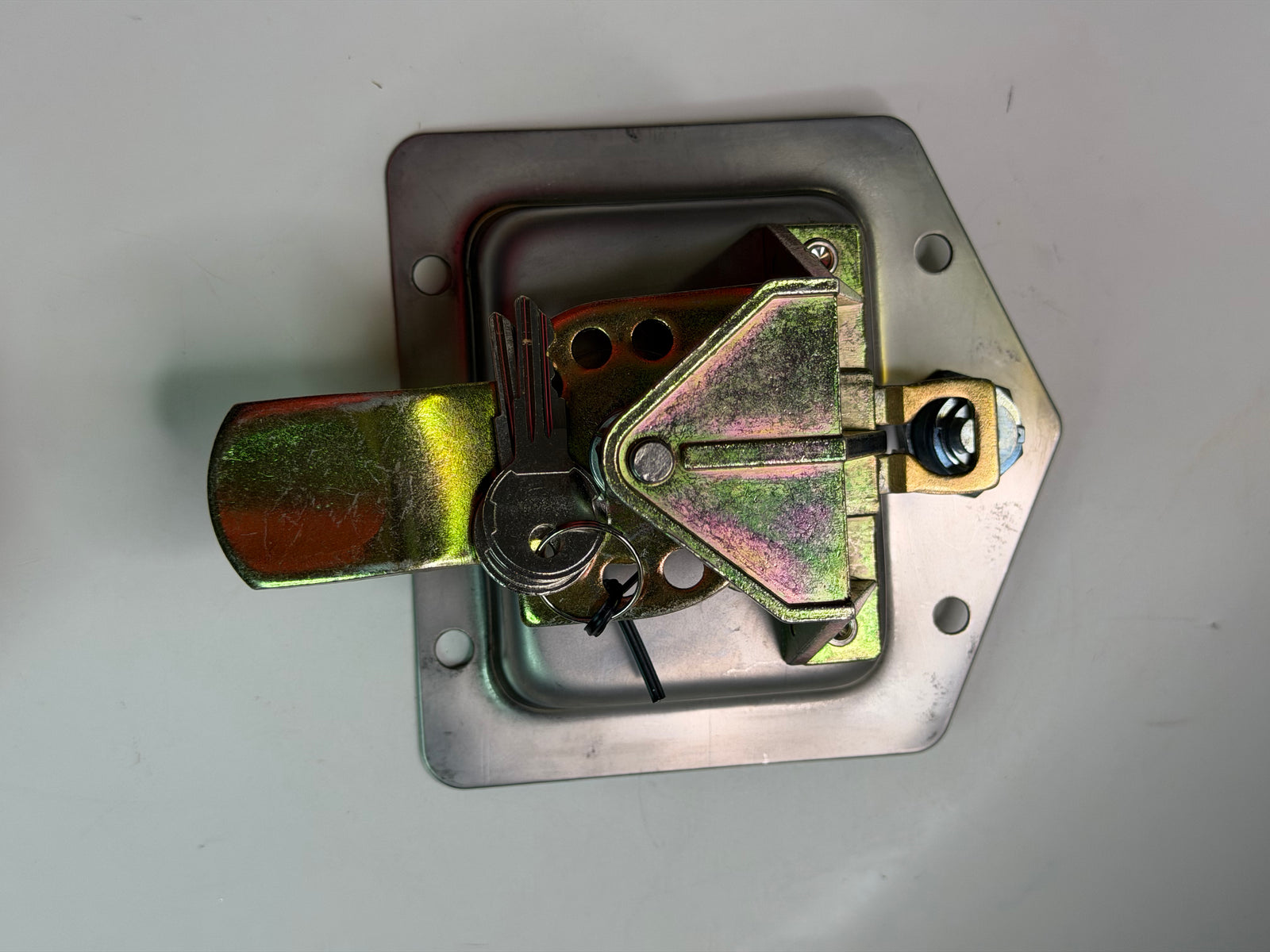

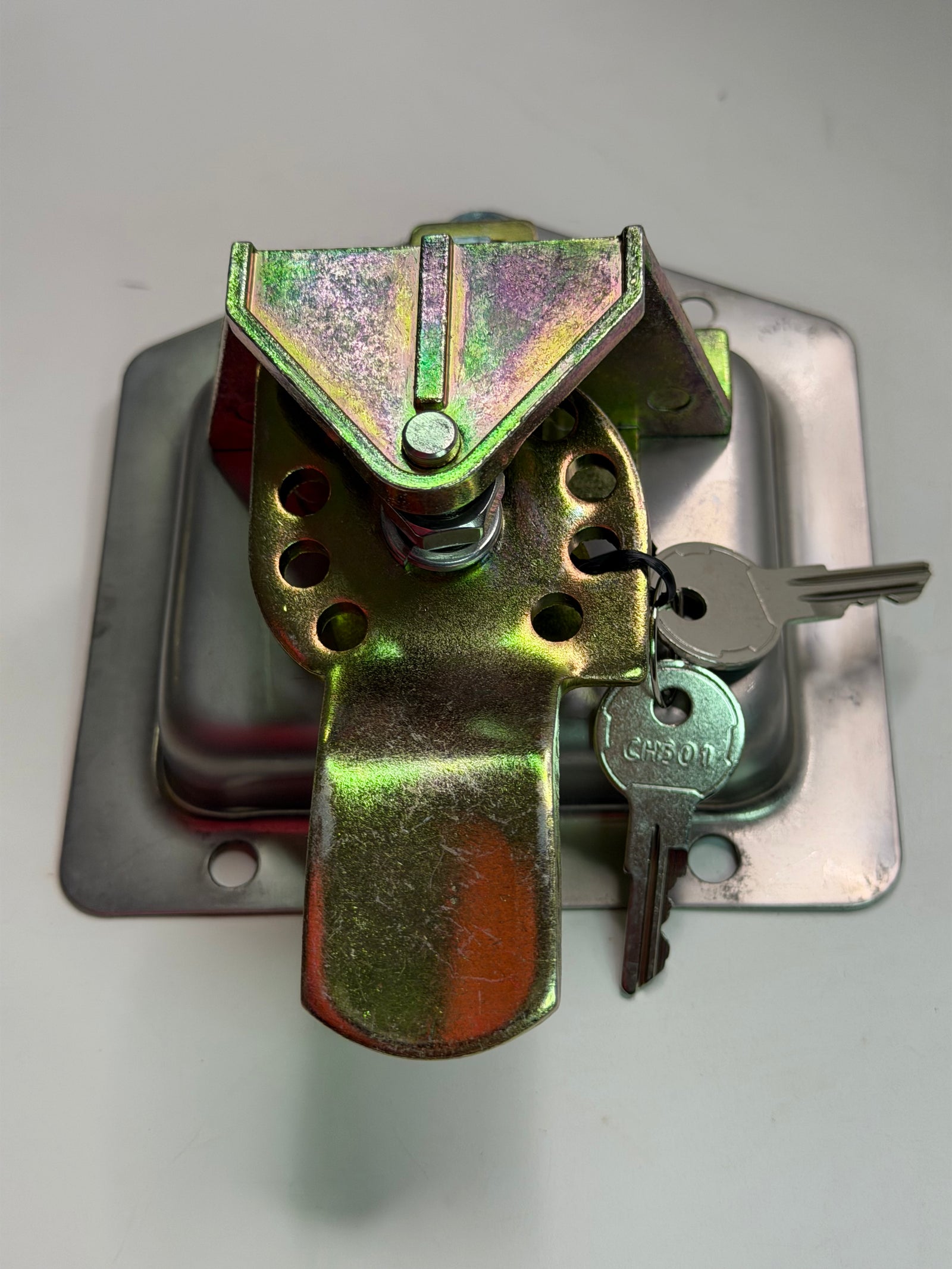

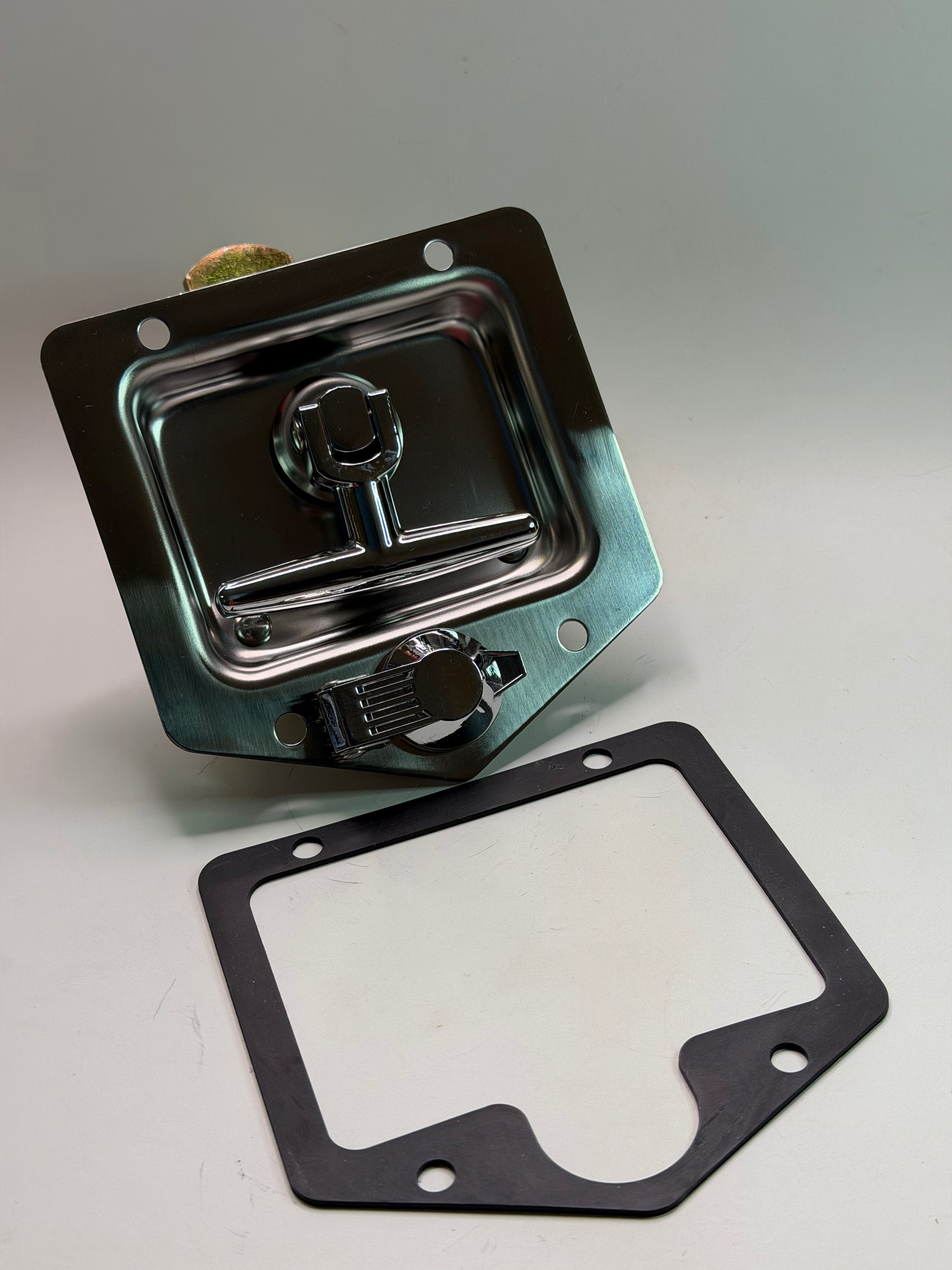

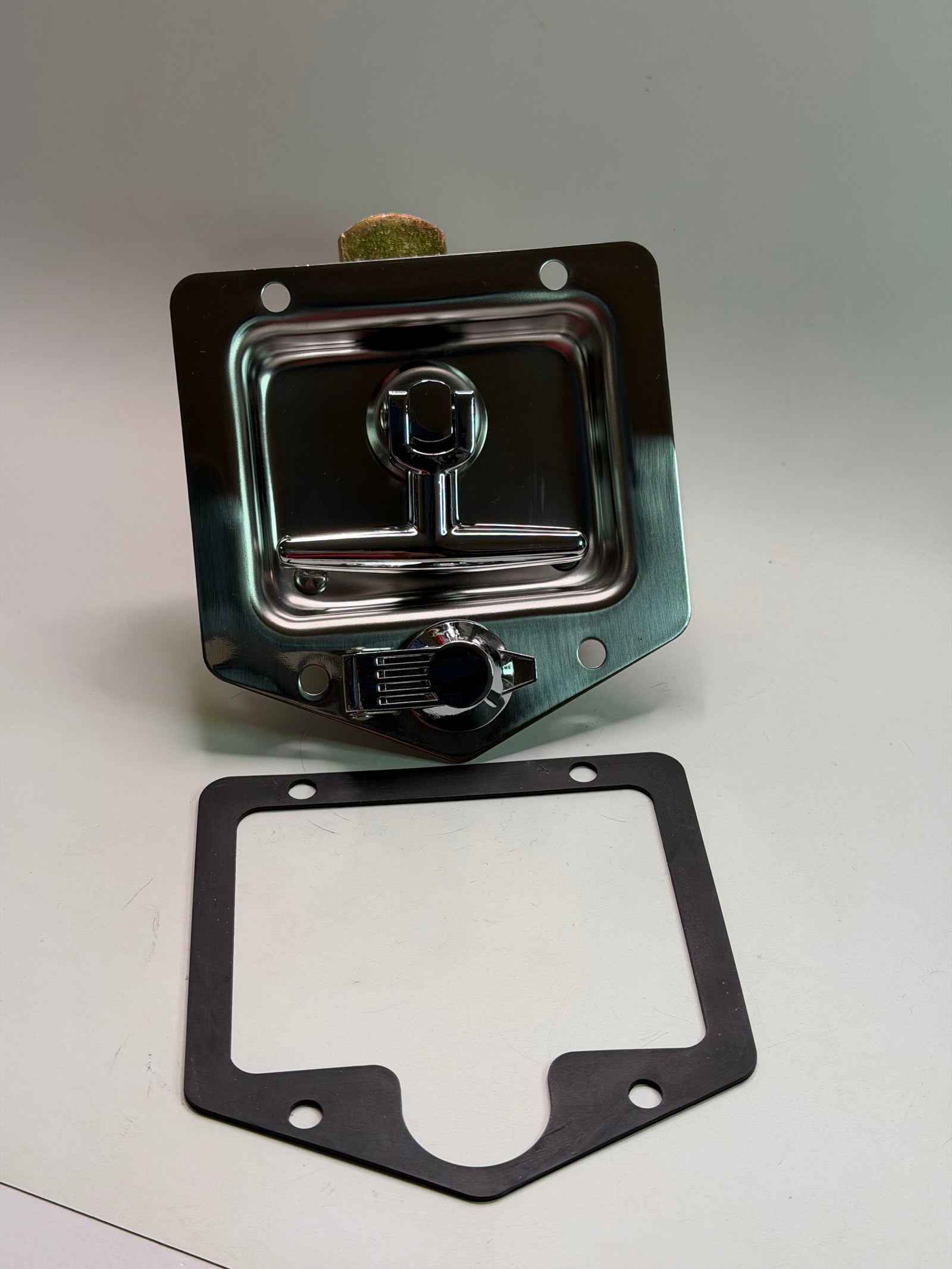

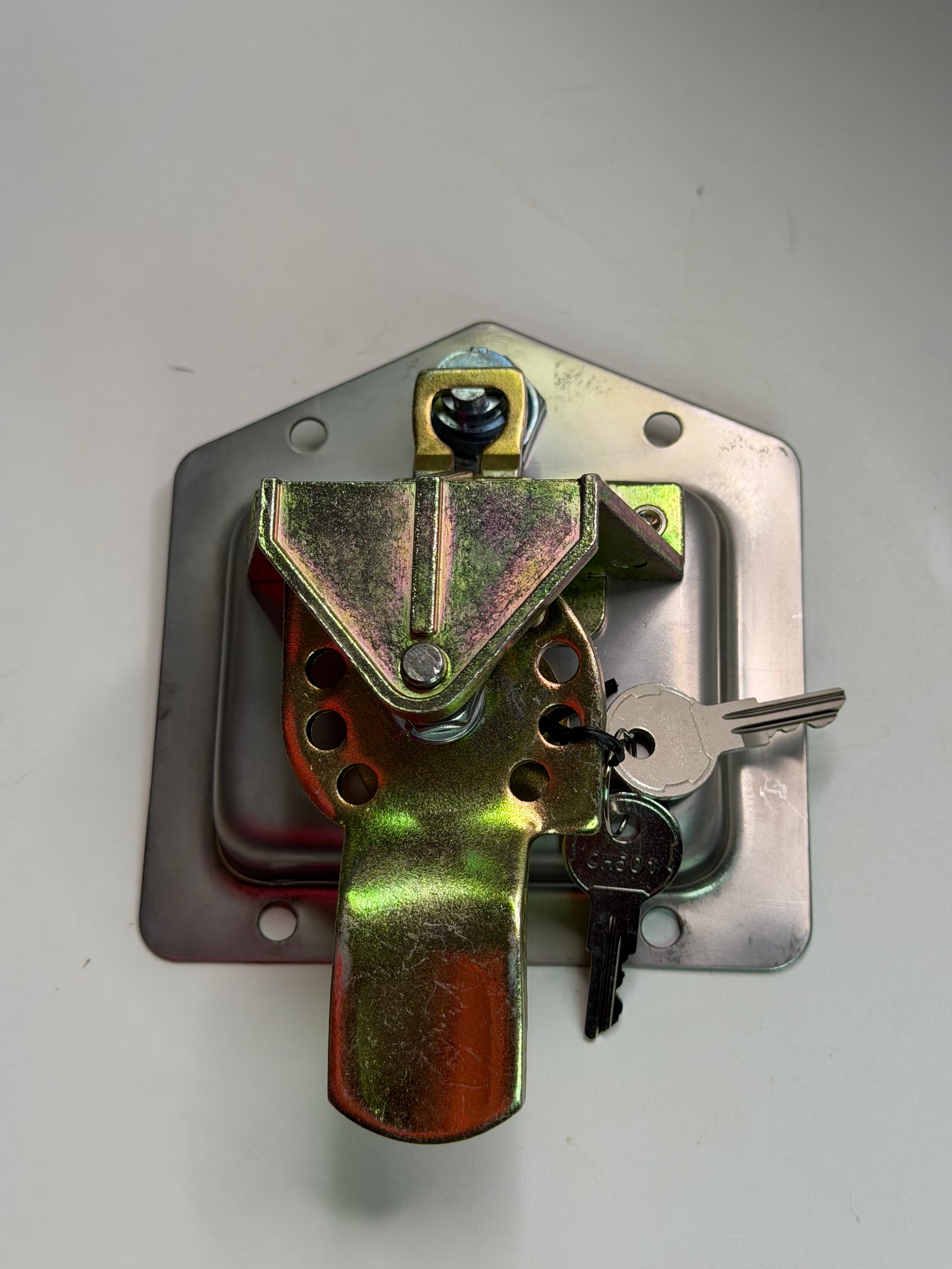

UES DT120A locking drop T handle with bent tongue and clockwise orientation. The supplied record specifies two CH501 keys.
Recorded dimensions and fitting details
- Dimensions: 120 Lx 125 H x 58mm D
- Key: CH501 (Two keys included)
- Cutout: T2 (See images)
- Mount hole Diameter: 7mm
- Mount Position: Front Fixing
- Tongue: Bent
- Hand Orientation: Clockwise
Check the T2 cutout drawing in the listing images, 7mm mounting holes, front fixing and tongue clearance against the door or compartment before ordering. Overall 120 x 125 x 58mm dimensions are not the cutout dimensions.
Legacy 4wd/4X4, truck and offroad tags describe possible markets, not vehicle-specific fitment. A stainless-steel tag is retained here as an unverified material note; the source does not specify the grade or which components it describes. No mounting fasteners, security rating, weatherproof rating or keyed-alike arrangement is established.
