Component Type (ETIM Class)

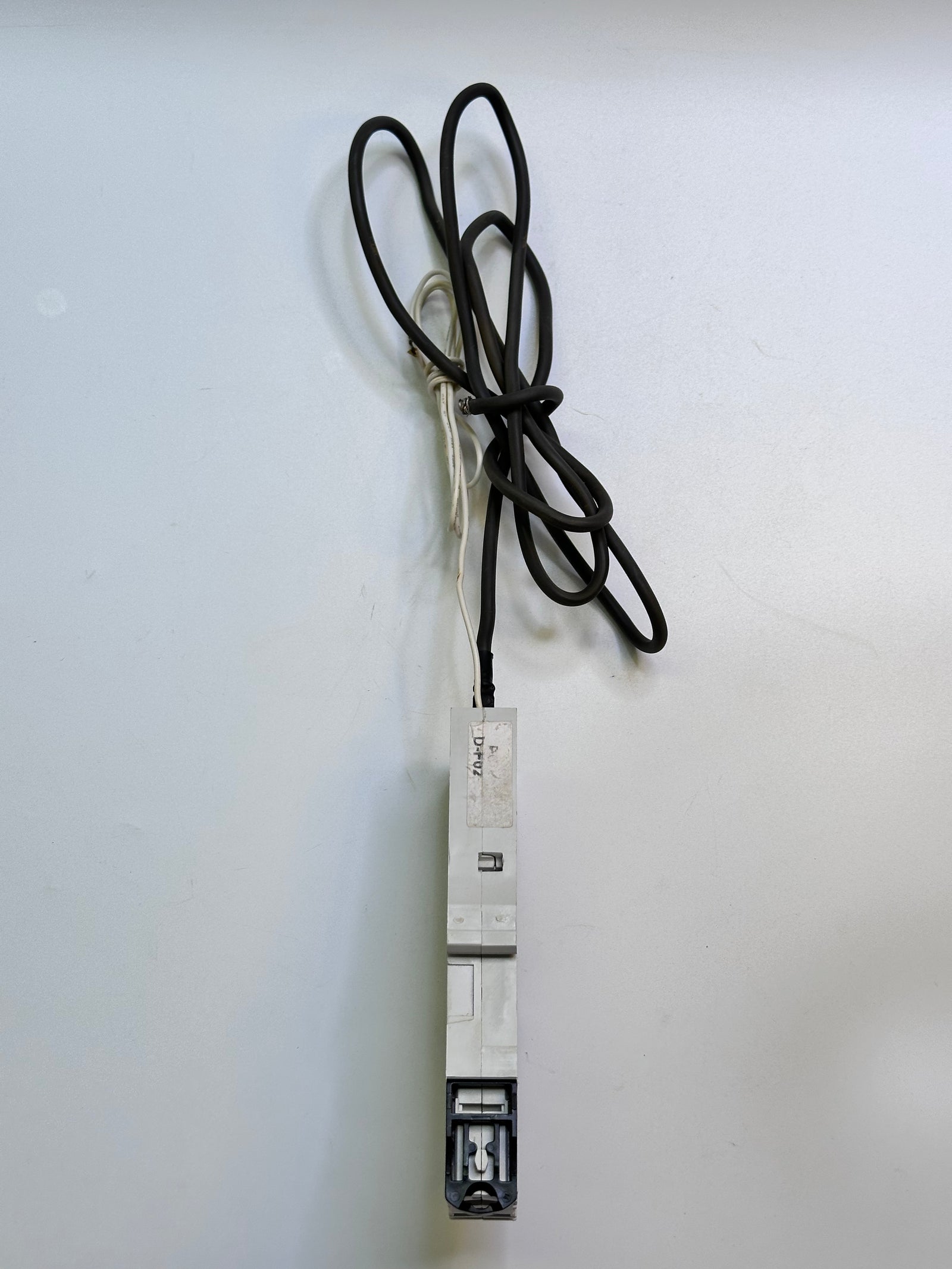

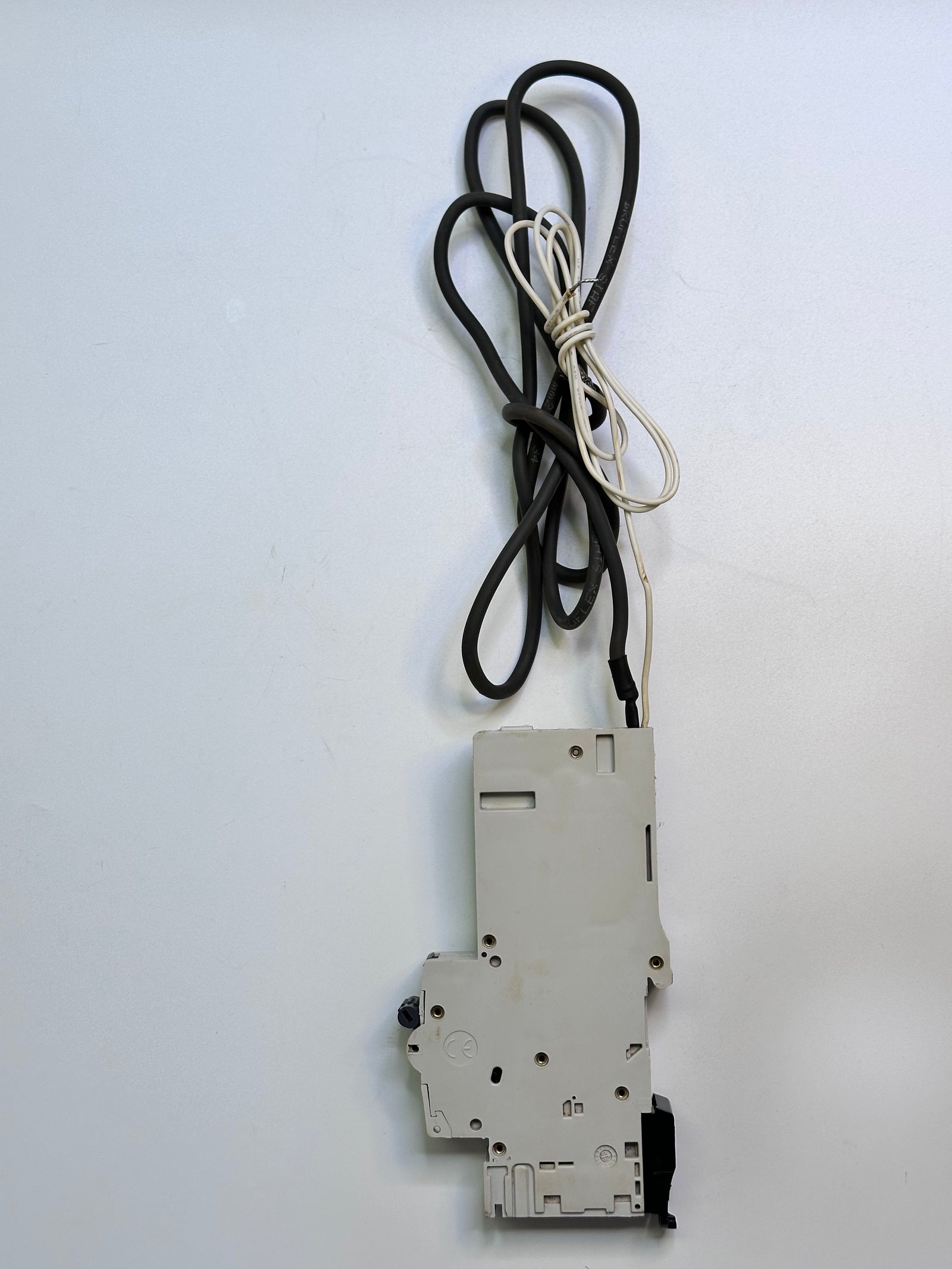

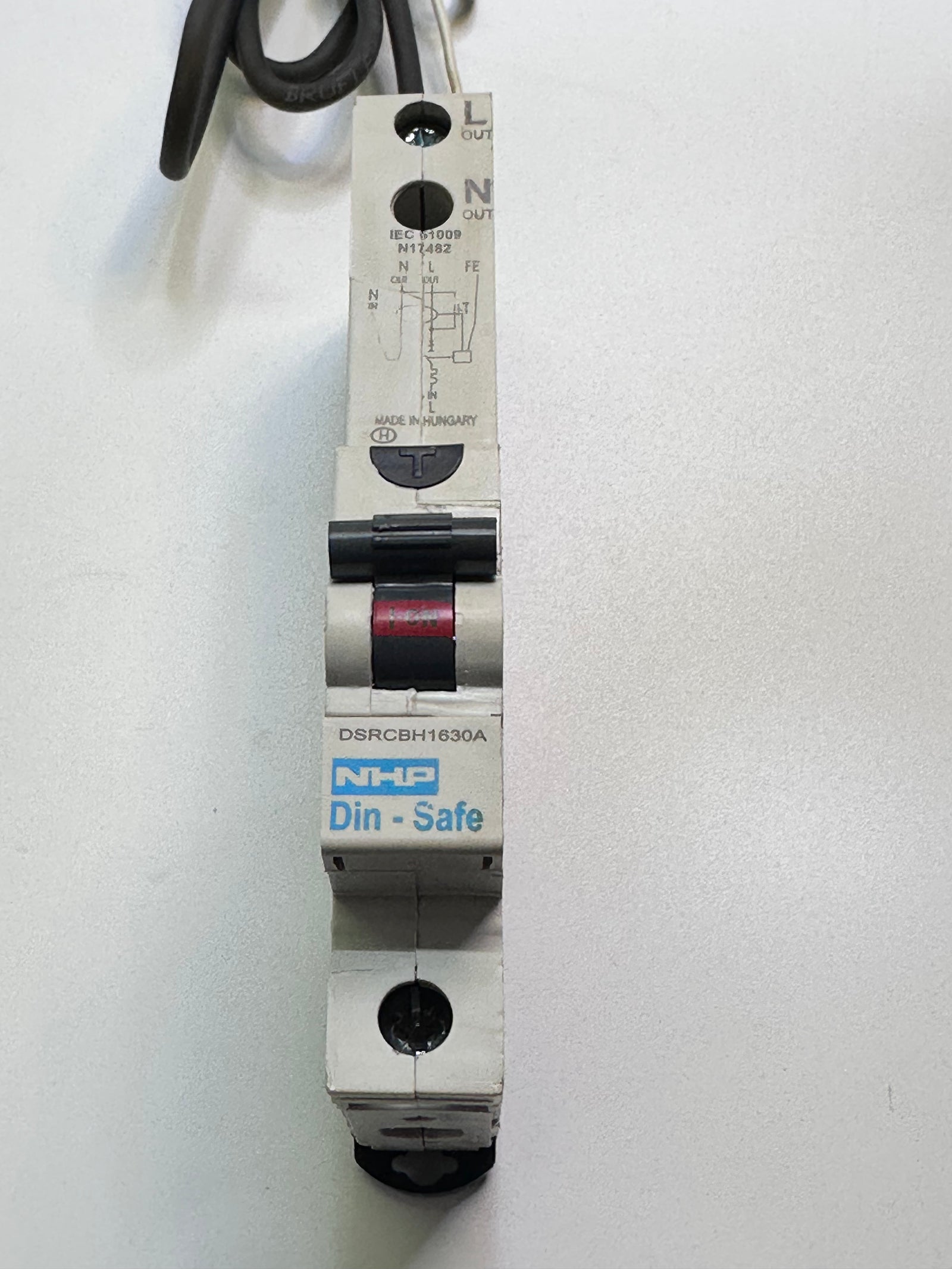

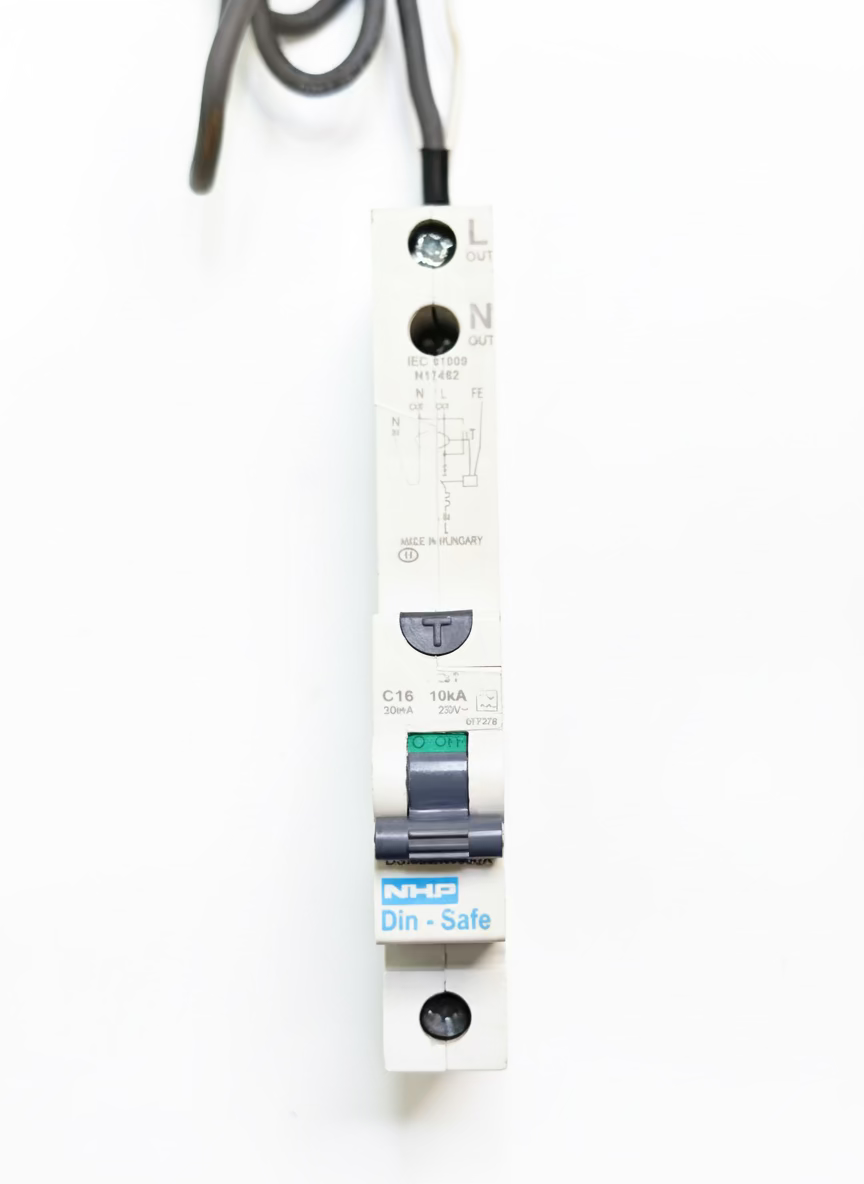

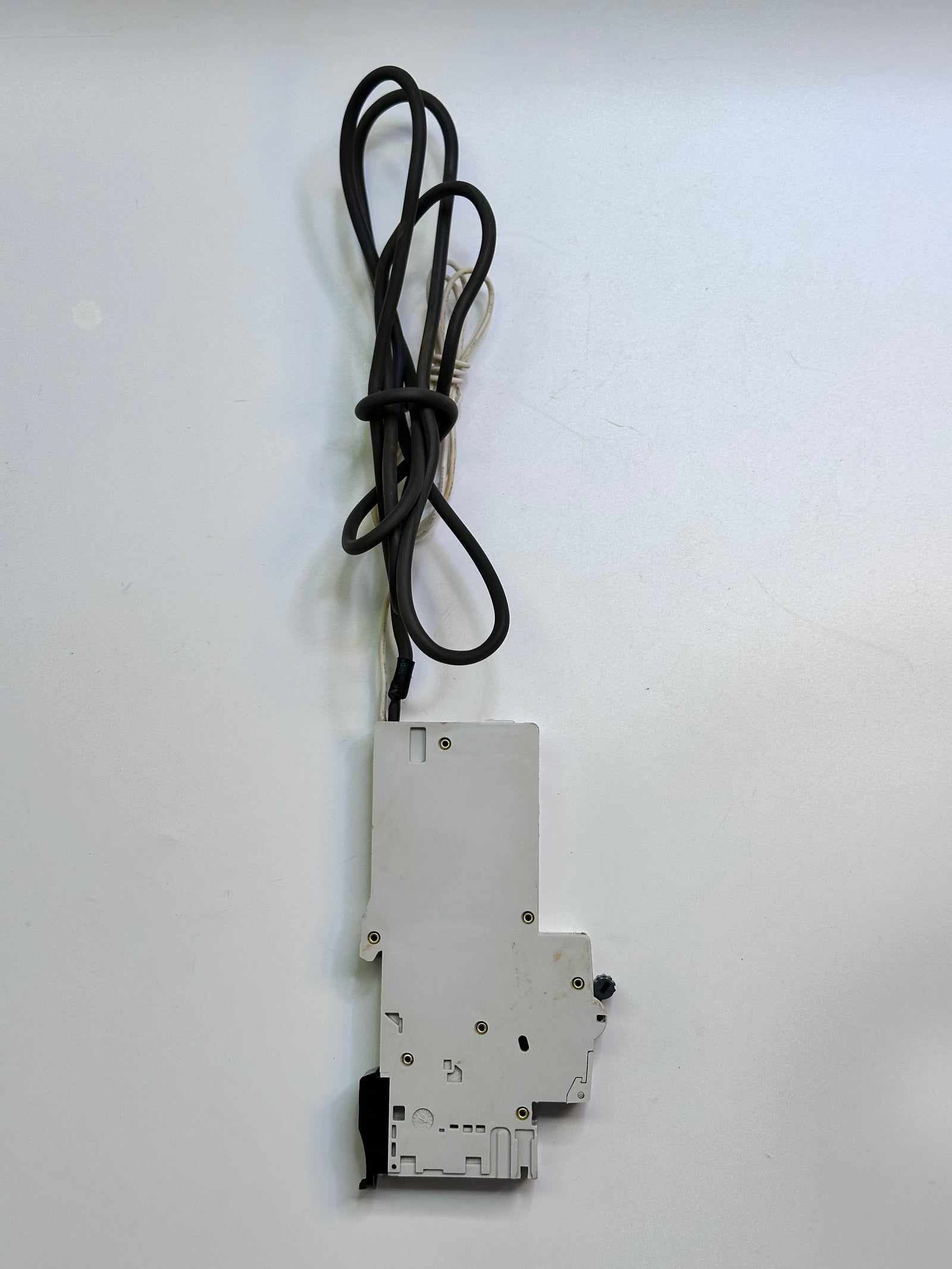

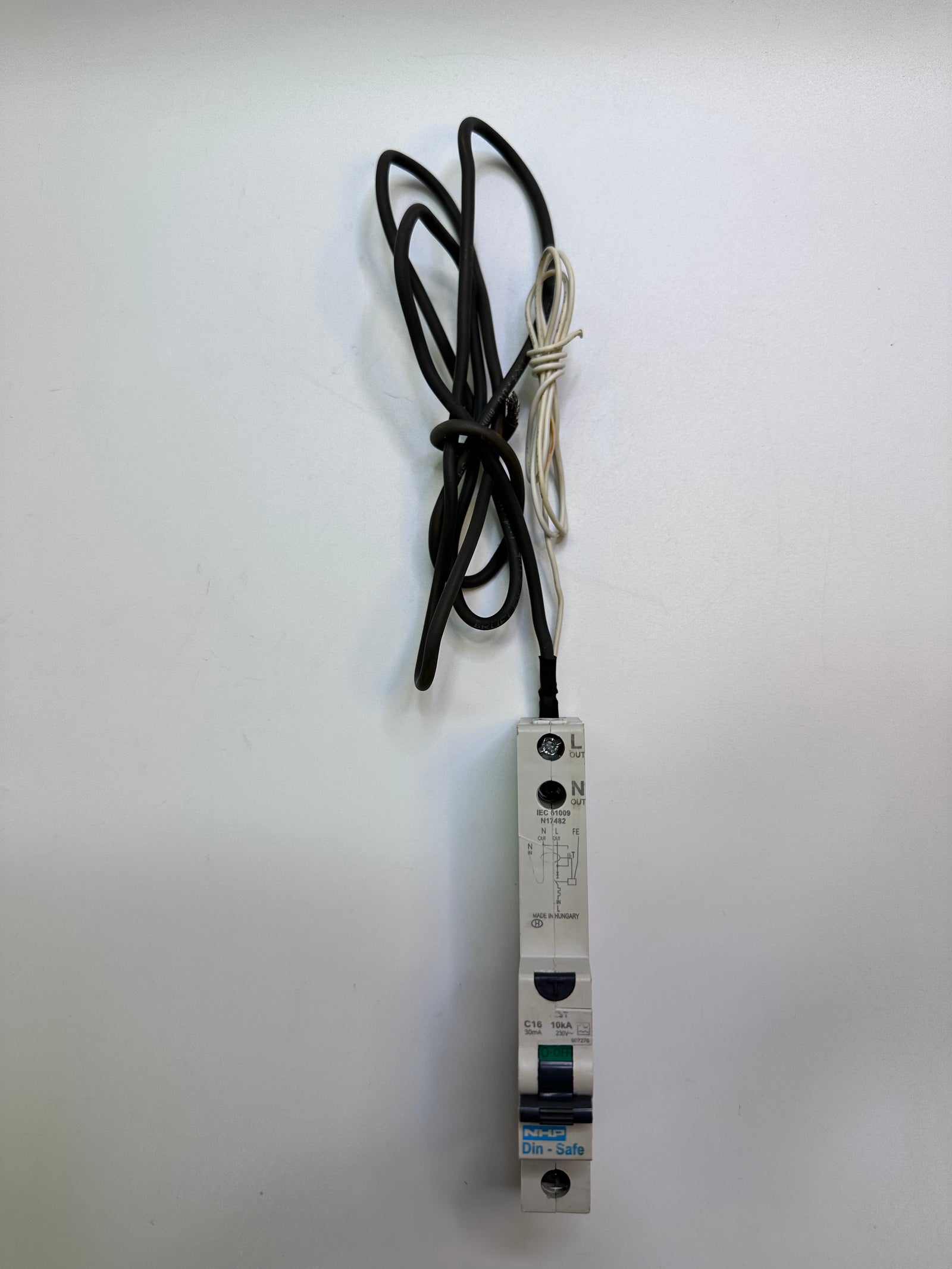

Earth leakage circuit breaker
Electrical
Rated current16 A
Rated voltage240 V
Rated leakage current30 mA
Frequency50/60 Hz
Rated short-circuit breaking capacity according to AS/NZS 6100910 kA
Voltage typeAC
Trip curveC
Rated impulse withstand voltage Uimp6 kV
Leakage current typeA
Tripping time40 ms
Min. service voltage195 V
Max. operating voltage (Umax)265 V
Rated residual make/break capacity10000 A
Protected neutral poleNo
Number of poles (total)2
Electrical life at Un, In (service cycles)10000 cycles
Type of electric connectionFork and pin
Isolator applicationYes
Rated insulation voltage Ui500 V
Concurrently switching neutral conductorNo
