Natcomm DS5 Door Station Controller — Listed 12 V AC, 500 mA

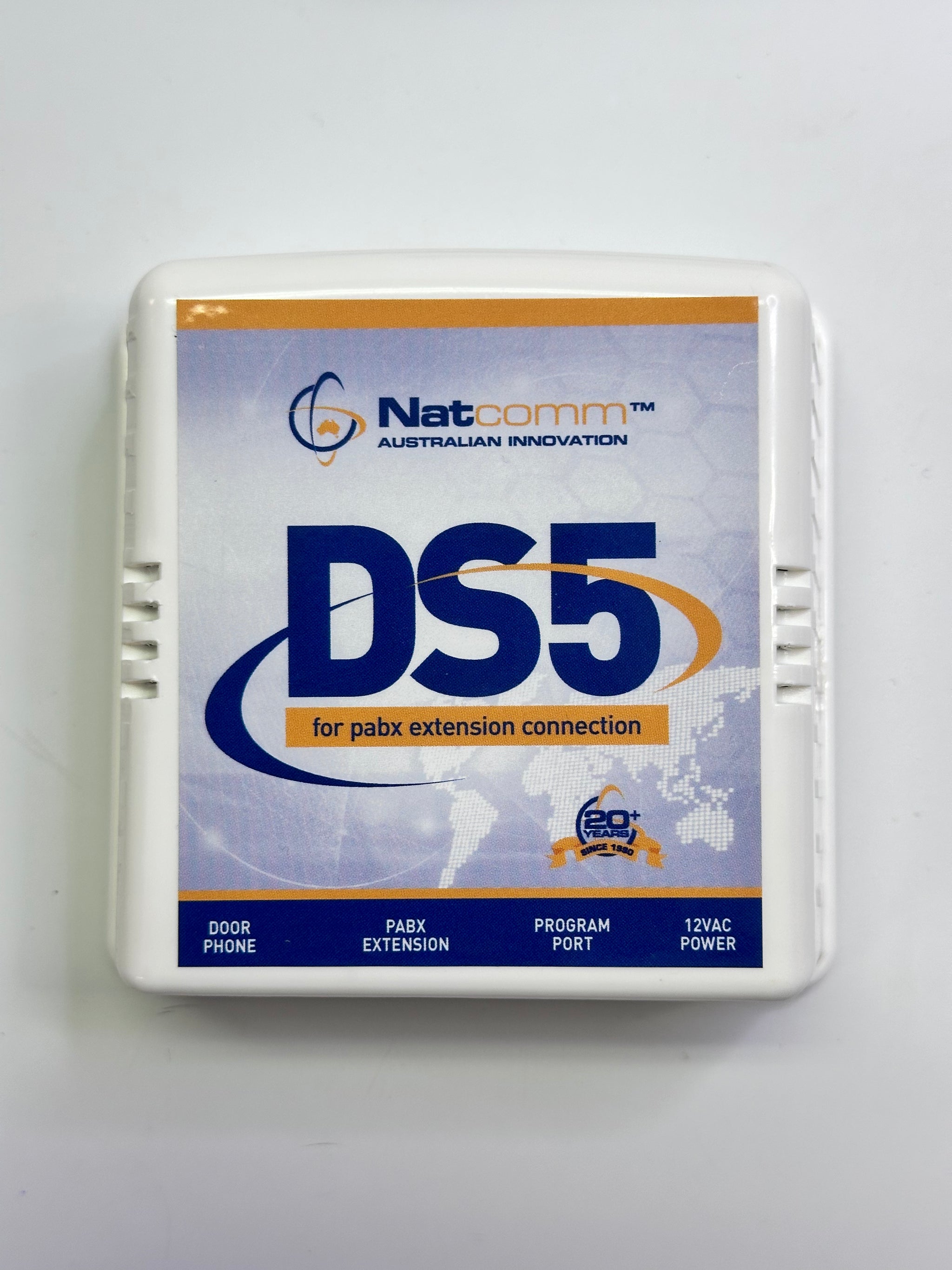

Natcomm DS5 Door Station Controller

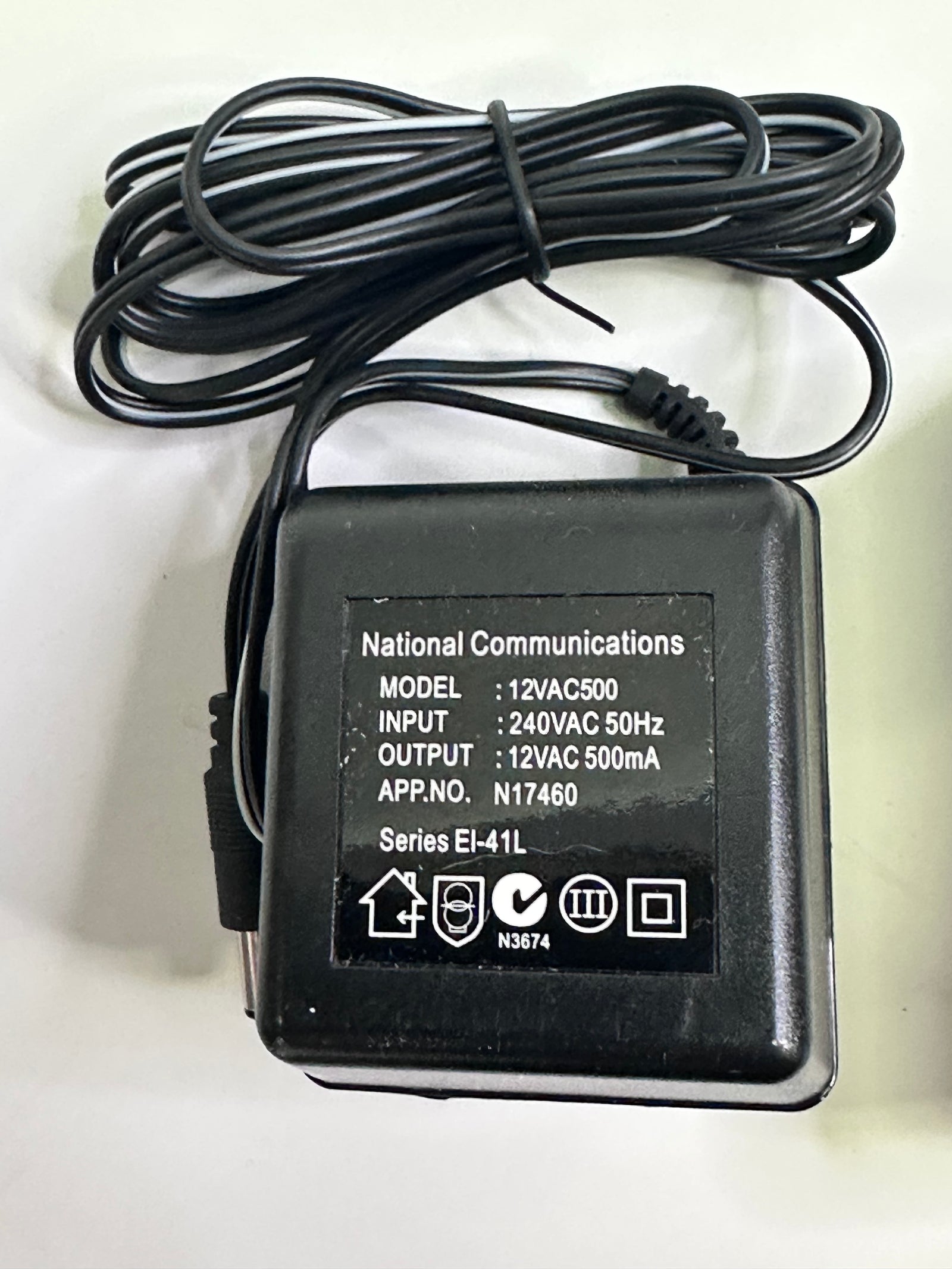

Door station controller identified as DS5 in the original title, with source-listed supply information 12V AC, 500mA.

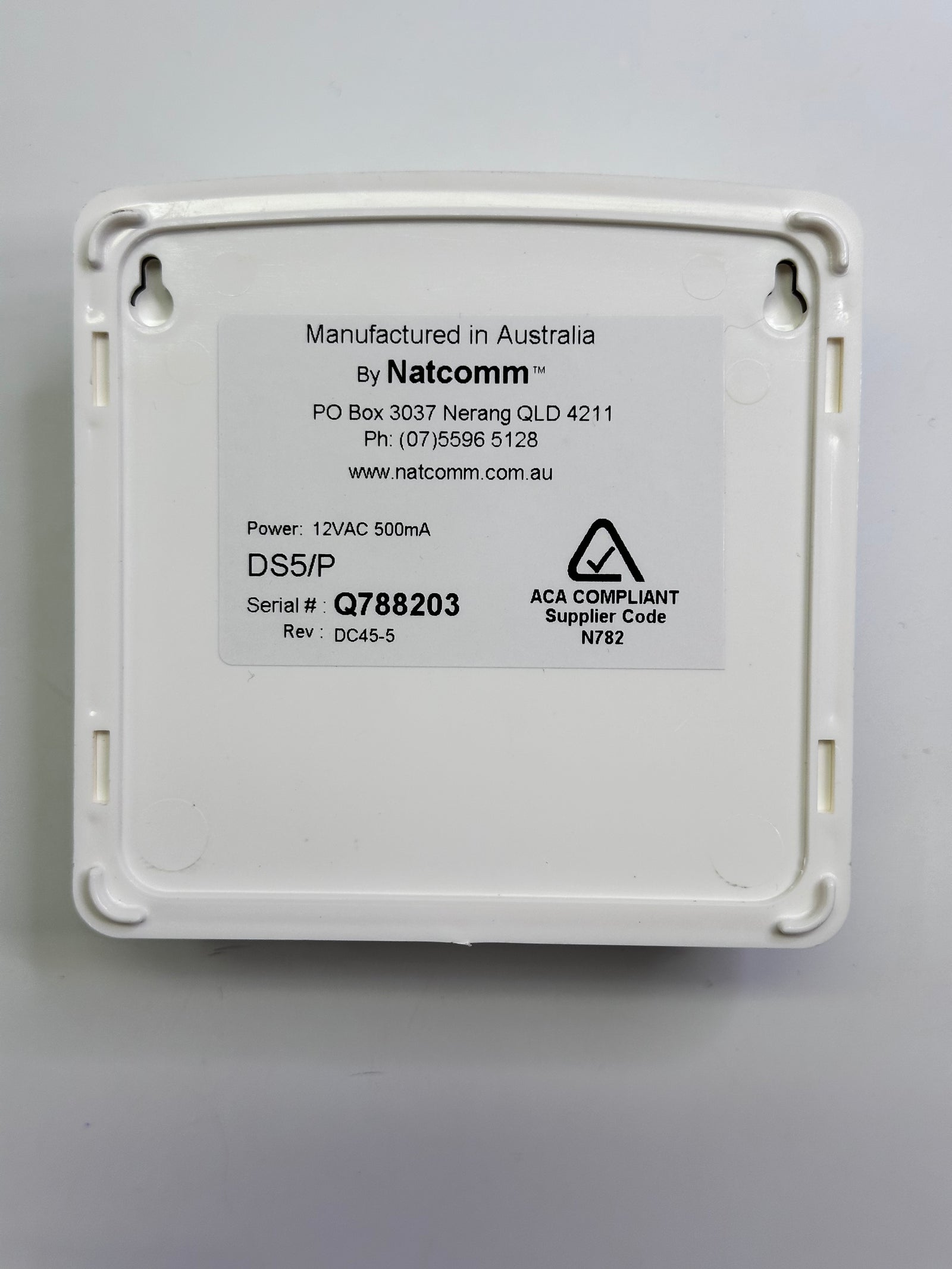

Version and interface check required: the description refers to DS5 PLUS and the tags include DS5/P. Confirm the exact supplied version, power requirement and telephone interface with its manufacturer documentation.

Original controller-family description

The DS5 PLUS is an indoor control module that can be used with the Natcomm DP2 door phone and has a FXS analog line port for phone system connection.  This allows the DS5 to be connected as a PBX extension, to a modem or router with phone extension port, or to an Analog Telephone Adaptor (ATA).

The unit will signal an off-hook state when a visitor presses the door phone call button. After answering the call, the keypad of a connected phone can be used to allow gate or door entry by operating a relay contact within the DS5. When the call ends, the DS5 hang-up detector ends the call to the door phone.

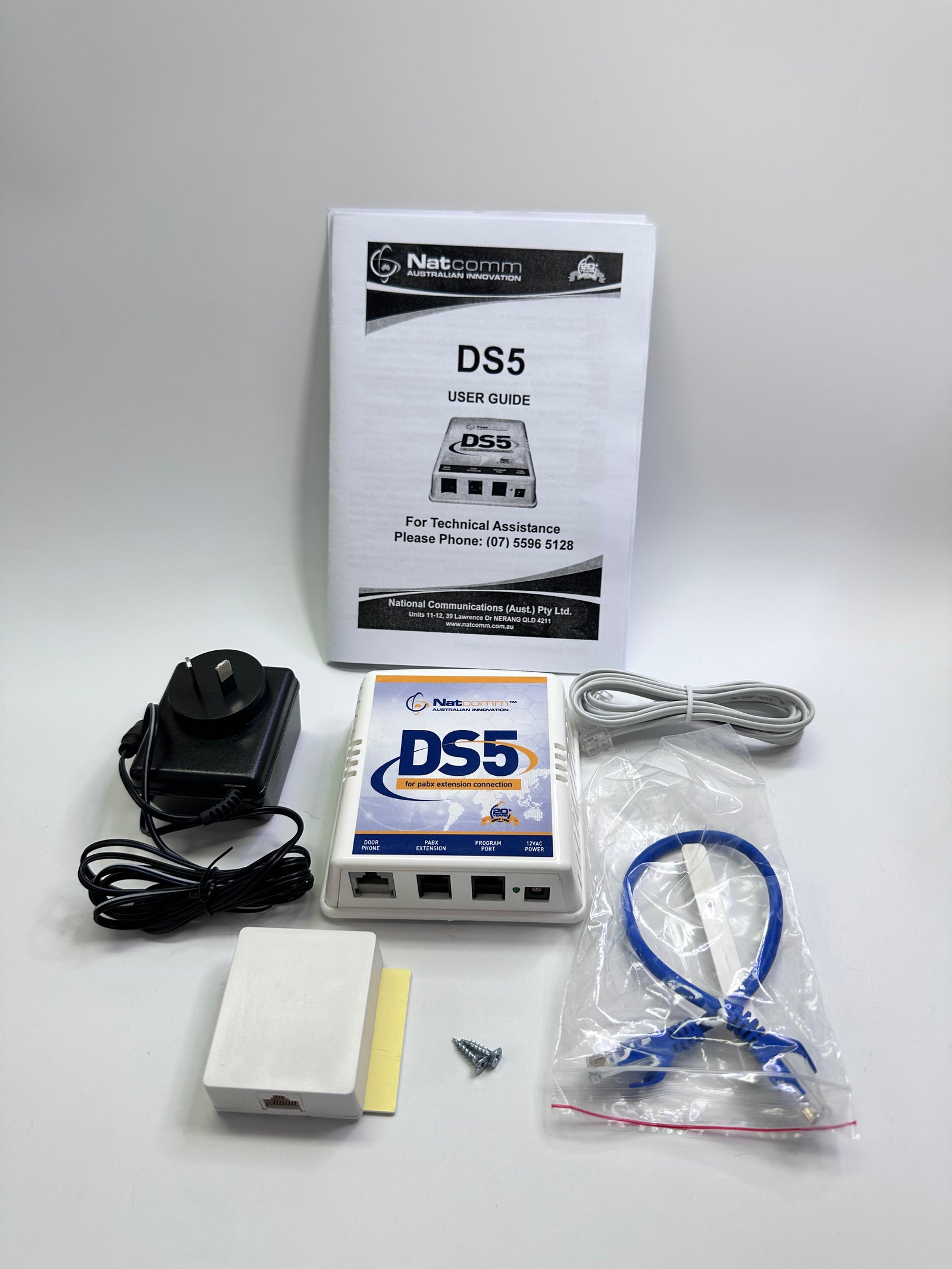

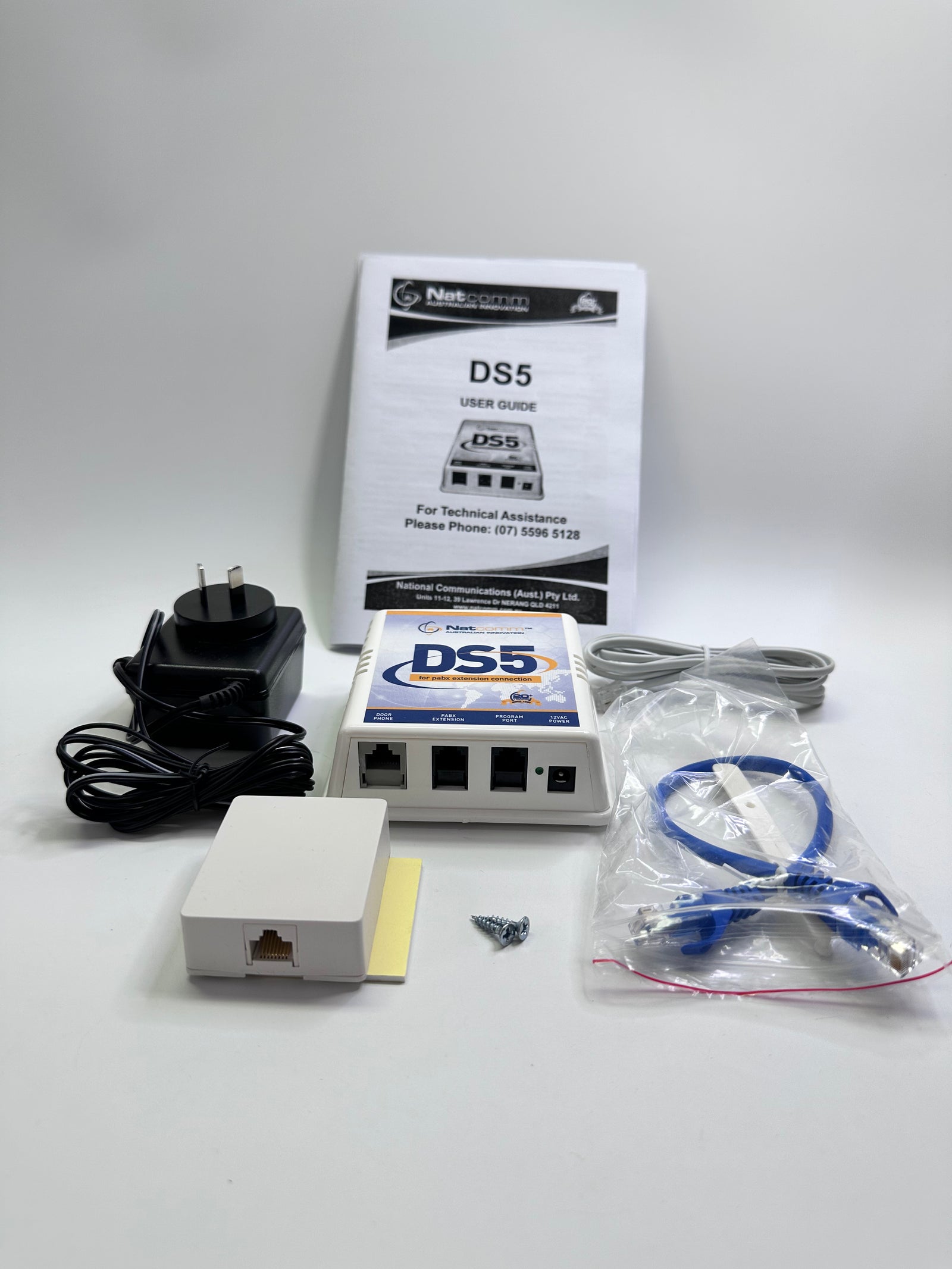

The source's FXS/PBX/ATA wording is retained for traceability, not as a verified wiring instruction. Confirm the actual port role and supported connection before connecting equipment. The description explains operation with a compatible DP2 door phone and telephone system; it does not establish that a door phone, phone, power supply, lock or other accessories are included.
