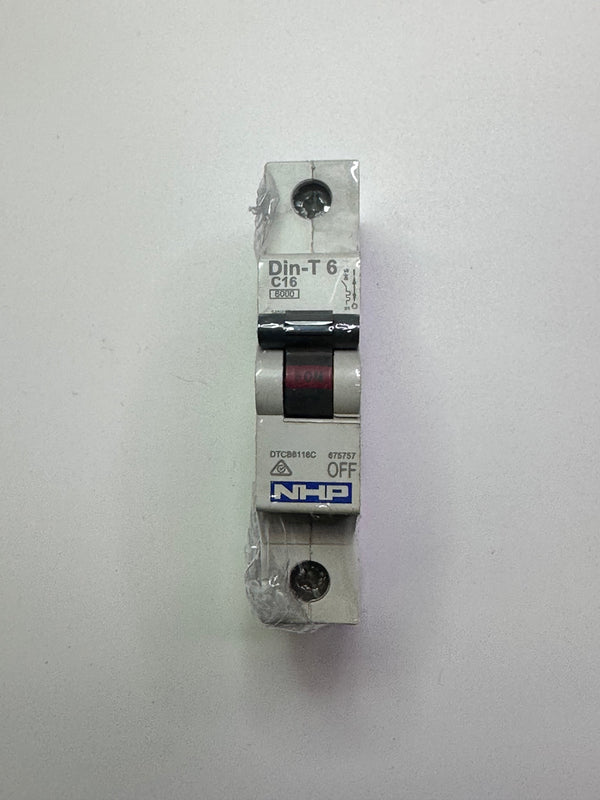

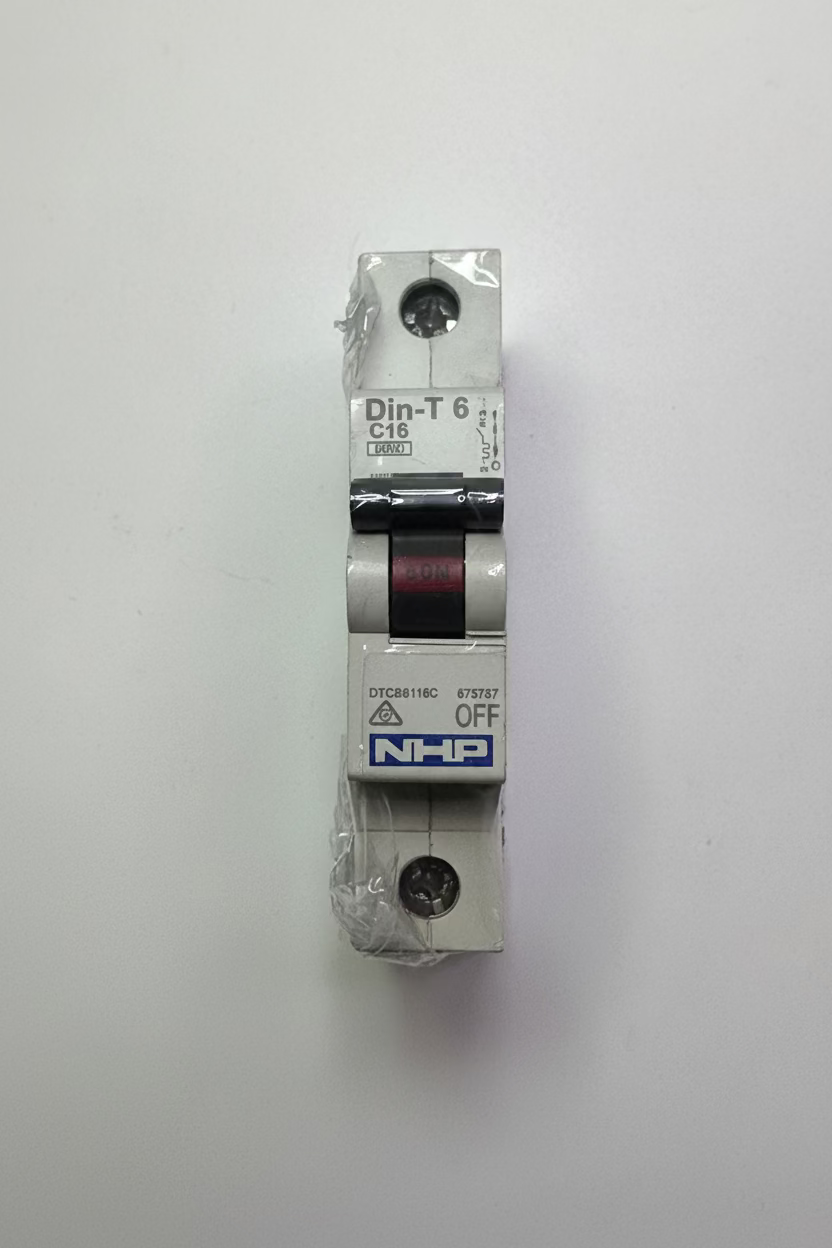

NHP DIN-T DTCB6116C 16A 1-Pole C-Curve Circuit Breaker
- SKU
- P-DI-N-7326
$9.90
Price includes GST.
Low stock: 2 left
Warehouse pickup available
- Weight
- 1.0 kg
Specifications
| Manufacturer | NHP |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-DI-N-7326 |
| Weight | 1.0 kg |
Description
NHP DIN-T / din-T6 DTCB6116C miniature circuit breaker, listed as 16 A, one pole and C curve. Additional catalogue reference: 11863; C16 designation.
Recorded specifications
- Rated current: 16 A; total poles: 1; trip curve: C.
- Rated voltage: 240 V; frequency: 50–60 Hz; voltage type: AC/DC.
- Maximum rated operating voltage Ue: 250 V.
- Rated insulation voltage Ui: 440 V.
- Rated impulse withstand voltage Uimp: 6 kV.
- Nominal DC operating voltage Un: 48 V.
Source entries requiring verification
- Service voltage Ub, AC: 12 V.
- Service voltage Ub, DC: 12 V.
- Icn under AS/NZS 60898: 6 kA at 230 VAC and 6 kA at 400 VAC.
- Icu under AS/NZS 60947-2: 10 kA at 230 VAC and 3 kA at 400 VAC.
The source voltage and breaking-capacity entries require confirmation against documentation for this exact single-pole model. They are retained as recorded, not installation ratings verified by MIS. The 6 kV figure is impulse withstand, not breaking capacity or normal operating voltage. Confirm the nameplate and application ratings before use.
