NHP DIN-T DTCB06125C 25A C-Curve 1-Pole Miniature Circuit Breaker
- SKU
- P-DI-N-7324
$9.90
Price includes GST.
In stock
Warehouse pickup available
- Weight
- 1.0 kg
Specifications
| Manufacturer | NHP |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-DI-N-7324 |
| Weight | 1.0 kg |
Description

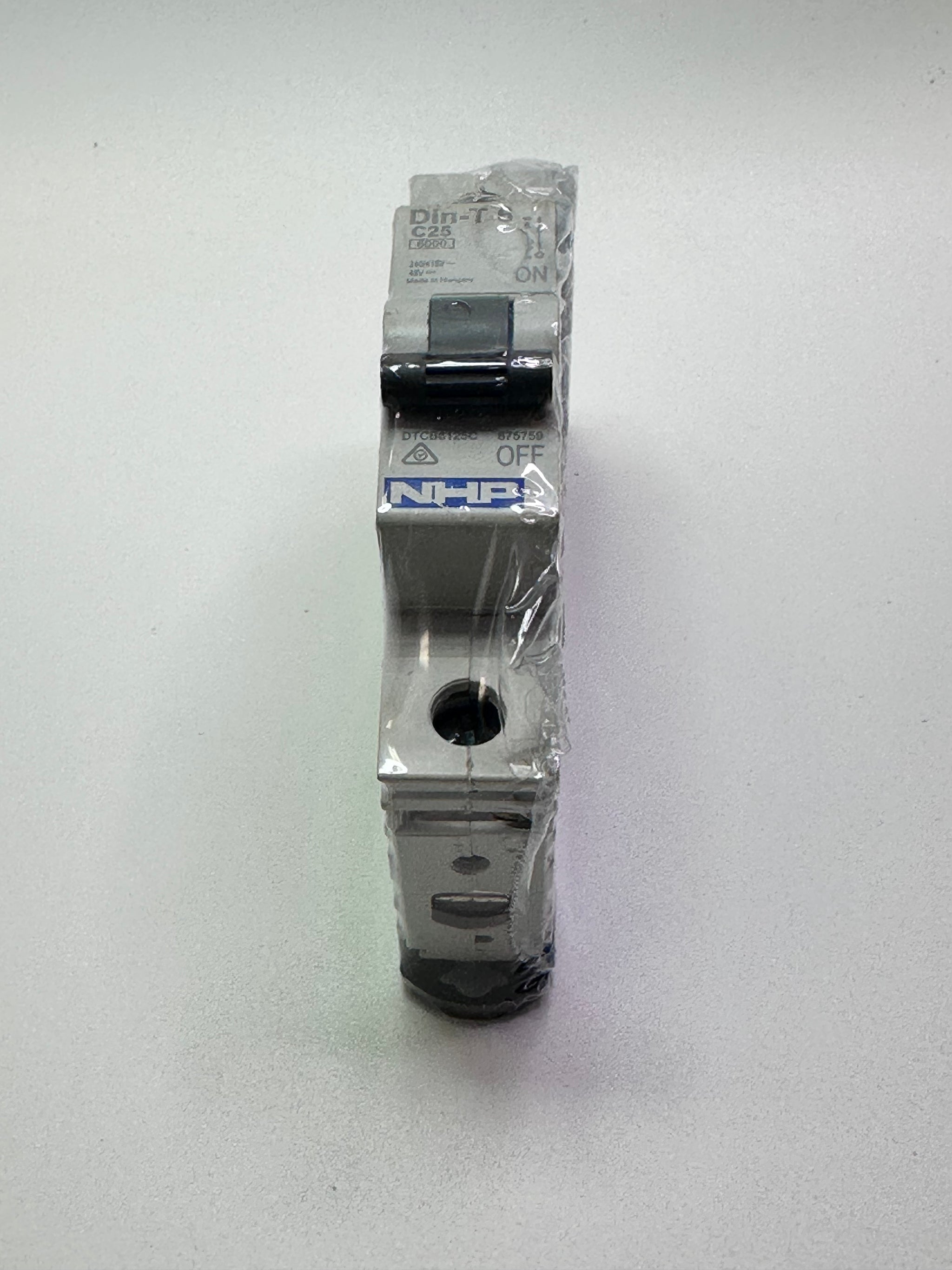

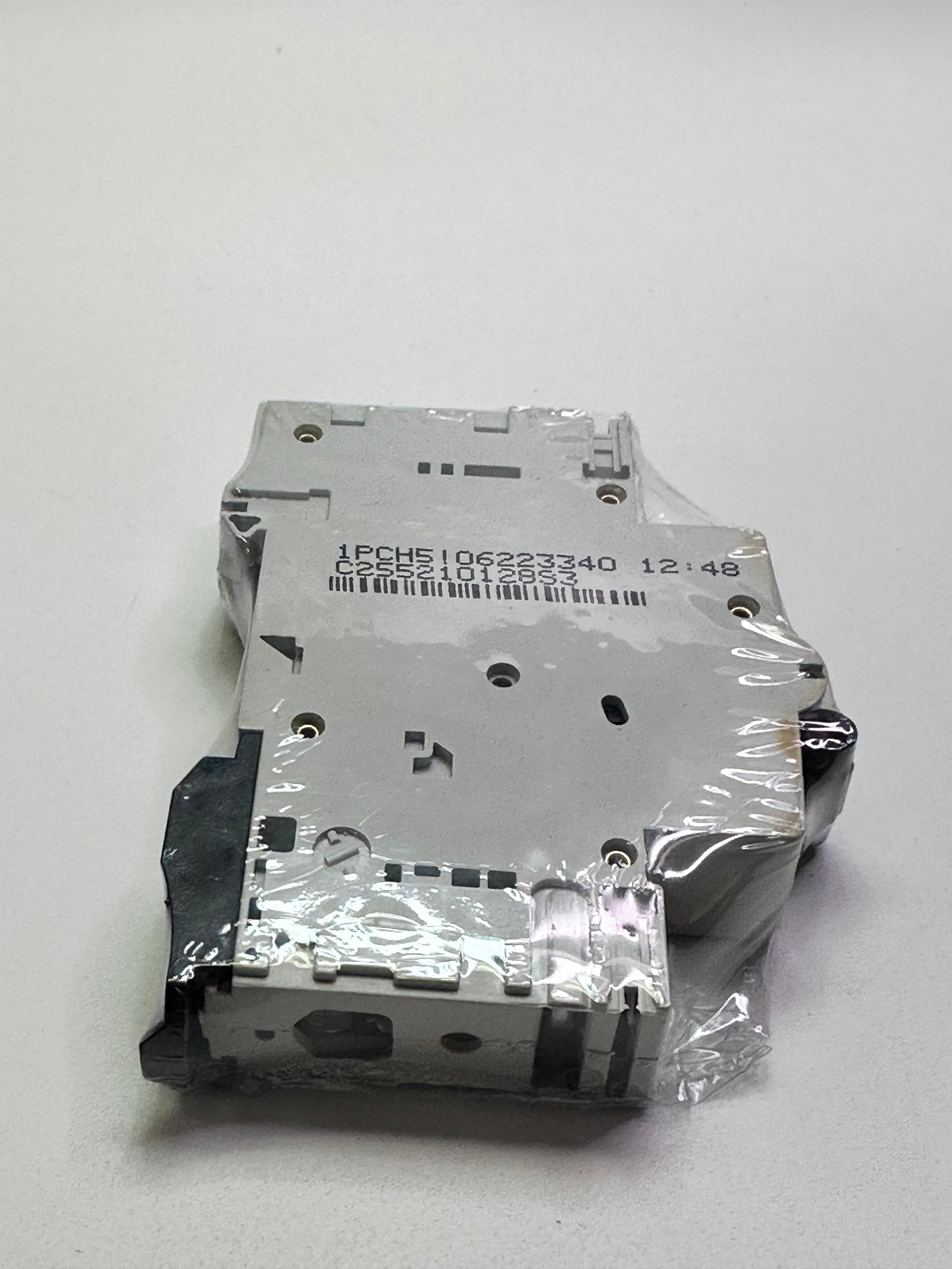

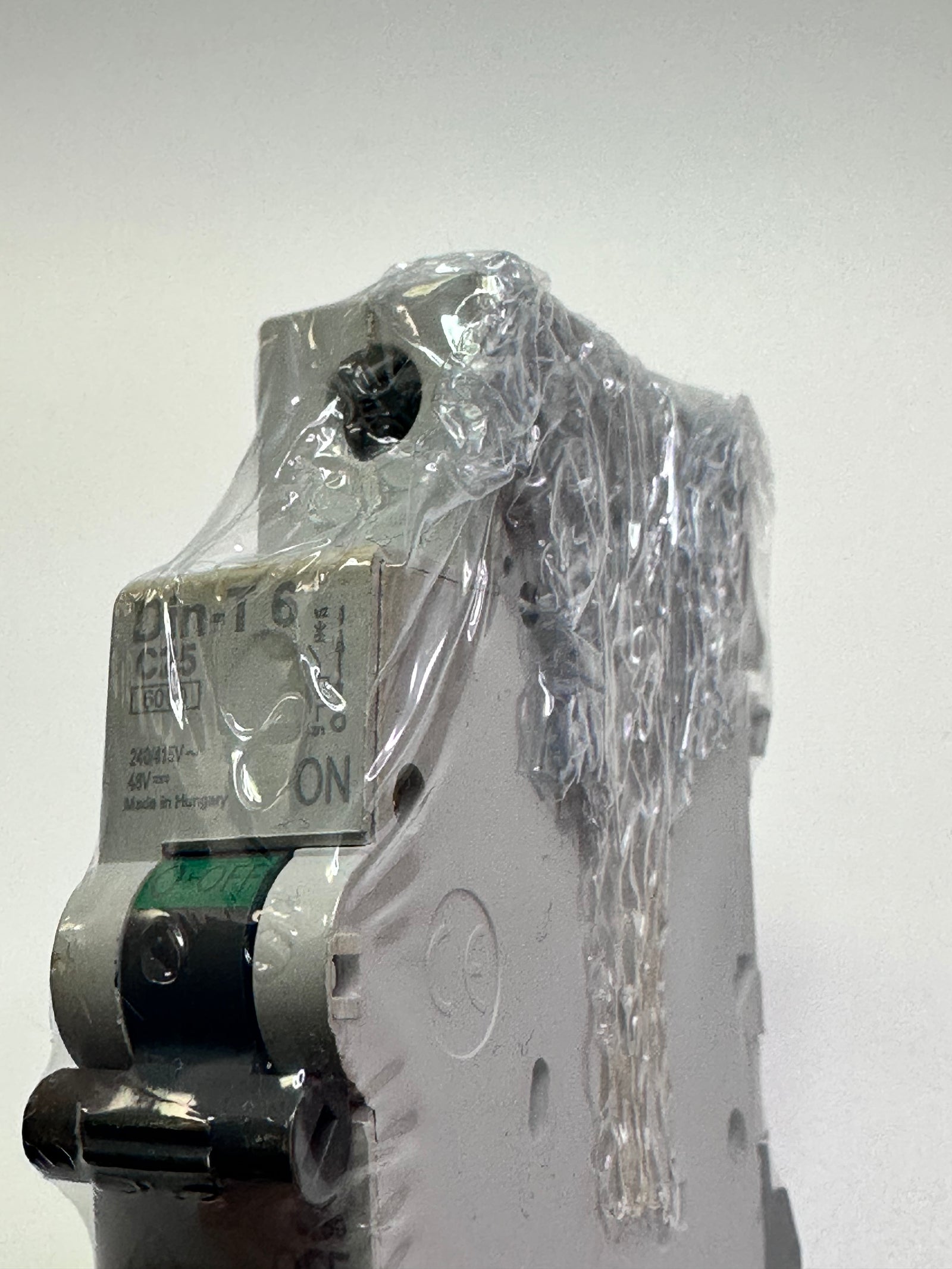

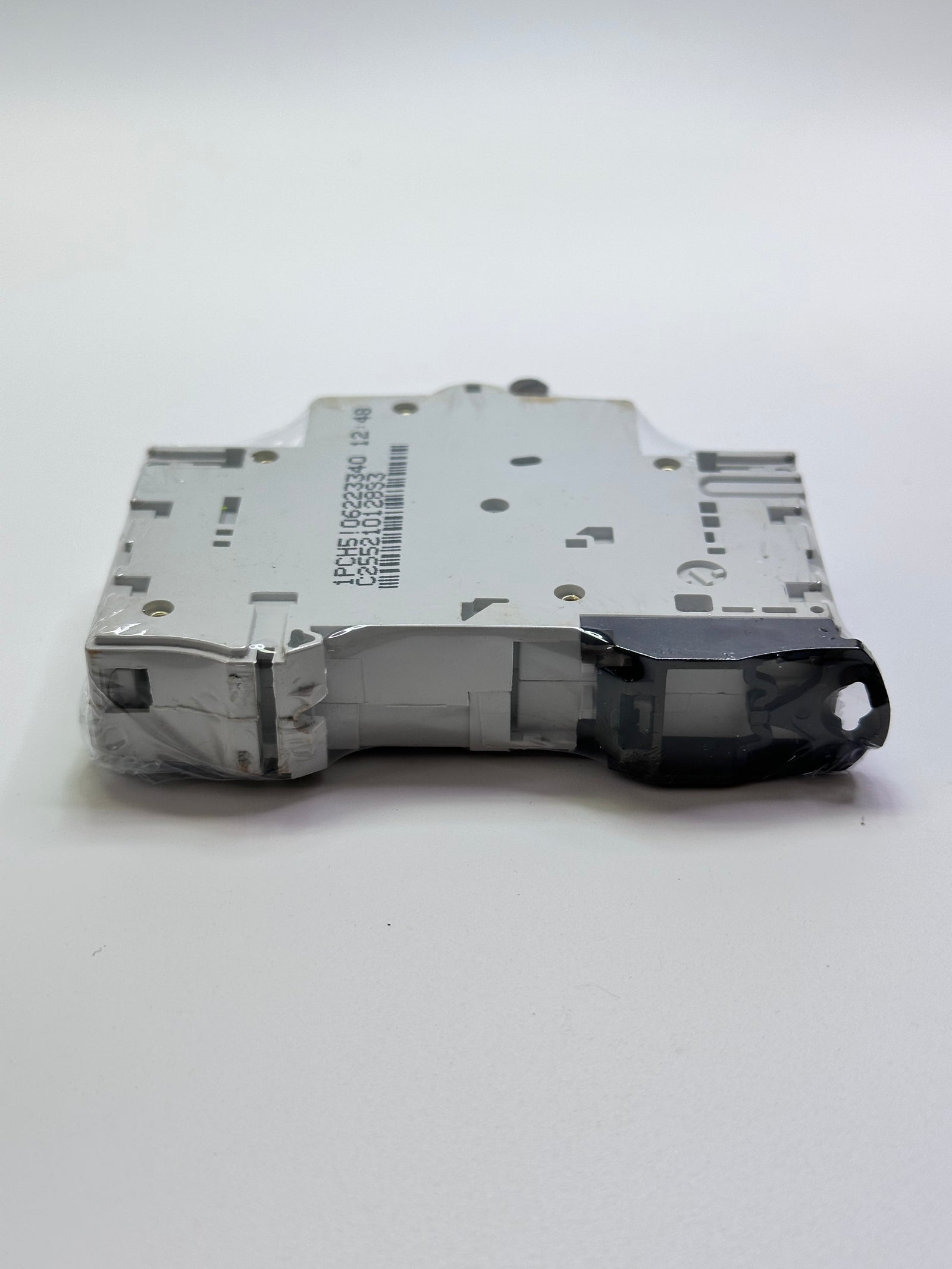

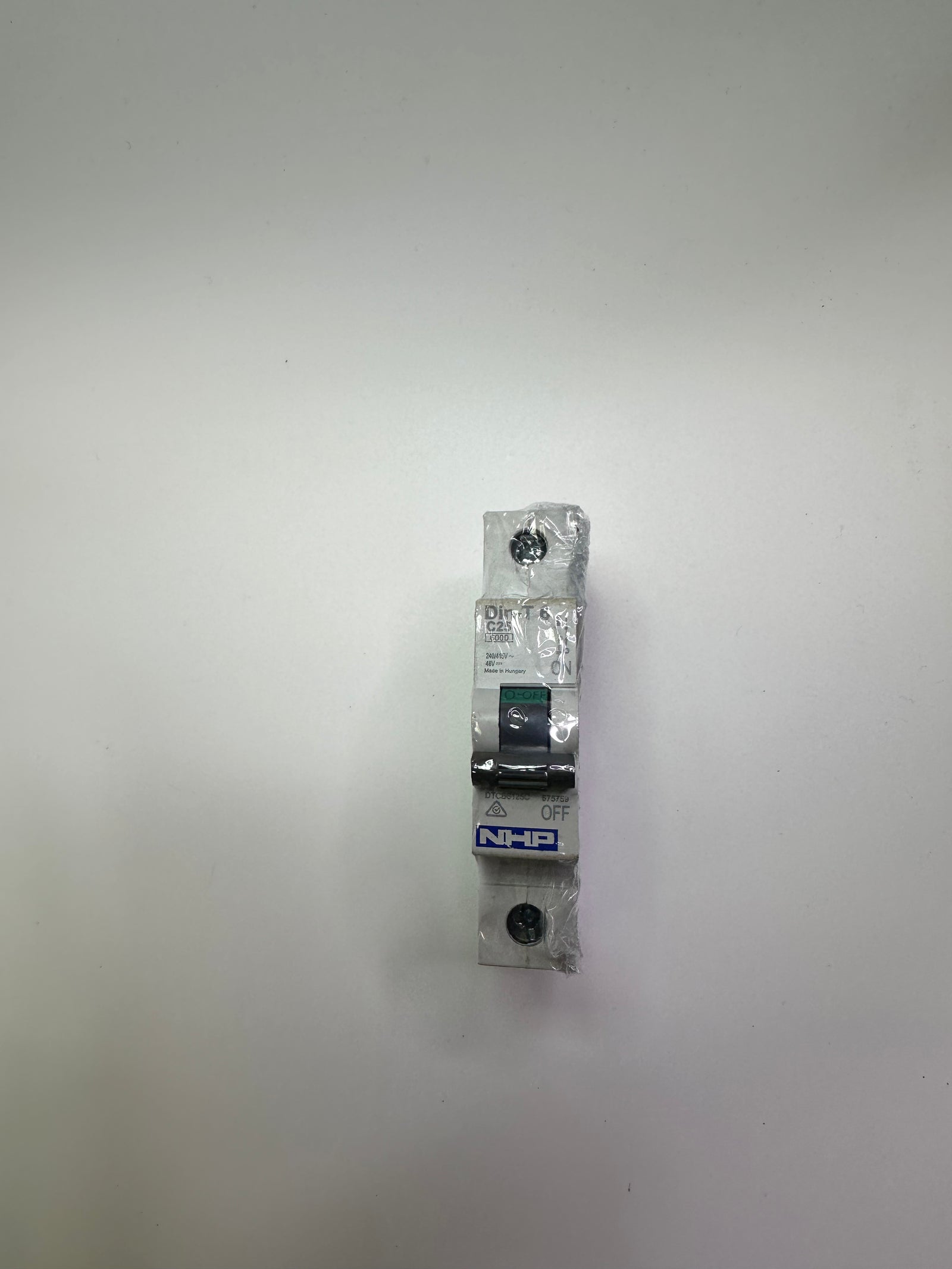

NHP DIN-T miniature circuit breaker, listed as DTCB06125C, 25A, C curve and one pole. Source tags also contain CTCB06125C and DTC06125C; confirm the actual device marking.
Source electrical entries — configuration verification required
- Rated current: 25A; total poles: 1; trip curve: C.
- Rated voltage: 240V.
- Frequency: 0–60Hz; voltage type: AC/DC.
- Service voltage Ub, AC: 12V; service voltage Ub, DC: 12V, as recorded.
- Nominal operating voltage Un, DC: 48V.
- Icn according to AS/NZS 60898 at 230VAC: 6kA.
- Icn according to AS/NZS 60898 at 400VAC: 6kA.
- Icu according to AS/NZS 60947-2 at 230VAC: 10kA.
- Icu according to AS/NZS 60947-2 at 400VAC: 3kA.
- Maximum rated operating voltage Ue: 250V.
- Rated insulation voltage Ui: 440V.
- Rated impulse withstand voltage Uimp: 6kV.
The source combines several voltage/test entries, including 400VAC capacities and a 250V maximum operating entry. These are not confirmed as simultaneously applicable to this single-pole unit. Verify the correct model, voltage configuration and manufacturer ratings before selecting or installing it.
Confirm condition and supplied components. The source standards references are not independent certification of the supplied breaker.
