EATON-MOELLER

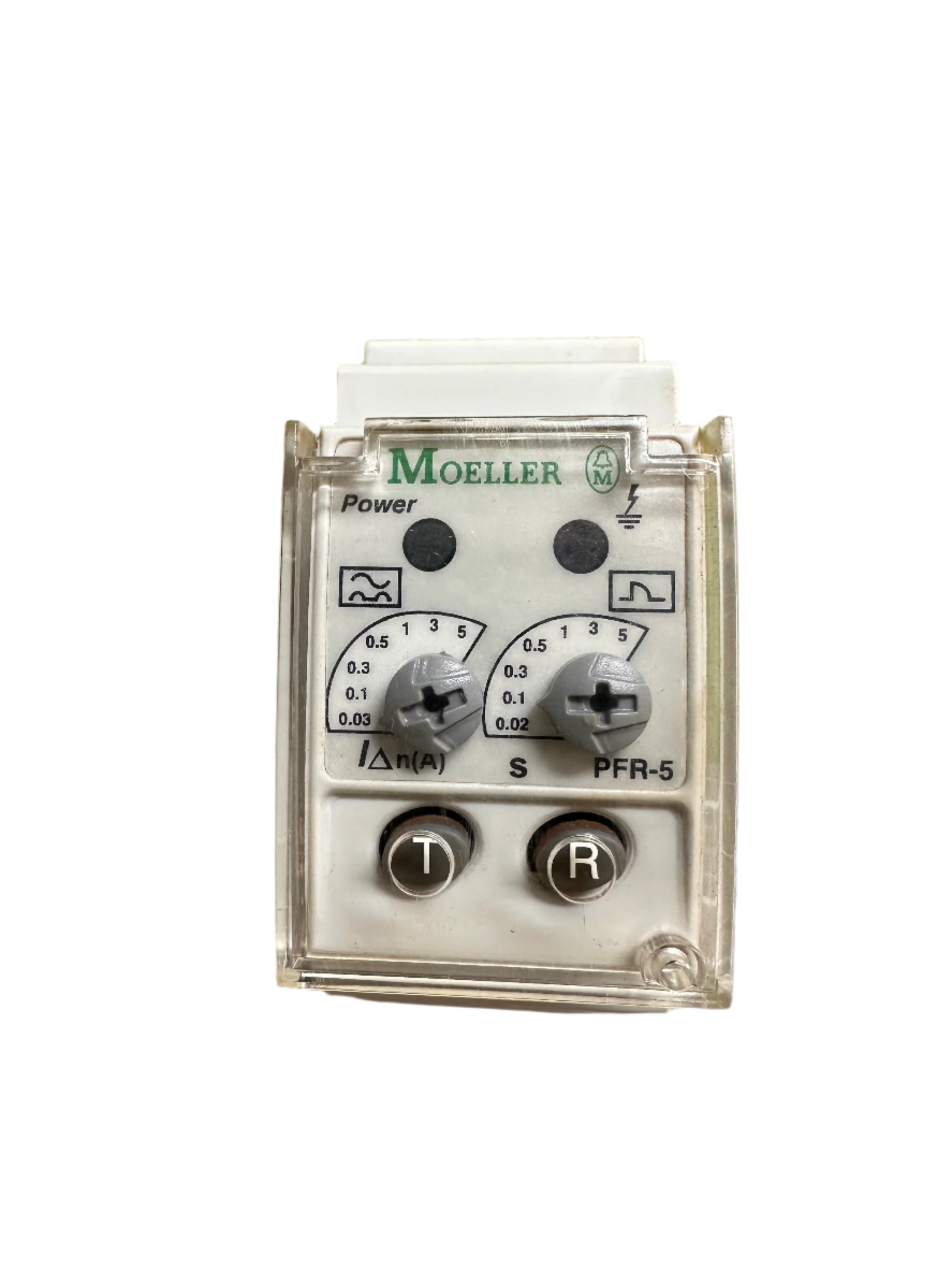

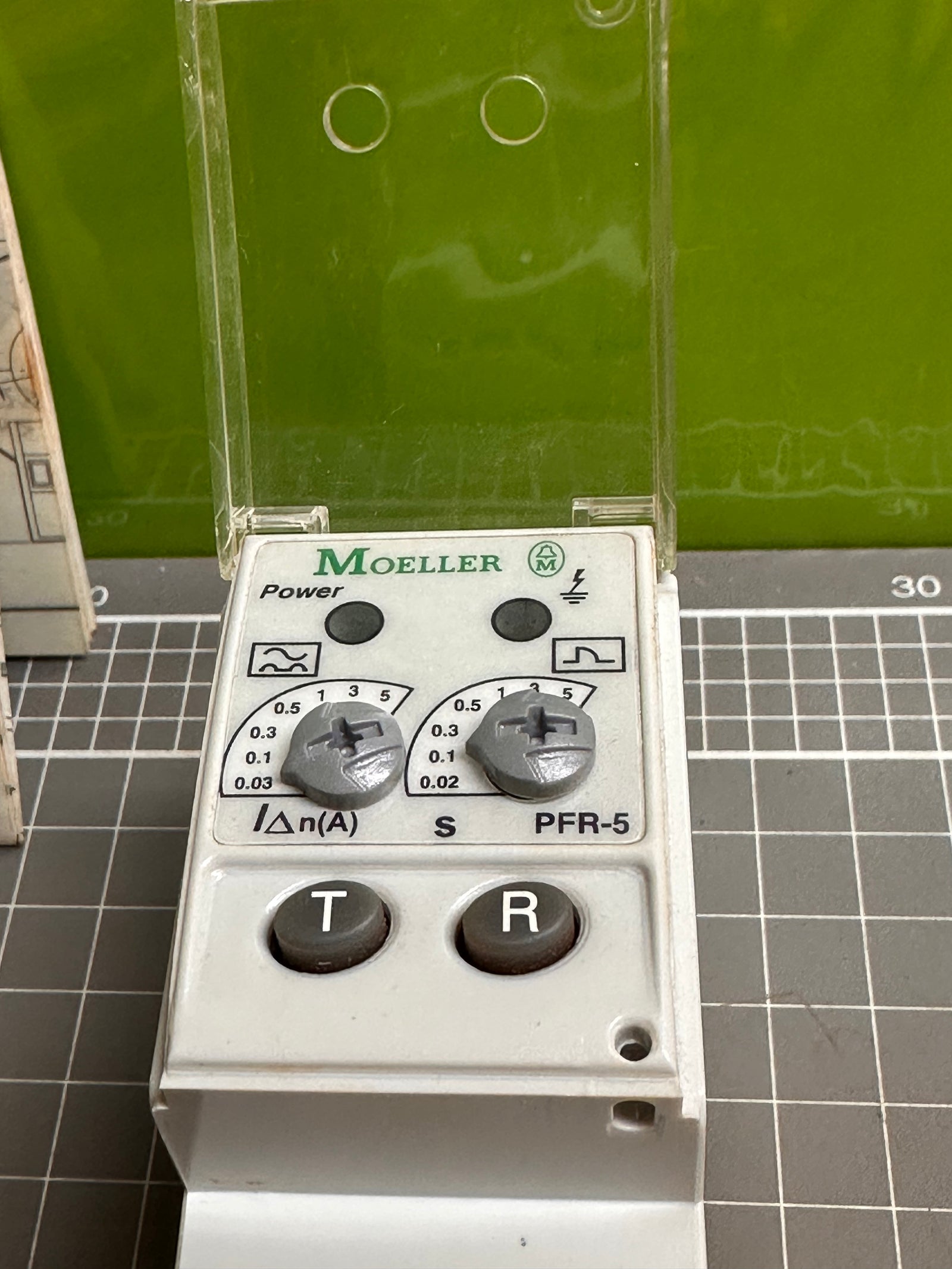

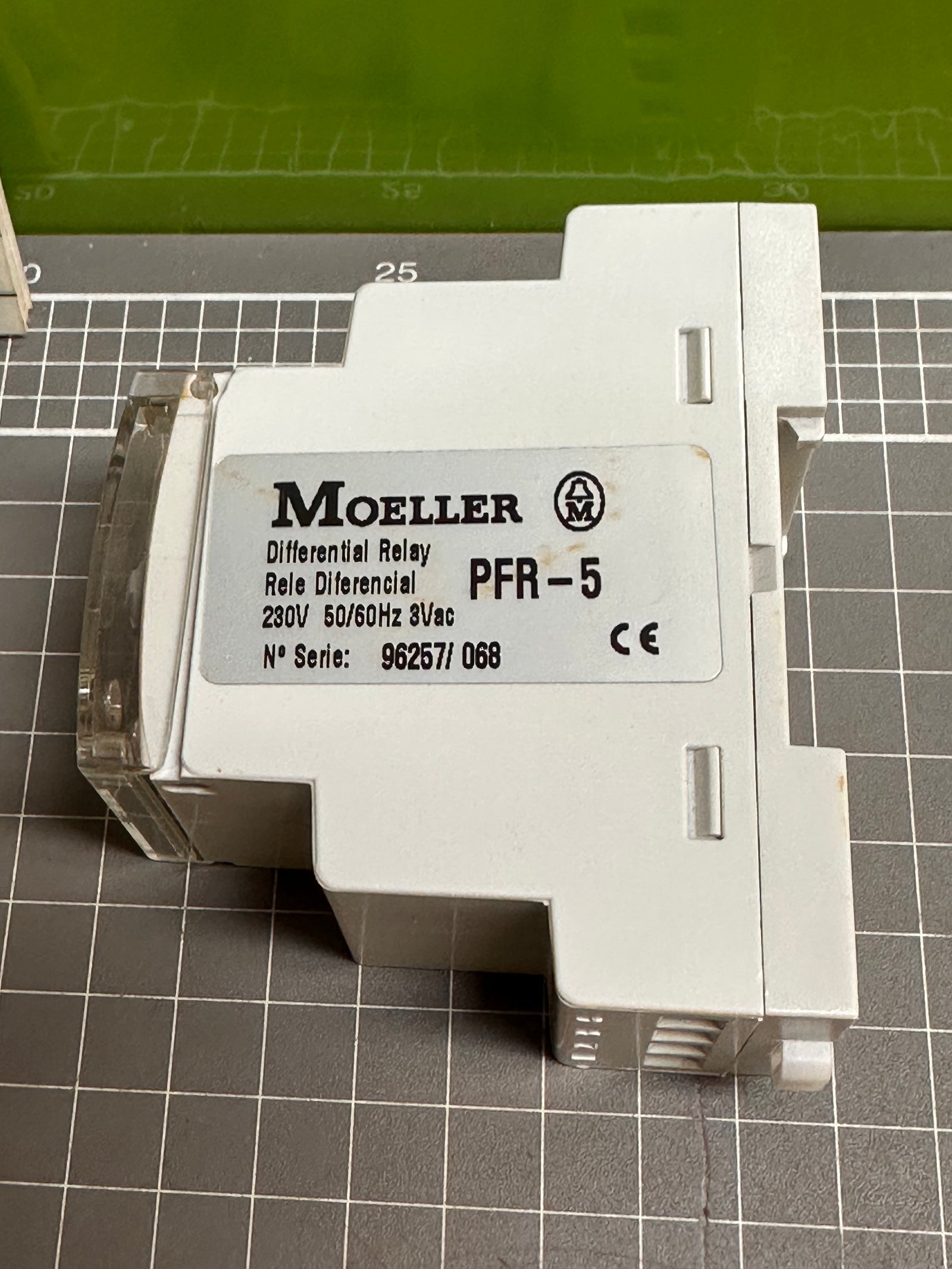

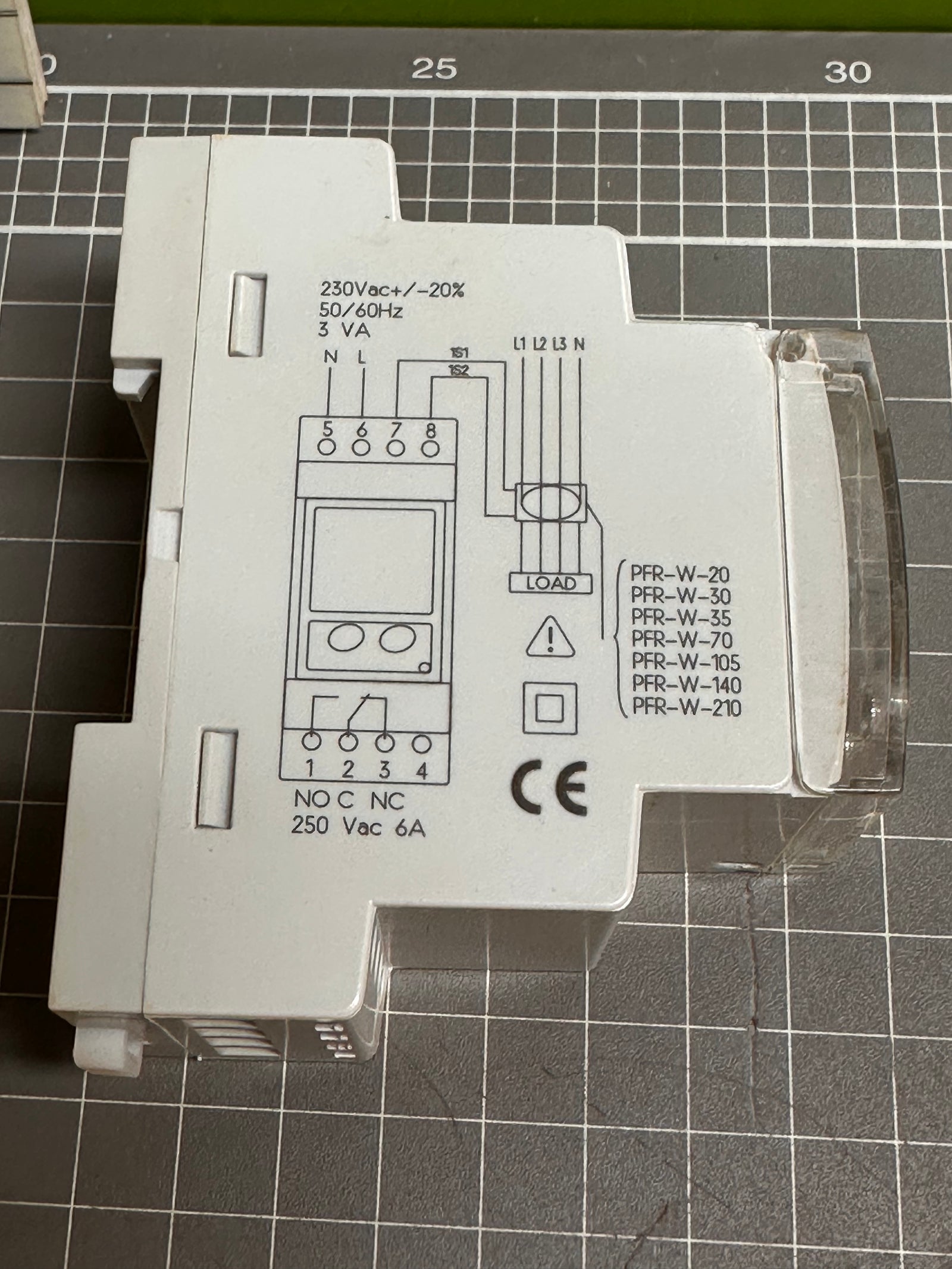

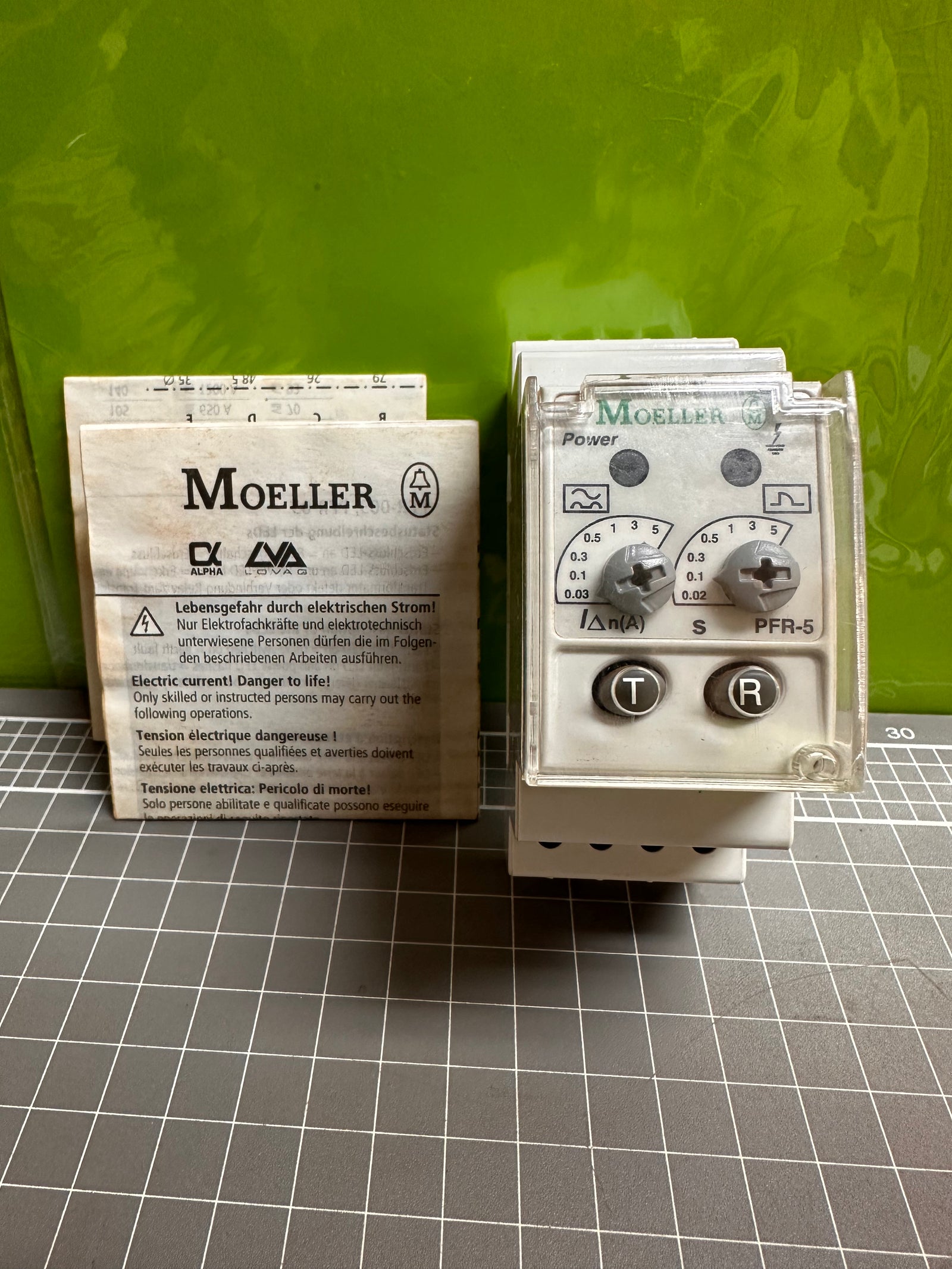

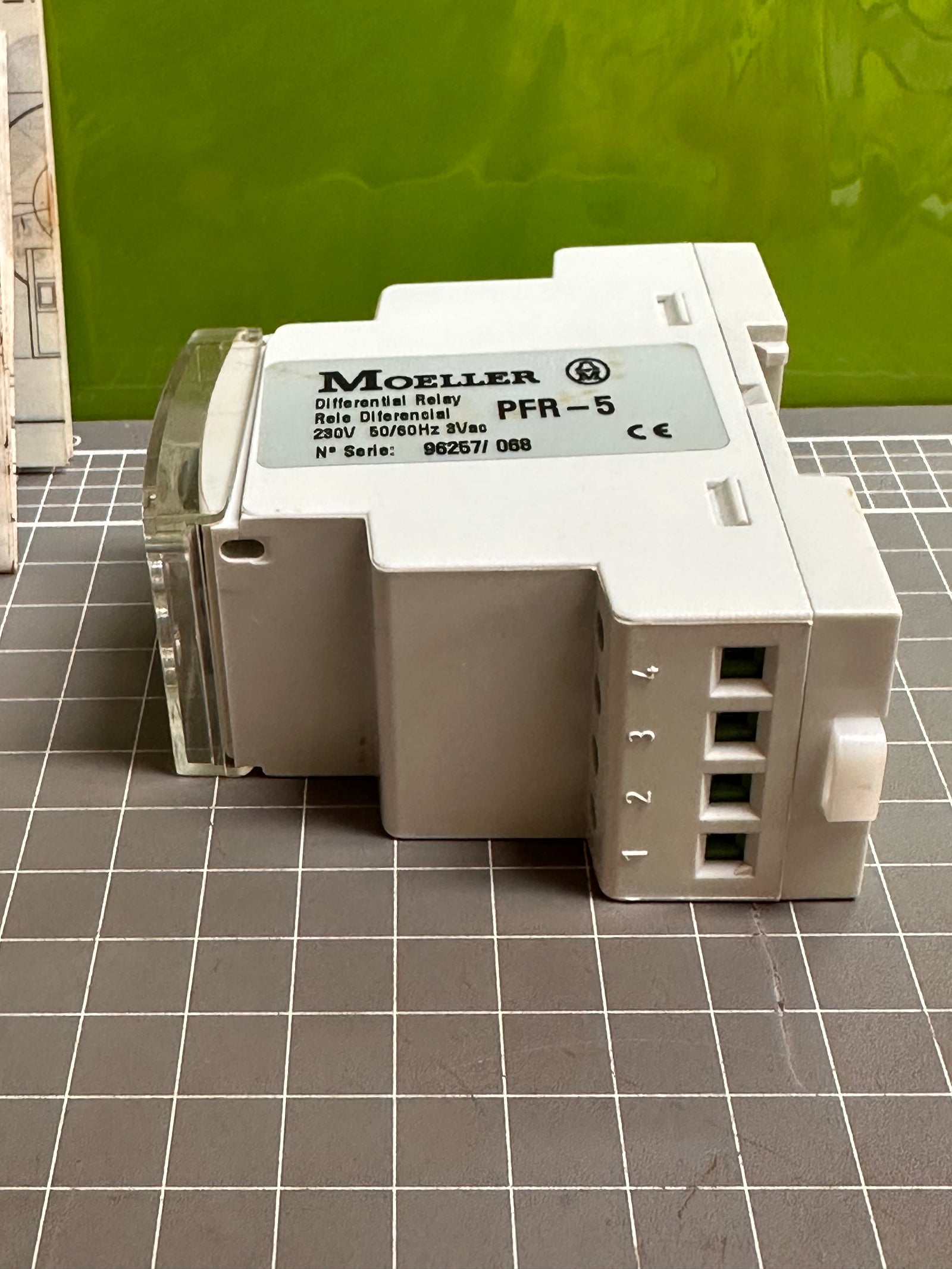

Moeller PFR-5 NZM Series Earth Leakage Circuit Breaker 03-5A, 285557
- SKU
- P-DI-E-2712
$195.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 0.5 kg
Specifications
| Manufacturer | EATON-MOELLER |
|---|---|
| Product type | Electrical |
| SKU | P-DI-E-2712 |
| Weight | 0.5 kg |
Description
Eaton Moeller series NZM - Molded Case Circuit Breaker. Earth-leakage circuit-breaker 0, 03-5 A
sensitivity type
Pulse current sensitive, type A
Voltage rating of relay contact
250 V AC / 100 V DC
Rated operating voltage (Ue) - max
276 V
Rated control supply voltage (Us) at AC, 50 Hz - min
184 V
Rated control supply voltage (Us) at AC, 50 Hz - max
276 V
Rated control supply voltage (Us) at AC, 60 Hz - min
184 V
Rated control supply voltage (Us) at AC, 60 Hz - max
276 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
0 V
Current rating of relay contact
6 A
Rated fault current - min
0.03 A
Rated fault current - max
5 A
Power consumption
3 W
Delay time
0.02, 0.1, 0.3, 0.5, 1, 3, 5 ms
Power on-delay time - min
5000 ms
Power on-delay time - max
5000 ms
GTIN/UPC/EAN:
4015082855574

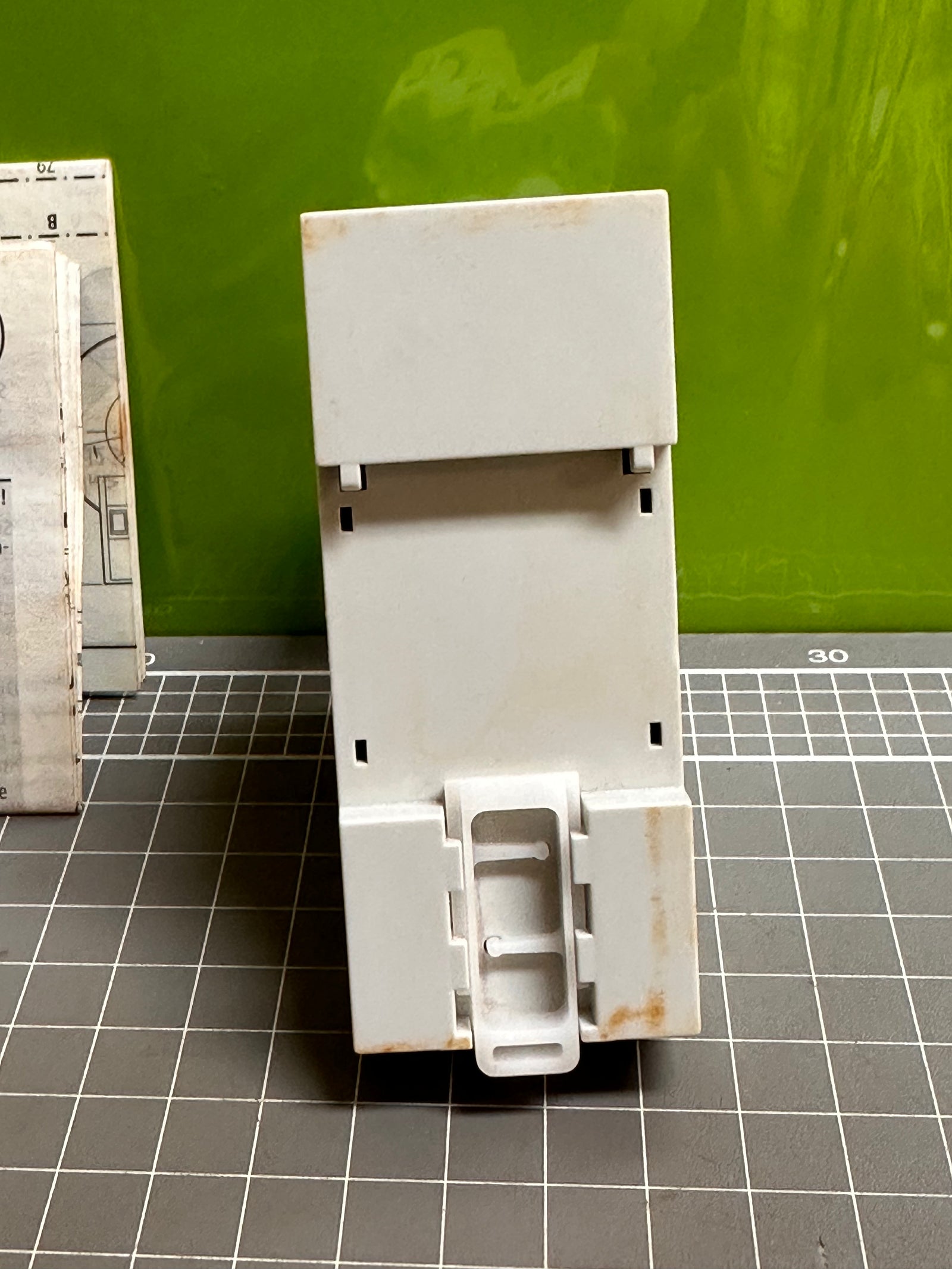

***Some red dirt staining from storage.
