SCHNEIDER ELECTRIC

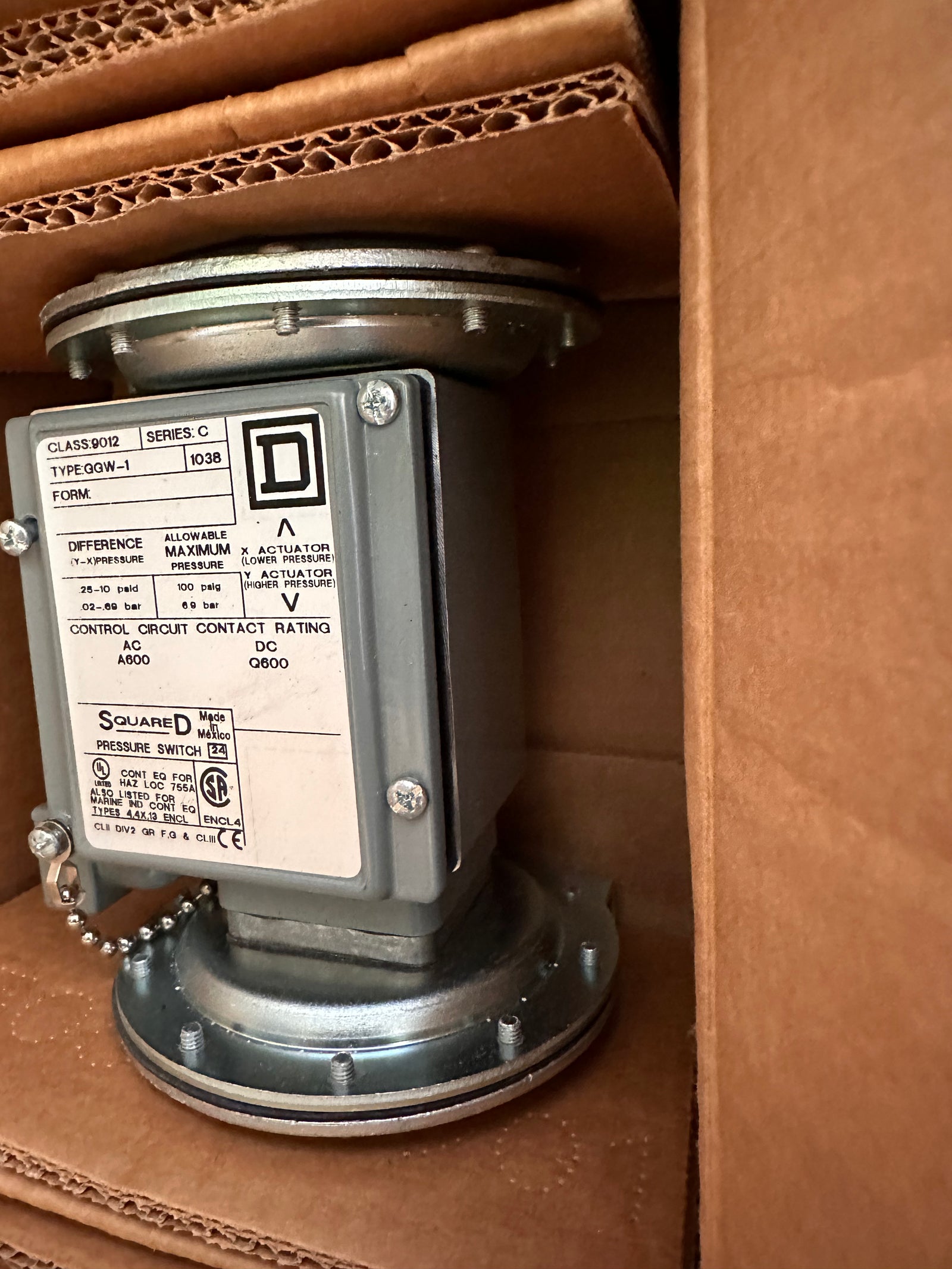

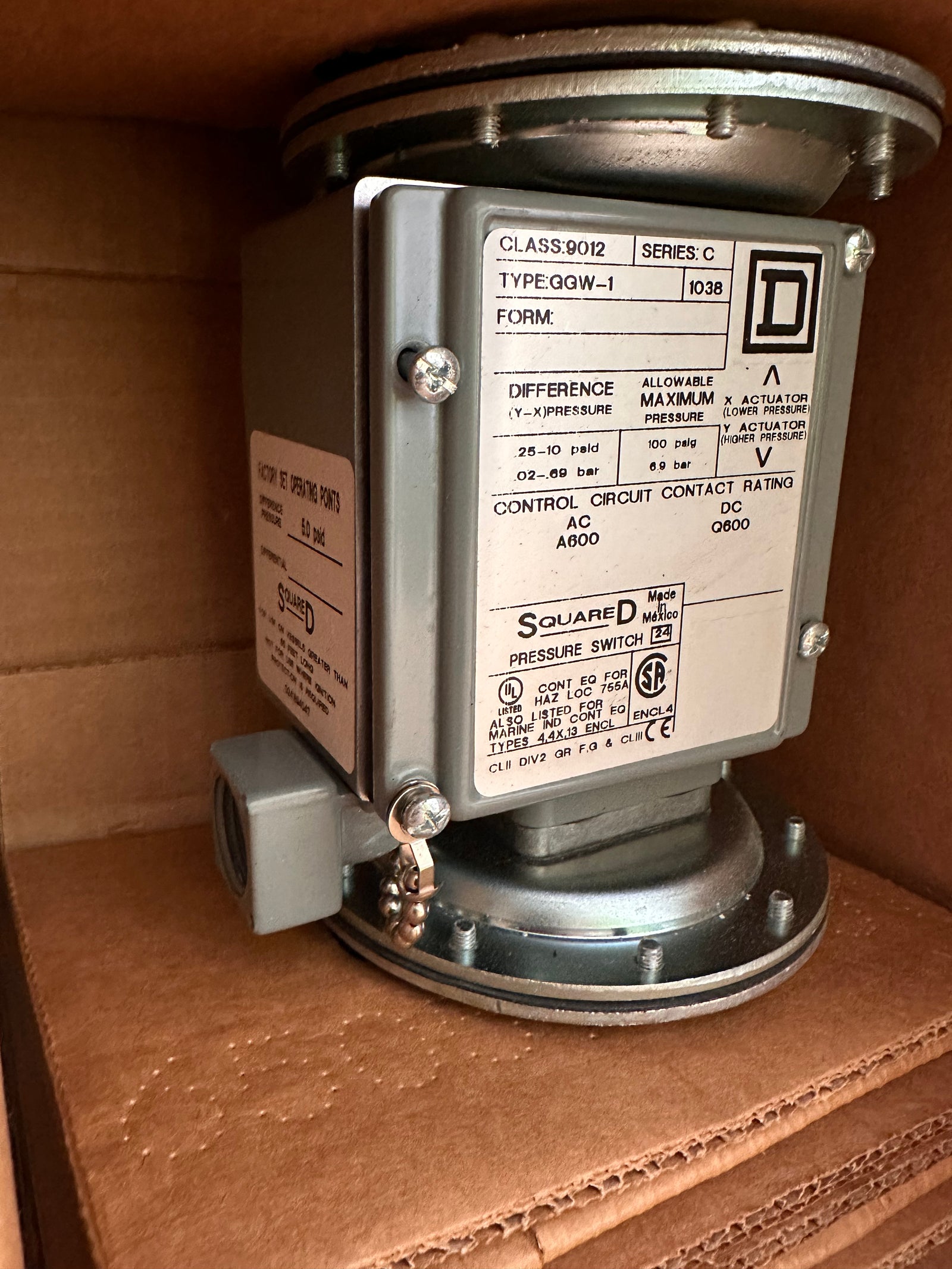

Schneider SquareD 9012 GGW-1 Differential Pressure Switch
- SKU
- P-DI-S-2709
$500.00
Price includes GST.
Sold out
Warehouse pickup available
This one has sold, but we regularly land similar stock and can often source an equivalent.
Request this part or an equivalent- Weight
- 4.0 kg
Specifications
| Manufacturer | SCHNEIDER ELECTRIC |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-DI-S-2709 |
| Weight | 4.0 kg |
Description
| Range of product | 9012G |
|---|---|
| Pressure sensor type | Electromechanical pressure switch |
| Pressure sensor name | 9012G |
| Pressure rating | 517.11 kPa |
| Maximum pressure | 100 psi |
| Contacts type and composition | NC-NO, SPDT-DB, Form Z, snap action, silver nickel contacts |
| Controlled fluid | Hydraulic oil (-40…121 °C) Non-corrosive liquids Air Non-corrosive gas |
| Fluid connection type | 0.25 inch 18 NPTF conforming to UL 508 |
| Pressure switch type of operation | Monitors the difference between 2 thresholds |
| Scale type | Adjustable differential |
