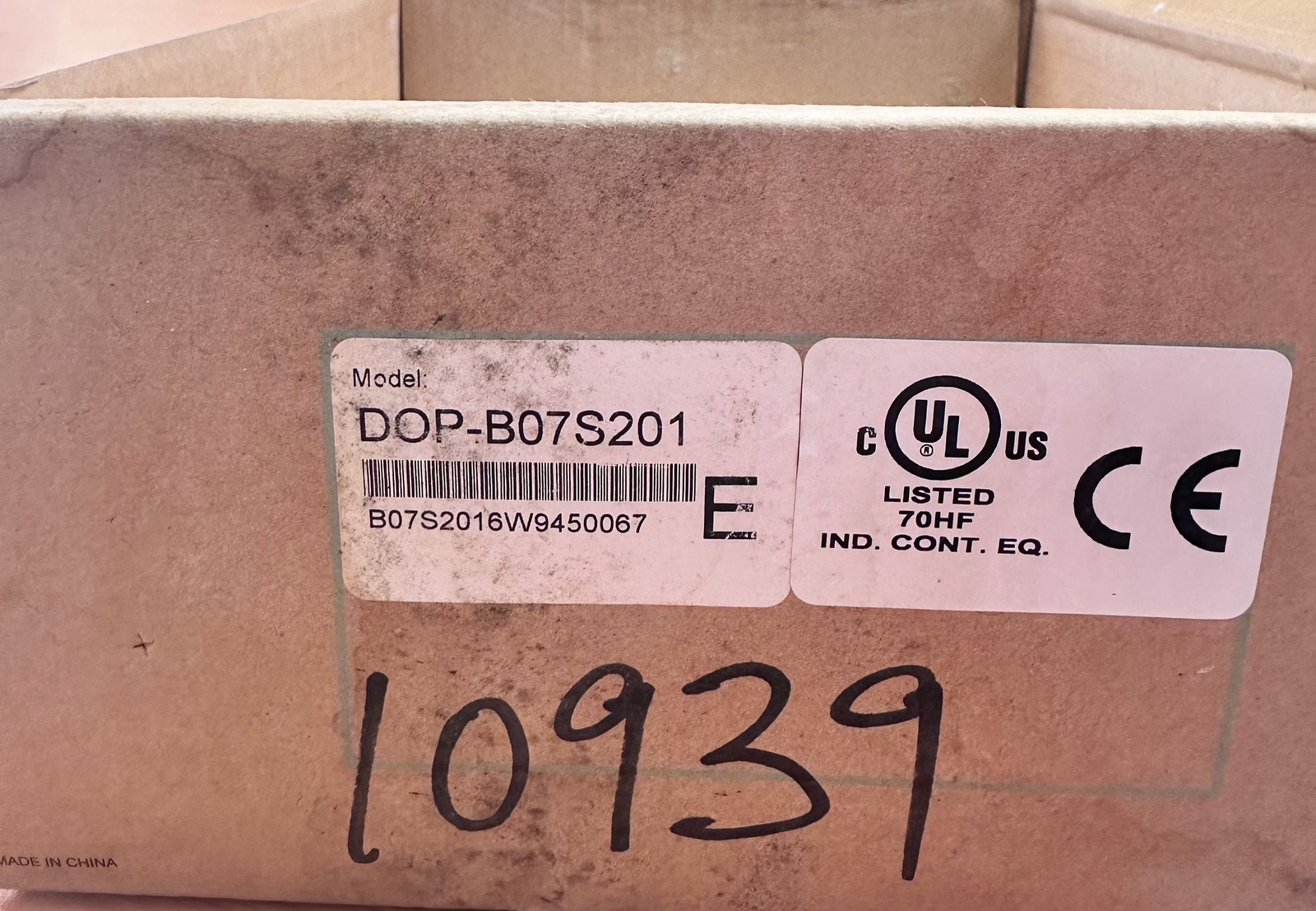

Delta DOP-B07S201 7-Inch Touchscreen HMI Panel — 24 V DC
- SKU
- P-DE-D-5966
This one has sold, but we regularly land similar stock and can often source an equivalent.
Request this part or an equivalent- Weight
- 3.0 kg
Specifications
| Manufacturer | DELTA ELECTRONIS |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-DE-D-5966 |
| Weight | 3.0 kg |
Description

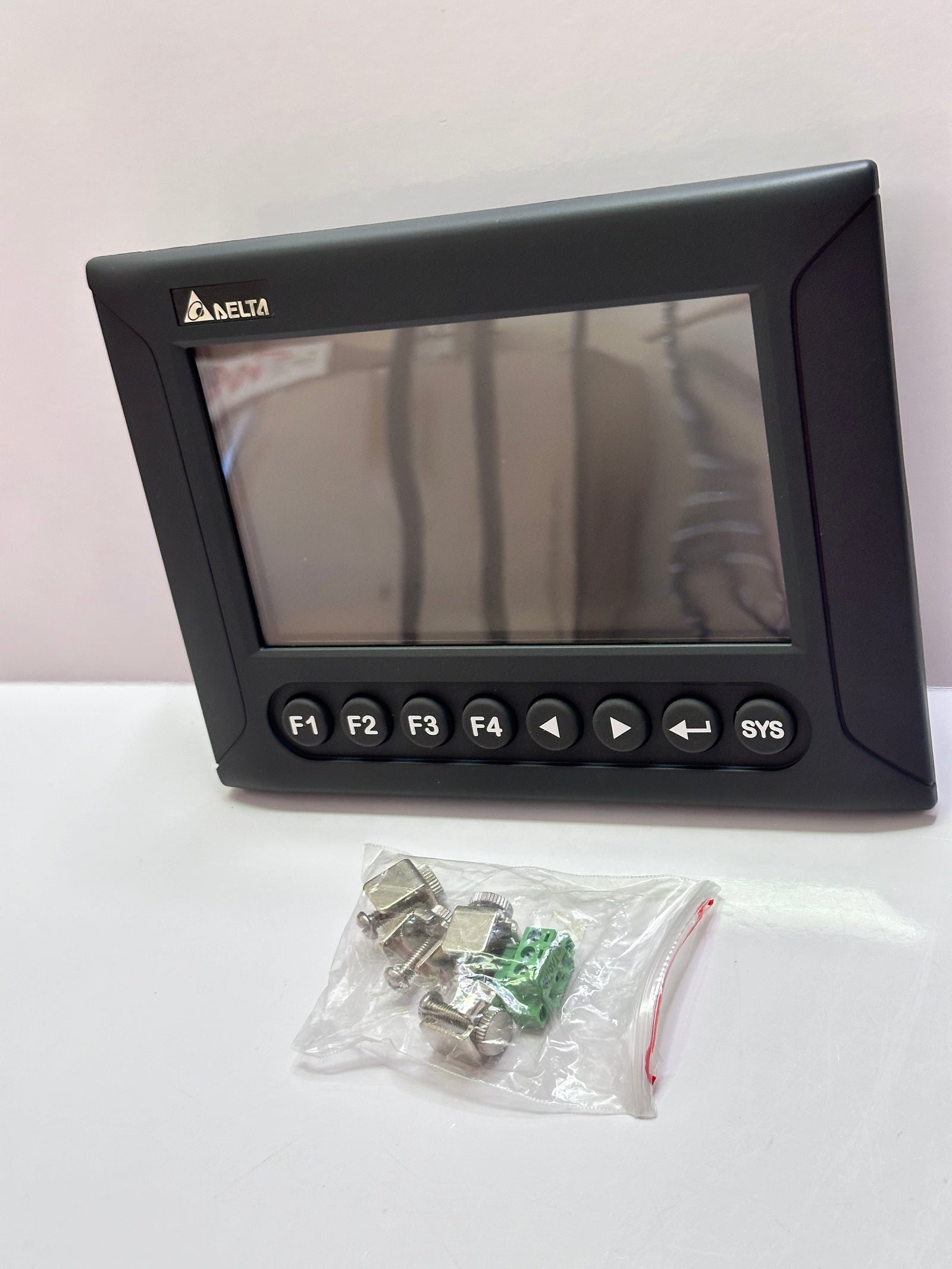

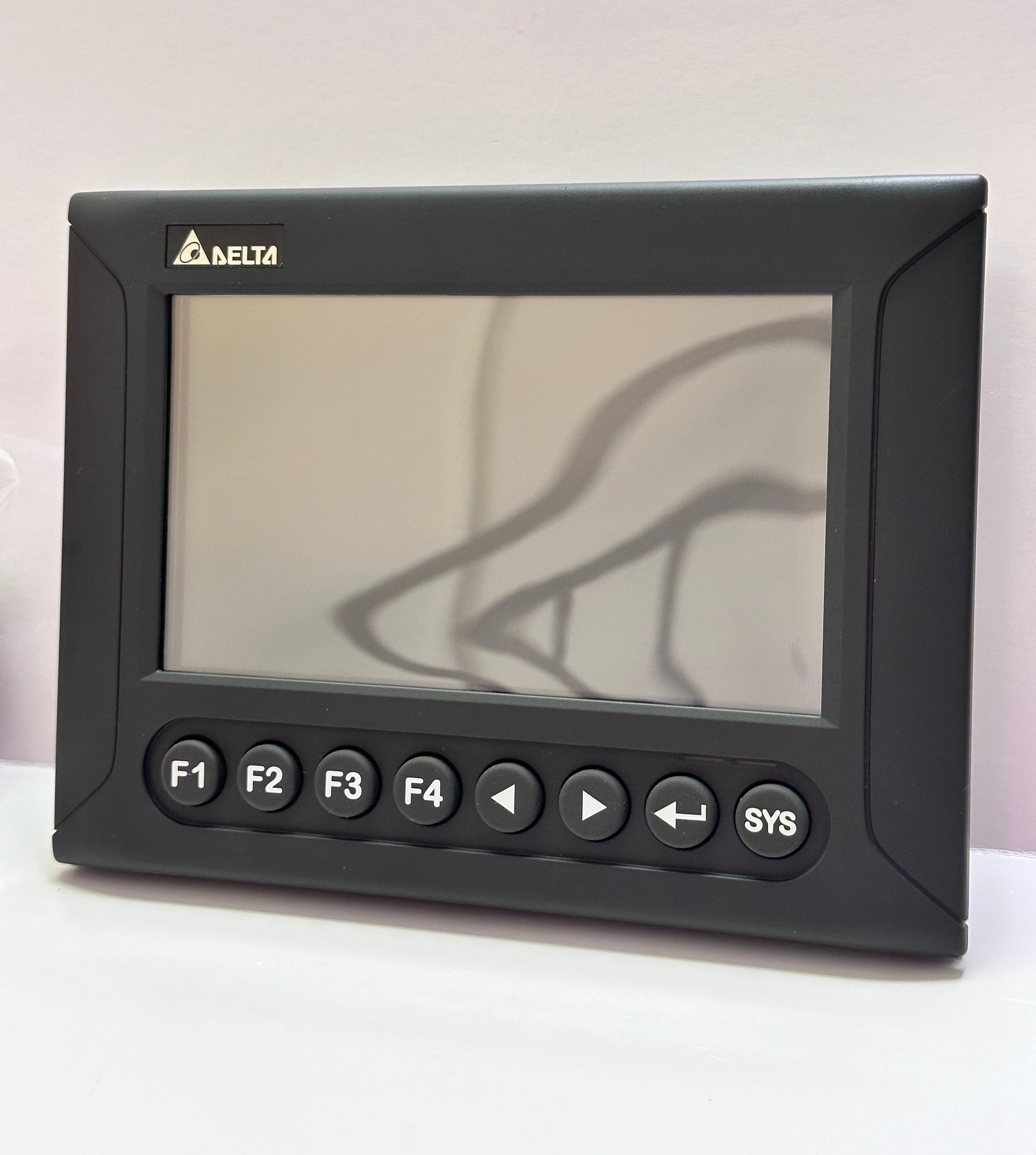

Delta DOP-B07S201 touchscreen human-machine interface (HMI) panel, with recorded 7-inch TFT LCD, 800 × 480 resolution, 65,536 colours and LED backlight. DELTA ELECTRONIS remains the original vendor record.
Original specifications and series-feature description
| Cooling Method: | Natural air circulation |
| Backlight: | LED Back Light |
| Brand: | Delta |
| Product Line: | Delta DOP-B |
| Touch Size: | 7" |
| Display Colors: | 65,536 Colors |
| Display Type: | TFT LCD |
| Operation Temp.: | 0 °C ~ 50 °C |
| Resolution: | 800 x 480 pixels |
A Wide Range of Options

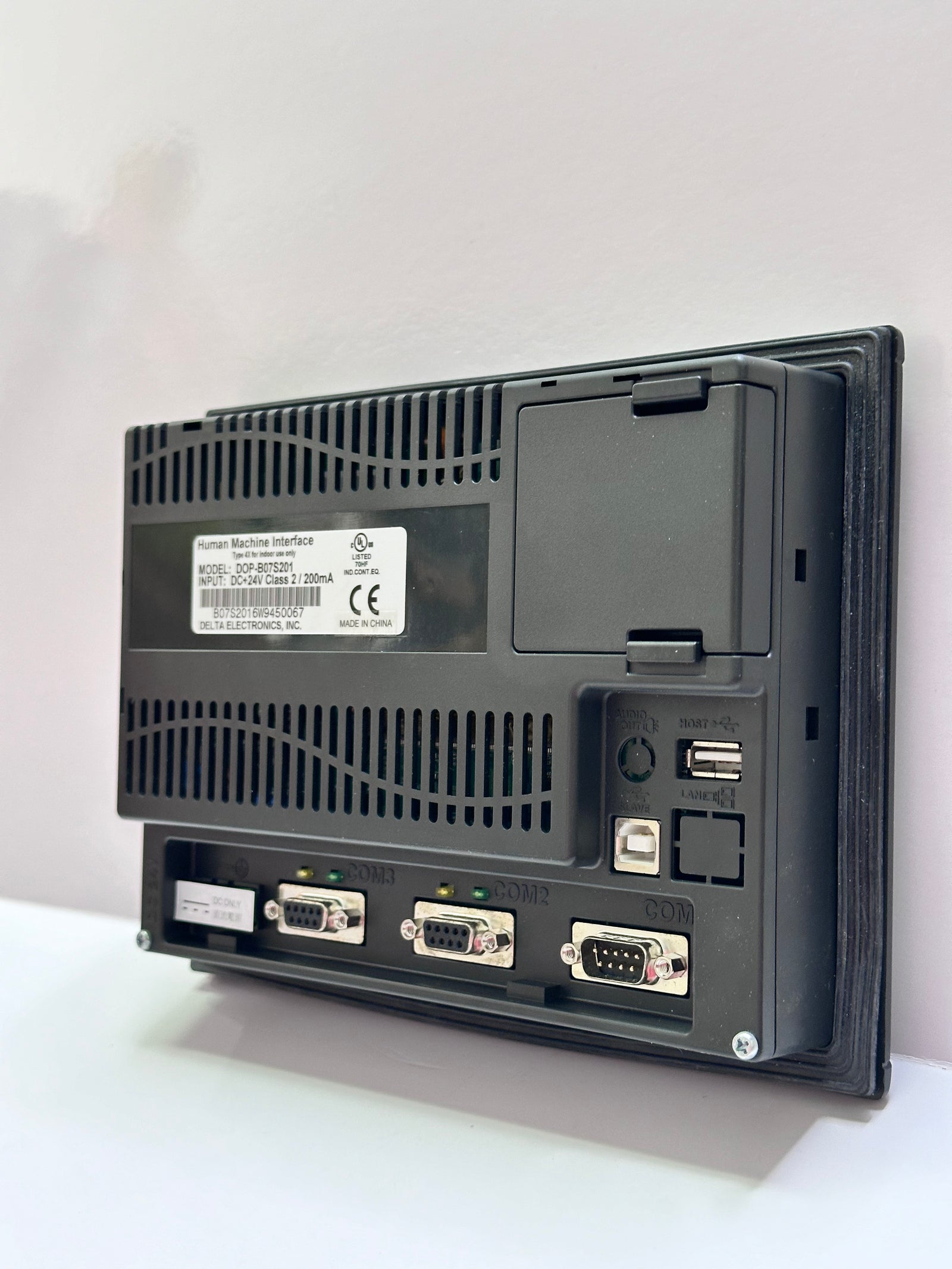

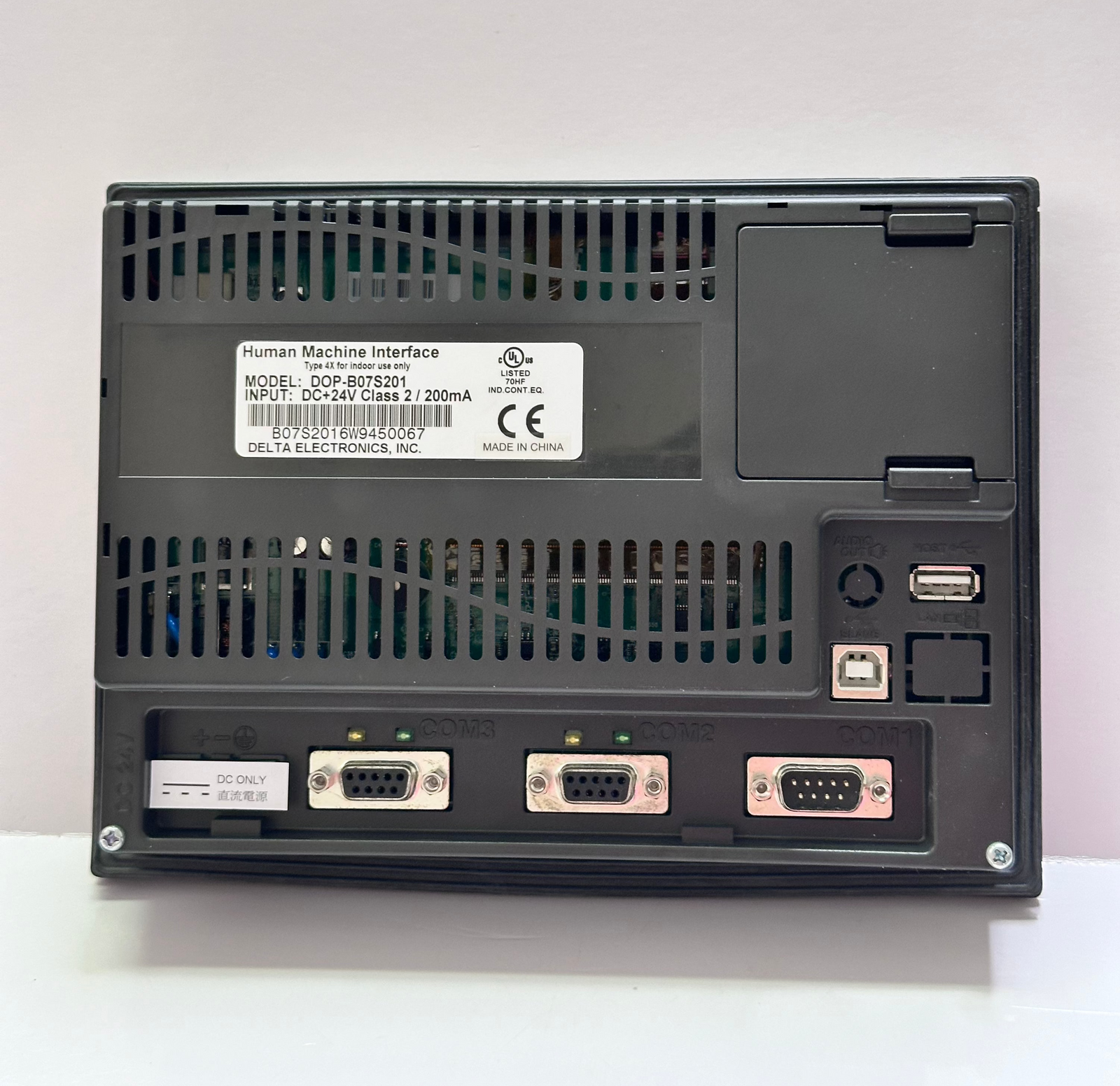

Three serial communication interfaces (RS-232/RS-422/RS-485), USB disk, Ethernet, audio output, SD card and more are supported for various applications.
Powerful Controller Drivers Support
Not just Delta DOP-B07S201 Touch Panel HMI industrial automation products, but more than 30 brands, and over 100 models of PLCs or controllers can be connected for effortless communication and versatile operation.
Energy Saving and Environmental Automation
All DOP-B07S201 Touch Screen Monitor models are equipped with LED backlights which provide energy-efficient lighting that is made without mercury, reduces energy use and CO2 emissions, and protects the environment.
High Quality and Full-Color Display
A DOP-B07S201 Touch Screen Glass full 65,536-color display is available on all models. With a whole new 2D drawing technique, the DOP-B07S201 screen resolution is enhanced for more realistic images and for more colorful and vivid displays.
The DOP-B series provides various types and different sizes of touch panel HMIs with multiple dimensions and colors, and also offers fast and convenient control functions to meet the diverse application requirements demanded of DOP-B07S201 Touchscreen Panel HMI industrial automation machines.

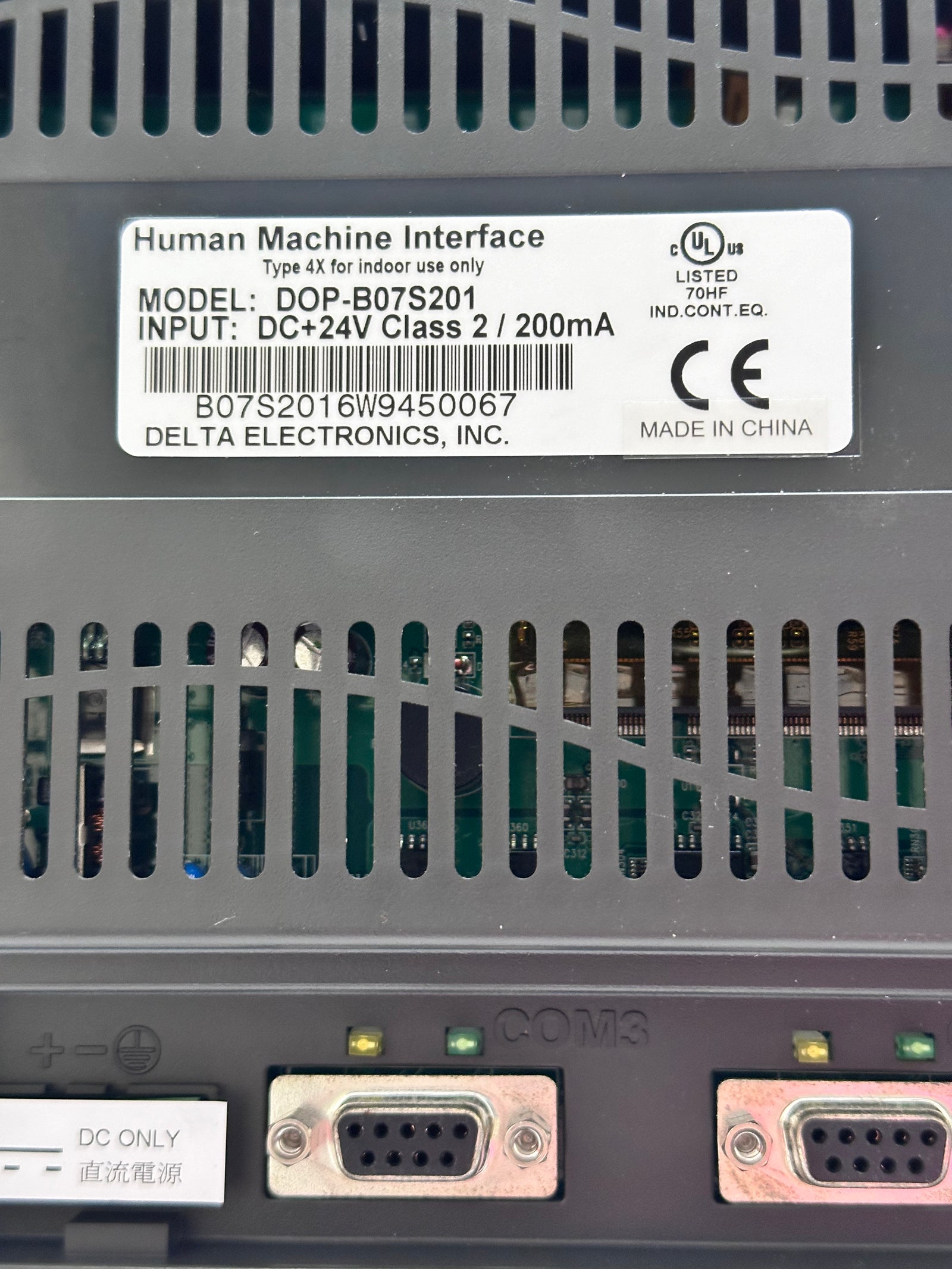

The original title records “TYPE 4X, Input DC+24V Class2/200mA”. These label-style values are retained as source information, not a new enclosure certification or verified current-consumption test. The source lists natural-air cooling and 0–50°C operation.
The broad communications/options paragraph mentions RS-232/RS-422/RS-485, USB disk, Ethernet, audio and SD card. It also makes series-wide controller-support and display claims. Do not assume every listed port or option is fitted to this exact DOP-B07S201; confirm the panel hardware and manual before purchase. This is an HMI, not a complete PLC/controller, and no application software, licences, cables or power supply are established as included.
