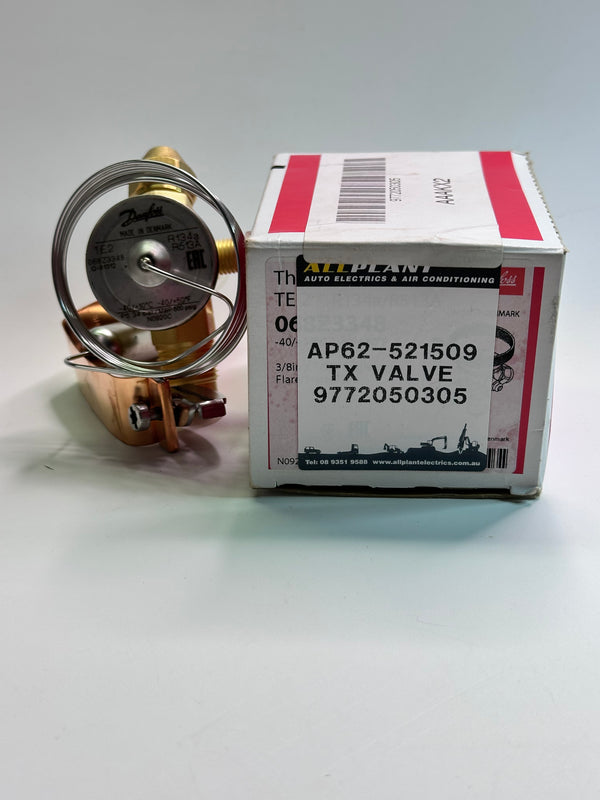

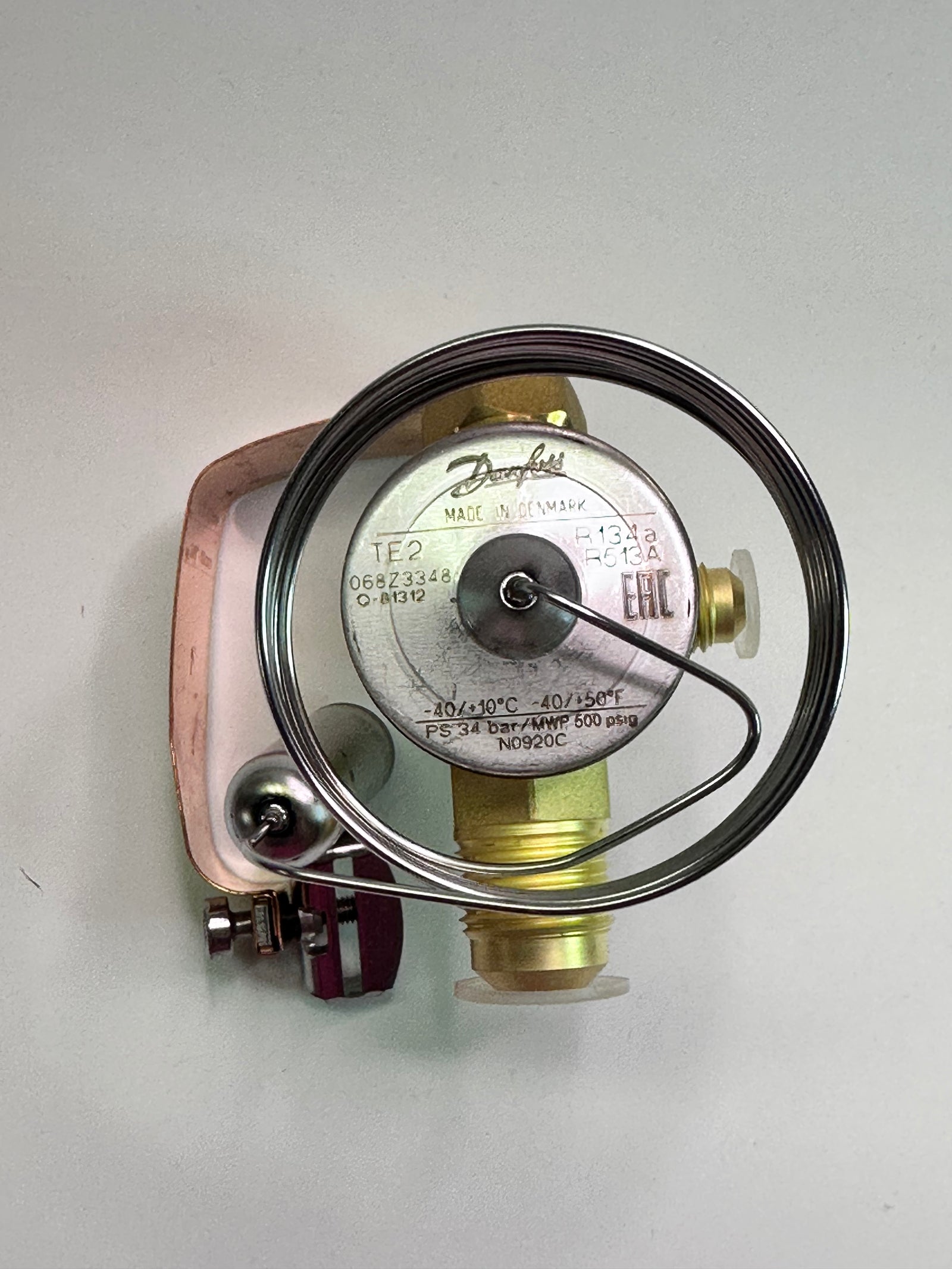

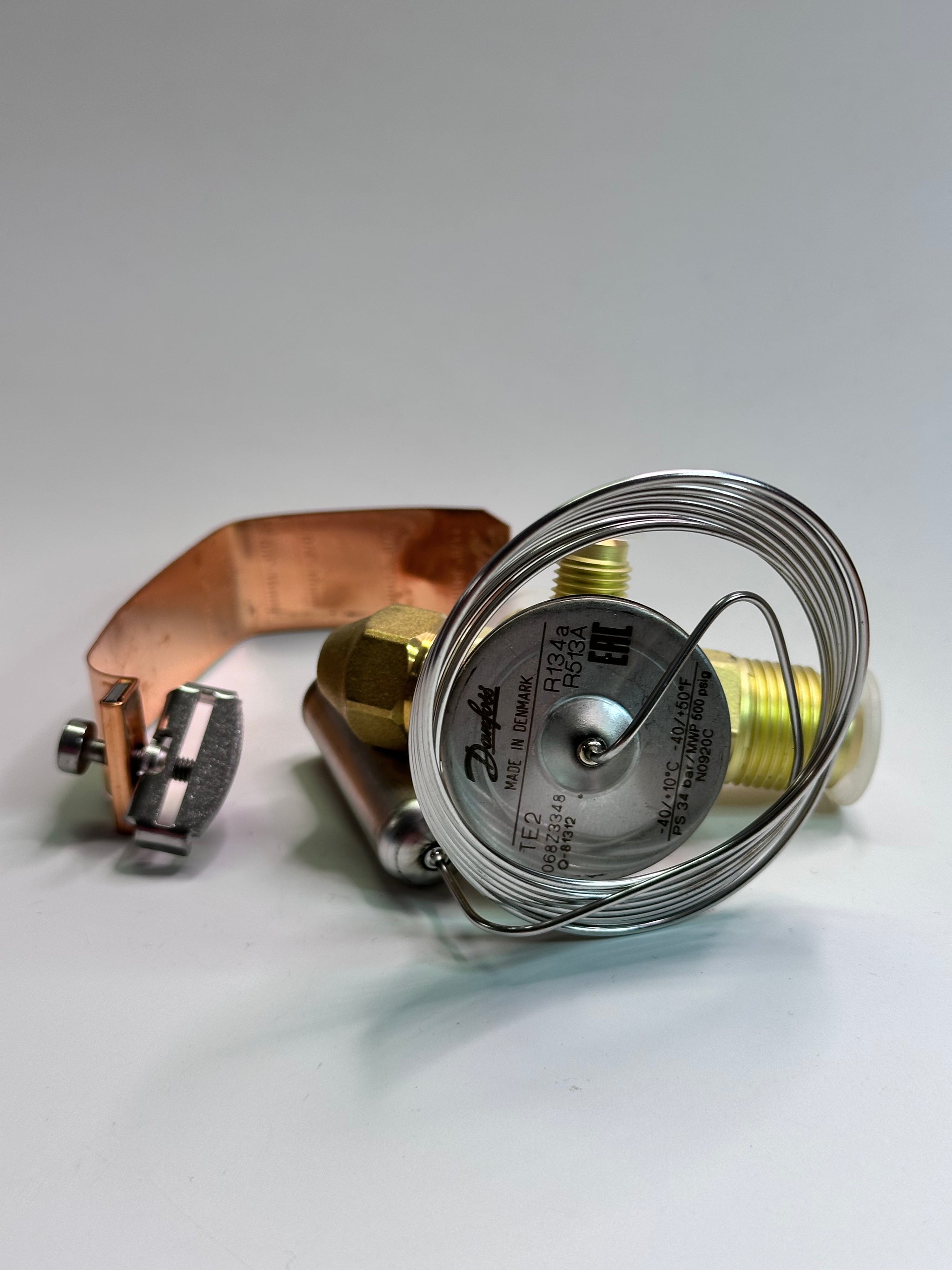

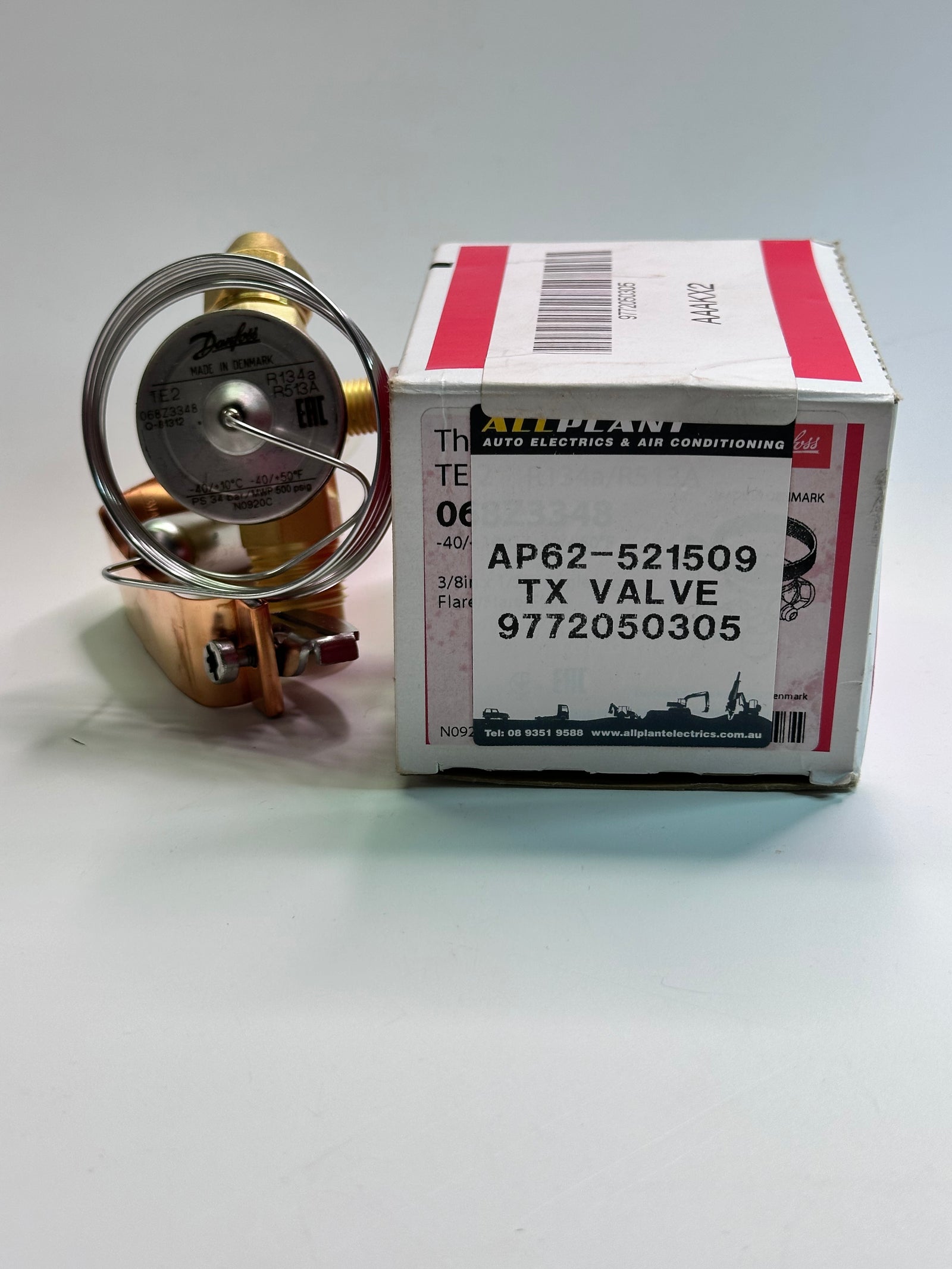

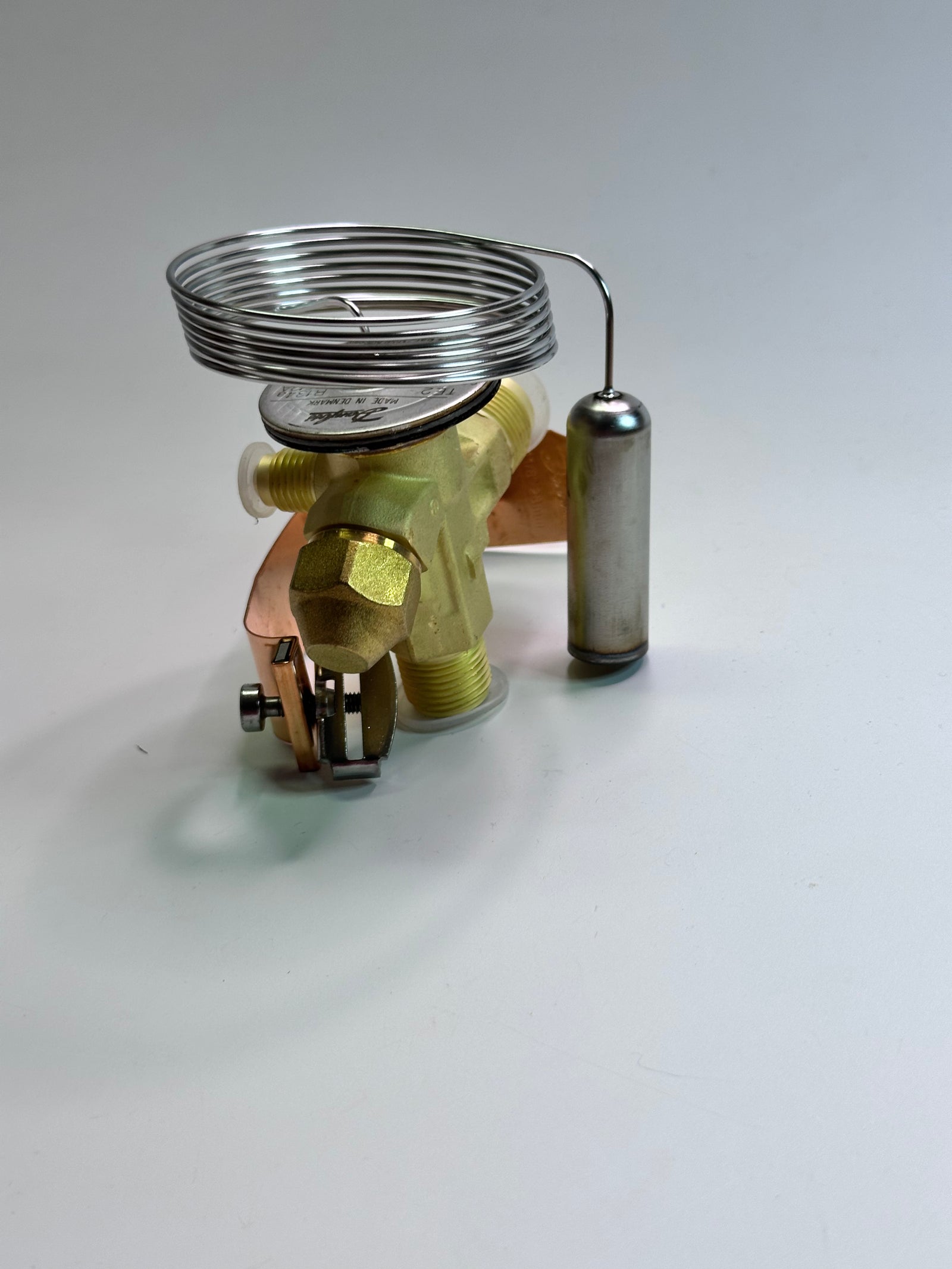

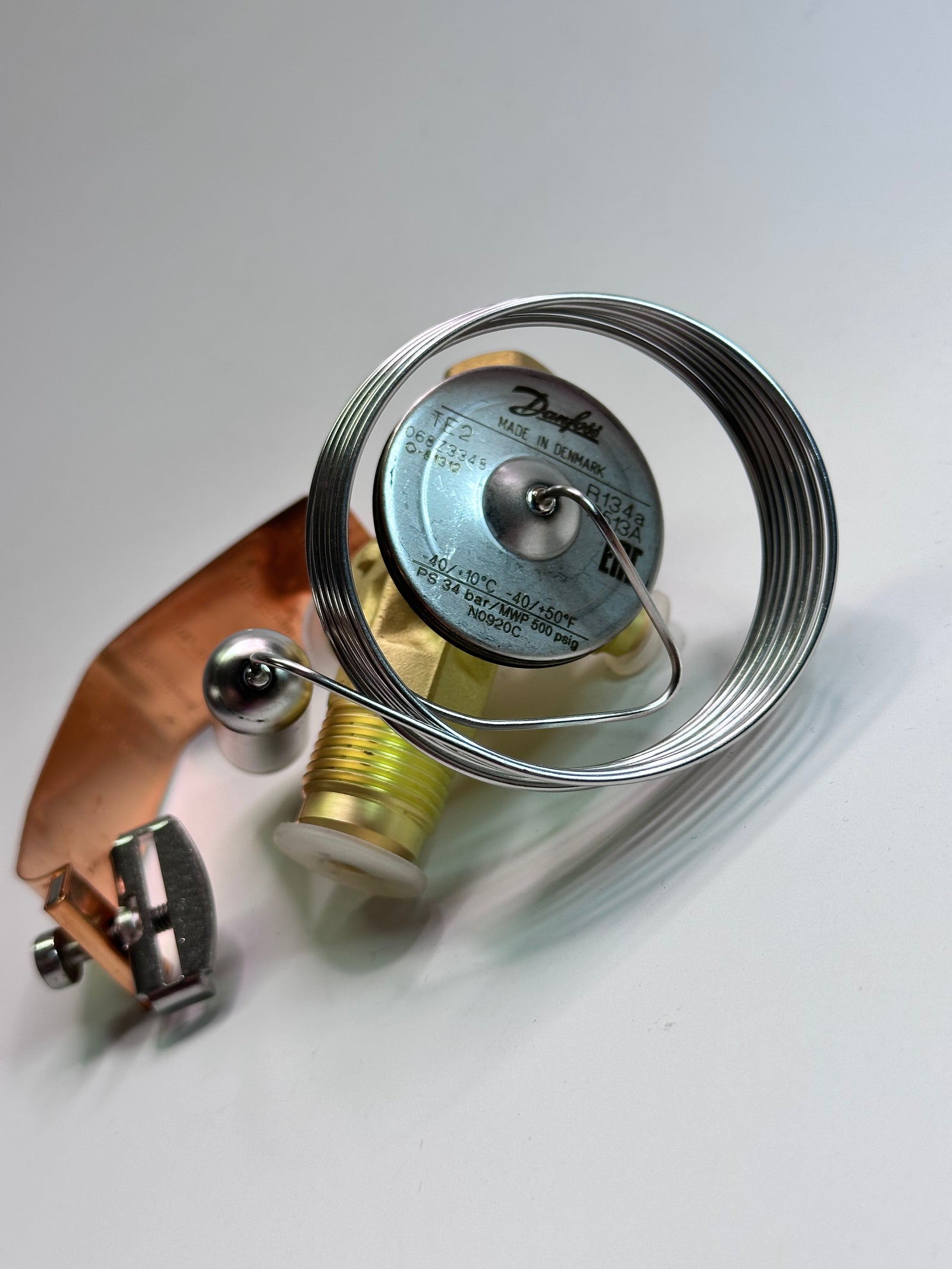

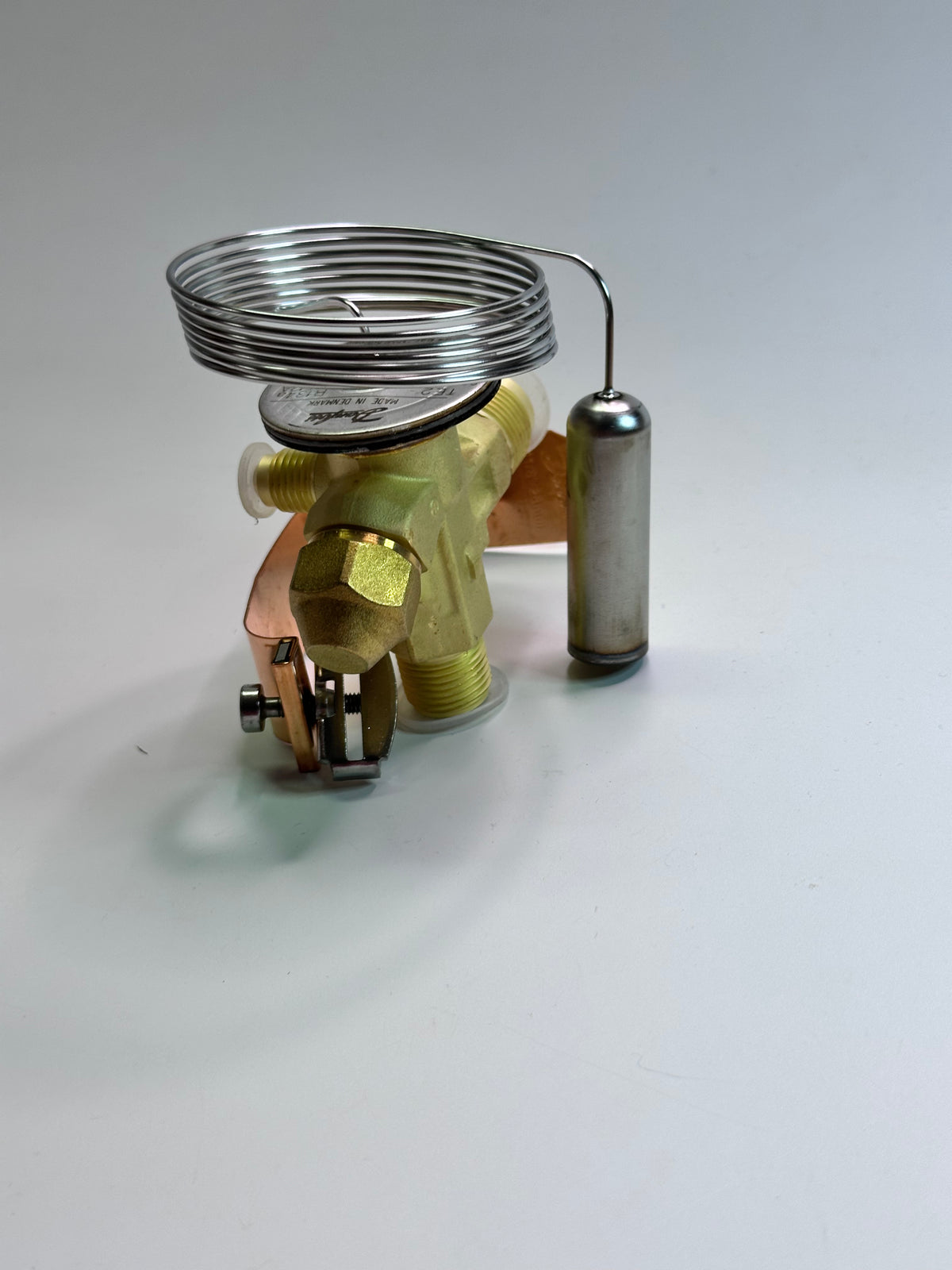

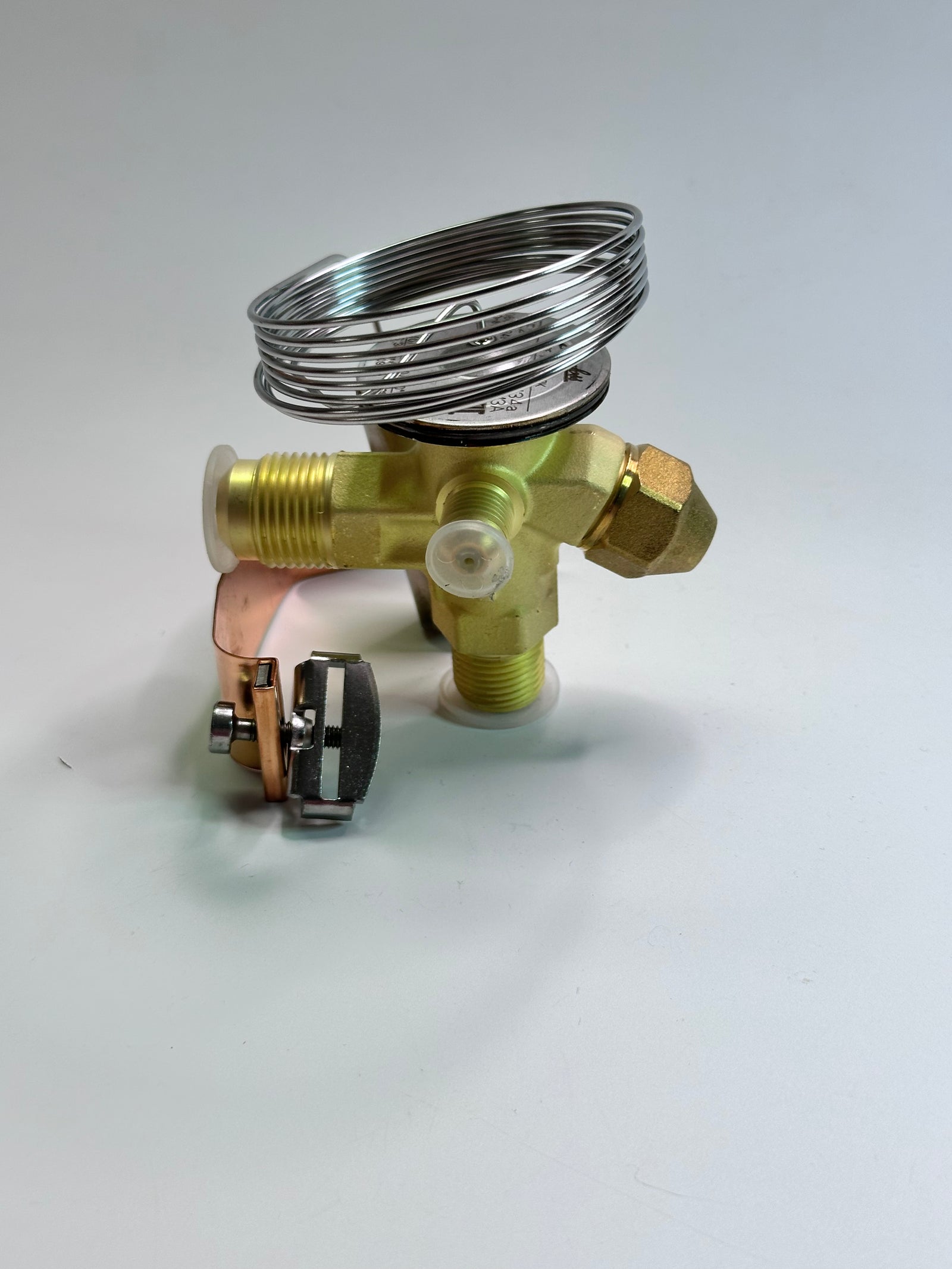

Danfoss 068Z3348 TE 2 Thermostatic Expansion Valve, AP62-521509
- SKU
- P-DA-D-7694
- Weight
- 2.0 kg
Specifications
| Manufacturer | DANFOSS |
|---|---|
| Product type | VALVES |
| SKU | P-DA-D-7694 |
| Weight | 2.0 kg |
Description
Danfoss 068Z3348 TE 2 thermostatic expansion valve, original title reference AP62-521509. Additional catalogue references: AU521509, 9772050305 and TEN2.
Source-listed for R134a/R513A, externally equalized, with brass body/connections and adjustable superheat. The source identifies a bulb strap as included and quantity per packing format as 1.
Source material/compliance disclosure: lead (CAS 7439-92-1) is listed under REACH Candidate List substances; EU and China RoHS compliance is stated with exemptions.
Original source specifications
| Approval | EAC LLC CDC TYSK |
| Body material | Brass |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| Category | Art. 4, par. 3 |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.3 |
| Connection material | Brass |
| Contains batteries | No |
| Direction | Angleway |
| Equalization connection type | Flare |
| Equalization size [in] | 1/4 in |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Flow direction | Bi-flow with orifice 01-05 |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Identical product | 068Z3543 |
| Inlet connection type | Flare |
| Inlet size [in] | 3/8 in |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 500 psig |
| Outlet connection type | Flare |
| Outlet size [in] | 1/2 in |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| Parts Program name | T2/TE2 |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Quantity per packing format | 1 |
| Rated cap. cond. Range N [IMP] | OS=10.8 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF |
| Rated cap. cond. Range N [SI] | OS=6K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC |
| REACH Candidate List substances 0.1 | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a/R513A |
| SCIP dossier no. | c164ed45-f10d-4d73-9eae-355ccb479f4b |
| SCIP dossier product name | T2 /TE2 - Thermostatic Expansion Valve |
| Serviceable | TXV spare parts |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [Max] | 10 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 50 °F |
| Temperature range [°F] [Min] | -40 °F |
| UA address | UA_2L.png |
The source identifies 068Z3543 as an identical product; confirm reference compatibility and the required orifice before ordering. Bi-flow is stated only with orifice 01-05, despite the embossed one-way arrow. A particular orifice or additional TXV accessories are not specified as included.
Superheat entries are temperature differences, not absolute operating temperatures. Approval and compliance entries are source information, not independently verified certificates for this unit. Confirm refrigeration-system suitability, connections and applicable operating conditions before use.
