DANFOSS

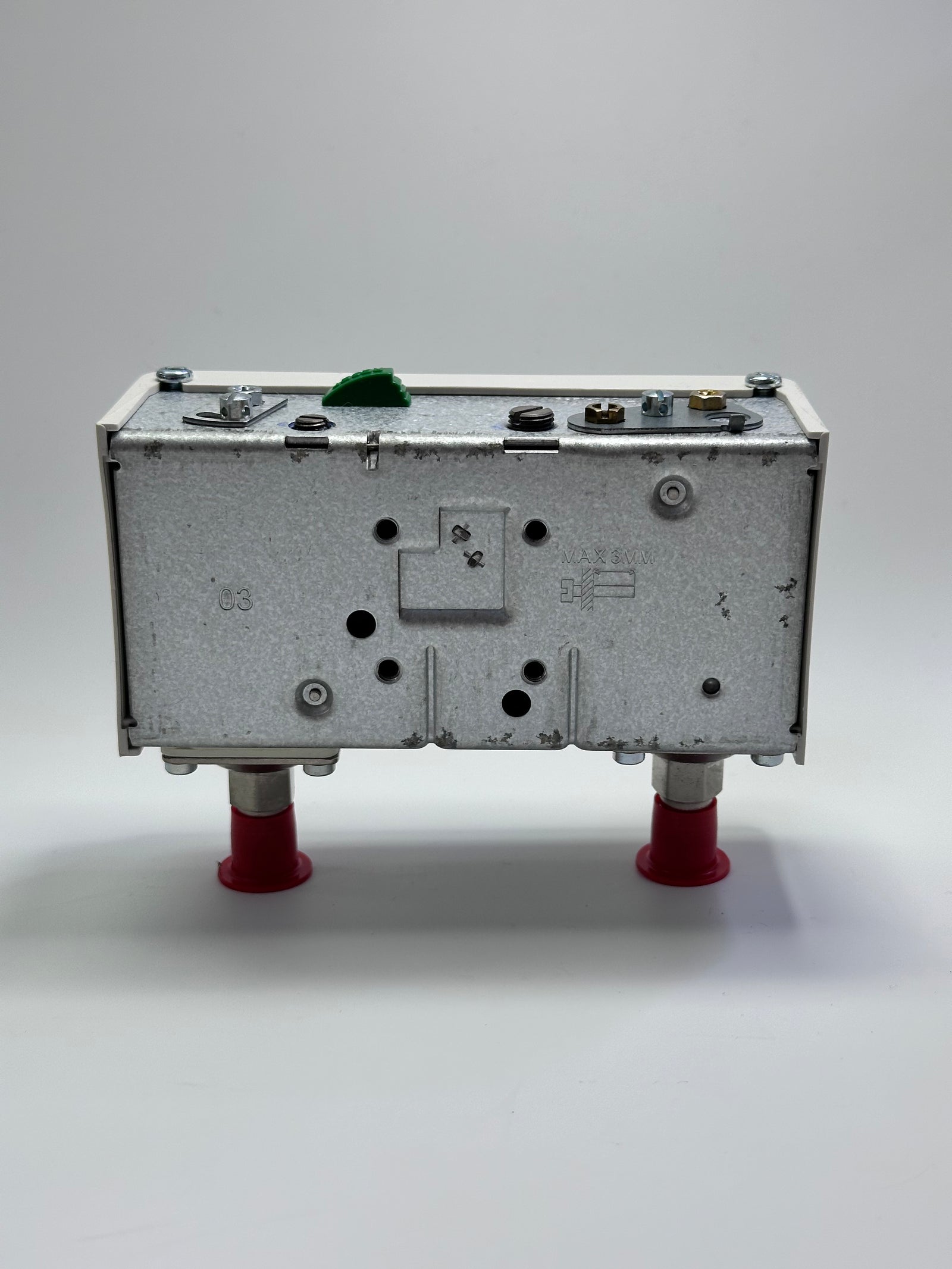

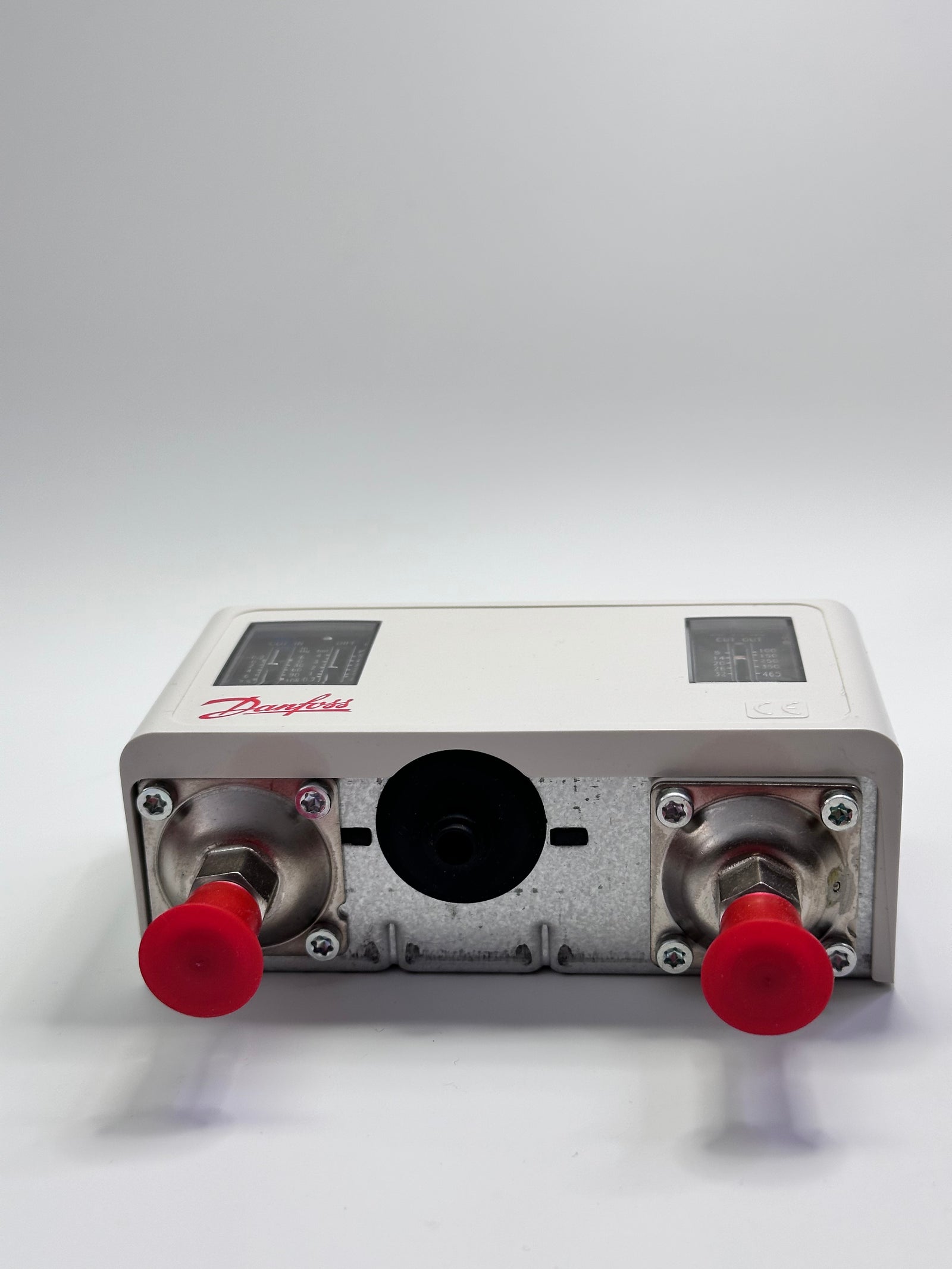

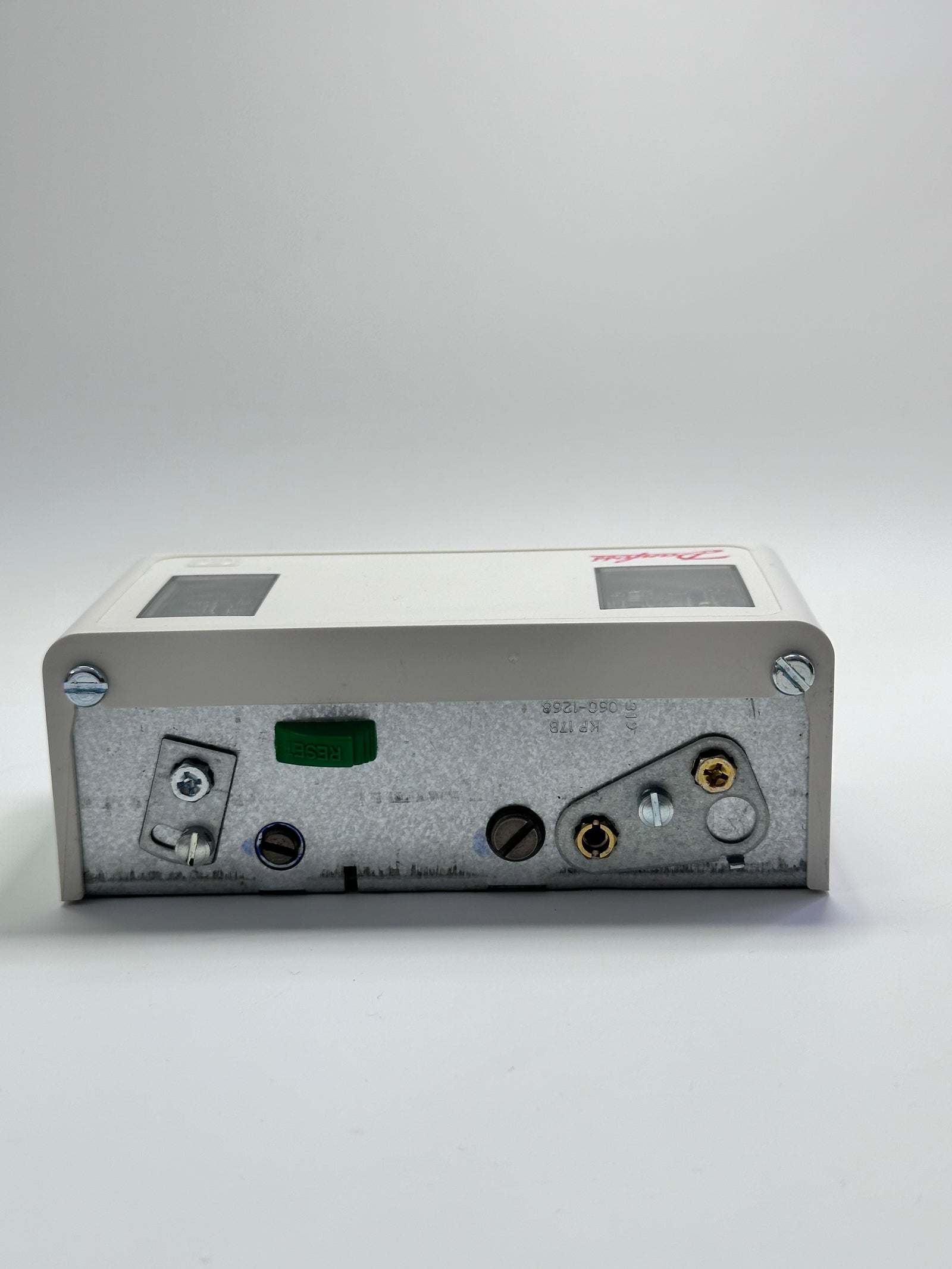

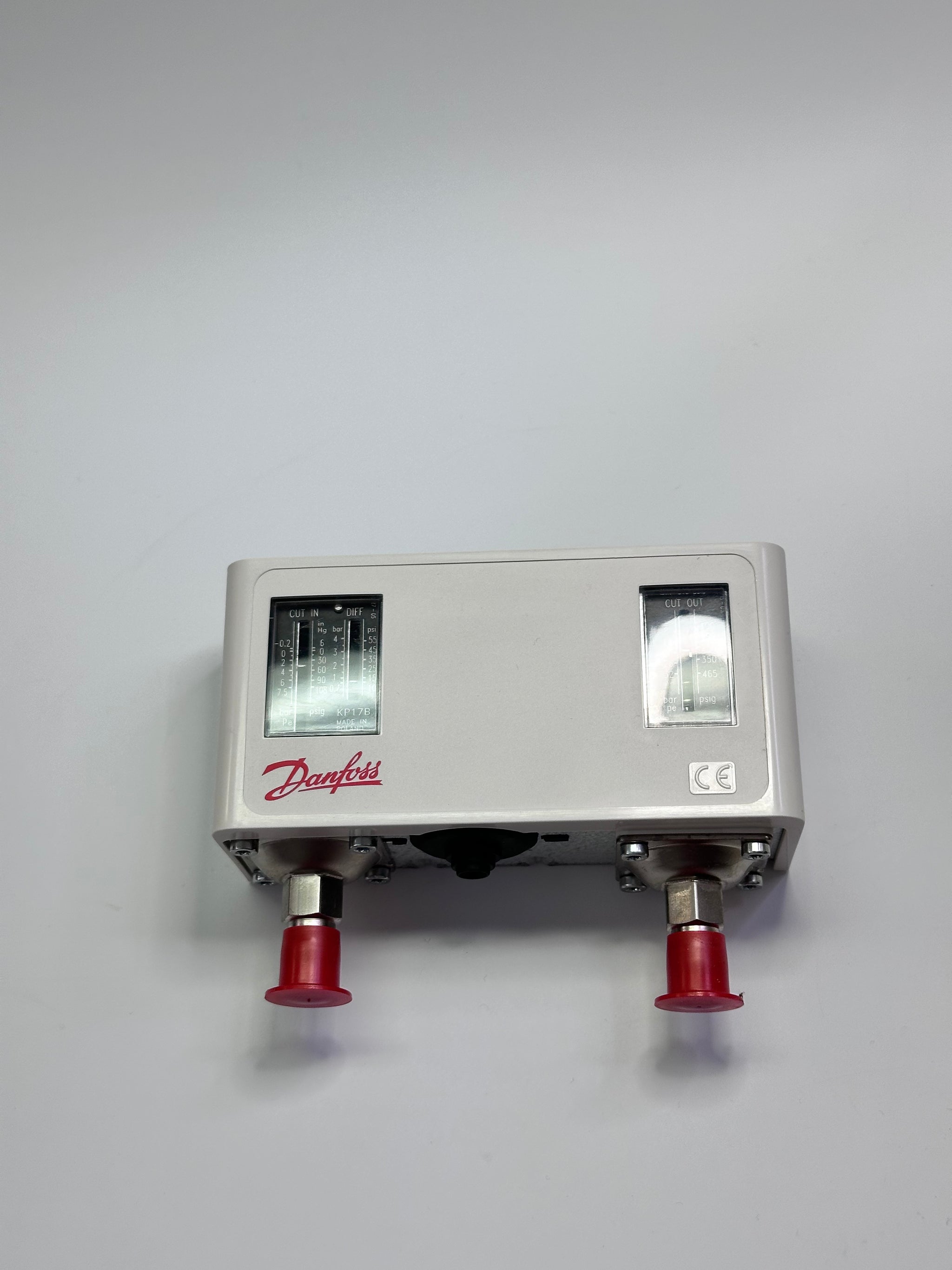

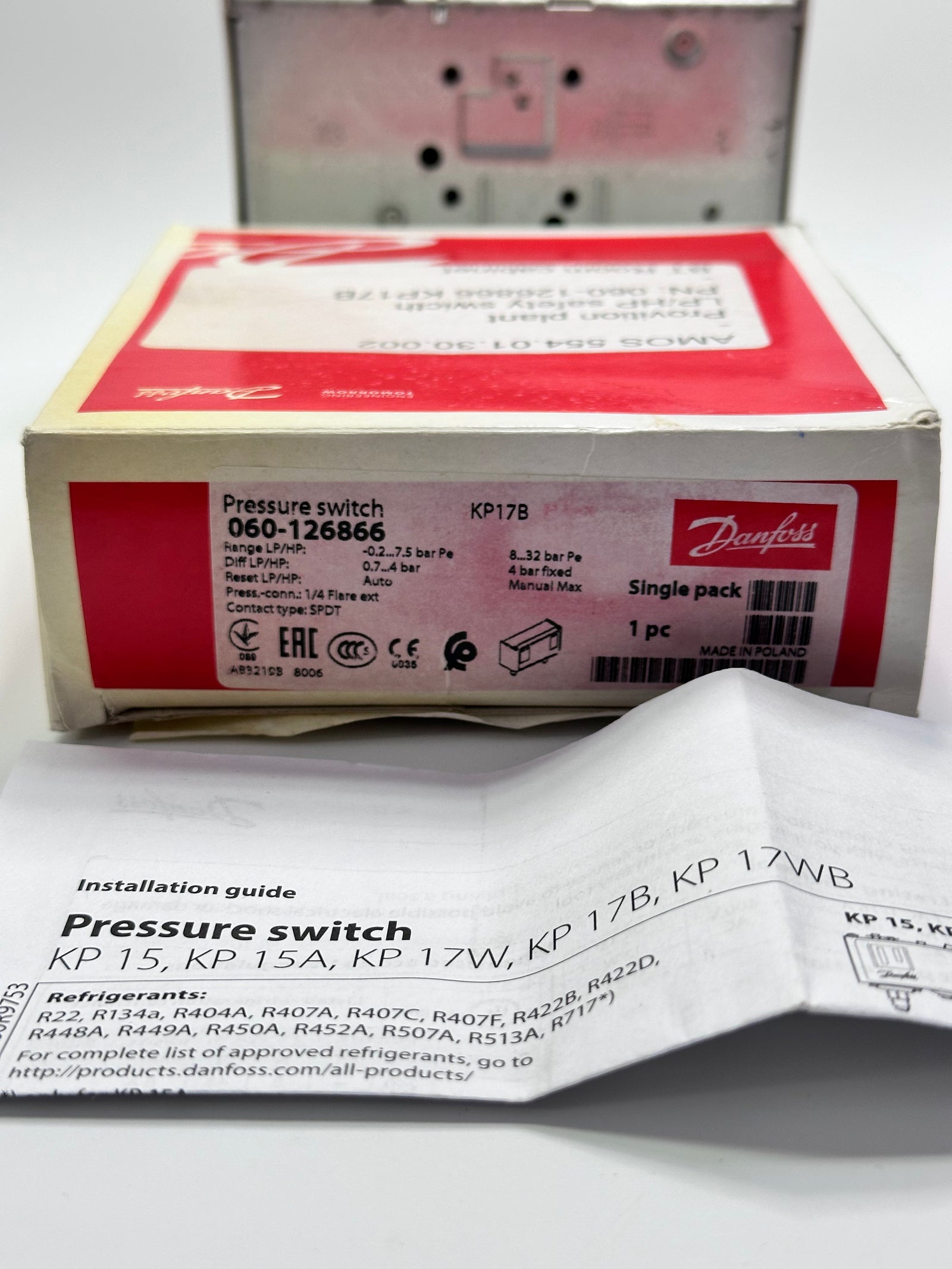

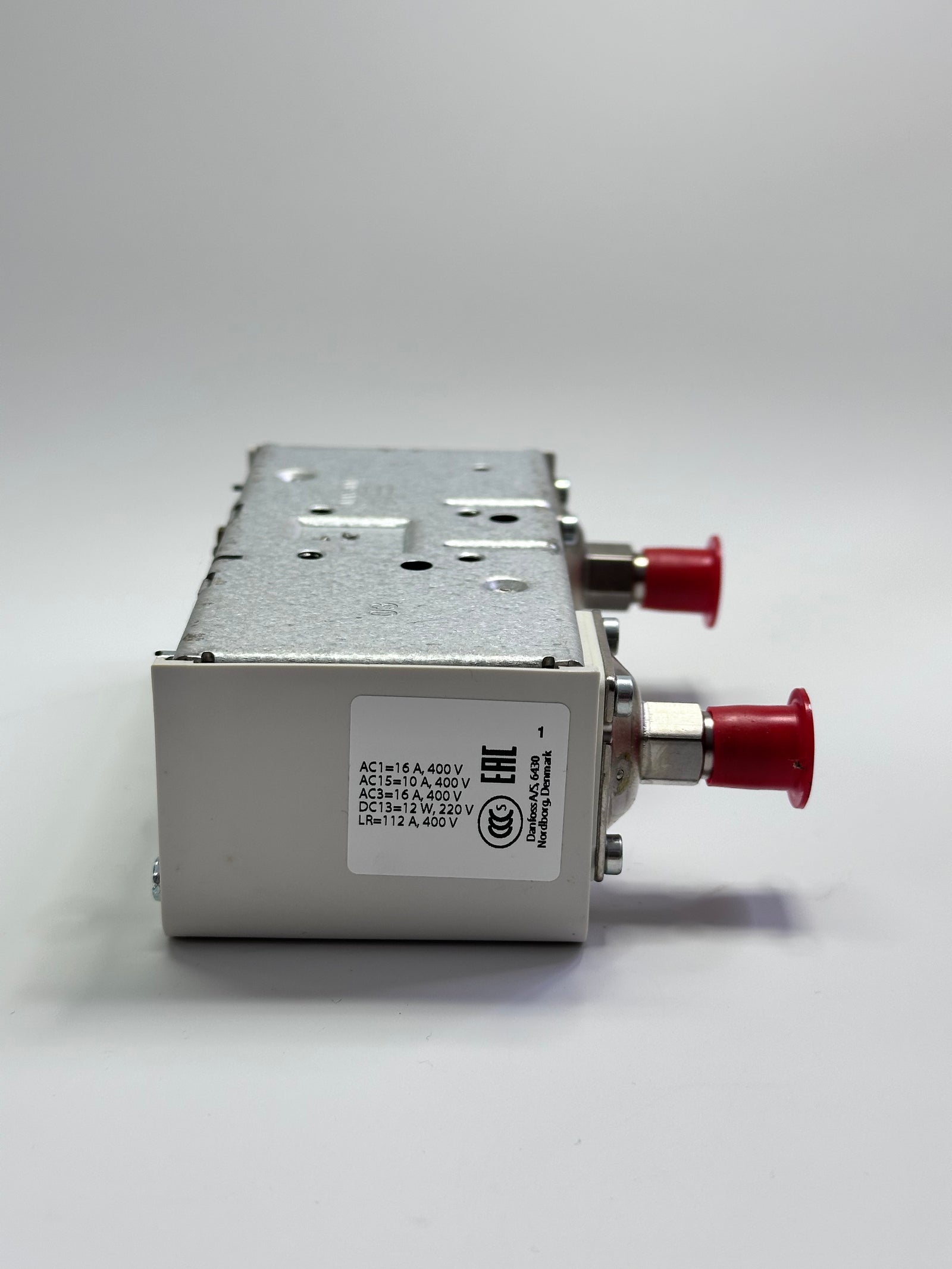

Danfoss 060-126866 KP17B Pressure Switch, 060126866
- SKU
- P-DA-D-7159
$100.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 3.0 kg
Specifications
| Manufacturer | DANFOSS |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-DA-D-7159 |
| Weight | 3.0 kg |
Description
Danfoss KP pressure switch, type KP17B, part number 060-126866 (also listed as 060126866), for refrigeration / HVAC pressure-control applications.
Source-listed specifications
| Item | Existing listing value |
|---|---|
| Weight | 0.461 Kg |
| Ambient temperature range | -25 to 65 °C / -13 to 149 °F |
| Electrical connection | Rubber cable gland (source: Rubber cablgland) |
| Electrical connection size | 6-14 mm |
| NEMA rating | 1 |
| Product accessories classification | Switches accessories |
Source-listed approval references
BV, c UL us UL873, CS C22.2, CCC, CE, DNV, EAC, GL, LR, LVD, PED, PZH, RINA, RMRS, RoHS China. UL approval file: E31024.
These approval references are reproduced from the existing listing, not a new certification statement for the supplied item. Existing tags also describe dual pressure control and SPDT; confirm the exact contact arrangement, pressure range, reset configuration and electrical ratings against the unit before ordering. No accessory inclusion is implied by the source accessories classification.
