DANFOSS

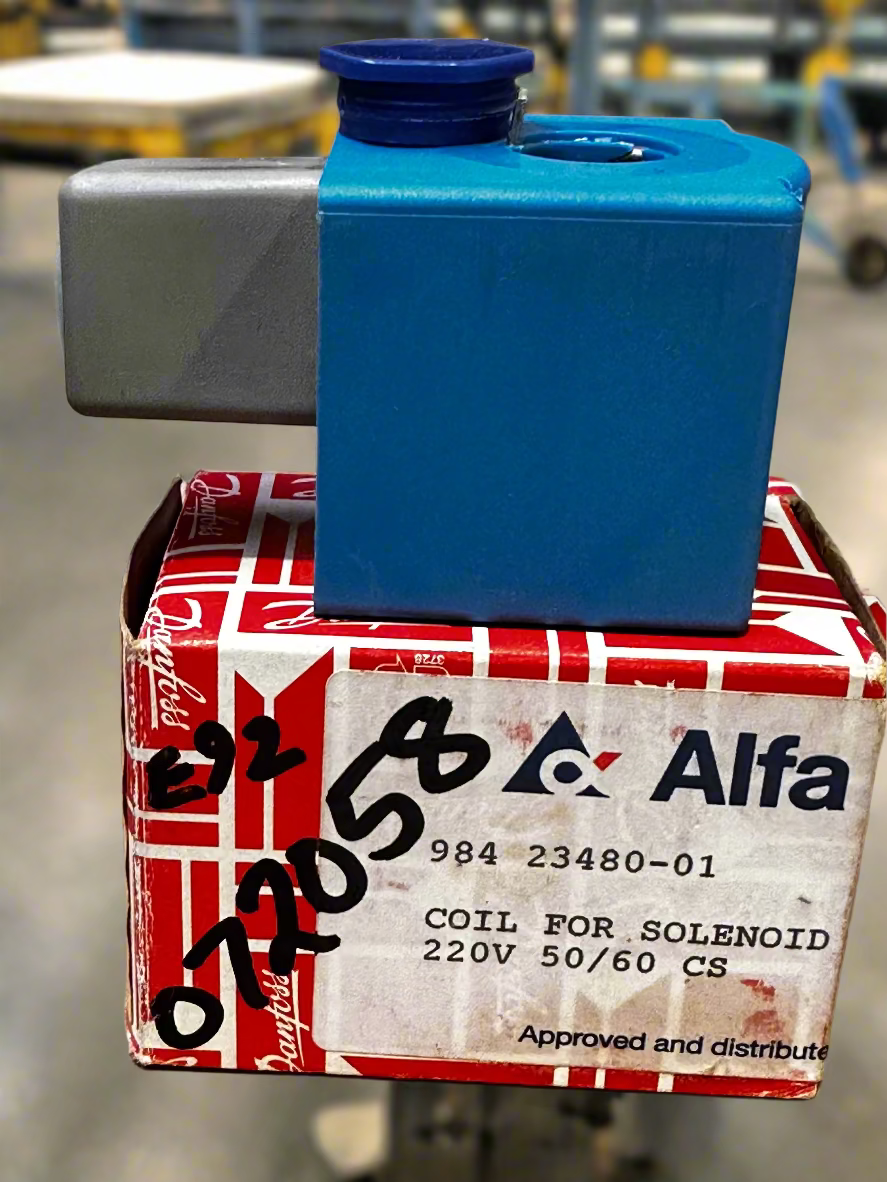

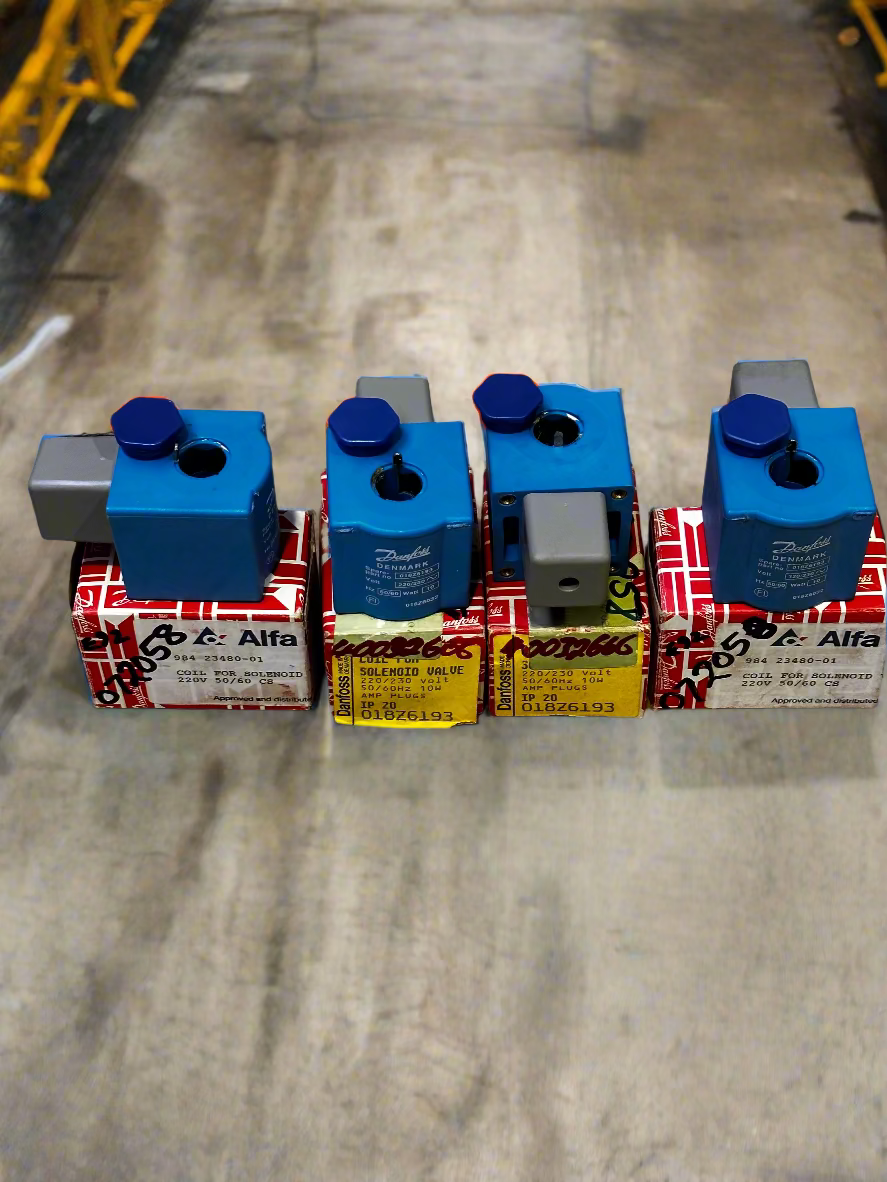

Danfoss 018Z6193 Solenoid Coil BE230CS Universal 98423480-01
- SKU
- P-DA-M-1592
$85.00
Price includes GST.
Low stock: 5 left
Warehouse pickup available
- Weight
- 1.3 kg
Specifications
| Manufacturer | DANFOSS |
|---|---|
| Product type | Electrical |
| SKU | P-DA-M-1592 |
| Weight | 1.3 kg |
Description
| Gross weight | 0.3 Kg |
| Net weight | 0.279 Kg |
| Volume | 0.266 Litre |
| EAN | 5702428024570 |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 120 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CE EAC LLC CDC TYSK UKCA |
| China RoHS compliance | Out of scope |
| Coil connection | DIN Spade |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Duty rating | Continuous |
| EEE category | 5 small equipment (any external dimension |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP20 |
| EU RoHS compliance | Out of scope |
| Frequency [Hz] | 50/60 Hz |
| In scope of WEEE | Yes |
| In scope of WEEE and contain batteries | No |
| Packing format | |
| Parts included | Cap |
| Parts Program name | EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B EV250B EV251B |
| Power consumption 50Hz [VA] | 31 VA |
| Power consumption 60Hz [VA] | 24 VA |
| Power consumption [W] 50Hz | 17 W |
| Power consumption [W] 60Hz | 14 W |
| Product accessories | Solenoid coil accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Quantity per packing format | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Rel. Humidity [% RH] [max] | 97 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| SCIP dossier no. | 23785618-b379-4da7-a913-ecd40c8fae6d |
| SCIP dossier product name | Solenoid coils |
| Serviceable | No |
| Spare part number | 018F6193 |
| Supply voltage 50Hz Max [V] | 230 V |
| Supply voltage 50Hz Min [V] | 220 V |
| Supply voltage 60Hz Max [V] | 230 V |
| Supply voltage 60Hz Min [V] | 220 V |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 220 V |
| Type | BE230CS |
| Type designation | BE230CS |
| UK RoHS compliance | Out of scope |
