SPRECHER + SCHUH

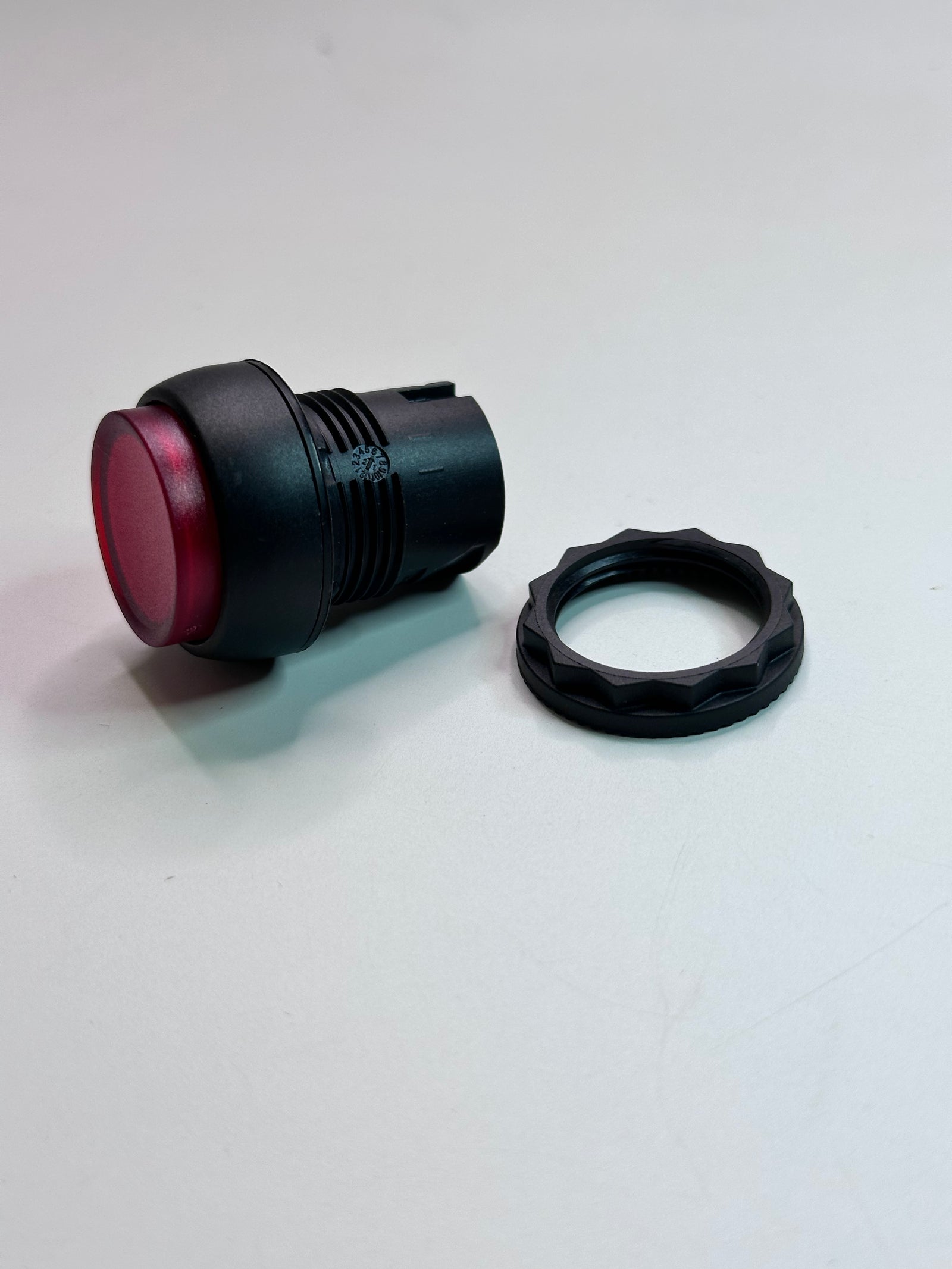

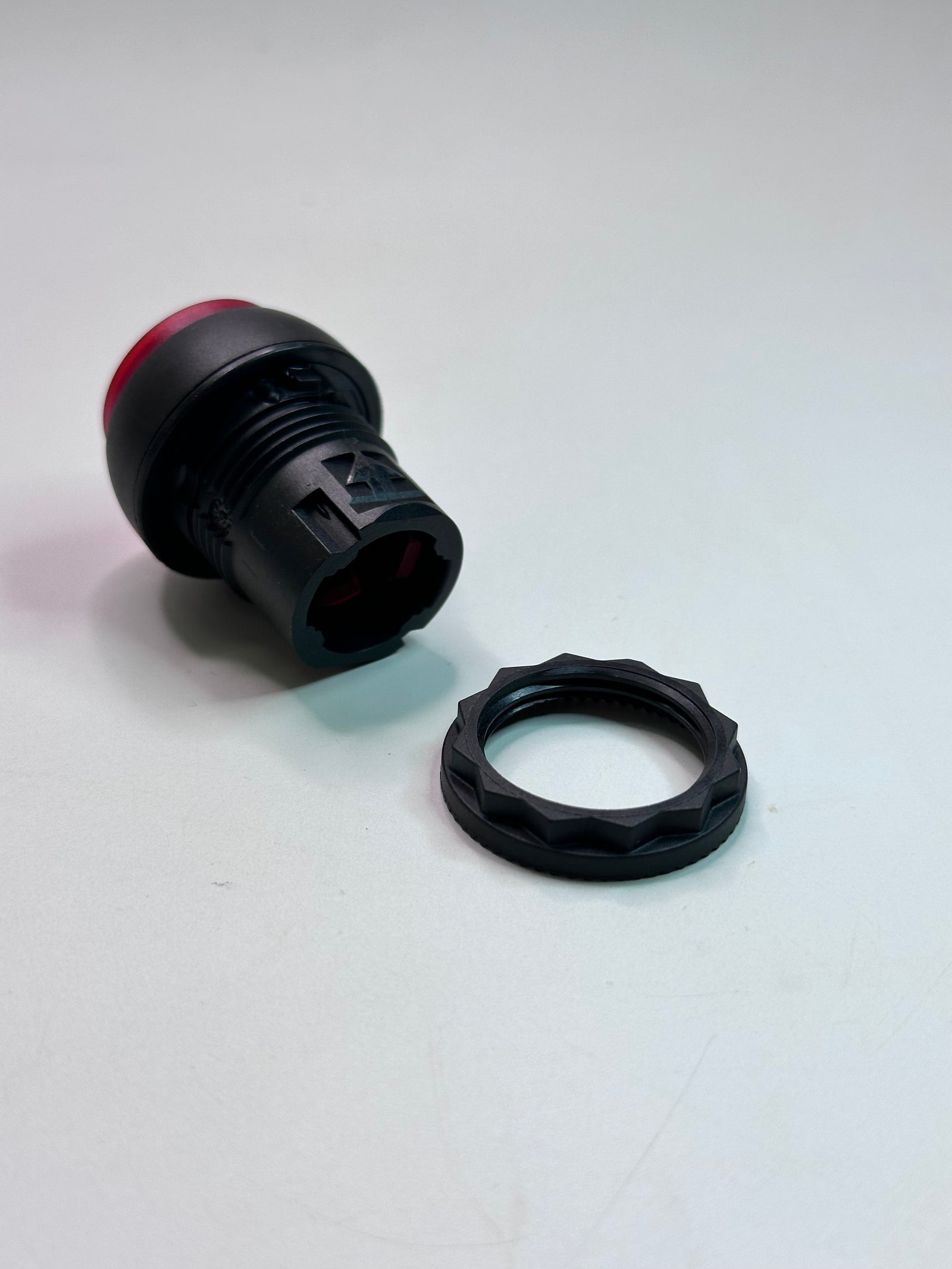

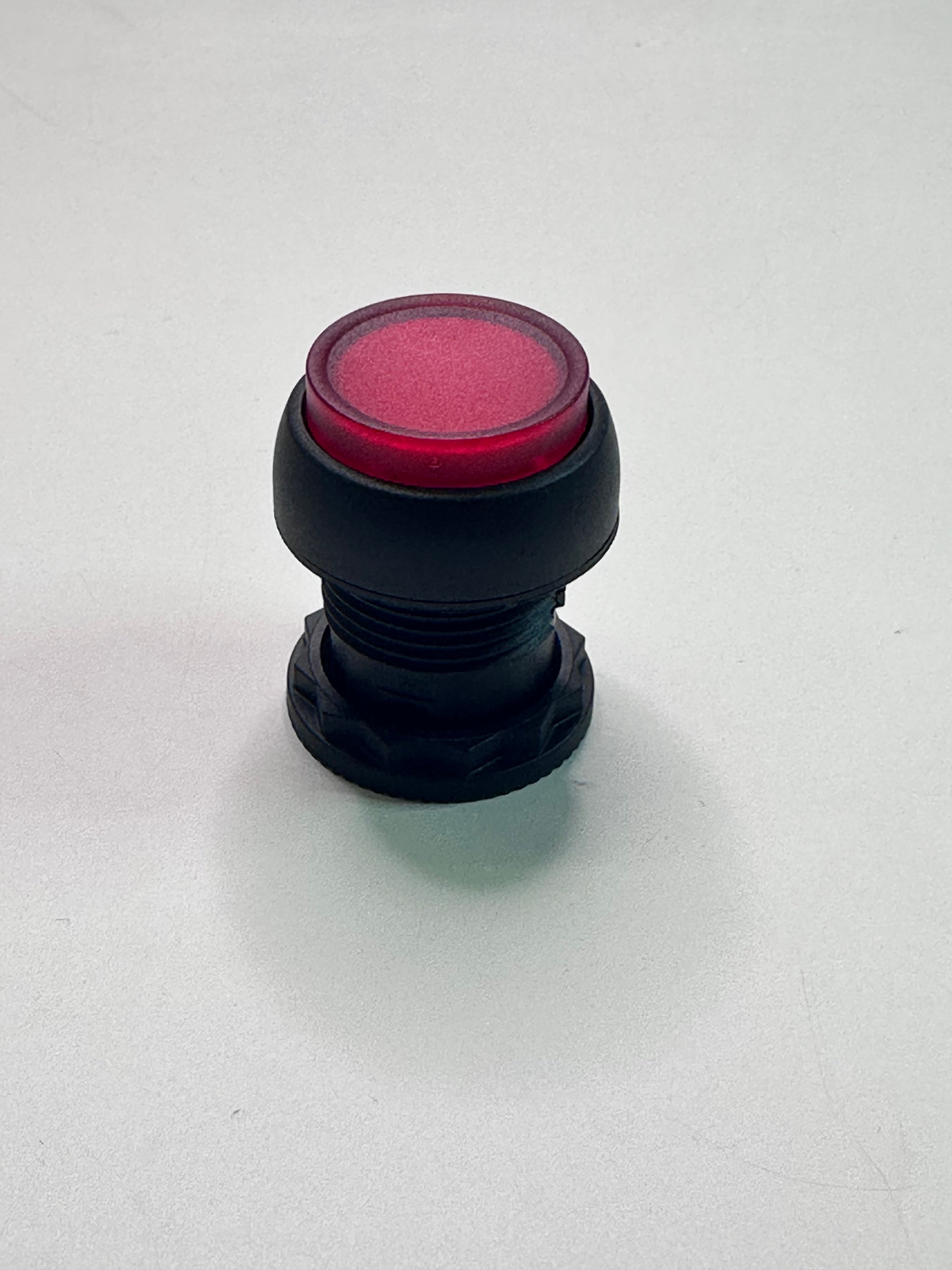

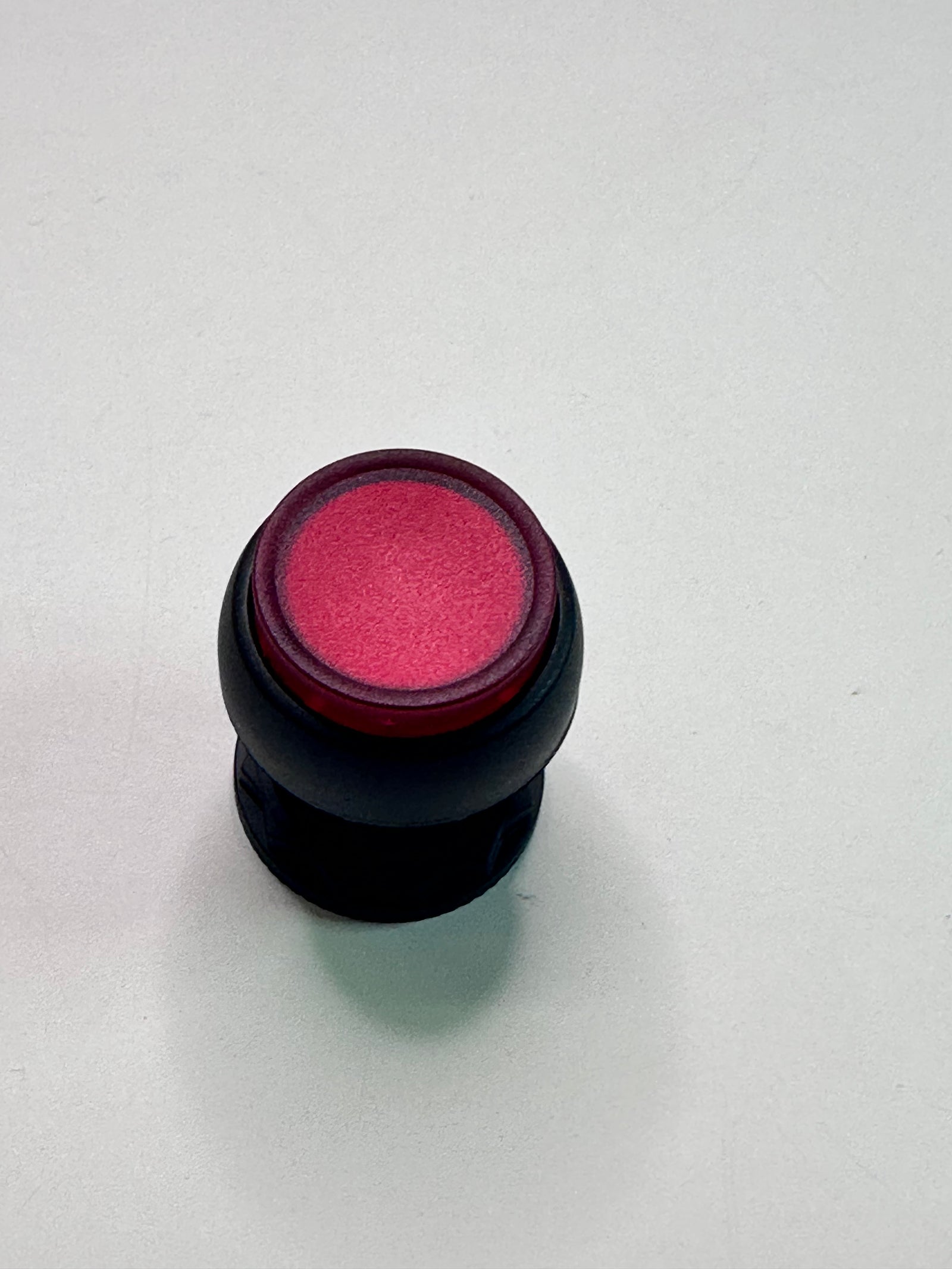

Sprecher + Schuh D7P-LE4 Red Non-Latching Push Button, 22.5mm
- SKU
- P-DP-S-7848
$20.00
Price includes GST.
Low stock: 3 left
Warehouse pickup available
- Weight
- 0.5 kg
Specifications
| Manufacturer | SPRECHER + SCHUH |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-DP-S-7848 |
| Weight | 0.5 kg |
Description

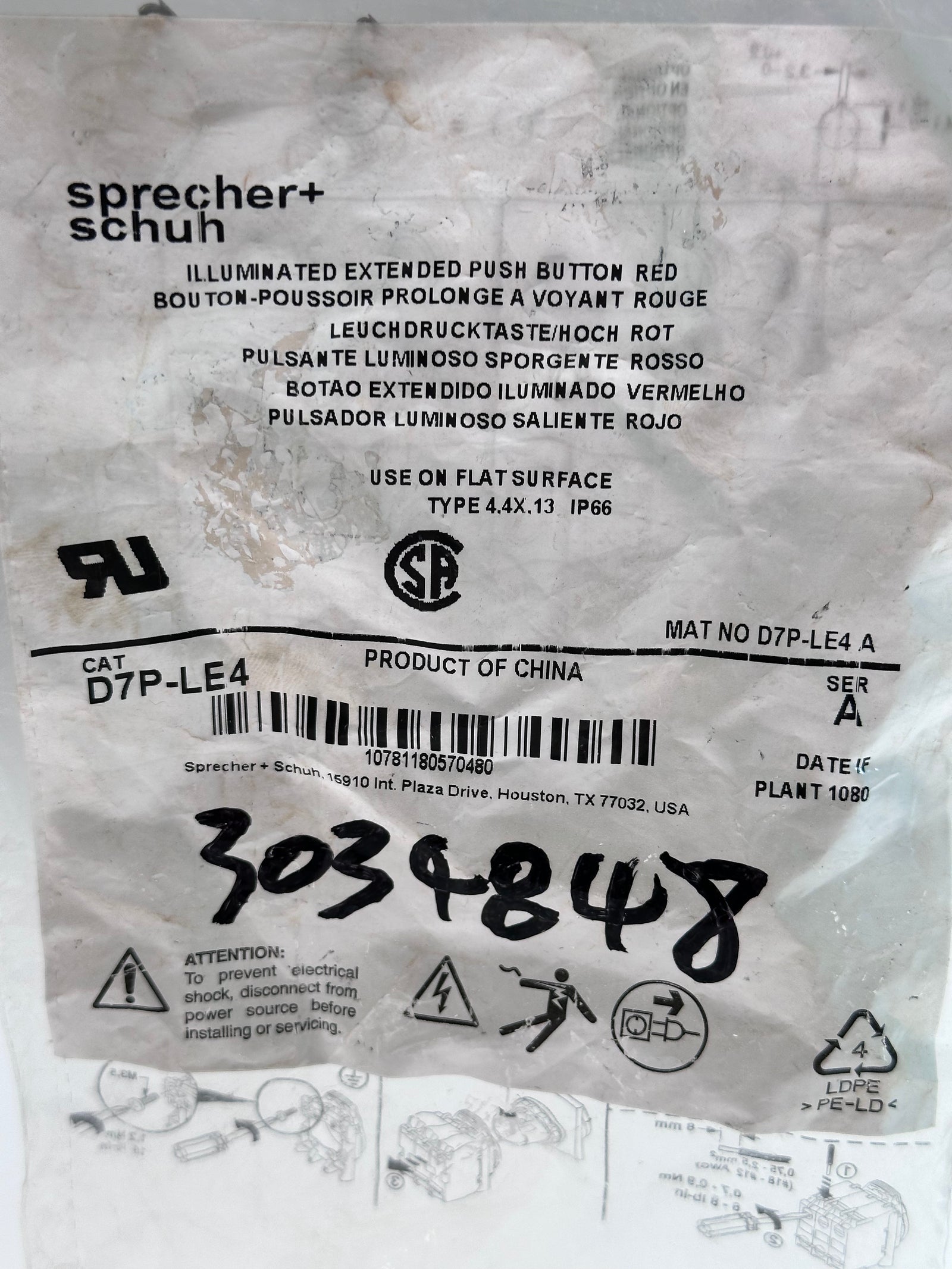

Sprecher + Schuh D7P-LE4 red non-latching push button, suitable for illumination. Additional catalogue form: D7PLE4; D7, D7P and NHP appear in the original catalogue.
Source specifications
- Button colour: red
- Front ring material: plastic
- Front ring colour: black
- Degree of protection (IP): IP66
- Lens construction: round
- Degree of protection (NEMA): 5
- Switching function: non-latching
- Suitable for illumination: yes
- Hole diameter: 22.5mm
- Maximum vibration acceleration: 10 m/s²
- Maximum operational vibration frequency: 2000 Hz
- Maximum shock acceleration: 100 g
- Number of command positions: 1
- Dimensions (H x L x W): 14mm x 22.5mm x 29.6mm
The protection and mechanical figures are retained as source specifications, not independently verified installation ratings. Illumination suitability does not establish that a lamp or contact block is included. Confirm mounting, compatible contacts and illumination components before ordering; electrical contact and lamp ratings are not supplied.
