SENSATA CRYDOM

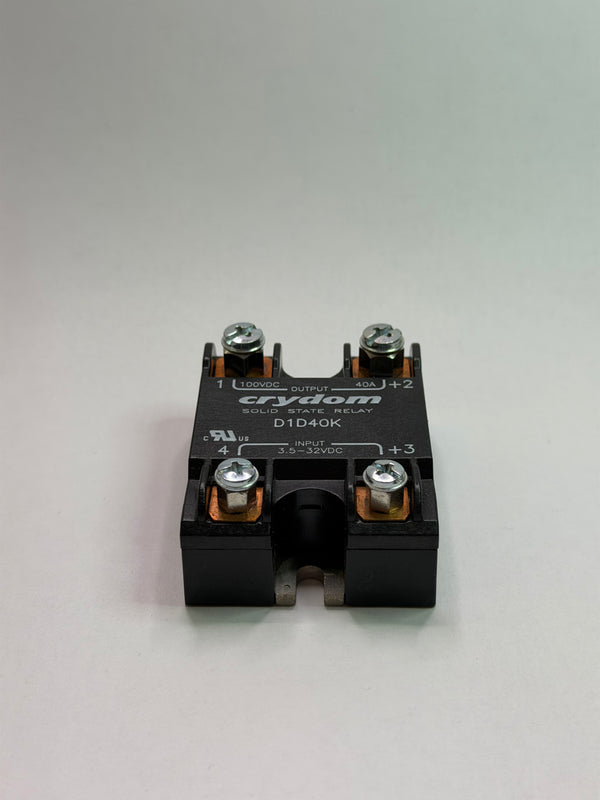

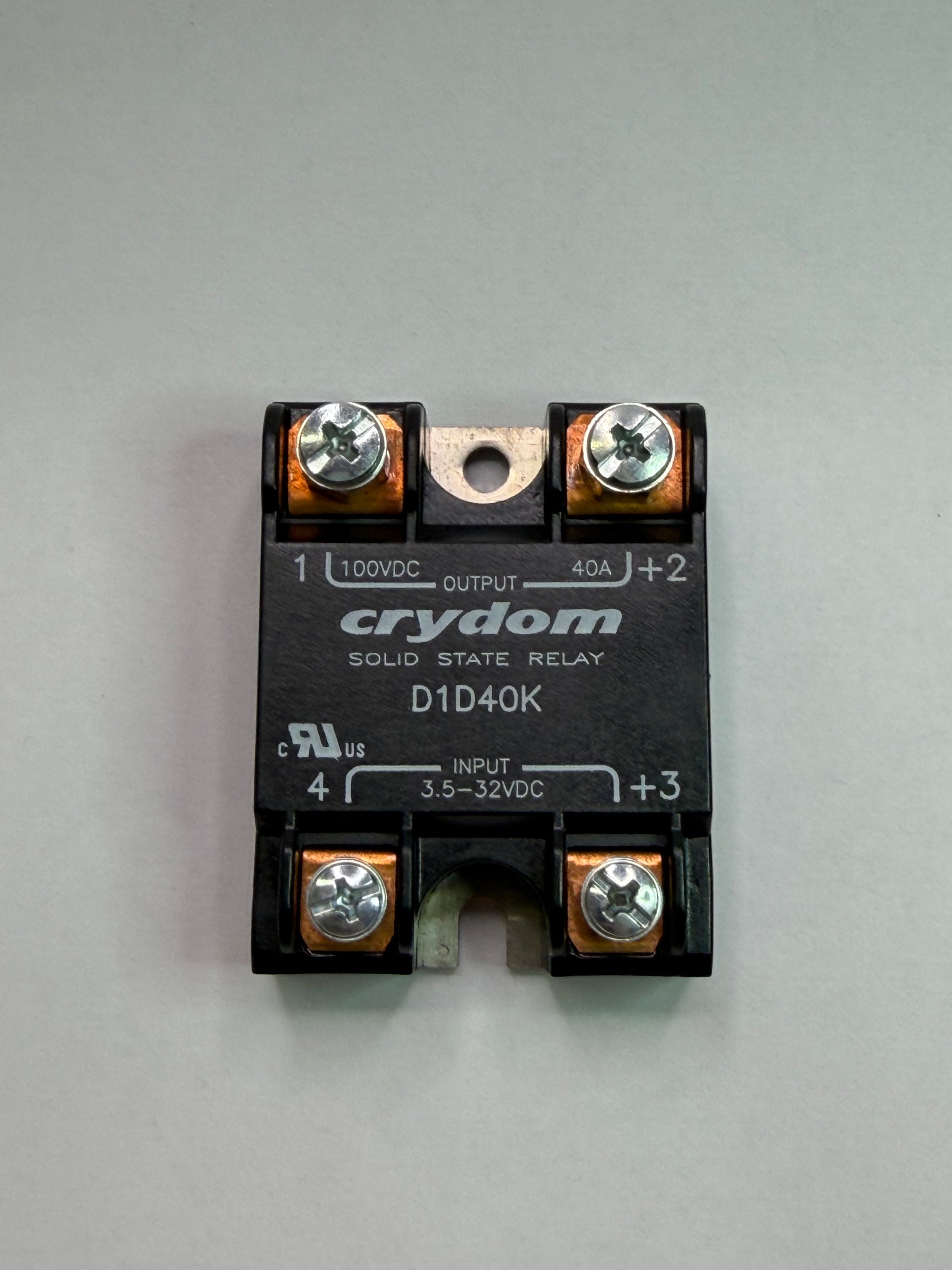

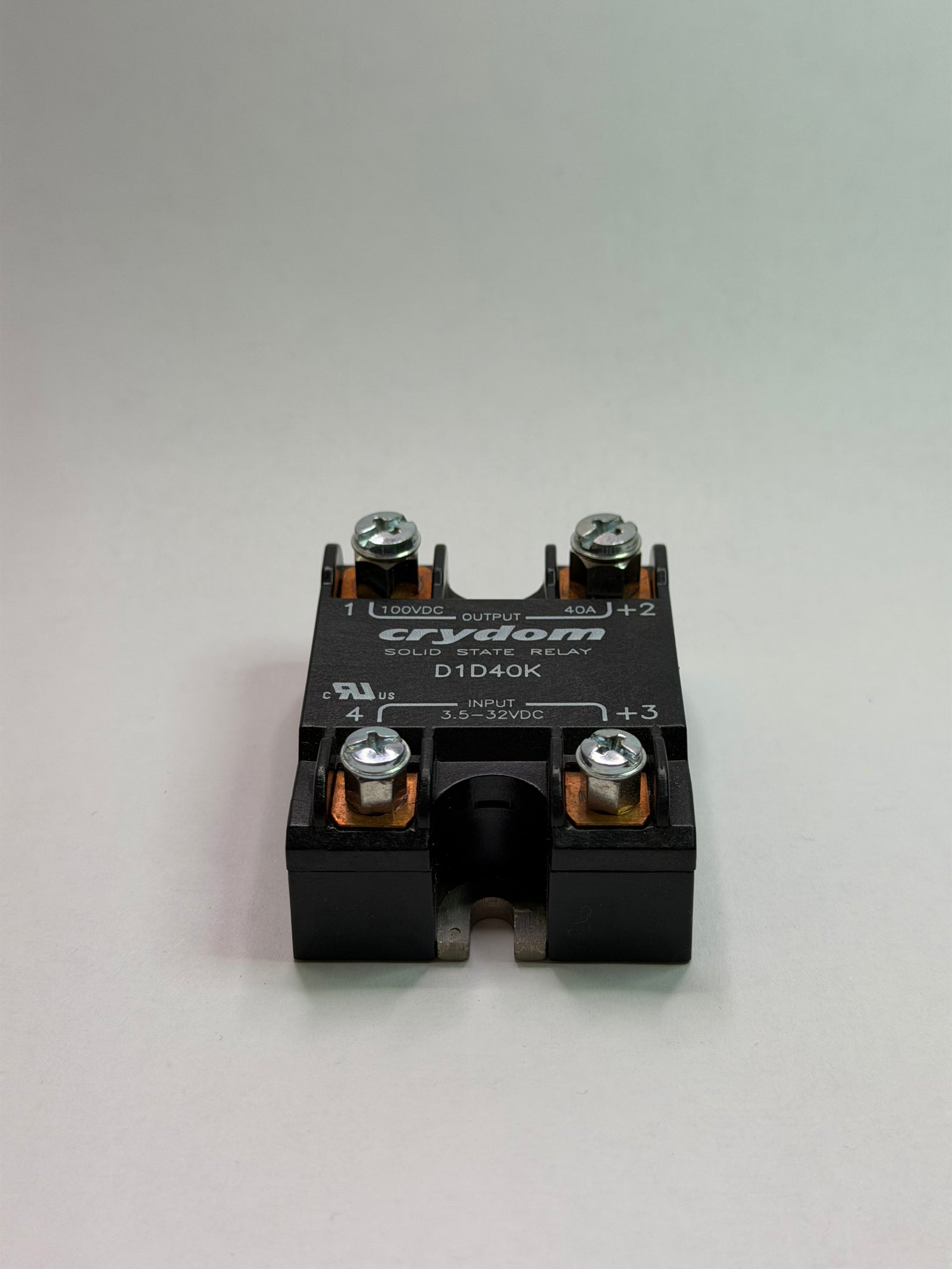

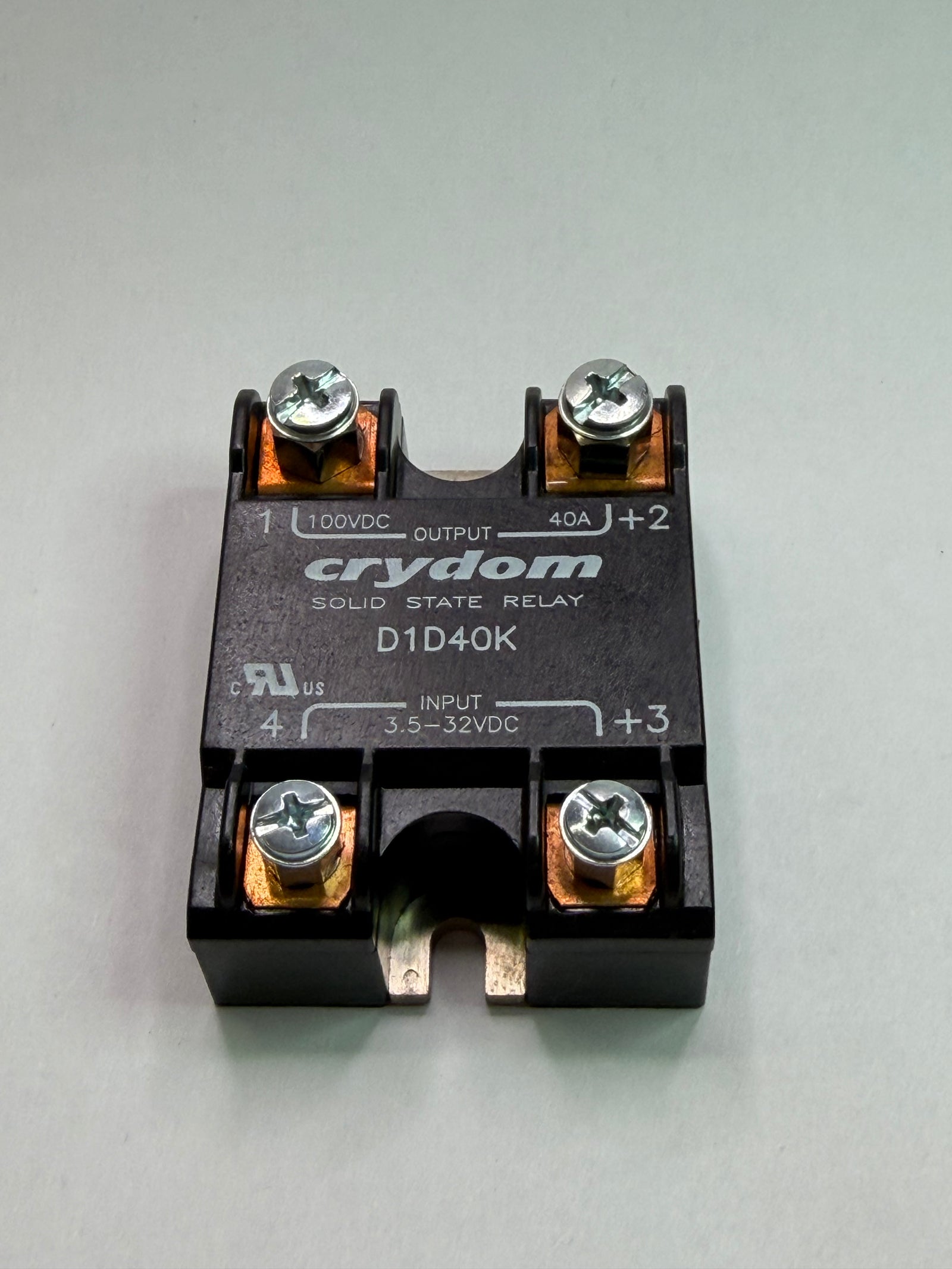

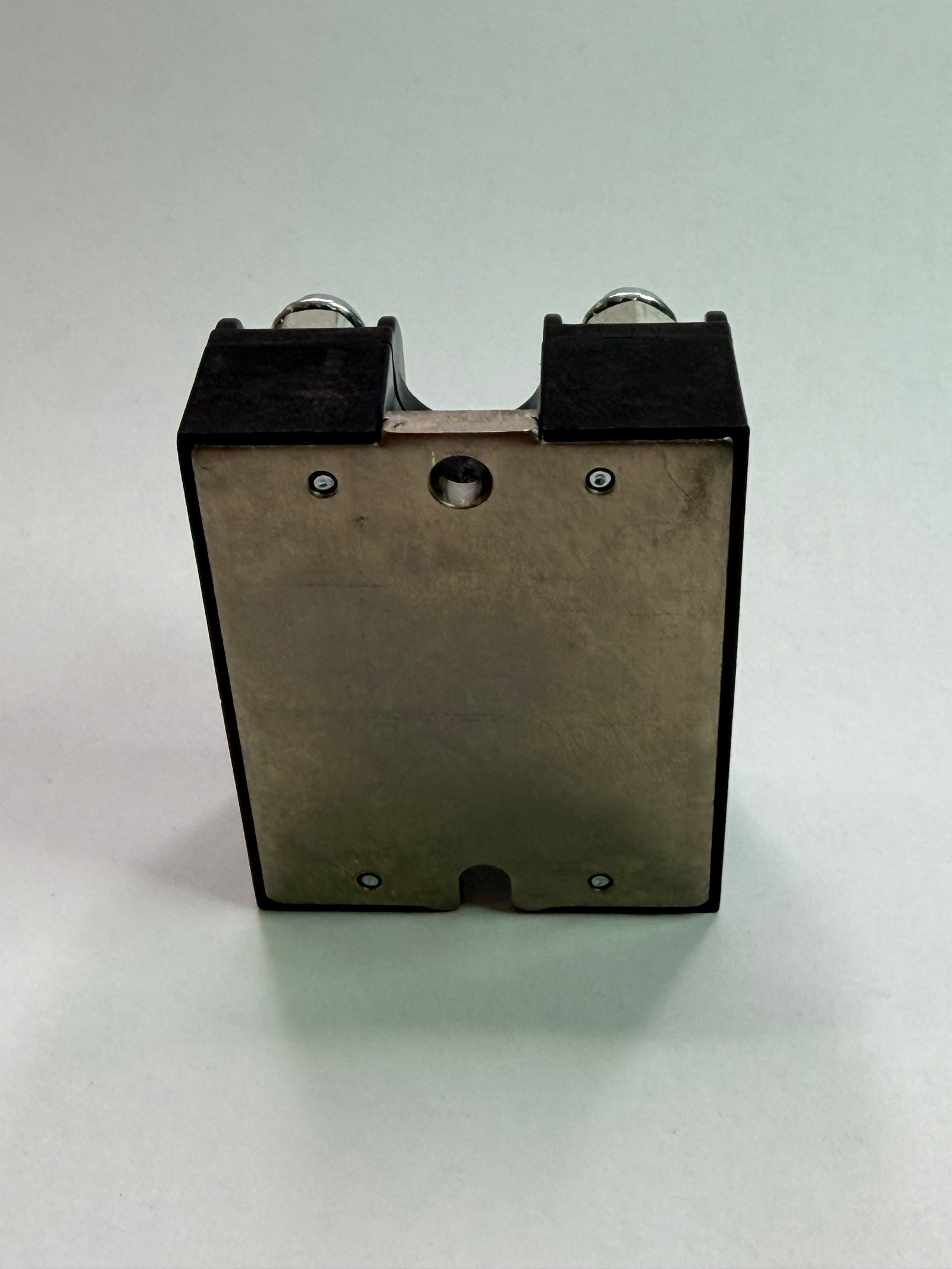

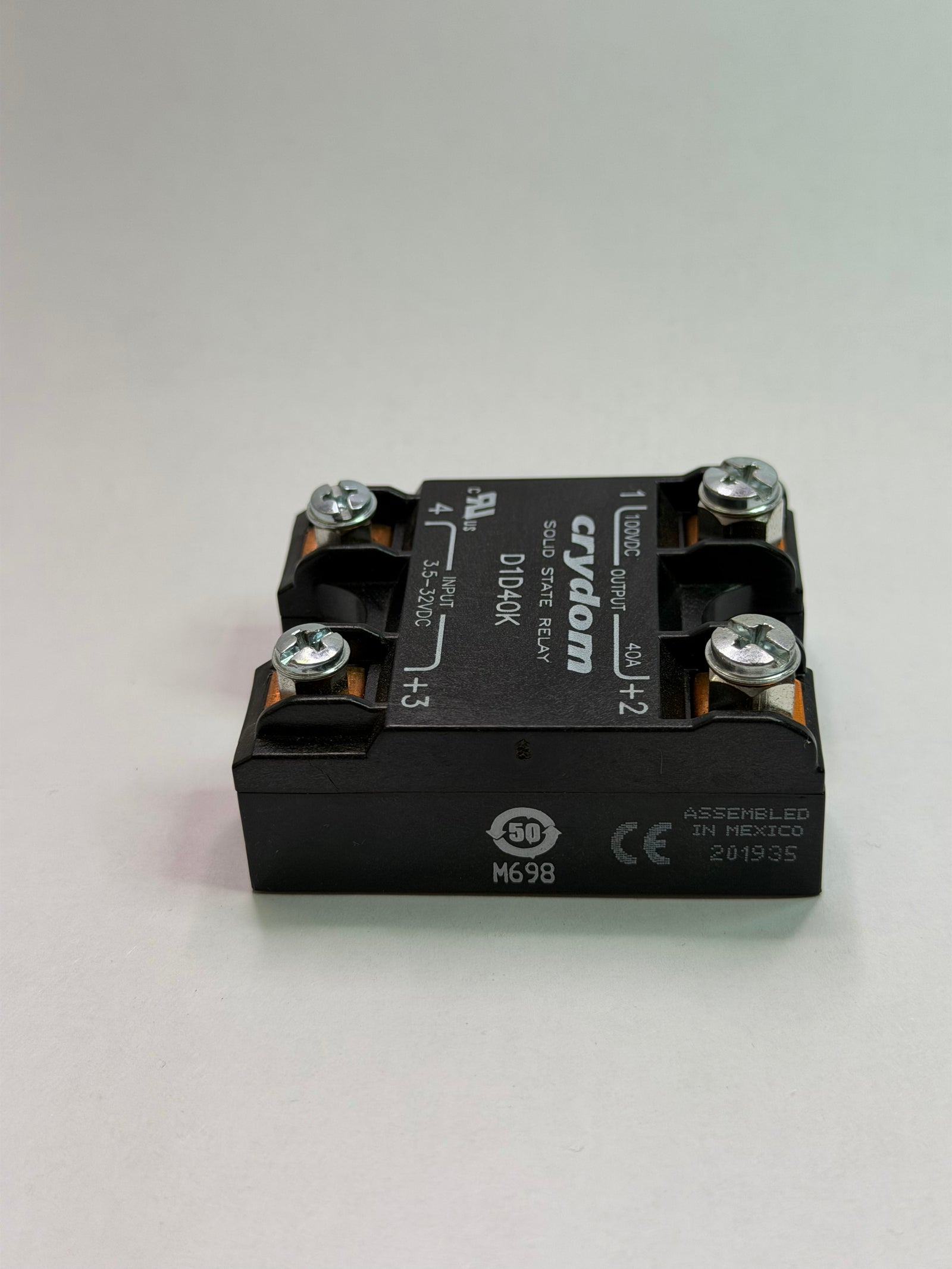

Sensata Crydom D1D40K 40A DC Solid-State Relay — 3.5–32VDC Control
- SKU
- P-DD-S-7962
$95.00
Price includes GST.
Low stock: 2 left
Warehouse pickup available
- Weight
- 1.0 kg
Specifications
| Manufacturer | SENSATA CRYDOM |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-DD-S-7962 |
| Weight | 1.0 kg |
Description
| Brand | Sensata / Crydom | |
|
|
Maximum Load Current | 40A dc |
|
|
Product Type | Solid State Relay |
|
|
Mount Type | Panel |
|
|
Maximum Load Voltage | 100V dc |
|
|
Minimum Load Voltage | 1V dc |
|
|
Minimum Control Voltage | 3.5V dc |
|
|
Maximum Control Voltage | 32V dc |
|
|
Series | 1-DC |
|
|
Terminal Type | Screw |
|
|
Minimum Operating Temperature | -40°C |
|
|
Maximum Operating Temperature | 100°C |
|
|
Length | 44.5mm |
|
|
Standards/Approvals | CE, RoHS, CSA |
|
|
Height | 22.6mm |
|
|
Capacitance | 8pF |
|
|
Off State Leakage Current | 0.3mA |
|
|
Output Type | MOSFET |
