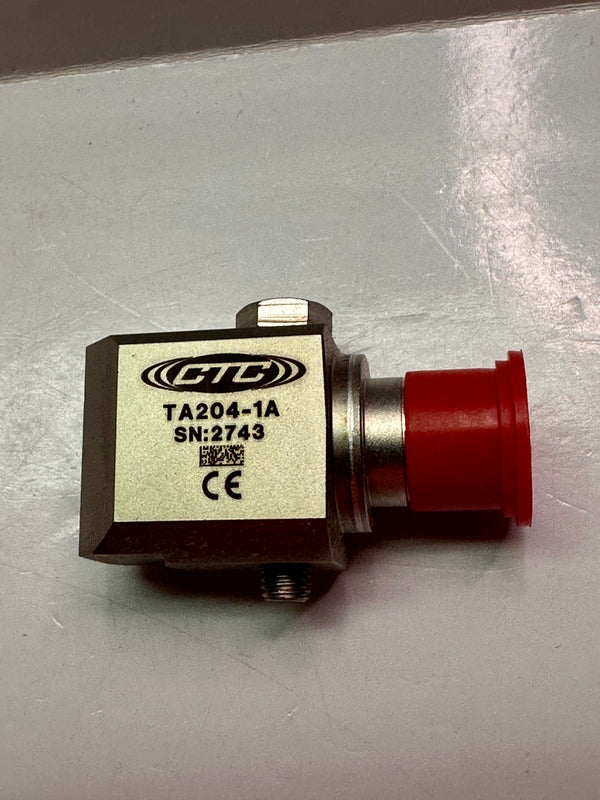

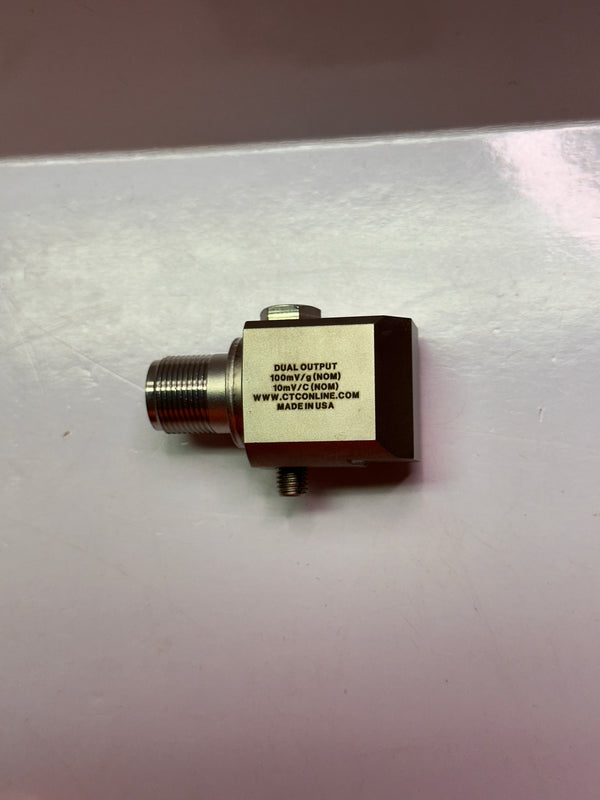

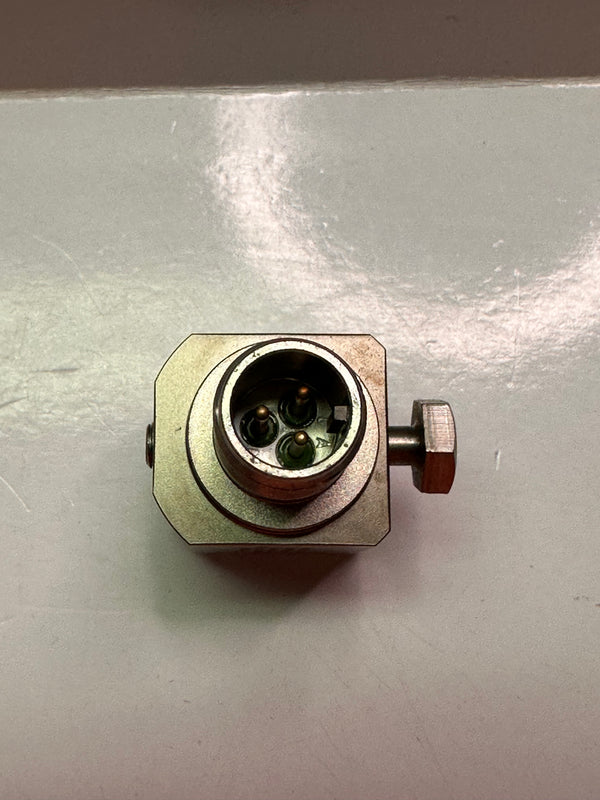

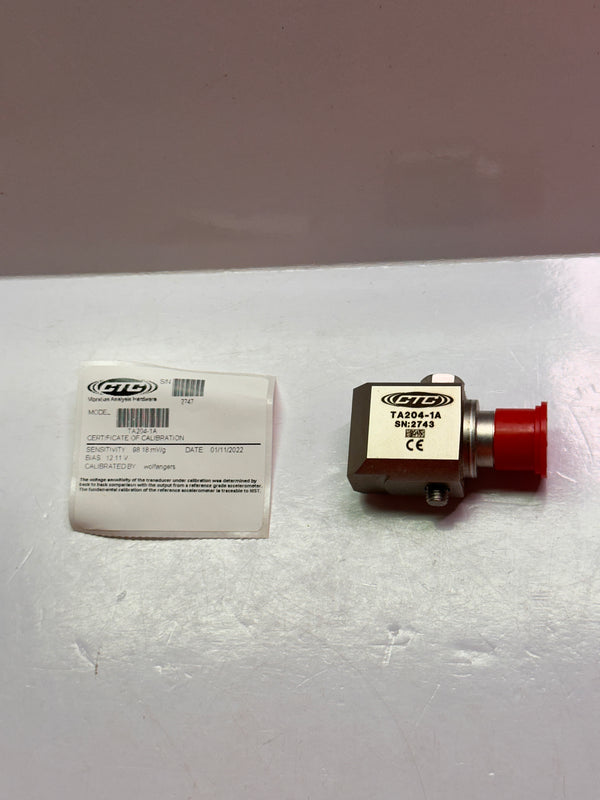

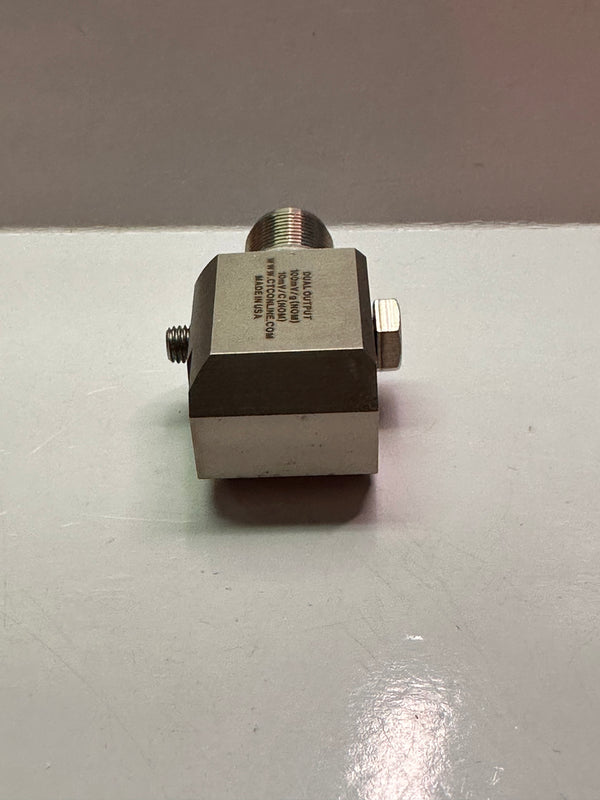

CTC TA204-1A Dual Temperature & Acceleration Sensor — 3-Pin Side Exit

SKU: P-CT-C-4812

$200.00 Price includes GST.

In stock Warehouse pickup available

CTC TA204-1A Dual Temperature & Acceleration Sensor — 3-Pin Side Exit

Quantity

Weight: 0.2 kg

Specifications

Manufacturer	CTC
Product type	ELECTRICAL
SKU	P-CT-C-4812
Weight	0.2 kg

Description

Part Number	TA204		M/TA204
Sensitivity (±10%)		100 mV/g
Frequency Response (±3dB)	30-600,000 CPM		0,5-10000 Hz
Frequency Response (±10%)	120-300,000 CPM		2,0-5000 Hz
Dynamic Range		± 80 g, peak *Vsource ≥ 22V, 12Vbias
Temperature Measurement Range	-40 to 250 °F		-40 to 121 °C
Temperature Output		10 mV/°C
Temperature Sensor		750 mV = 25 °C (±1)
Electrical
Settling Time		5 seconds
Voltage Source (IEPE)		18-30 VDC
Constant Current Excitation		2-10 mA
Spectral Noise @ 10 Hz		14 µg/√Hz
Spectral Noise @ 100 Hz		2.3 µg/√Hz
Spectral Noise @ 1000 Hz		2 µg/√Hz
Output Impedance		<100 ohm
Bias Output Voltage		10-14 VDC
Case Isolation		>10⁸ ohm
