CTC CB218-J4A-003M/025m-Z Four-Conductor Sensor Cable, 25m
- SKU
- P-CT-C-4841
$275.00
Price includes GST.
Low stock: 3 left
Warehouse pickup available
- Weight
- 1.0 kg
Specifications
| Manufacturer | CTC |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-CT-C-4841 |
| Weight | 1.0 kg |
Description

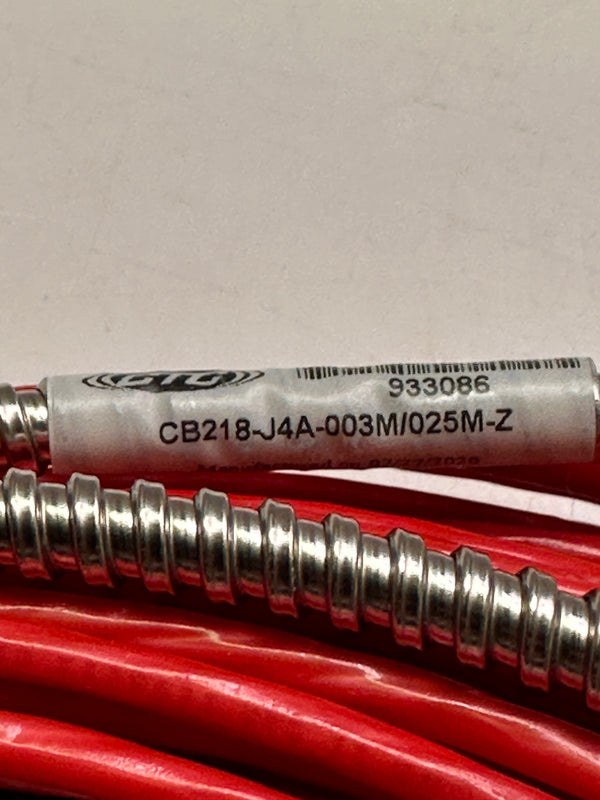

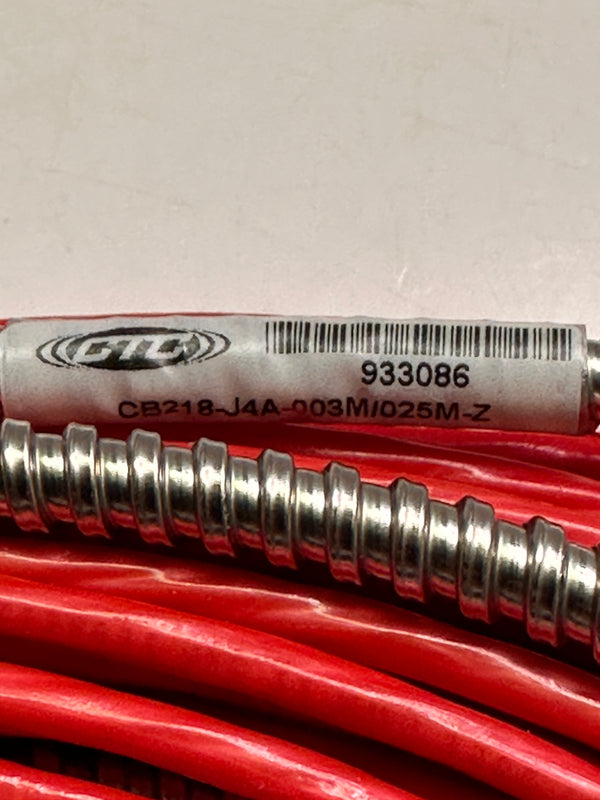

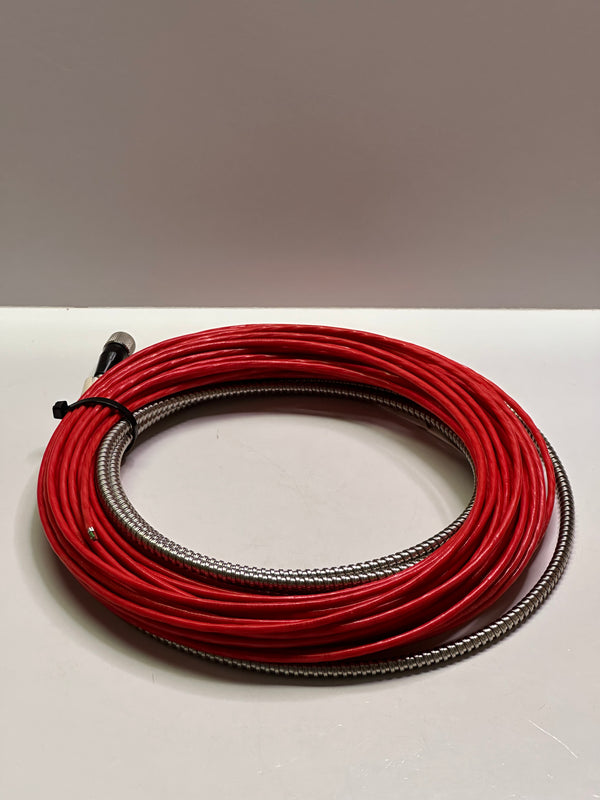

CTC CB218-J4A-003M/025m-Z four-conductor shielded sensor cable, 25M total cable length, with red FEP jacket and stainless-steel outer armour. Additional catalogue forms: CB218-J4A-003M/25m-Z, CB218, CB218-J4A and 933086.
Source specifications
| Specifications | |
|---|---|
| Jacket Material | Red FEP with Stainless Steel Armor Jacket |
| Application | Permanent Mount |
| Conductor Quantity | 4 Conductor |
| Shielding Method | Foil with Drain Wire |
| Max. Temperature | 392 °F (200 °C) |
| Temperature Range | -94 °F (-70 °C) to 392 °F (200 °C) |
| Cable Diameter | Armor Diameter: 0.27 in. (6,9 mm) Cable Diameter: 0.148 in. (3,8 mm) |
| Wire Gauge | AWG = 22 |
| Capacitance | 27.9 pF/ft (nom) Conductor to Conductor |
| Voltage Rating | 1000 VDC |
Source connection and construction details

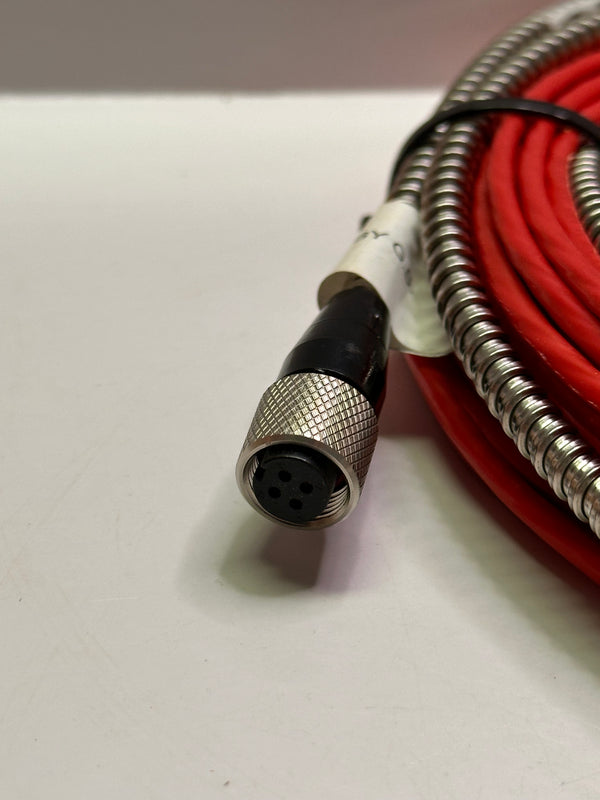

- Four-socket Mini-MIL connection for CTC triaxial sensors
- 316L stainless-steel locking ring

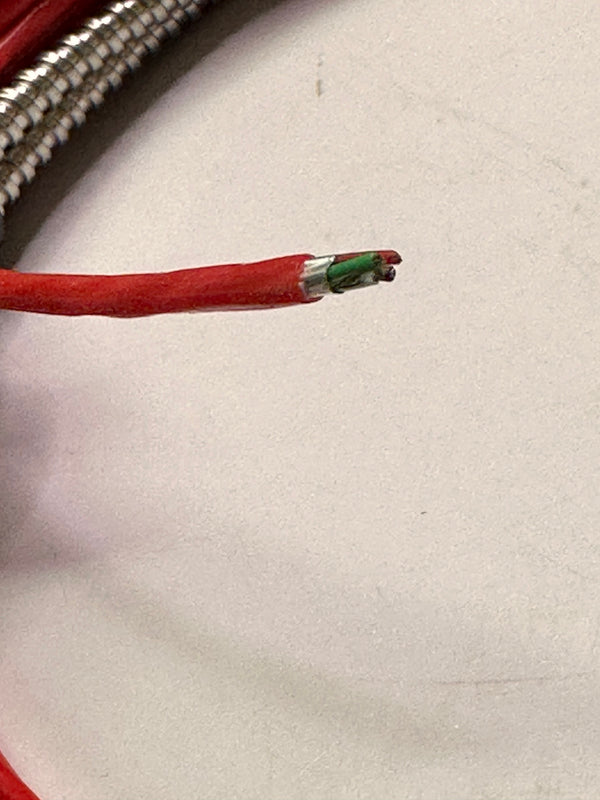

- Blunt-cut end
- Armour Jacket Length 3, as recorded, without a unit
The armoured section length requires confirmation; the 25M total length does not establish that all 25m is armoured. No unit has been inferred from the part-number suffix. The source describes suitability for varied industrial applications and durability/corrosion resistance, without supplying additional test results.
Confirm the connector, armour coverage and sensor compatibility before ordering. A sensor is not stated as included.
