CORDE PUMPS

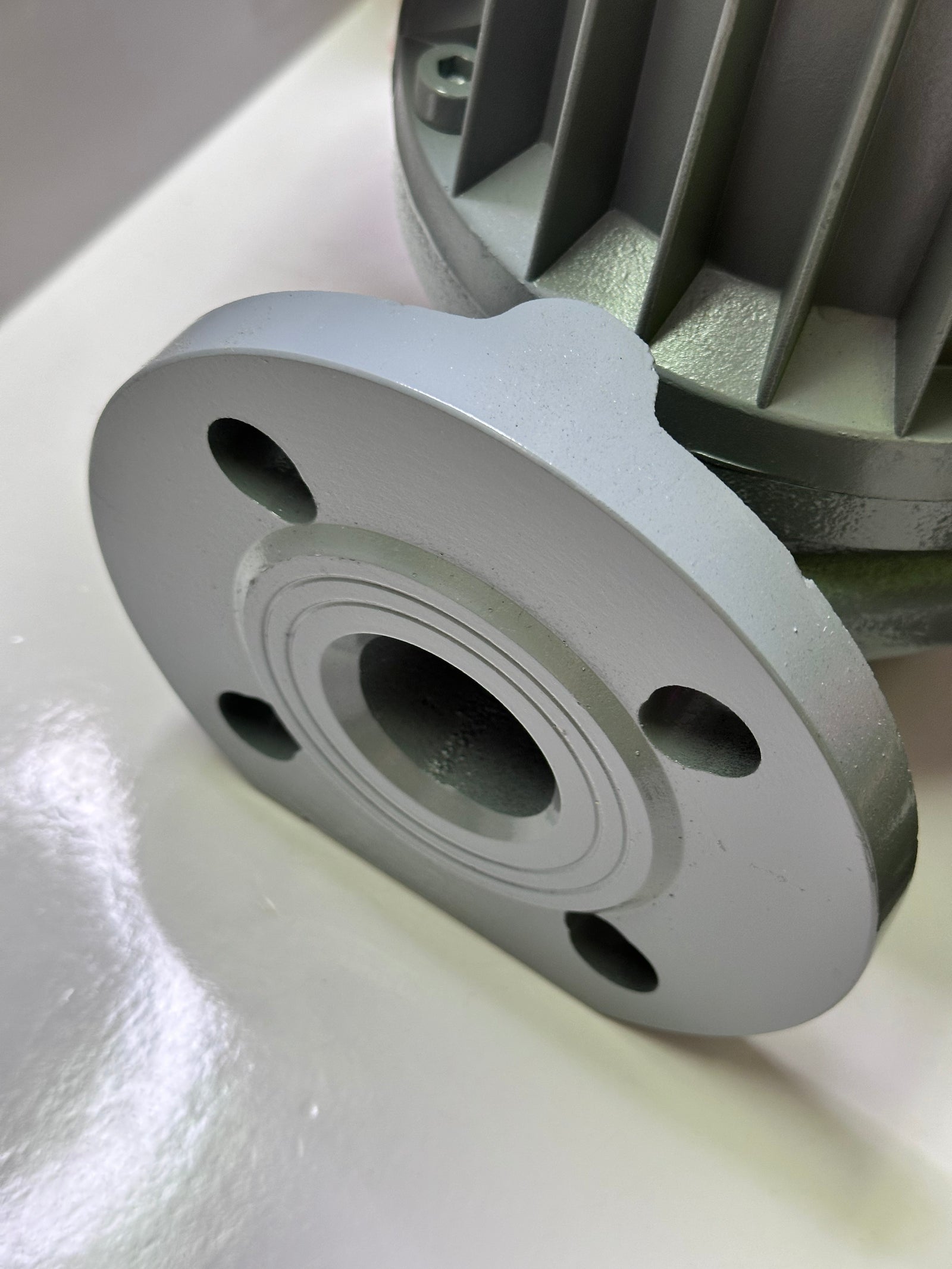

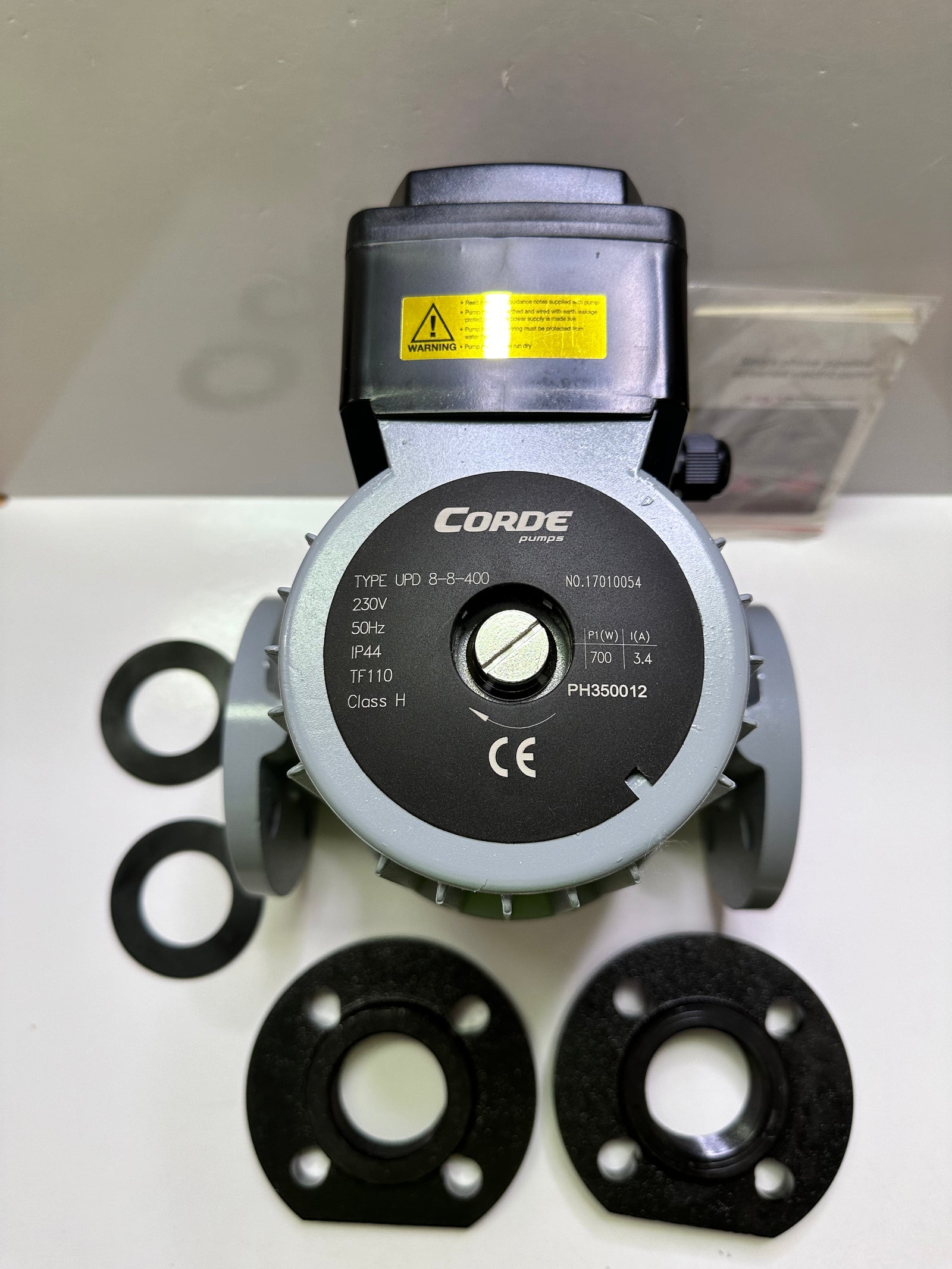

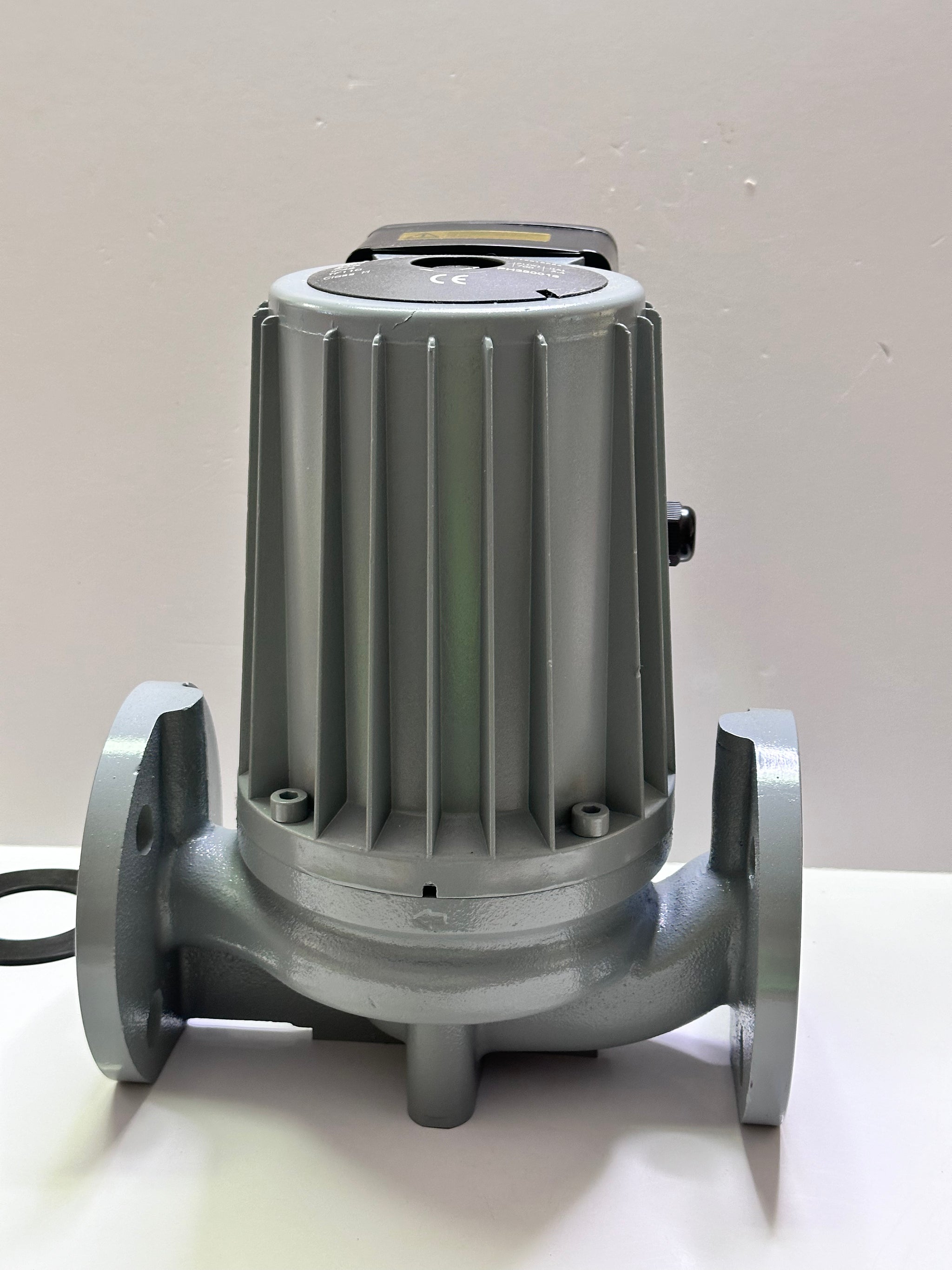

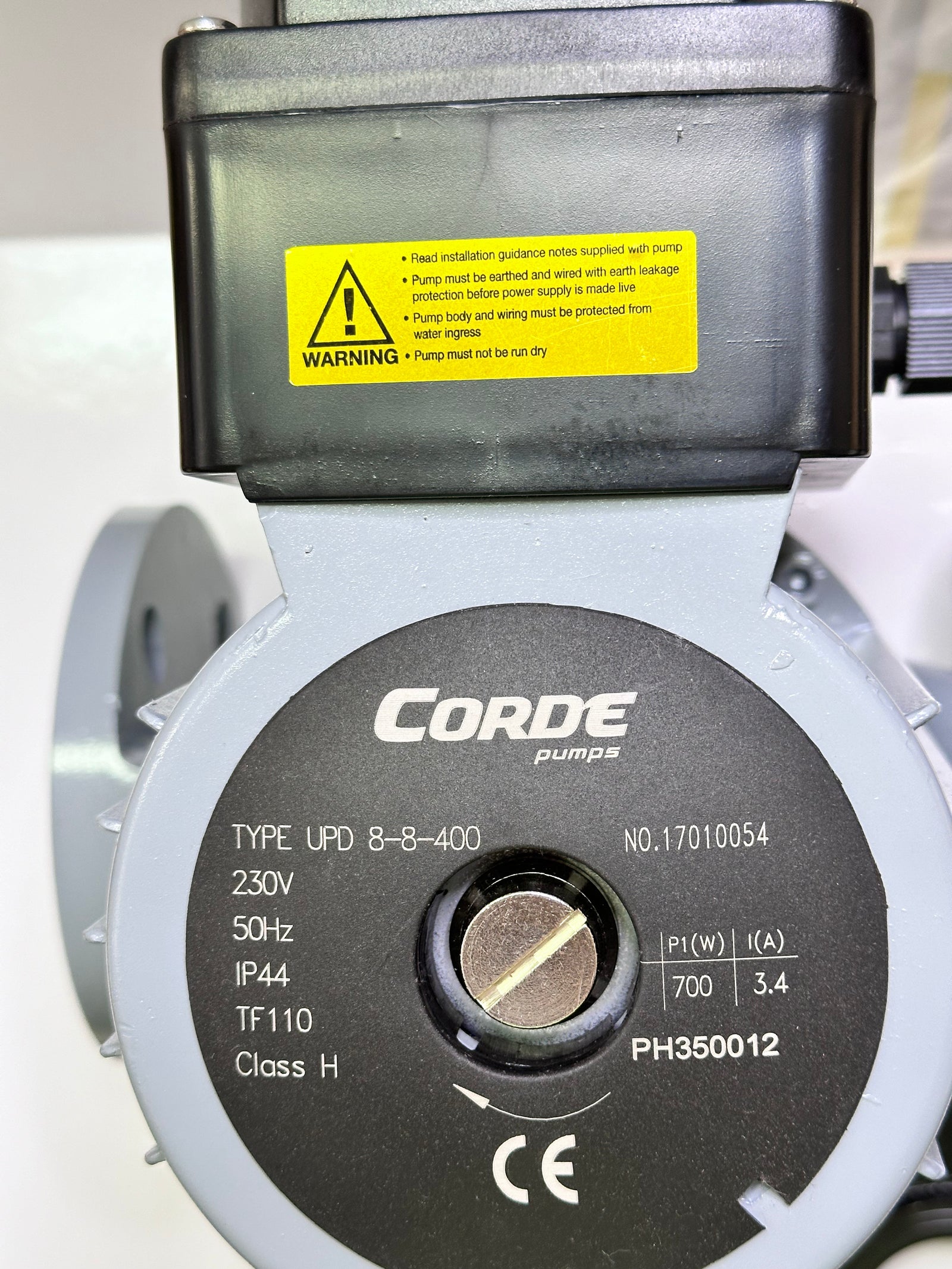

Corde UPD8-8-400 Hot Water Circulator Pump, Flanged, Single Phase
- SKU
- P-CO-C-6063
- Weight
- 19.0 kg
Specifications
| Manufacturer | CORDE PUMPS |
|---|---|
| Product type | Electrical |
| SKU | P-CO-C-6063 |
| Weight | 19.0 kg |
Description
| Performance Data |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Features |
|
||||||||
| Materials |
Structure: The product is made up of pump and single-phase shield motor. The pump is made up of impeller, body of pump, etc. Motor consists of stator, rotor, shield cover, air release bolt etc. Seal: The pump is not sealed with mechanical seal. The stator and rotor of motor are fully sealed with stainless steel cover. Other parts are all sealed with heat-resistant rubber facing ring, to prevent leakage. Lubrication/Cooling: Internal circulation is integrated into the design of the product. The water between the stator and the rotor can lubricate and cool the motor as the lubricant and coolant. |
||||||||
| Applications |
The UPD series of circulating pumps are specifically designed for heating systems. Robust and reliable, the pumps are also suitable for continuous circulation of domestic hot water and for circulation of liquid in cooling and air conditioning systems. |
