CORDE PUMPS
Corde UPD32-12 Hot-Water Circulation Pump with Unions
- SKU
- P-CO-C-6058
- Weight
- 9.5 kg
Specifications
| Manufacturer | CORDE PUMPS |
|---|---|
| Product type | PUMP |
| SKU | P-CO-C-6058 |
| Weight | 9.5 kg |
Description

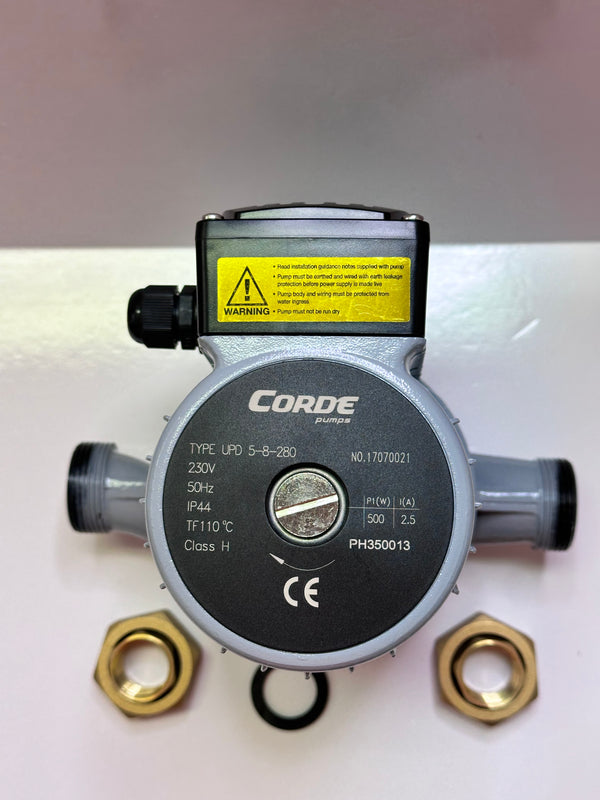

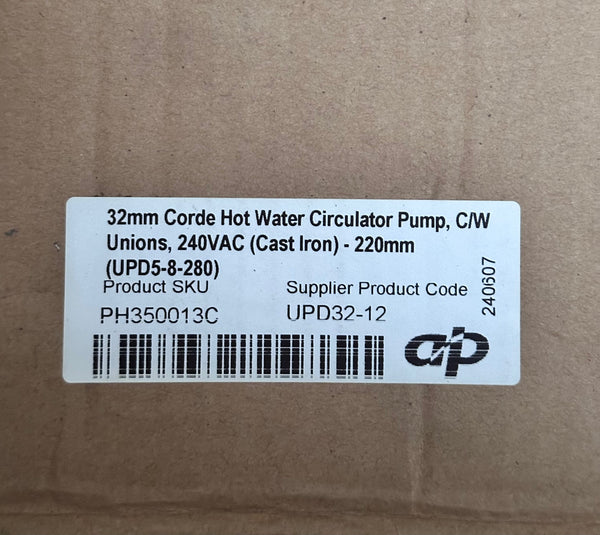

Corde 32 mm hot-water circulation pump with unions, supplier reference UPD32-12; source type UPD5-8-280, No.17070021, PH350013.
Source specifications requiring exact-nameplate confirmation:
- 240 V AC in the introductory text; performance data states 230 V, 50 Hz, single phase.

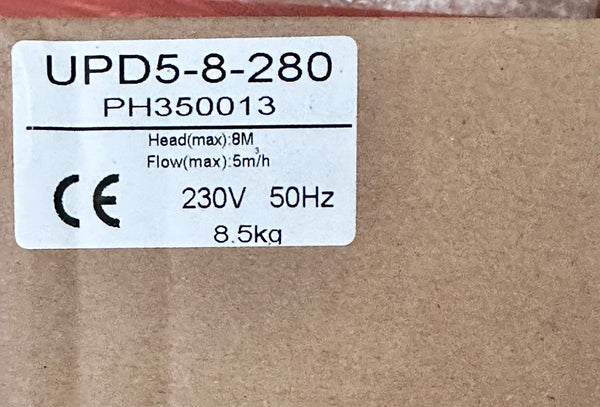

- Maximum head: 8 m; maximum flow: 5 m³/h. These maxima are not stated to occur together.

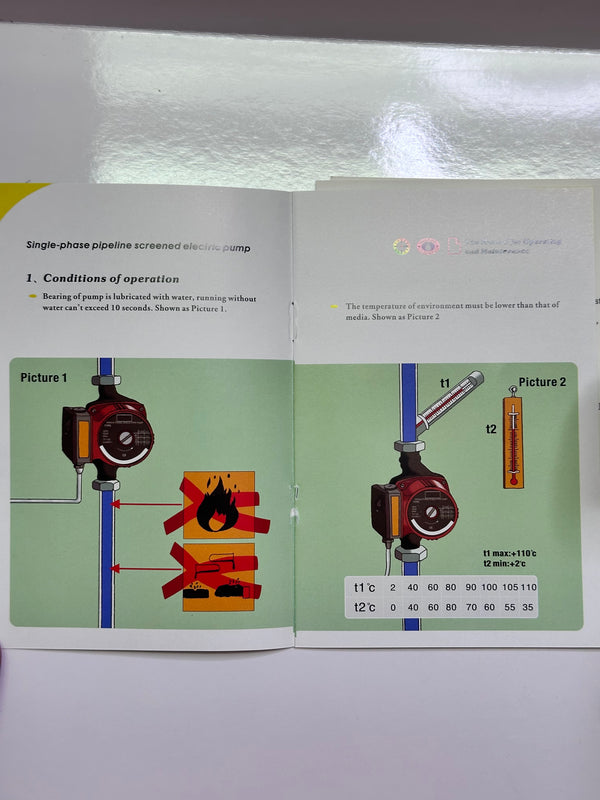

- Recorded temperature: 25–110 °C.
- System pressure: less than 1.0 MPa; inlet pressure: greater than 0.1 MPa.

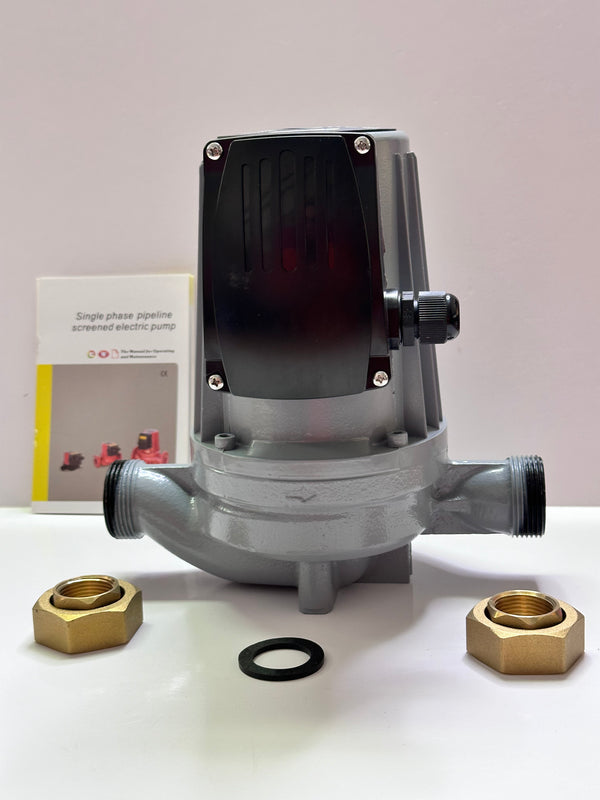

Recorded construction: pump impeller/body with single-phase shielded motor, stator, rotor, shield cover and air-release bolt. No mechanical seal; stainless-steel covers and heat-resistant rubber sealing rings are described. Internal water circulation lubricates and cools the motor.
The source describes UPD-series use in heating, hot-water circulation, cooling and air-conditioning systems. Confirm the supplied model, compatible fluid and installation requirements; this is not a guarantee of leak-free performance or approval for every hot-water application.
