Range of product
Series 56
Range

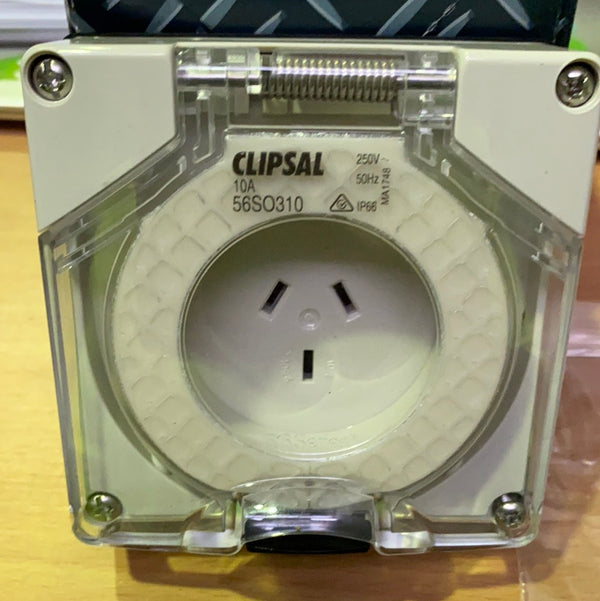

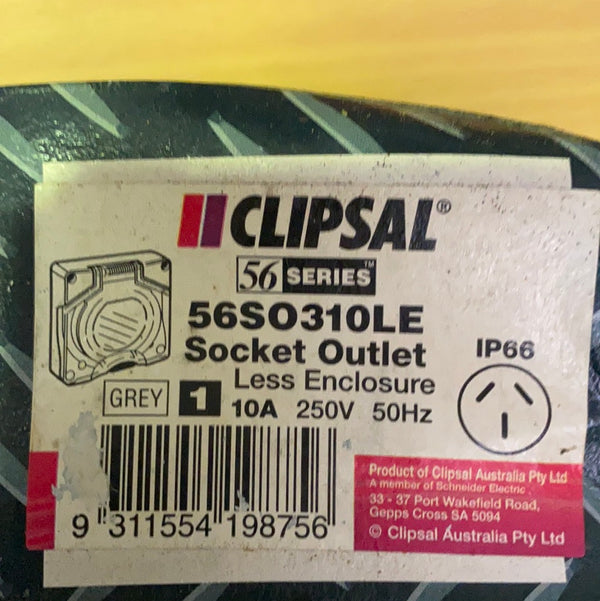

Clipsal - 56 Series
Product brand
Clipsal
Product or component type
socket-outlet
Device application
power supply
Market segment
- industry
- small commercial
- utility
Physical
Device mounting
surface
Mounting mode
external mounting
[in] rated current
10 A
[ue] rated operational voltage
250 V AC 50 Hz conforming to EN 60309-2

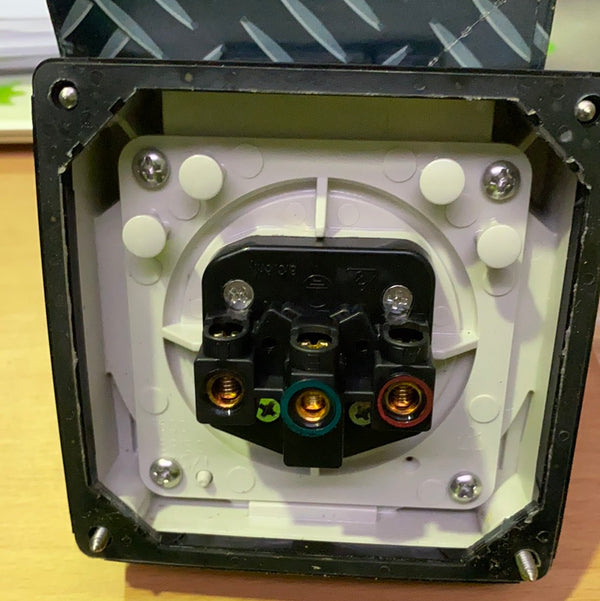

Connections - terminals
screw terminals 1.5-6 mm² rigid or stranded cable
Connections - terminals
screw terminal
Socket number
1
Outlet standard
industrial
Cable outer diameter
9...29 mm
Net weight
0.3 kg
Depth
64 mm
Width
101 mm
Height
107 mm
Ip degree of protection
IP66 conforming to AS 60529
Ambient air temperature for operation
-25...75 °C
Standards
- AS/NZS 3112
- AS/NZS 4417.1
Mercury free
Yes
Rohs exemption information
Yes
Eu Rohs directive
Compliant with Exemptions
Reach regulation
Reference contains Substances of Very High Concern above the threshold
China Rohs regulation
Product out of China RoHS scope. Substance declaration for your information
