CLIPSAL

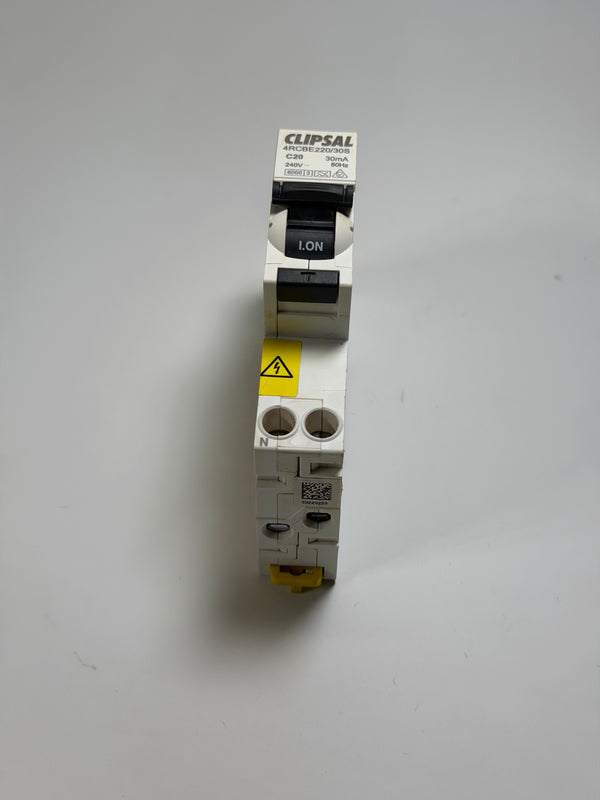

Clipsal 4RCBE220/30S Slim RCBO — 20A C-Curve, 30mA Type A, 1P+N
- SKU
- P-CL-C-8627
$29.00
Price includes GST.
Sold out
Warehouse pickup available
This one has sold, but we regularly land similar stock and can often source an equivalent.
Request this part or an equivalent- Weight
- 1.0 kg
Specifications
| Manufacturer | CLIPSAL |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-CL-C-8627 |
| Weight | 1.0 kg |
Description
| Range | MAX4 |
|---|---|
| Product or component type | Residual current breaker with overcurrent protection (RCBO) |
| Product brand | Clipsal |
| Poles description | 1P + N |
| Number of modules | 1 |
| [In] rated current | 20 A |
| Curve code | C |
| Earth-leakage sensitivity | 30 mA |
| Earth-leakage protection class | Type A |
| Breaking capacity | 6000 A |
| [Ue] rated operational voltage | 240 V AC |
|---|---|
| [Uimp] rated impulse withstand voltage | 6 kV |
| Mounting support | DIN rail |
| Size | 92.5 x 18 x 71.5 mm conforming to DIN 43880 |
| Standards | AS/NZS 61009 |
|---|---|
| IP degree of protection | IP20 IP40 |
| Ambient air temperature for operation | -5…40 °C |
