SCHNEIDER ELECTRIC
Schneider LV430671 Compact NSX160H Circuit Breaker — Trip Rating to Confirm
- SKU
- P-CI-S-0376
$650.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 3.0 kg
Specifications
| Manufacturer | SCHNEIDER ELECTRIC |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-CI-S-0376 |
| Weight | 3.0 kg |
Description

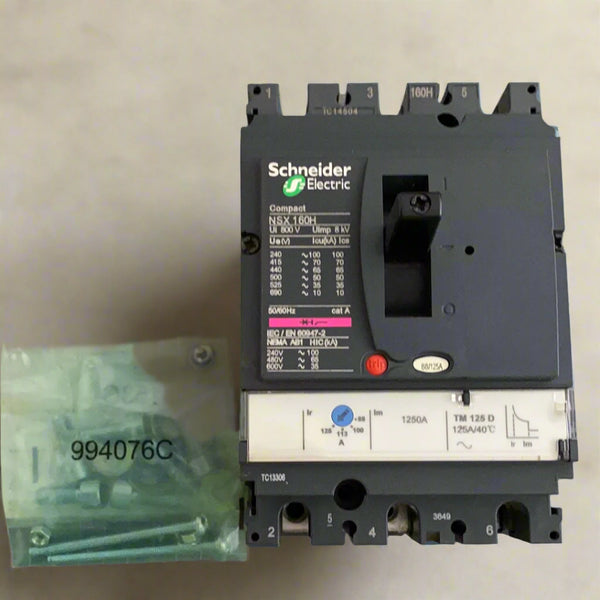

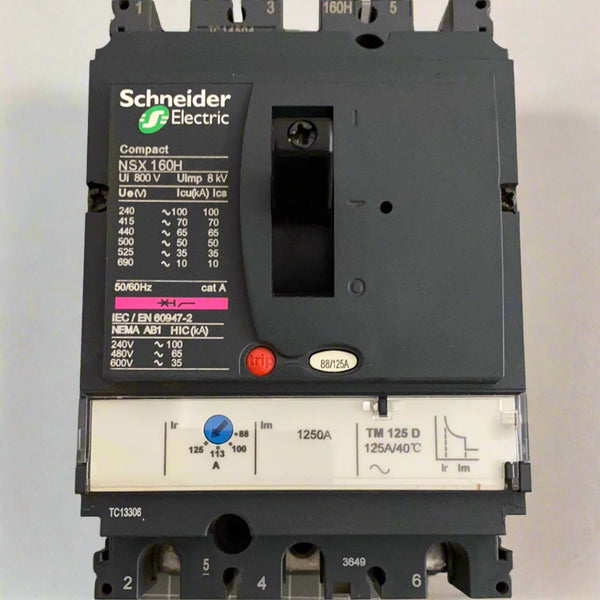

Schneider Electric LV430671 Compact NSX160H circuit breaker, listed for AC distribution. The source title specifies a TMD 125A trip unit, while the description records rated current 160A at 40 °C; confirm the actual frame and trip-unit ratings.
Recorded source specifications
- Poles: 3P; protected poles recorded as 3t
- Network frequency: 50/60 Hz
- Rated insulation voltage Ui: 800V AC, 50/60 Hz
- Rated impulse withstand voltage Uimp: 8 kV
- Rated operational voltage Ue: 690V AC, 50/60 Hz
- Breaking-capacity code: H
Legacy tags include NSXm 160H, 100 kA, 125A, 160A, 48028 and 742-2132. The NSXm notation and 100 kA figure are not confirmed for this unit; interrupting capacity must be checked at the applicable voltage.

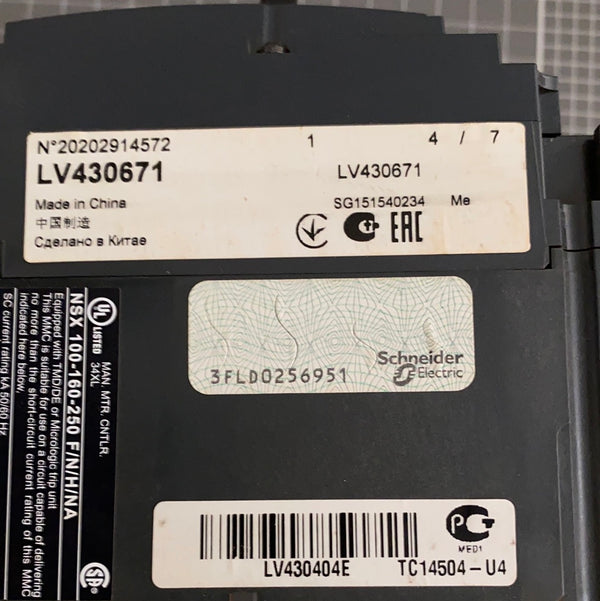

Verify the full nameplate, fitted trip unit, protected-pole arrangement and circuit requirements before ordering or installation.
