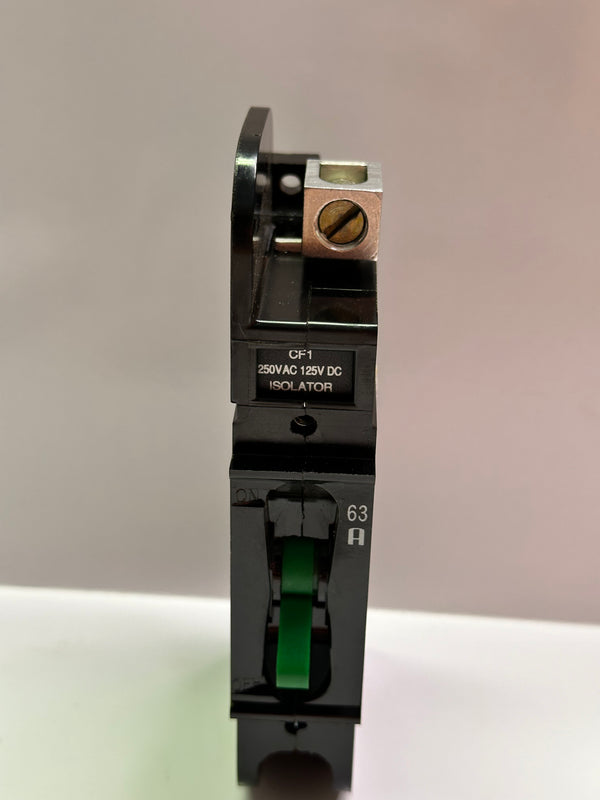

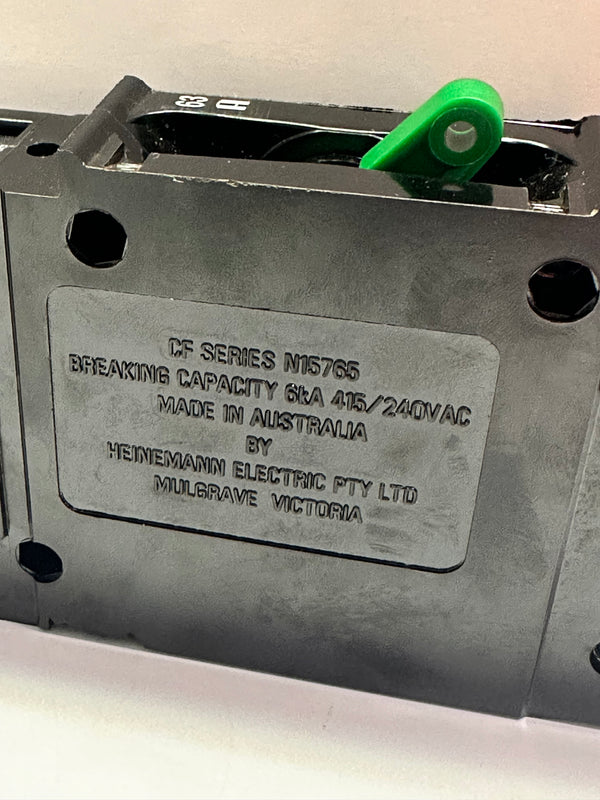

CF Series 63A 250VAC, 125 VDC 1P Miniature Circuit Breaker with Switch Disconnector CF1 (N15765

Number of poles: 1, 2, 3, and 4 pole.
Standards: AS 3111
Approval Number: N15215
Standard Ampere Rating: 2,4,6,10,16,20,25,32,40,50,63,80,100A
Rated Voltage (Un): AC 1 pole 240V
2, 3 & 4 pole 415V
DC 1 pole 125V
2 pole 250V
3 pole 480V
Frequency: 50/60Hz for AC forms
Rated Breaking Capacity (kA): 6kA at 415/240V AC
5kA at 125V DC (1 pole)
3kA at 250V DC (2 pole)
1.5kA at 480V DC (3 pole)
Rated Impulse Withstand Voltage (Uimp): 6kV
Time Current Characteristics: Curve 1 (Long) : (similar to Curve D)
Curve 2 (Medium) : (similar to Curve C)
Curve 3 (Short) :
Operating temperature: -10 to +60ºC
Storage temperature: -20 to +60ºC
Degree of Protection: IP2X terminals
Rated Service Life (AC): 6000 electrical operations
4000 mechanical operations
Humidity: To Mil-Std-202G Method 103B
test condition A
Shock: Single pole conforms to 50G shock at
6ms, when tested to Mil-Std-202G
Method 213B test condition 1
Vibration: Single pole conforms to Mil-Std-202G
Method 204D test condition A
It also conforms to IEC577, which is
applicable to rolling stock
Mounting: Surface, clip tray or front screws (M4)
Terminal connections: Front connected box (tunnel) type
main terminal suitable for up to 50mm2
copper conductors (4Nm torque)
Front connected screw type terminal
suitable for up to 50mm2 lugs
(4Nm torque). Back/Rear connected
stud type terminal fitted with M6 studs
(2.5Nm torque)
Handle colour: White – curve 2/3 circuit breaker AC
Orange – curve 1 circuit breaker AC
Blue – circuit breaker DC
Green – switch disconnector
(non-auto)
