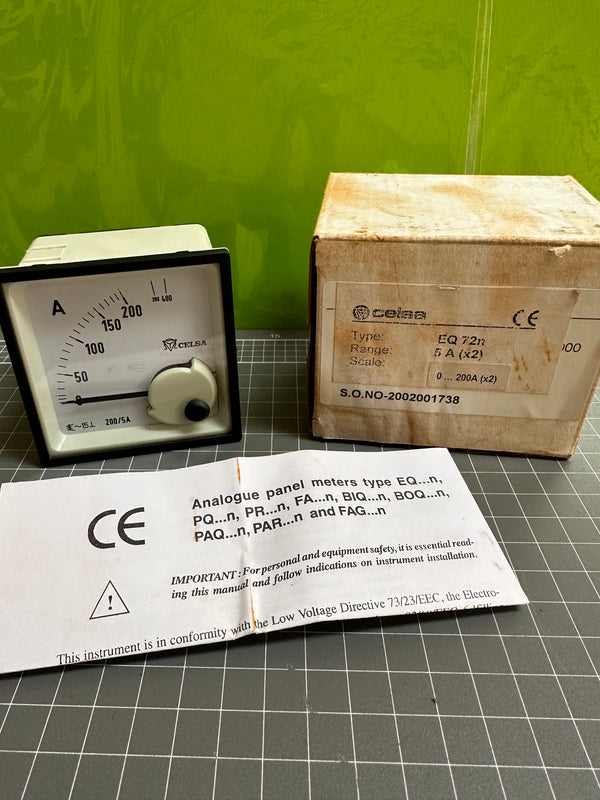

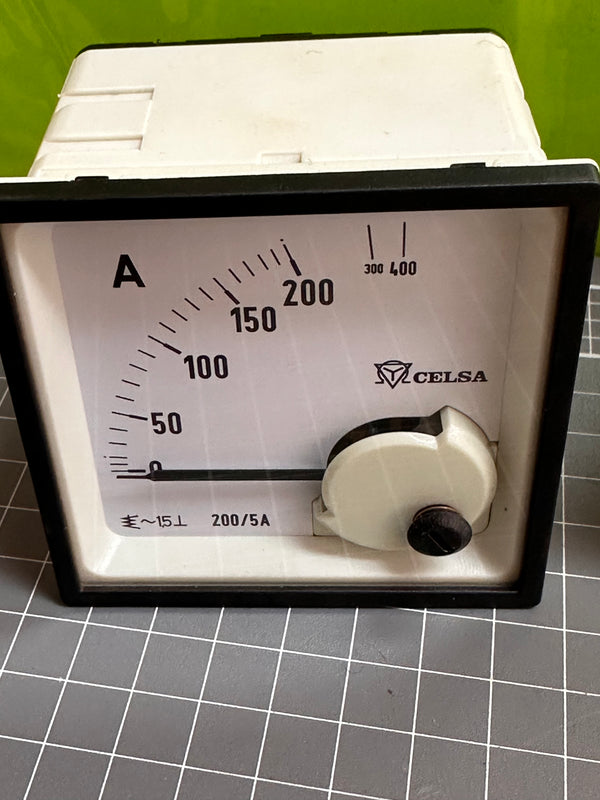

Celsa EQ 72n Analogue Panel Ammeter – 0–200A Scale
- SKU
- P-CE-C-2497
- Weight
- 1.0 kg
Specifications
| Manufacturer | CELSA |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-CE-C-2497 |
| Weight | 1.0 kg |
Description
Celsa EQ 72n analogue panel ammeter with a 0–200A scale recorded in the original title. Additional reference: M10011870.

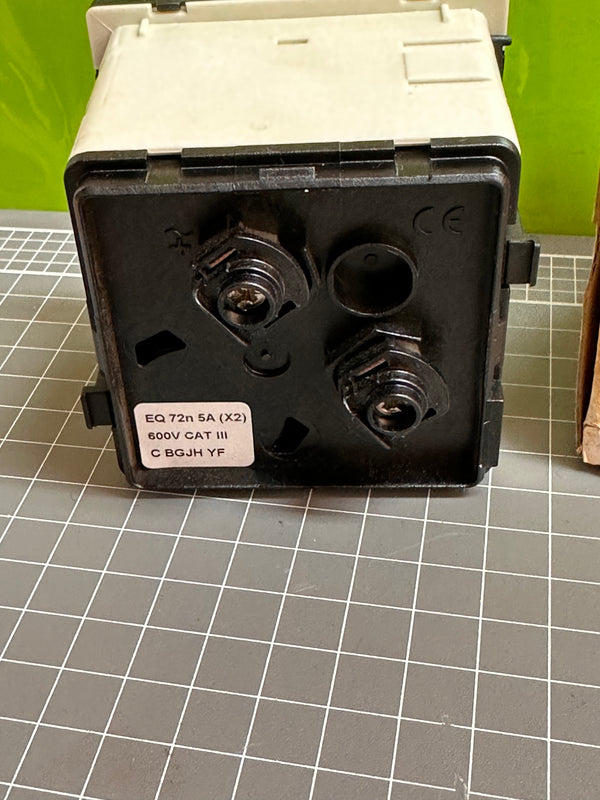

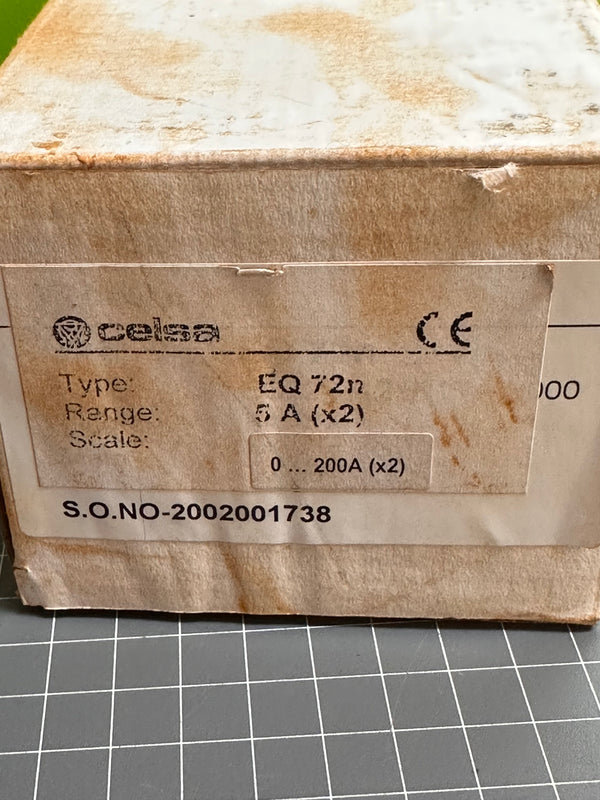

The source tags record 200/5A and 5A. These suggest a transformer-related configuration but do not confirm the actual meter input or supplied accessories. Do not treat the 200A scale as a direct-input rating. A 600V tag is also present without a defined rating basis.
Recorded specifications

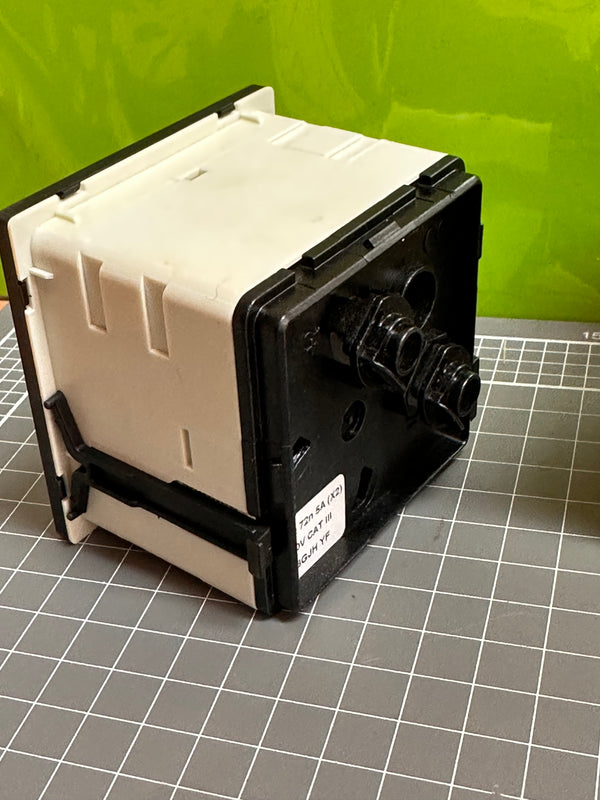

- Mounting: front panel.
- Scale angle: 90°.
- Scale length: 61 mm.
- Adjustment time: 1 s.
- Ambient temperature: −10 to +55 °C.
Source dimension/weight row

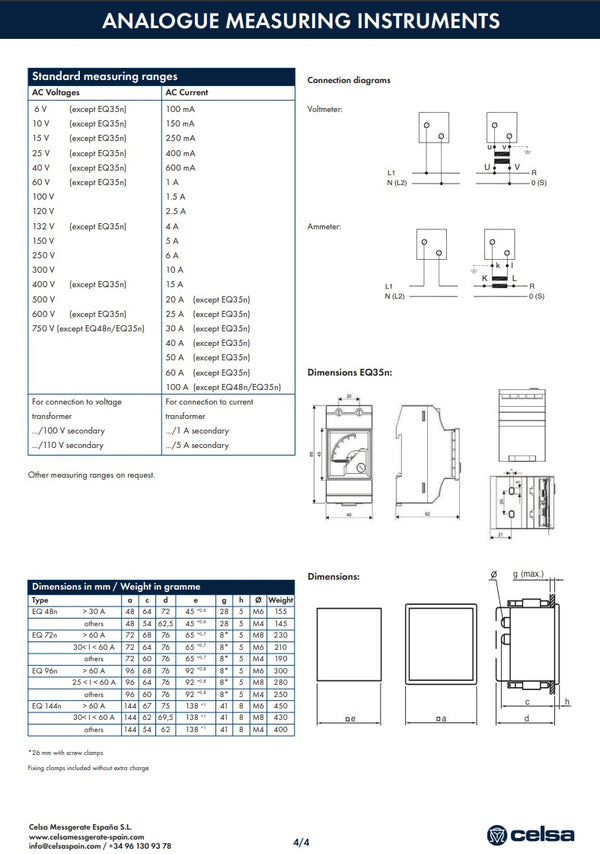

The table is labelled > 60 A and records a = 72, c = 69, d = 77, e = 68.7, g = 8, h = 5, Ø = M6 and weight = 230. Units and a matching drawing are not supplied; confirm that this row applies to the actual meter.
Confirm the nameplate, required input/current transformer, measurement type, ratings, dimensions and condition before ordering. A current transformer is not stated as included.
