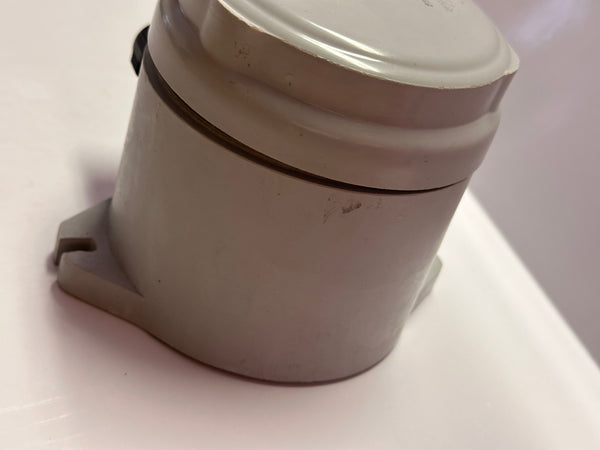

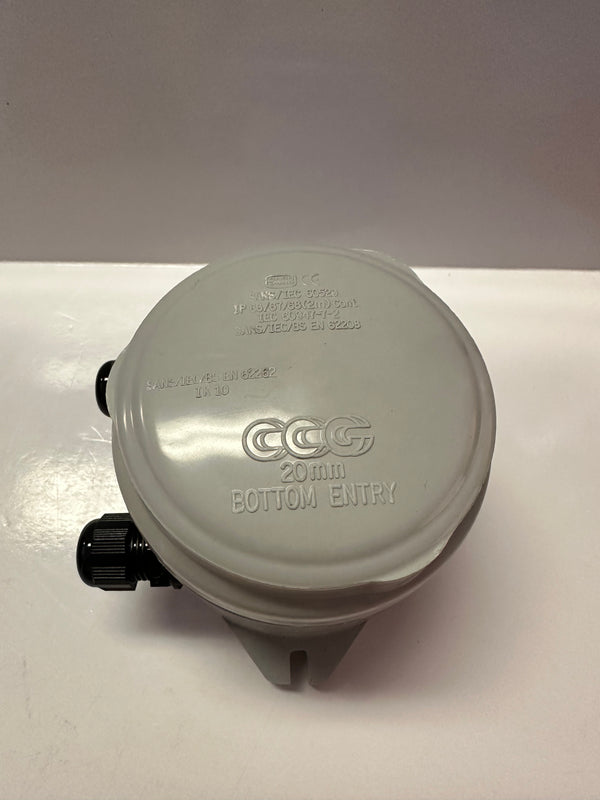

CCG Junction Box 100201, 3 Way, 20mm Bottom Entry (Grey)

CCG SKU: P-CC-C-3941


Tax included

Only 1 left!

  • Screw Fit 3-Way Bottom Entry Box for general industrial and mining electrical installations.

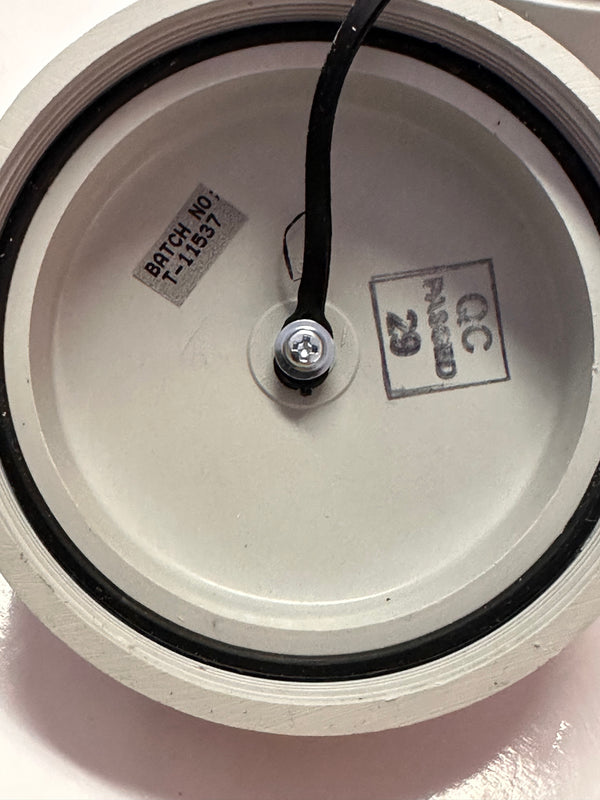

  • 20mm Box supplied complete with safety securing lid lanyard.
  • Raised domed lid facilitates connections to be made outside of the box.
  • Only approved CCG cable glands and terminals must be used.
  • No exposed metal parts.

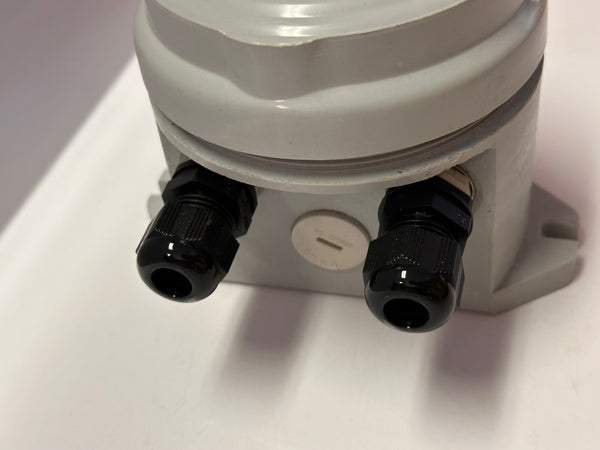

  • Dust and waterproof to IP66/68, when used with CCG sealed cable glands.
  • No drilling or tapping of cable entries required.

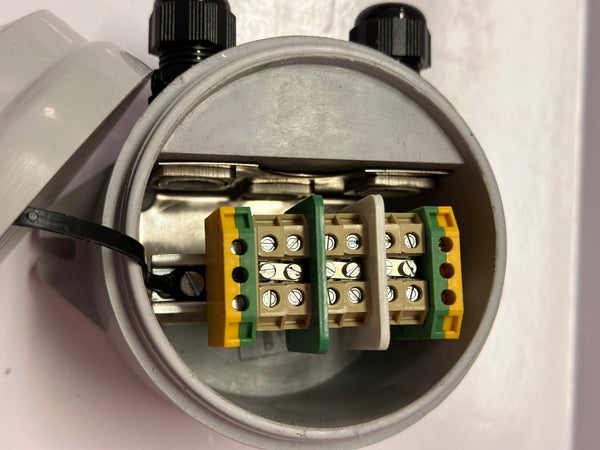

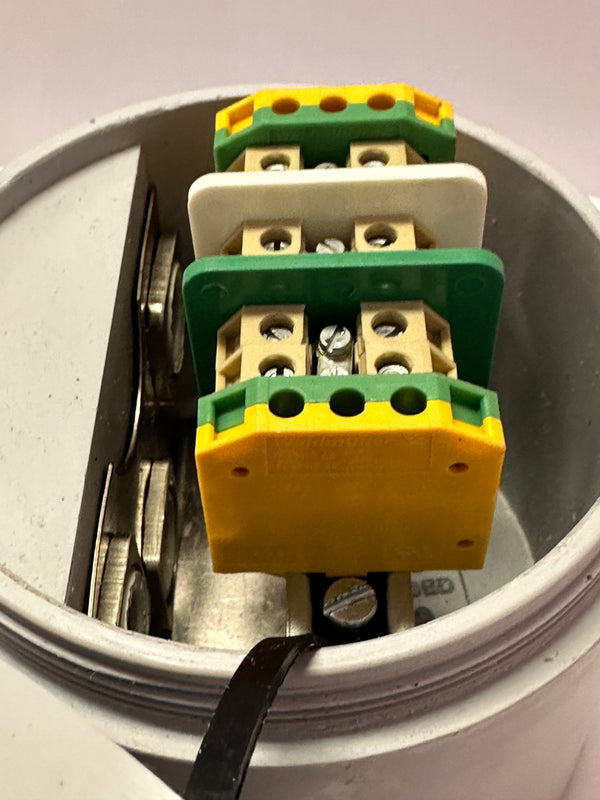

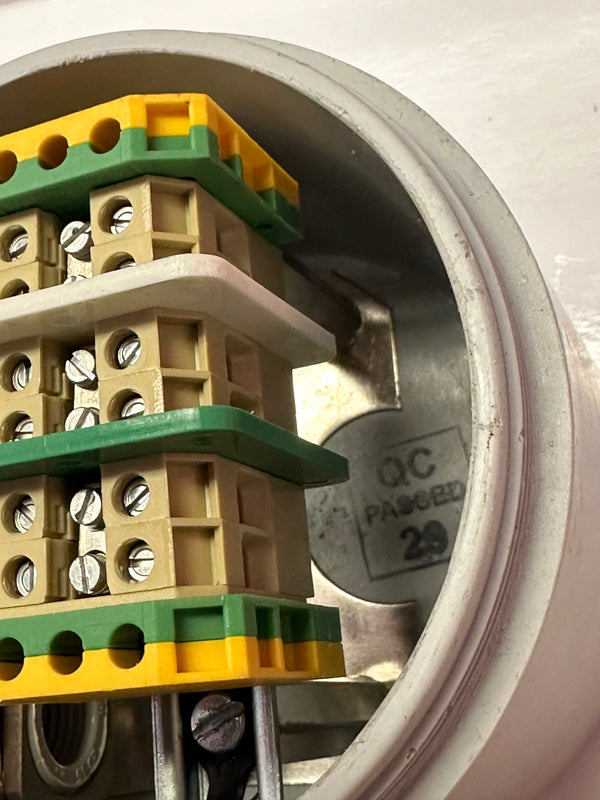

  • Mounting studs provided for DIN rail if using Terminal Blocks.
  • Internal earthing to all entries and rail provided.
  •  Screw Fit 3-Way Bottom Entry Box can be buried for extended periods.
  • Red Fire Rated Box for emergency circuits available (925°C for 3-hours).
