CASTEL

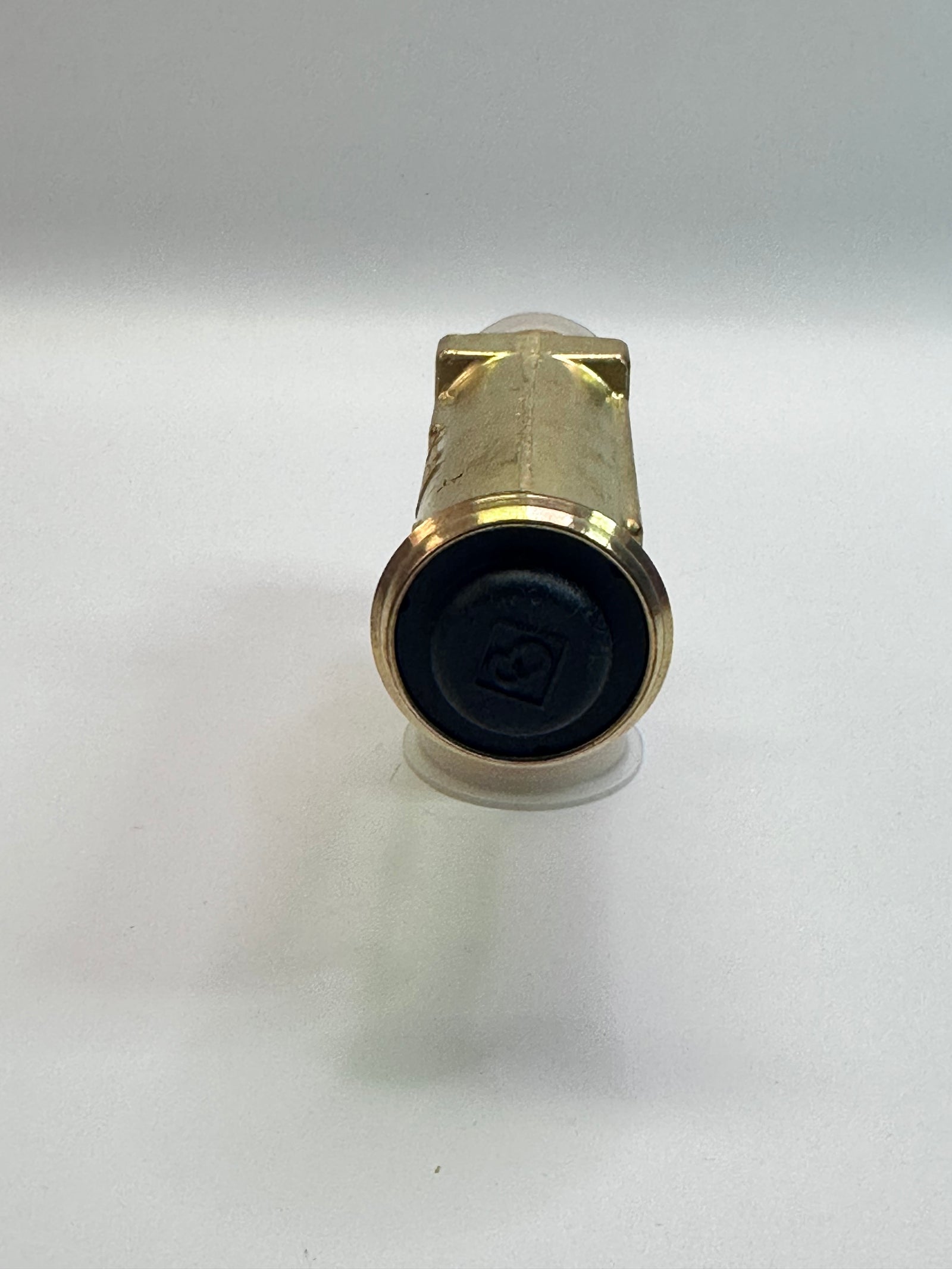

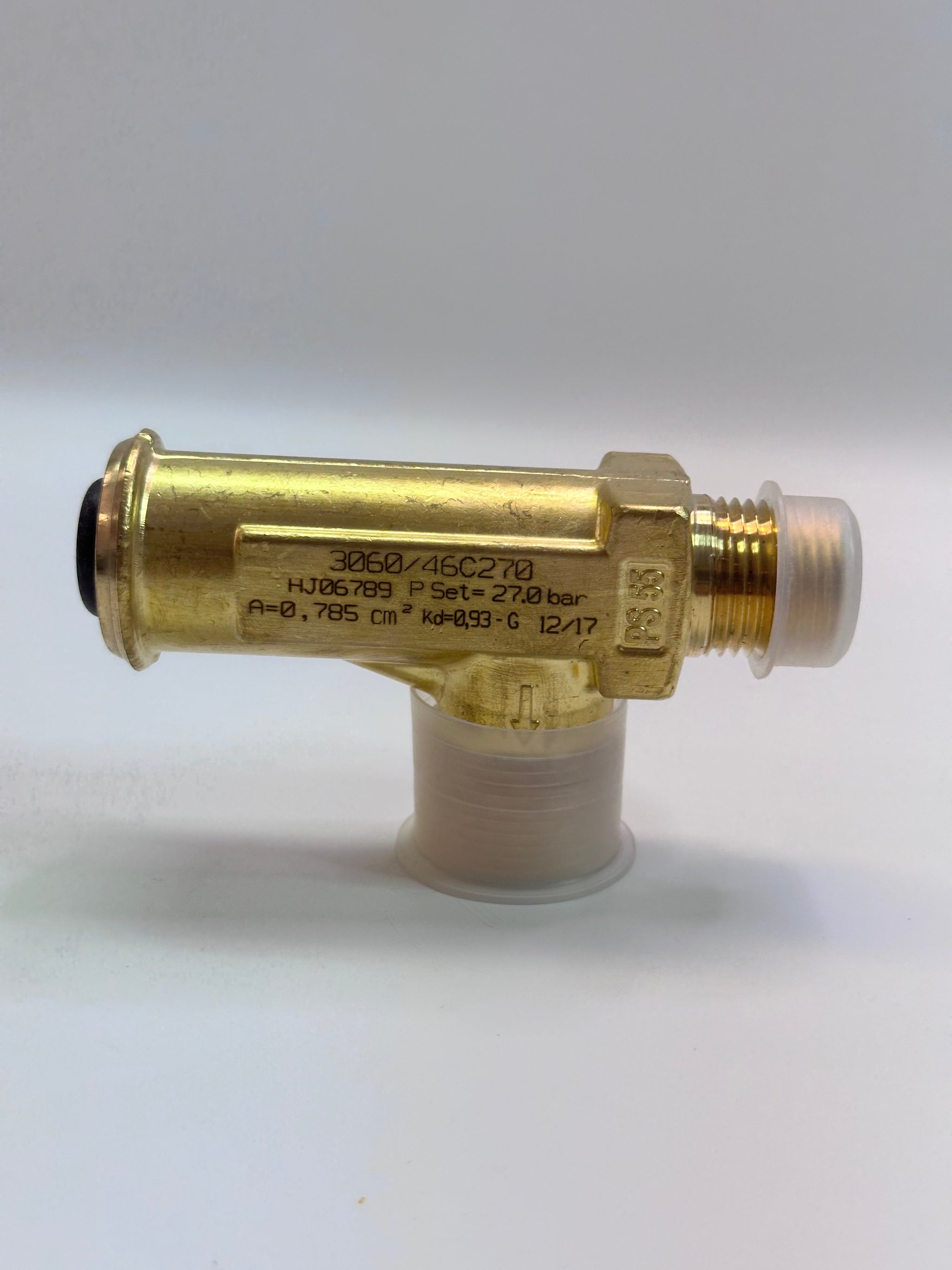

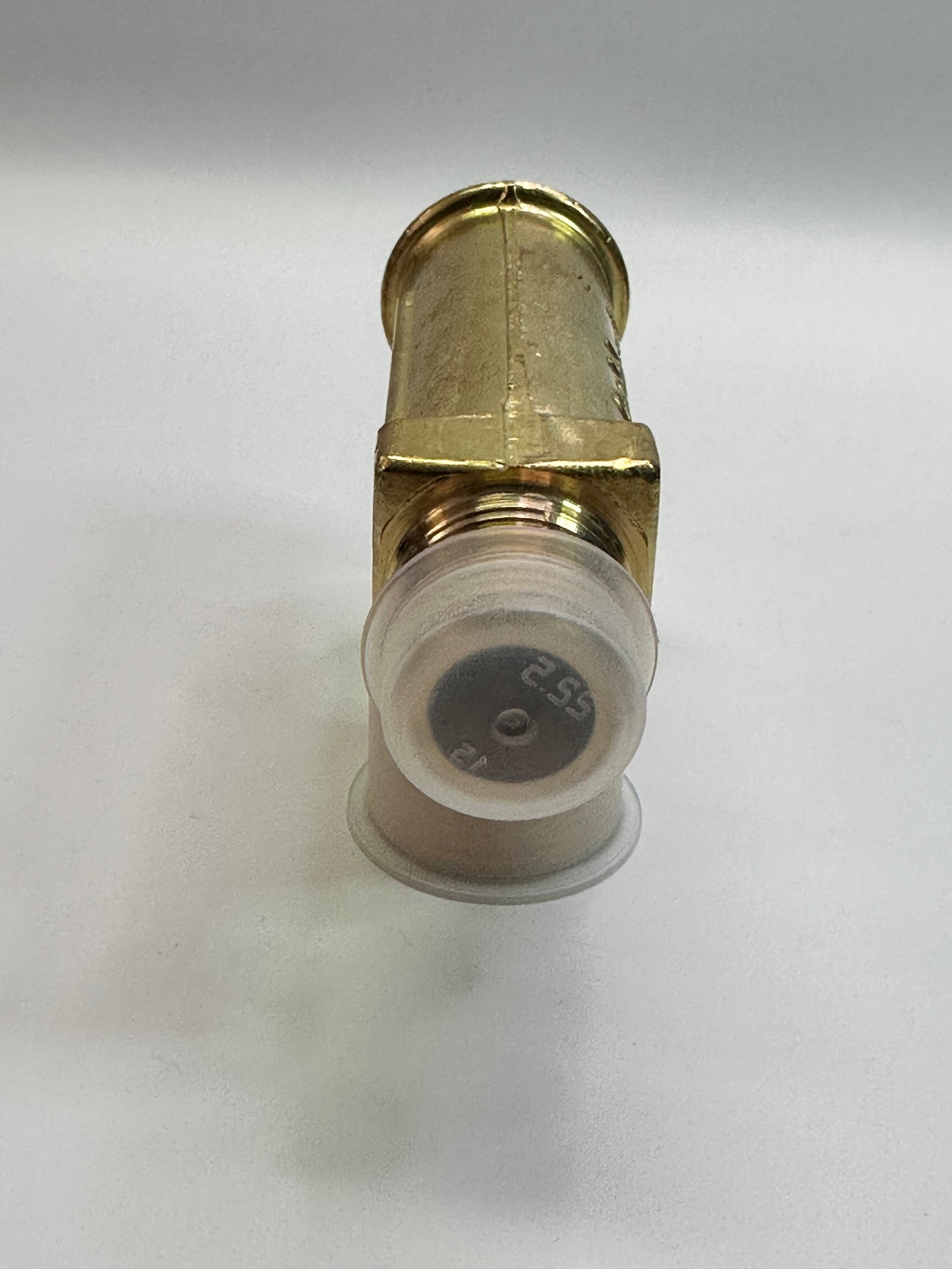

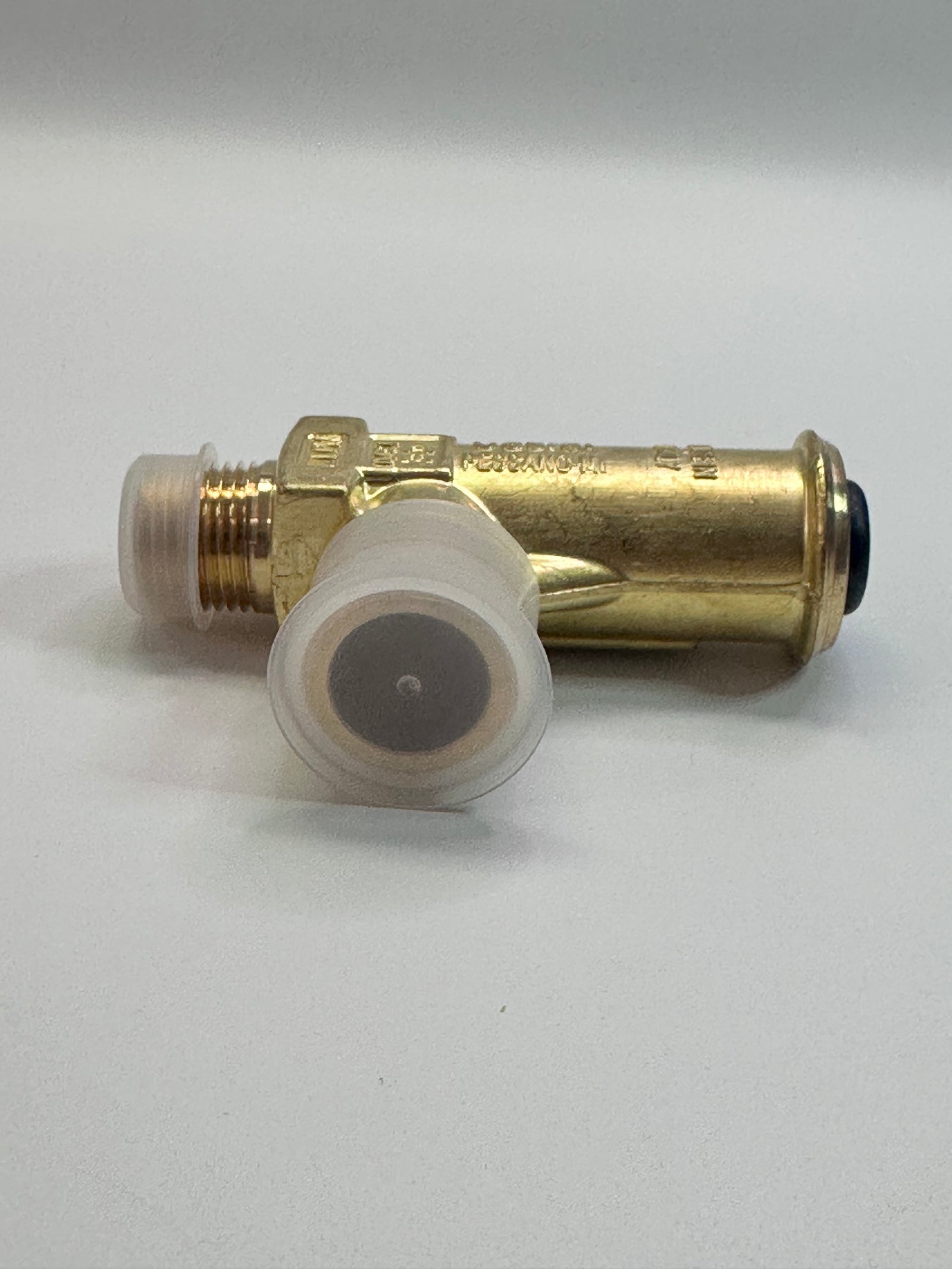

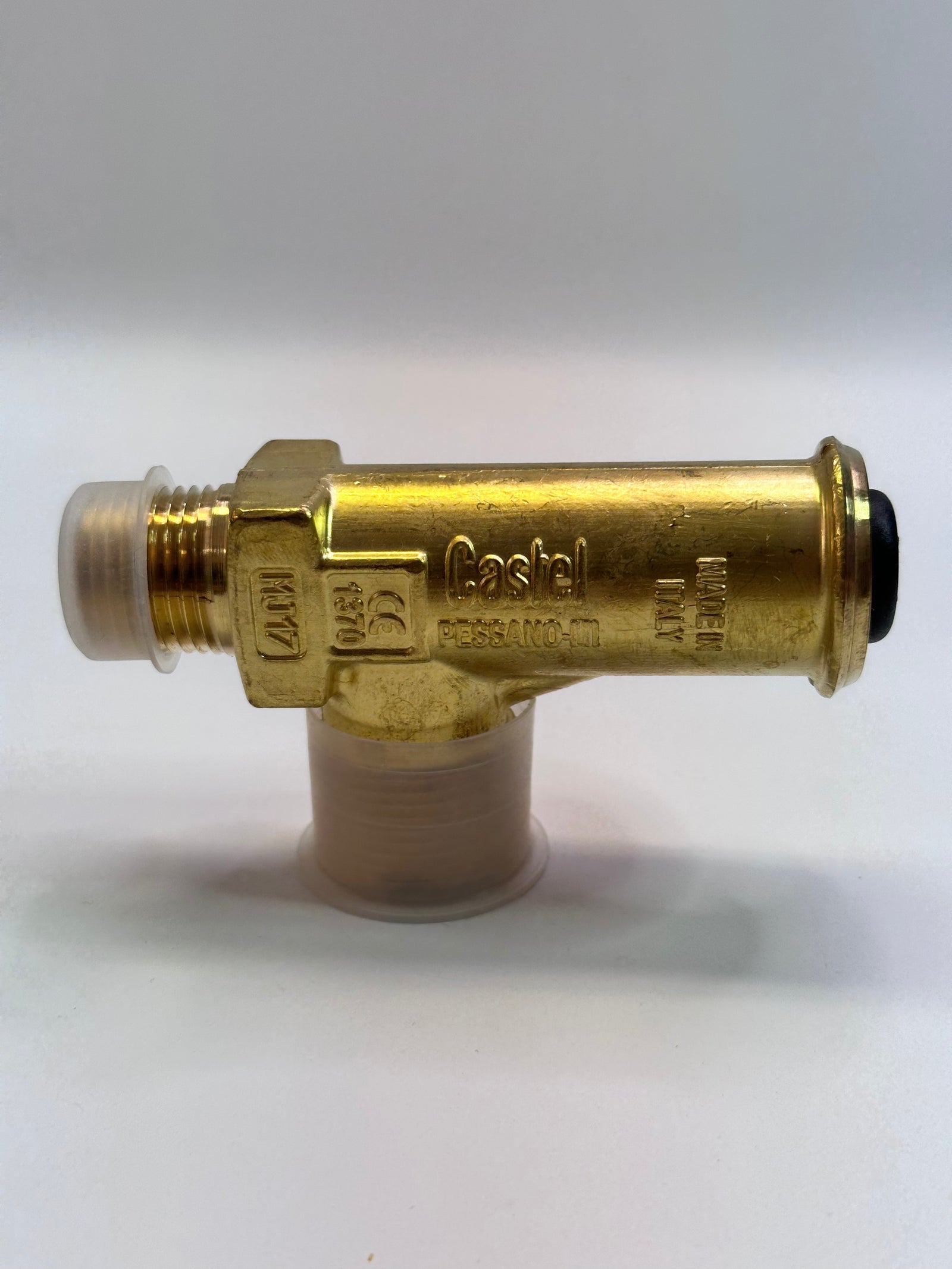

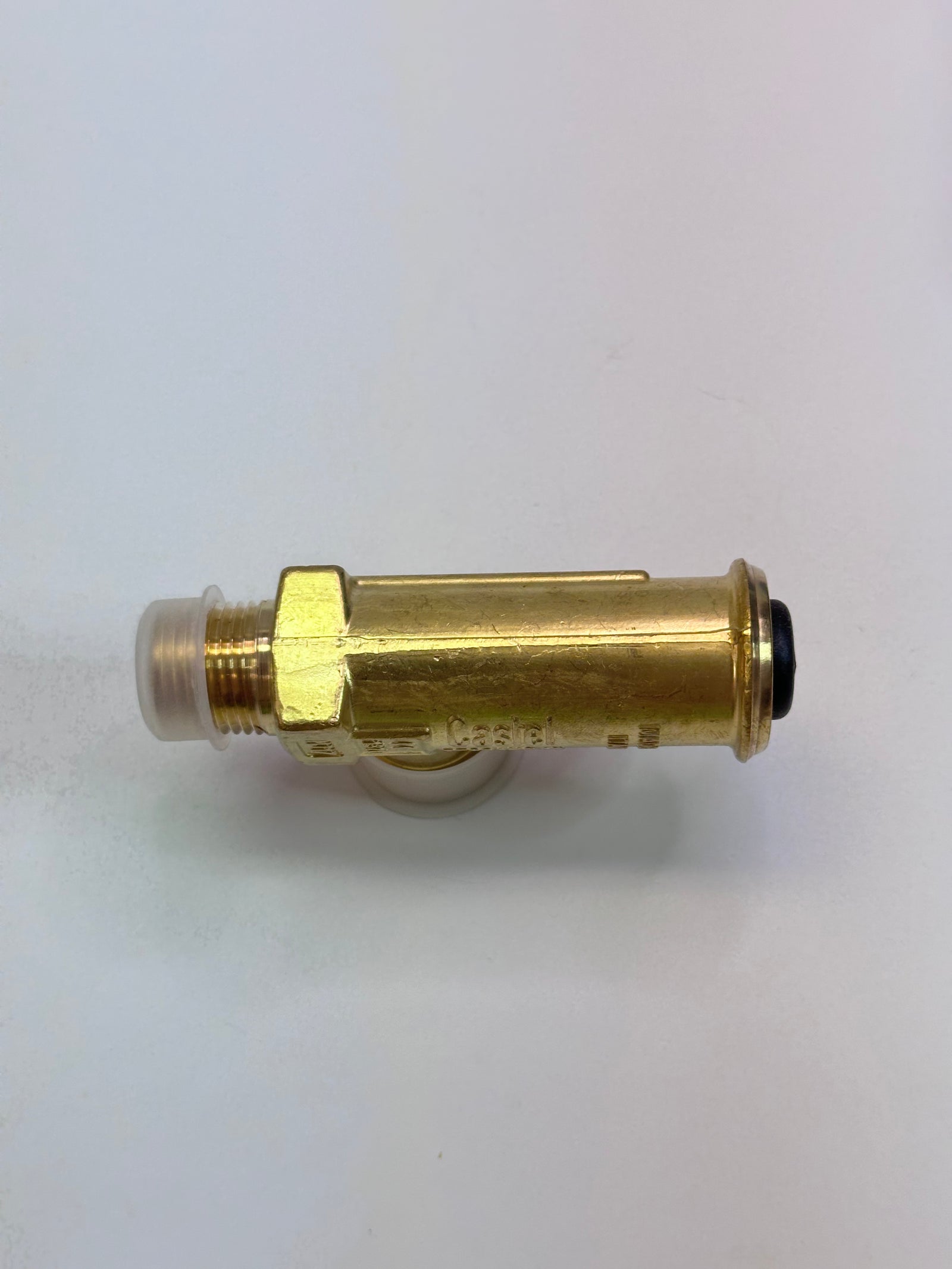

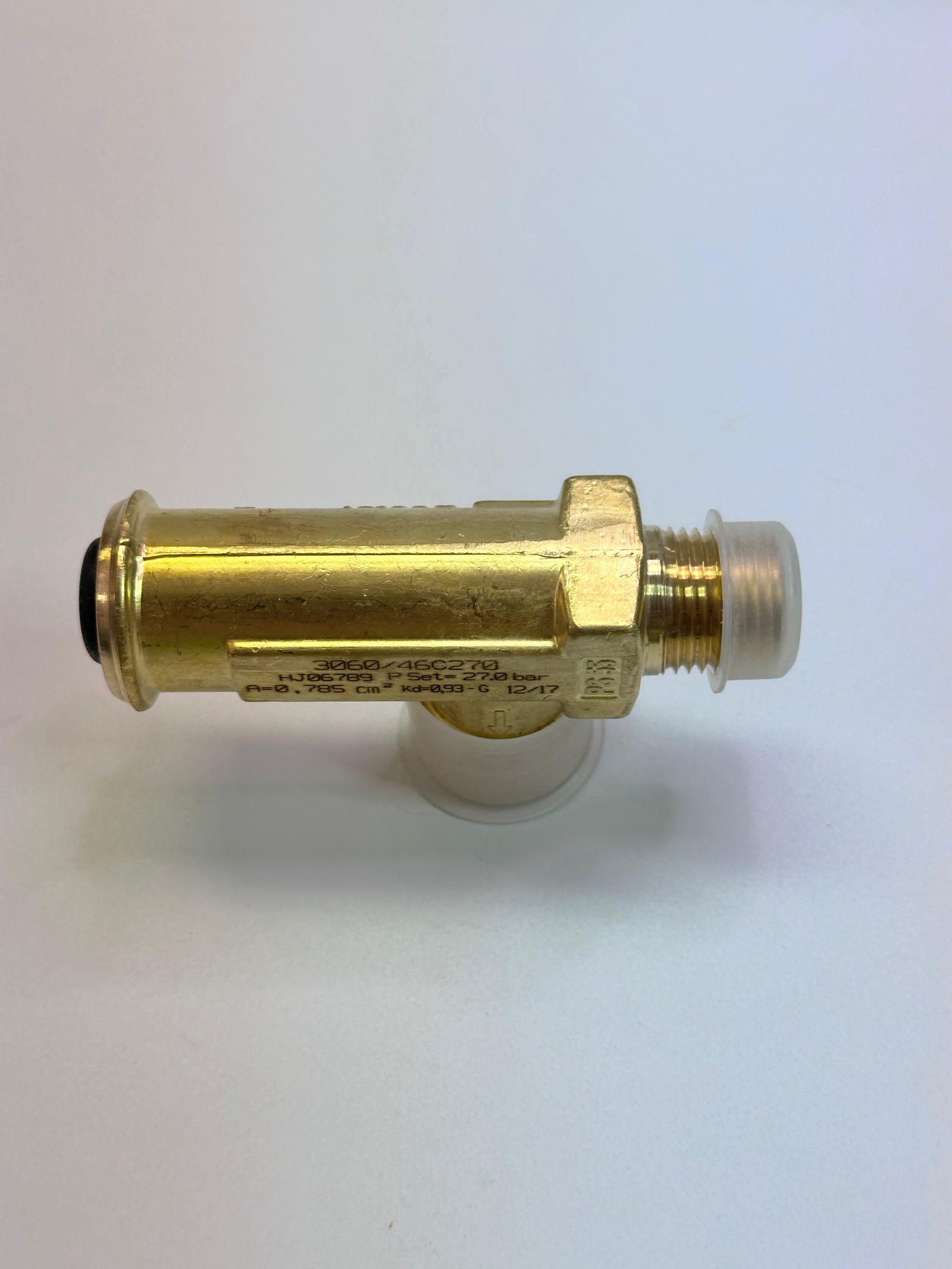

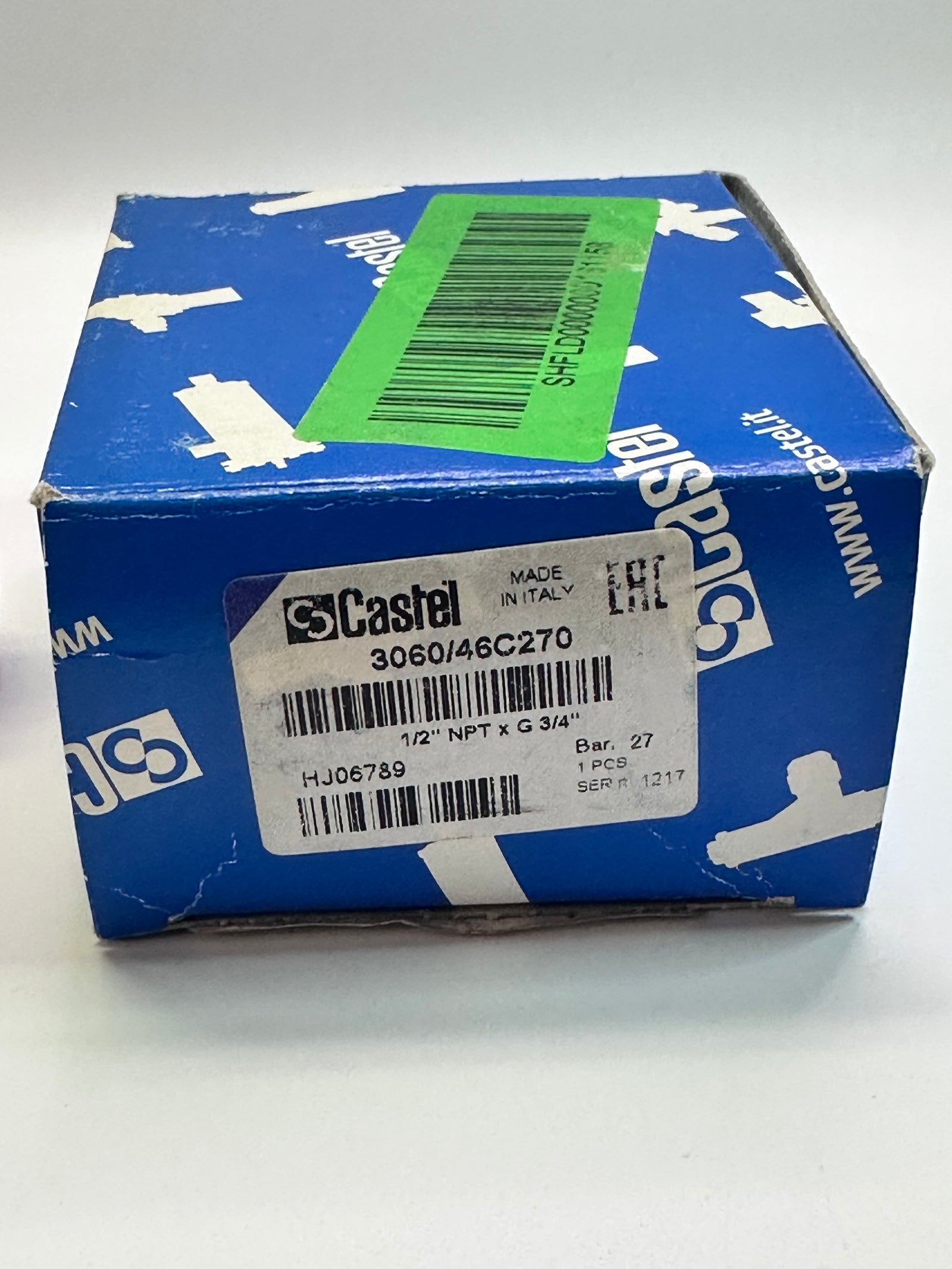

Castel 3060/46C270 Pressure Relief Valve, 1/2" NPT x G 3/4" 27bar
- SKU
- P-CA-C-7382
$125.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 3.5 kg
Specifications
| Manufacturer | CASTEL |
|---|---|
| Product type | VALVE |
| SKU | P-CA-C-7382 |
| Weight | 3.5 kg |
Description
Castel 3060/46C270 pressure relief safety valve, with reference 47-3230-3060-46C270 recorded.
The source records a 27 bar set pressure, 55 bar maximum operating pressure and temperature range of −50 to +150°C. Confirm the exact unit markings and documentation before selection.
Connection details require confirmation: the title and main specification state 1/2-inch NPT inlet and G3/4 outlet, while another source bullet states 3/8-inch NPT inlet and 1/2-inch SAE outlet.
Confirm the supplied certificate, refrigerant/application suitability and applicable service requirements. Certificate availability and a service-life interval are not verified for this surplus unit.
