OHMITE

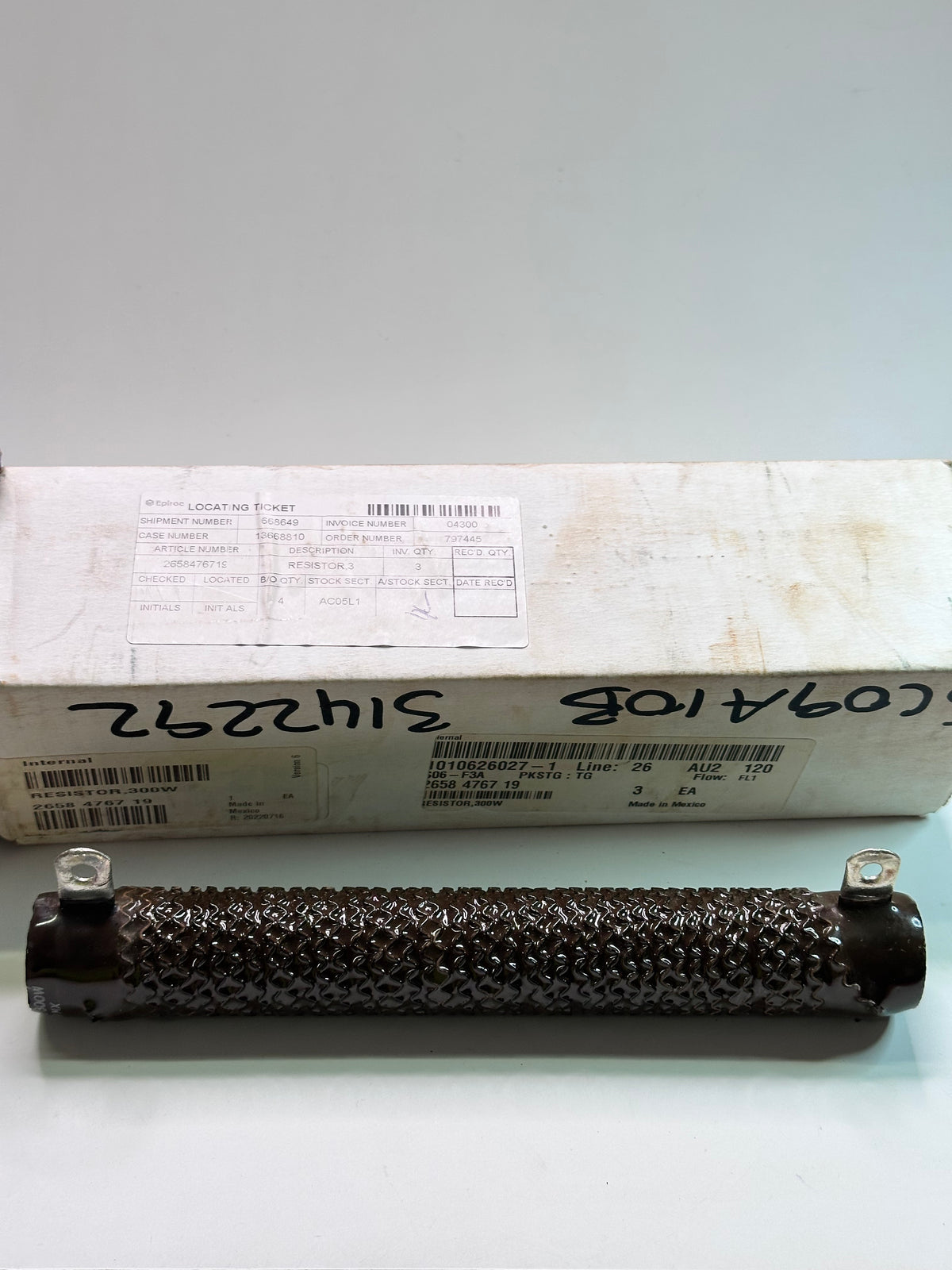

Ohmite C300KR40E 300W Wirewound Resistor, 400 mOhms
- SKU
- P-CK-O-7842
- Weight
- 3.0 kg
Specifications
| Manufacturer | OHMITE |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-CK-O-7842 |
| Weight | 3.0 kg |
Description

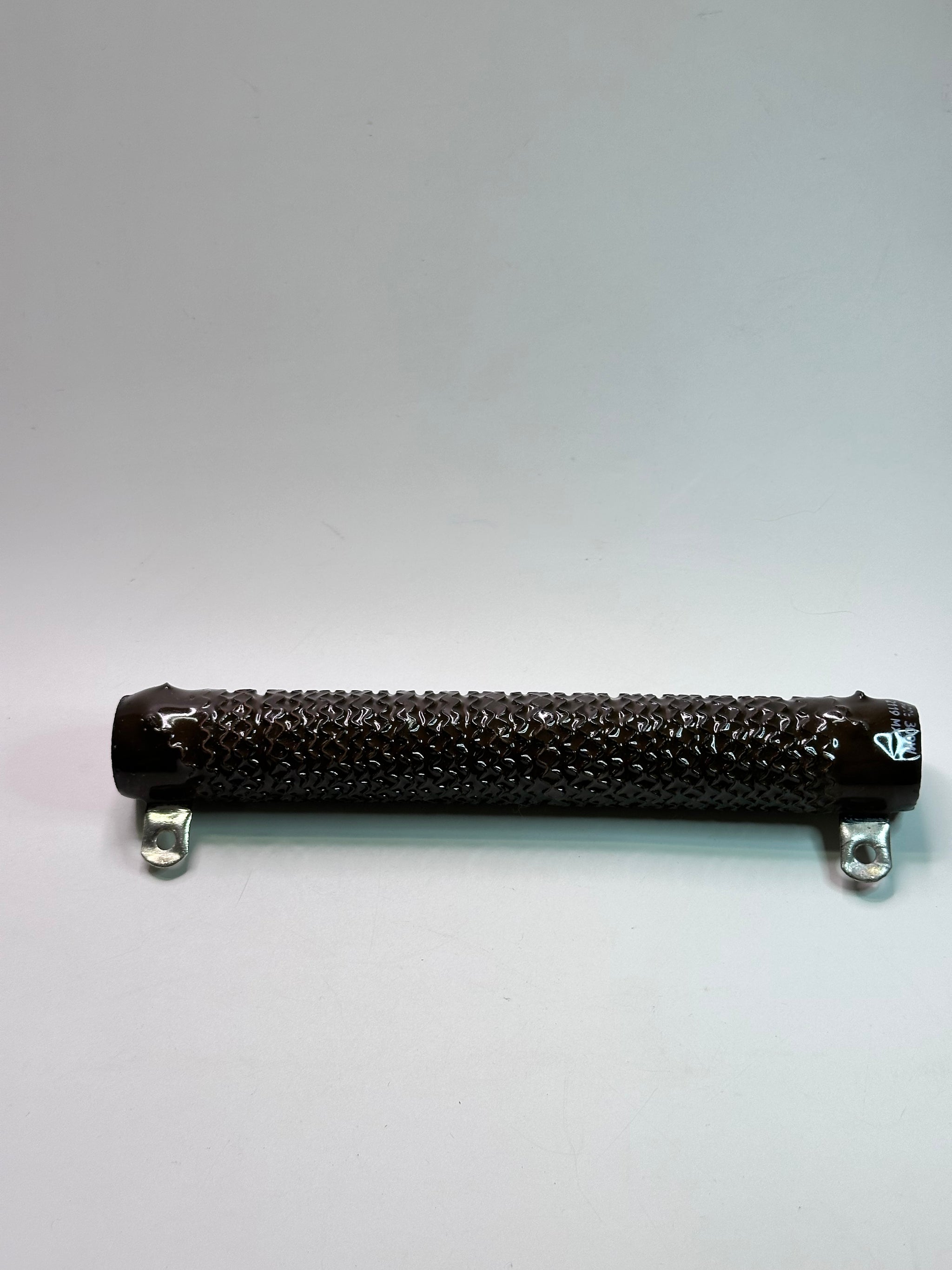

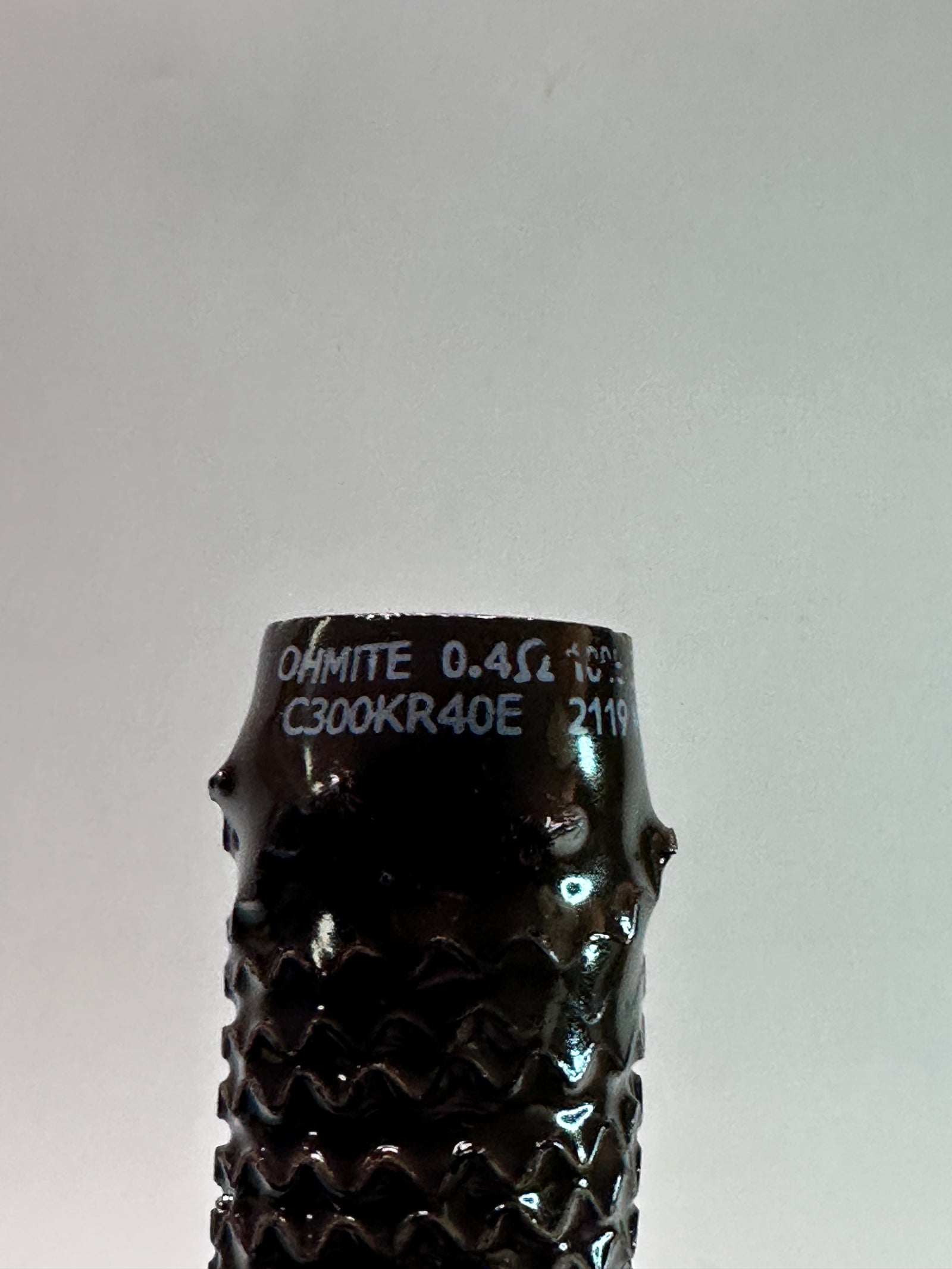

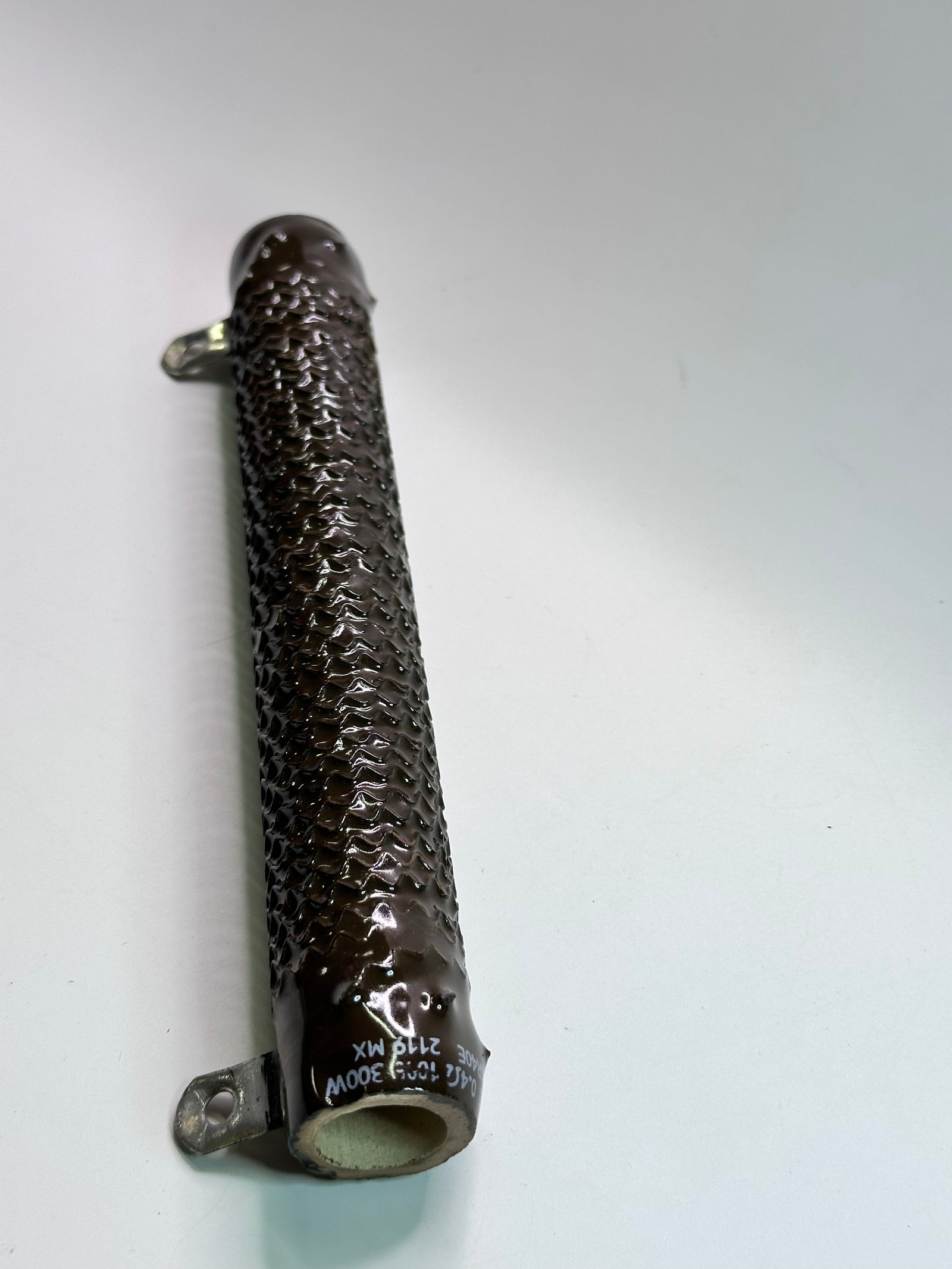

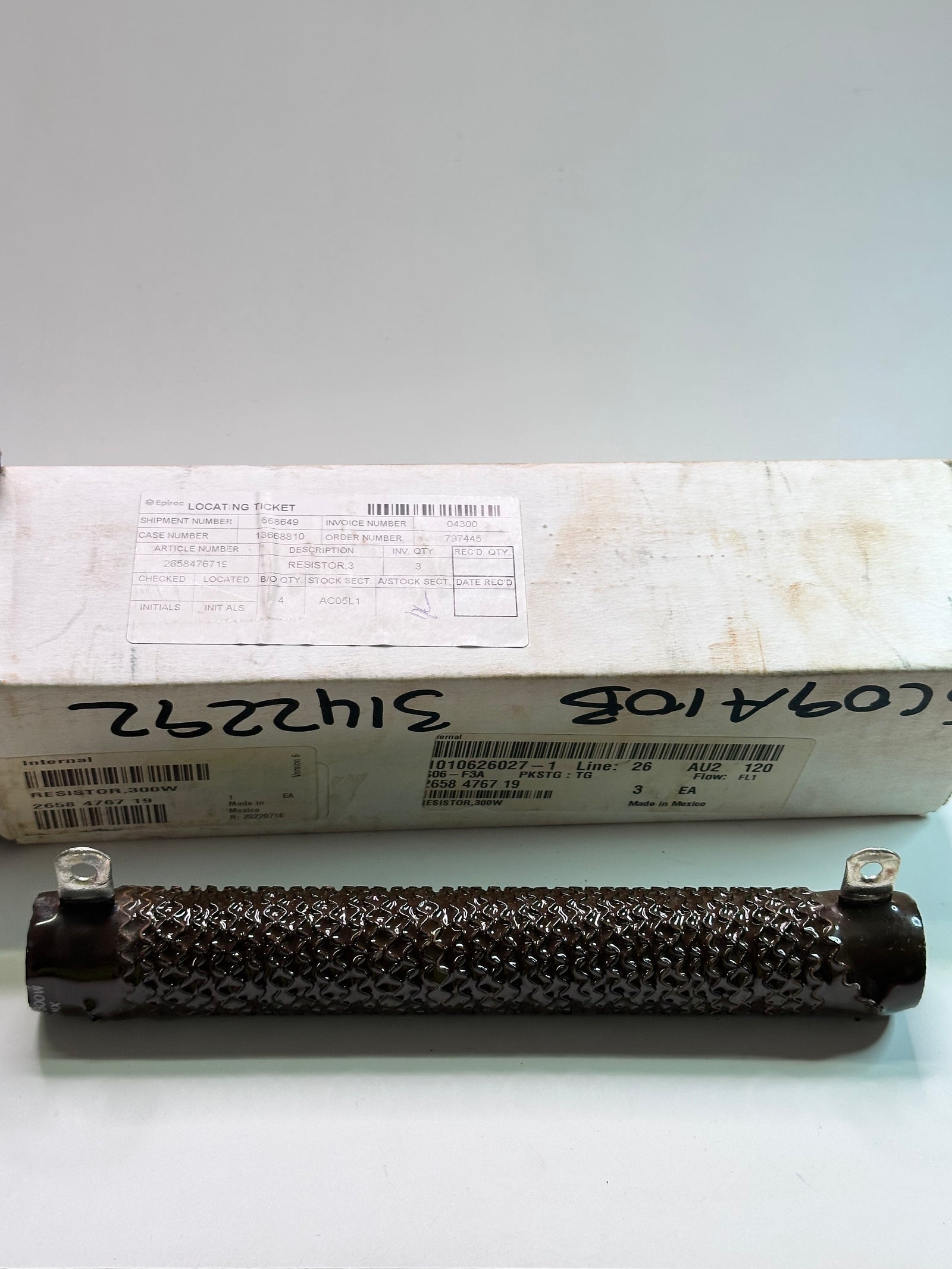

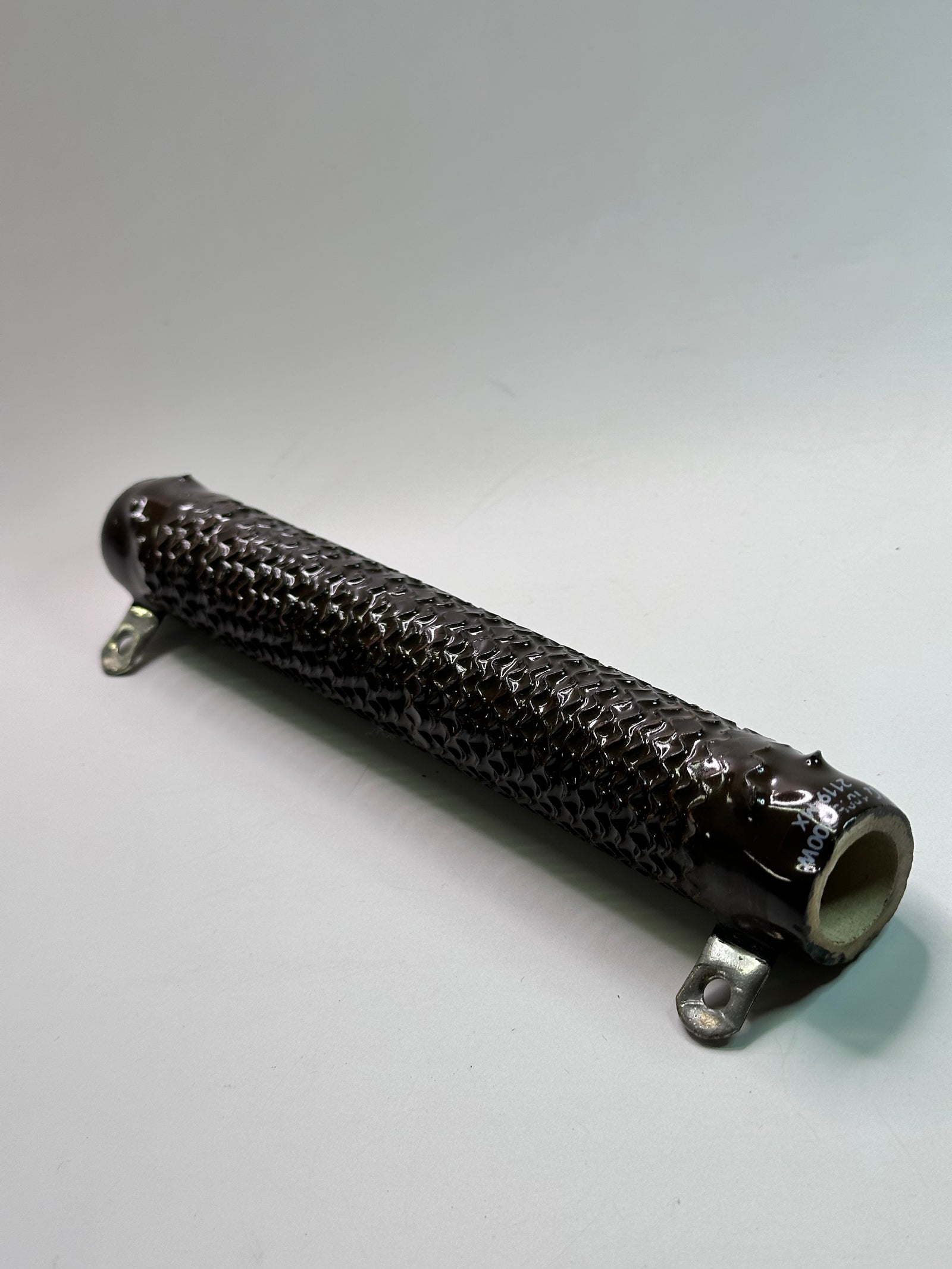

Ohmite C300KR40E chassis-mount tubular wirewound resistor, source-listed 400 mOhms (0.4 ohm), 300W and 10% tolerance. Source equipment reference: Epiroc 2658476719.
Source specifications
| Manufacturer: | Ohmite |
| Product Category: | Wirewound Resistors - Chassis Mount |
| Resistance: | 400 mOhms |
| Power Rating: | 300 W |
| Tolerance: | 10 % |
| Termination Style: | Solder Lug |
| Temperature Coefficient: | 400 PPM / C |
| Length: | 216 mm |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | + 400 C |
| Series: | 280 |
| Packaging: | Single |
| Brand: | Ohmite |
| Country of Assembly: | Not Available |
| Country of Diffusion: | Not Available |
| Country of Origin: | MX |
| Diameter: | 29 mm |
| Features: | Tubular Resistors |
| Mounting Style: | Chassis Mount |
| Product Type: | Wirewound Resistors |
The original table also contains an icon labelled “RoHS Compliant”. This is a source compliance claim, not independent verification. The visible packaging value is Single; no bulk pack quantity is promised.
Before ordering
Confirm C300KR40E, resistance, tolerance, mounting and thermal/derating requirements for the circuit. The 300 Watt rating is not an unconditional dissipation rating for every installation or ambient temperature.
The source Epiroc reference and legacy Atlas Copco, Sandvik and GENUINE EPIROC keywords do not establish universal equipment compatibility or authenticated Epiroc provenance. The vendor remains OHMITE. No mounting brackets, heatsink, wiring or complete resistor bank is specified as included.
