PANAMETRICS

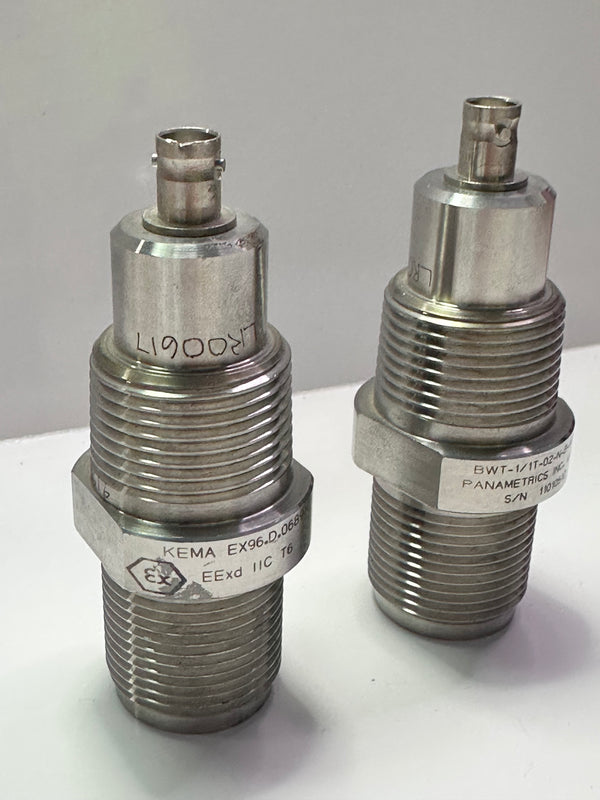

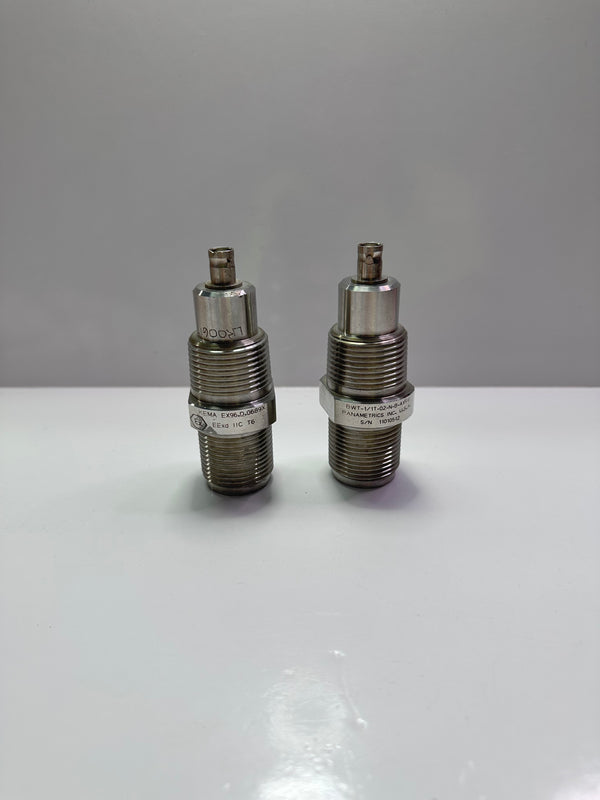

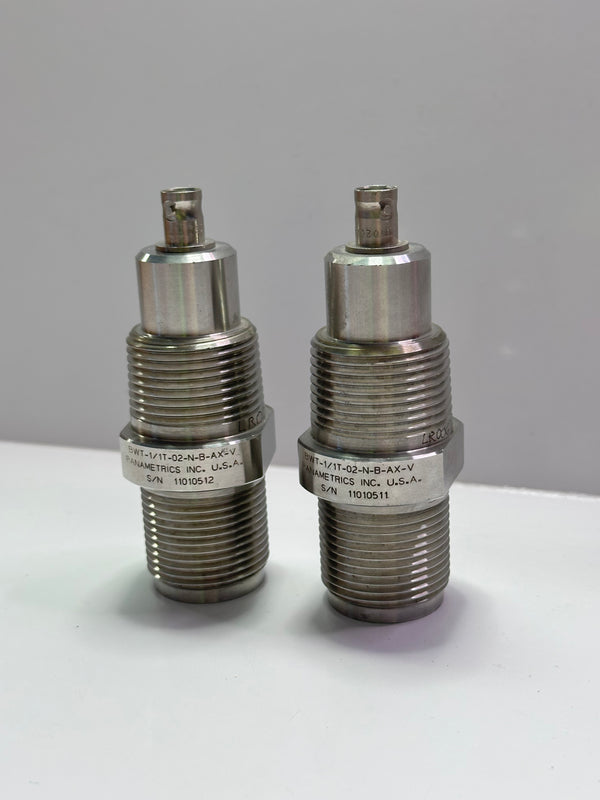

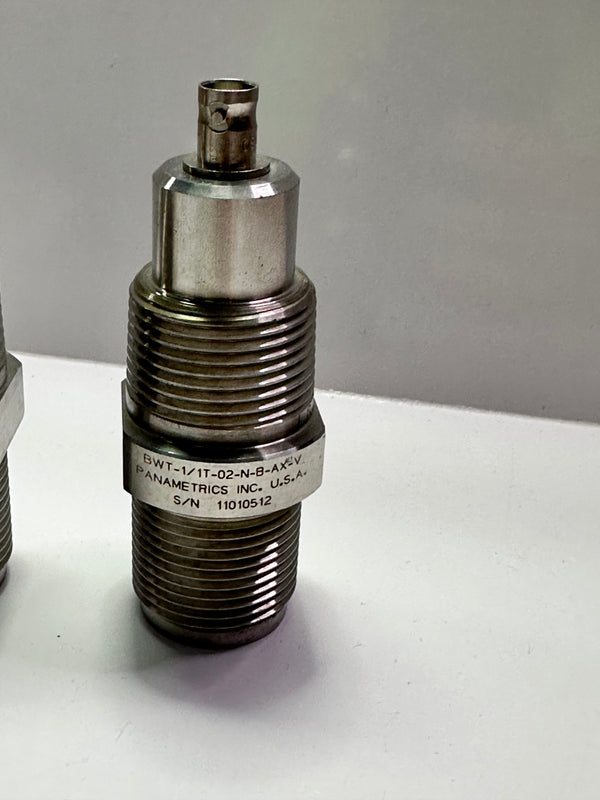

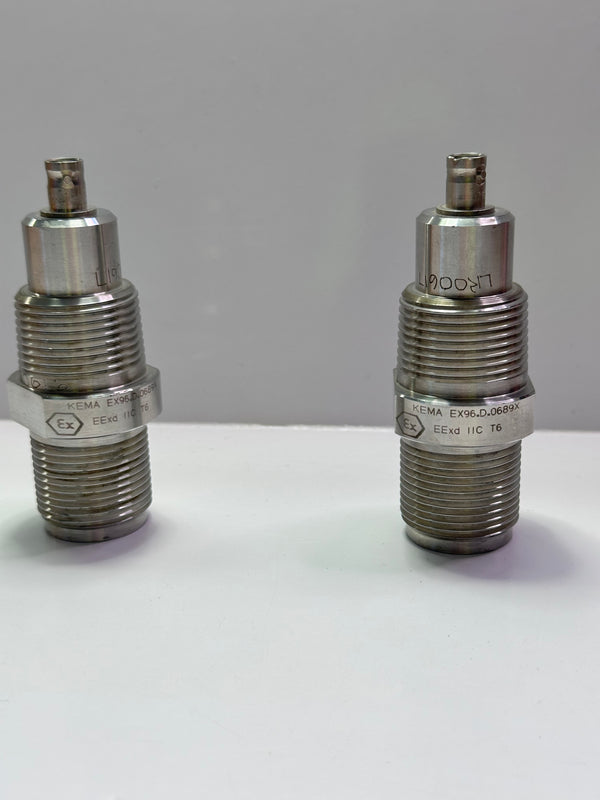

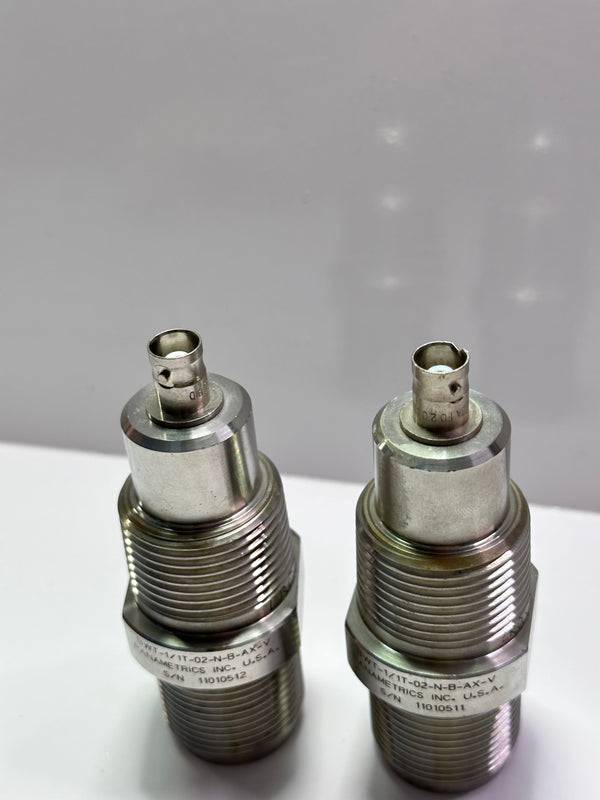

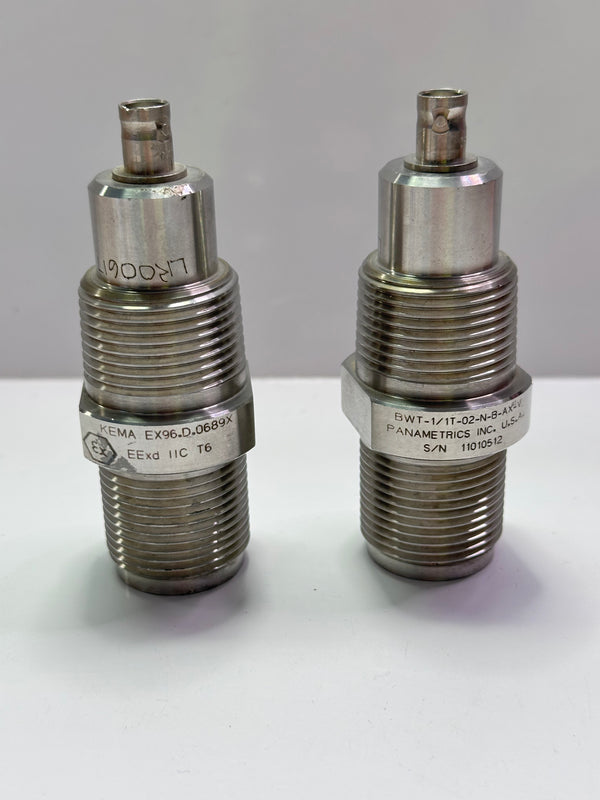

Panametrics BWT-1/1T-02-N-B-AX-V Transducer Set
- SKU
- P-BW-P-6758
$200.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 3.5 kg
Specifications
| Manufacturer | PANAMETRICS |
|---|---|
| Product type | SENSOR |
| SKU | P-BW-P-6758 |
| Weight | 3.5 kg |
Description
Panametrics BWT-1/1T-02-N-B-AX-V transducer set. Additional original references: BWT1, LR00617 and GE; waveguide/flow-transducer context is recorded in the tags.
Source construction and connection details
- Designation: BWT1.
- Material: 316L stainless steel.
- Mounting: 1 1/4 in. straight UN thread.
- Connectors: BNC standard; submersible optional.
- Temperature: -58°F to 212°F (-50°C to 100°C).
Source area-classification information — verification required
- Explosion-proof: Class I, Division 1, Groups C & D.
- BWT flameproof: II 2 G Ex d IIC T6 Gb; KEMA 01ATEX2051; Ex d IIC T6 Gb; IECEx KEM 09.0010.
- JB flameproof: II 2 G Ex d IIC T6 Gb; DEKRA 13ATEX0120X; Ex d IIC T6 Gb; IECEx DEK 13.0034X.
These are the source's family/component classification strings, not verified approval of this exact option-coded set. Confirm the supplied transducer and any junction-box labels, matching certificates and applicable conditions before use in a hazardous area.
The option code has not been decoded. An optional submersible connector, junction box, specific set quantity, cables or a complete flowmeter are not confirmed as included. Match the exact set and installation requirements before ordering.
