BURKERT
Burkert Type 0330 Direct Acting 3/2 Way Solenoid Valve 246469
- SKU
- P-BU-B-7156
$115.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 1.5 kg
Specifications
| Manufacturer | BURKERT |
|---|---|
| Product type | VALVES |
| SKU | P-BU-B-7156 |
| Weight | 1.5 kg |
Description
Burkert Type 0330 direct-acting 3/2-way solenoid valve, reference 246469.
- Three fluid ports, two switching positions; manual actuation provided.
- Source function F: normally port 1 (P/IN) connected to port 2 (B/NO), with port 4 (A/NC) closed.
- Port 1: female G 1/4 thread.
- Source electrical specification: 24 V AC, 50/60 Hz; DC voltage: No.
- Valve seat and main wetted material: brass.
- Source liquid pressure range: 0–5 bar.
- Medium temperature: 0–80°C; maximum ambient: 55°C.

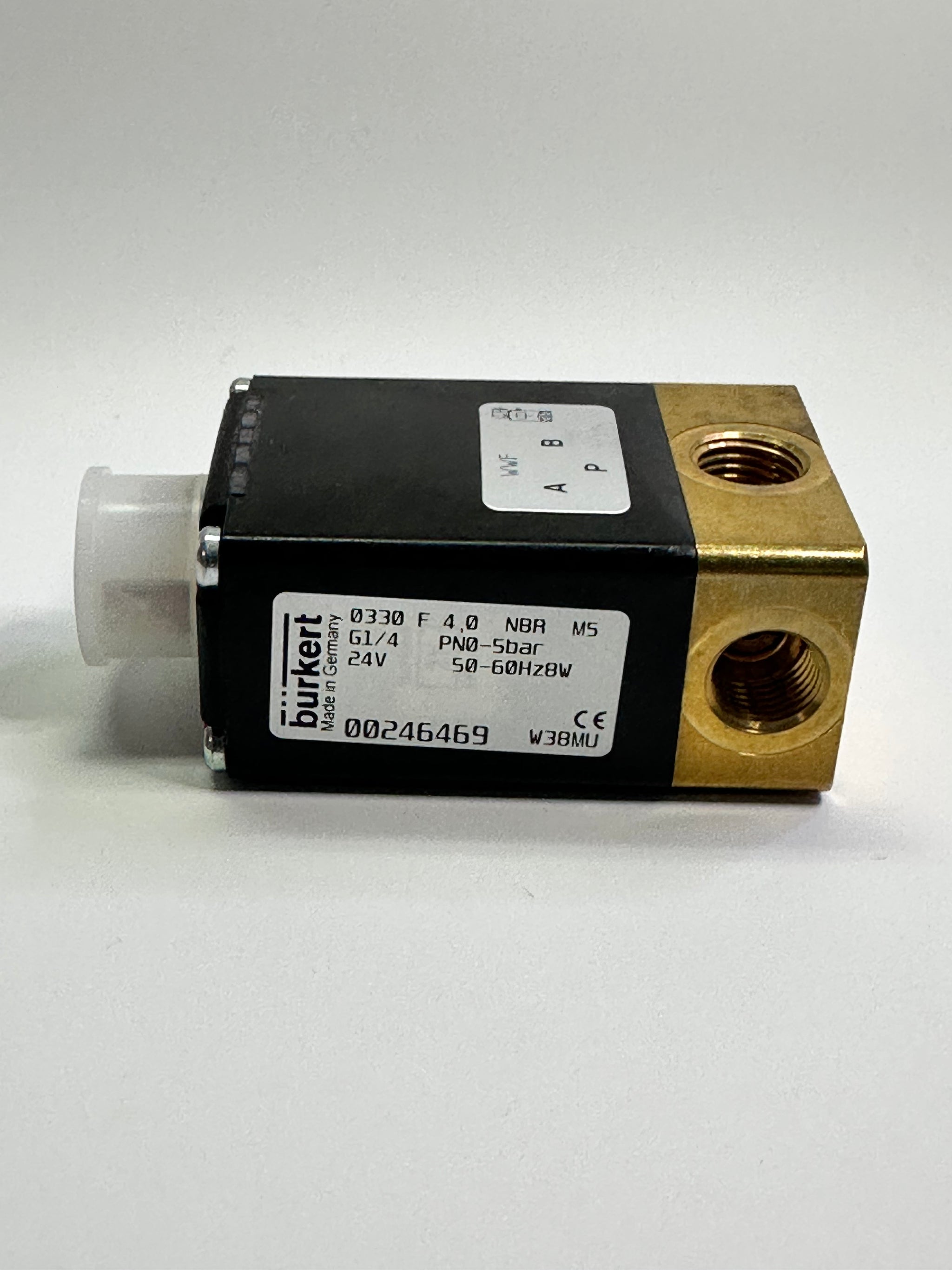

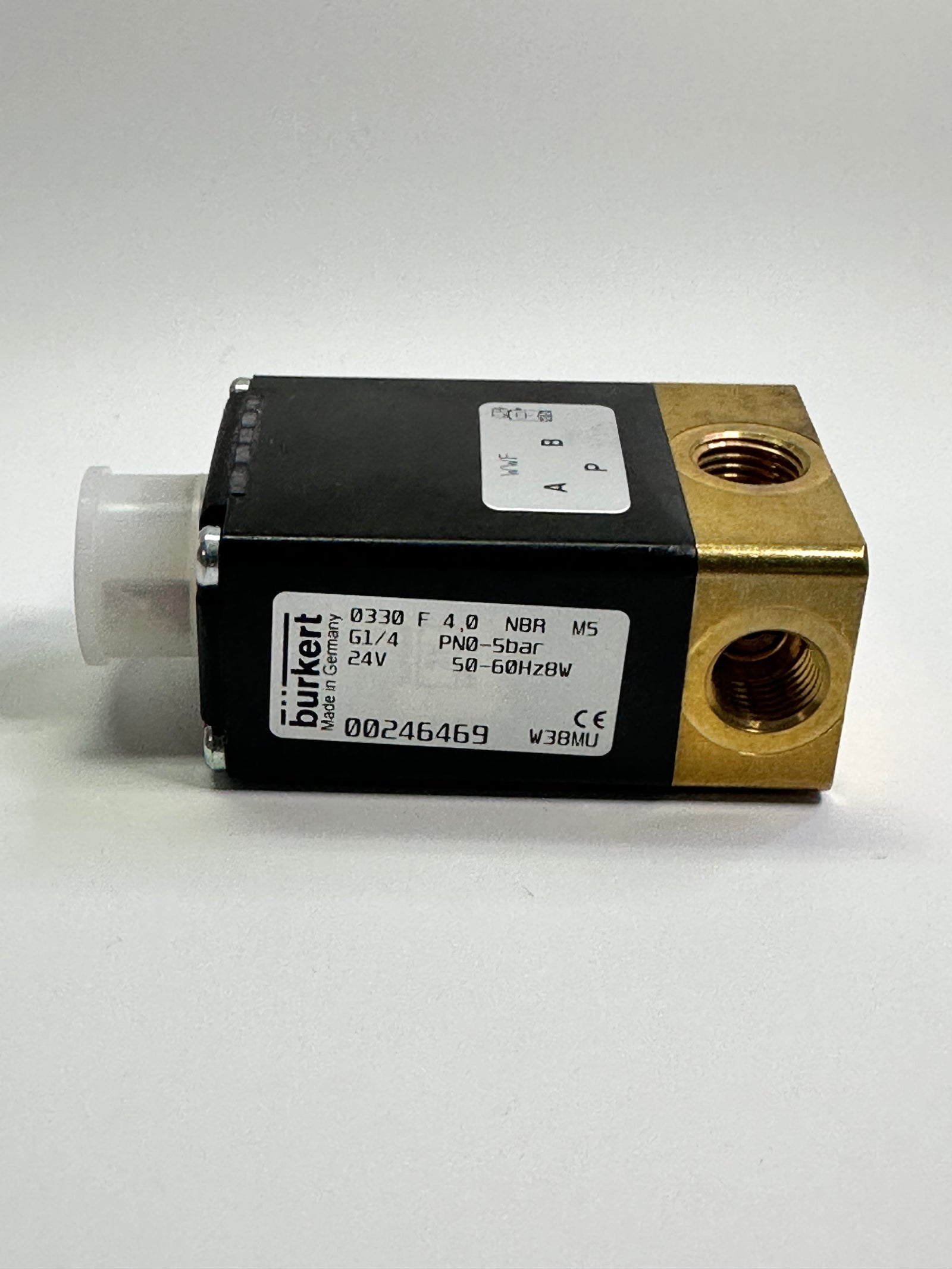

Verify the unit label: a source tag says 24VDC, contradicting the specification. The tag-only approval string “IECEx II 2 G Ex mb IIC T4 Gb II 2 D EX mb IIIC T130° Db” is not verified certification for this unit. Confirm supply, port function and required approval documentation before use.
