BUCHER HYDRAULICS
Bucher Hydraulics CINDY 20-B-PND-S300-L-G5-0-SVT230 Leak-Free Load Control Valve
- SKU
- P-BU-B-8920
$800.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 5.0 kg
Specifications
| Manufacturer | BUCHER HYDRAULICS |
|---|---|
| Product type | HYDRAULICS |
| SKU | P-BU-B-8920 |
| Weight | 5.0 kg |
Description

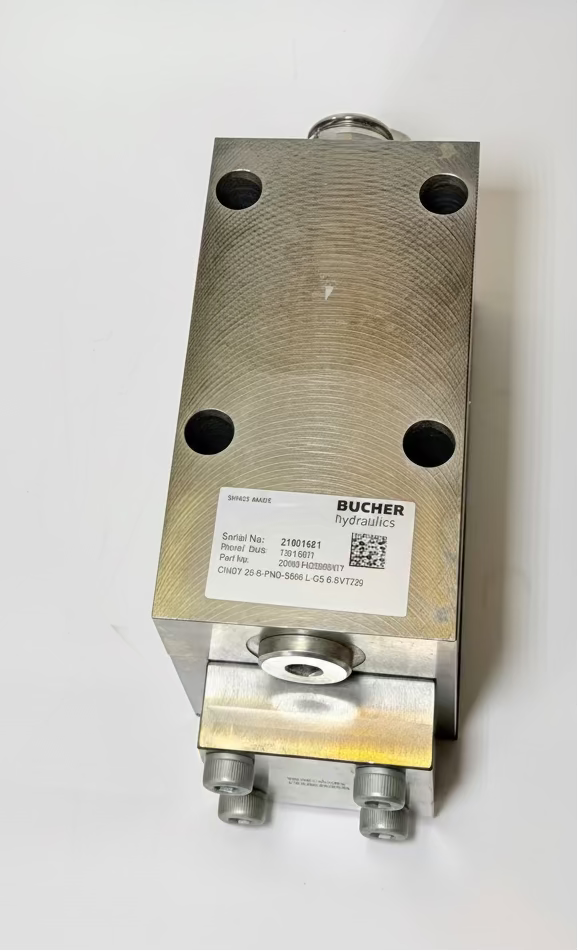

Serial no. 21001651
Manufacture Date: 13/01/2021

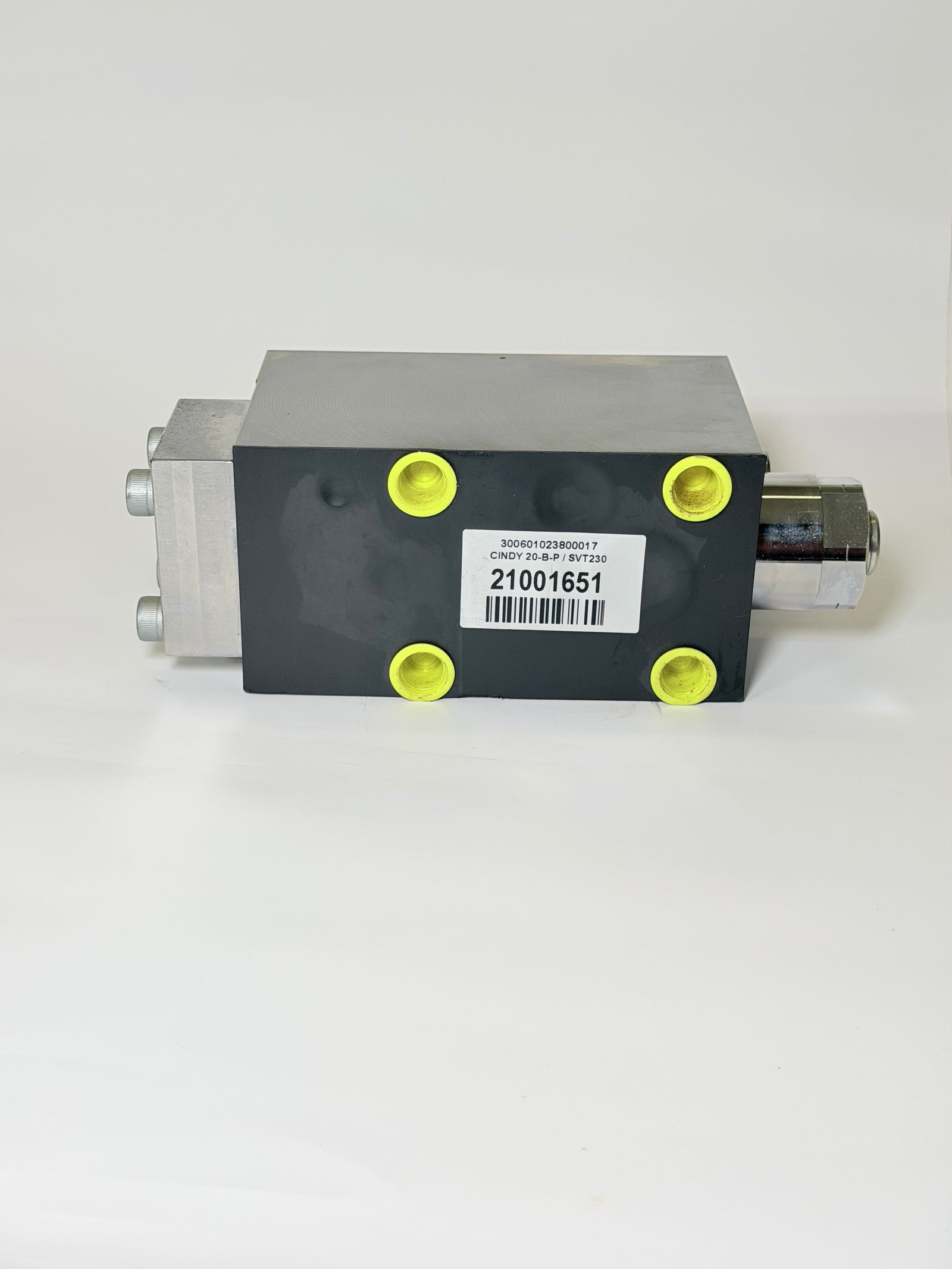

Part no. 300601023800017
CINDY 20-B-PND-S300-L-G5-0-SVT230
| Code Segment | Parameter Name | Specific Feature / Meaning |
|---|---|---|
| CINDY | Valve Series | Leak-free load-control valve family. |
| 20 | Nominal Size | Size 20 mm (supports max flow up to 350 l/min or 92 gpm). |
| B | Valve Design / Version | Standard version B; typically flange-mounted on actuators or line-mounted. |
| P | Control / Spool Variant | P-type functionality (often indicates automatic load pressure overcompensation/proportional characteristics). |
| N | Seal Material | Nitrile (NBR) standard rubber seals, rated for -25°C to +80°C. |

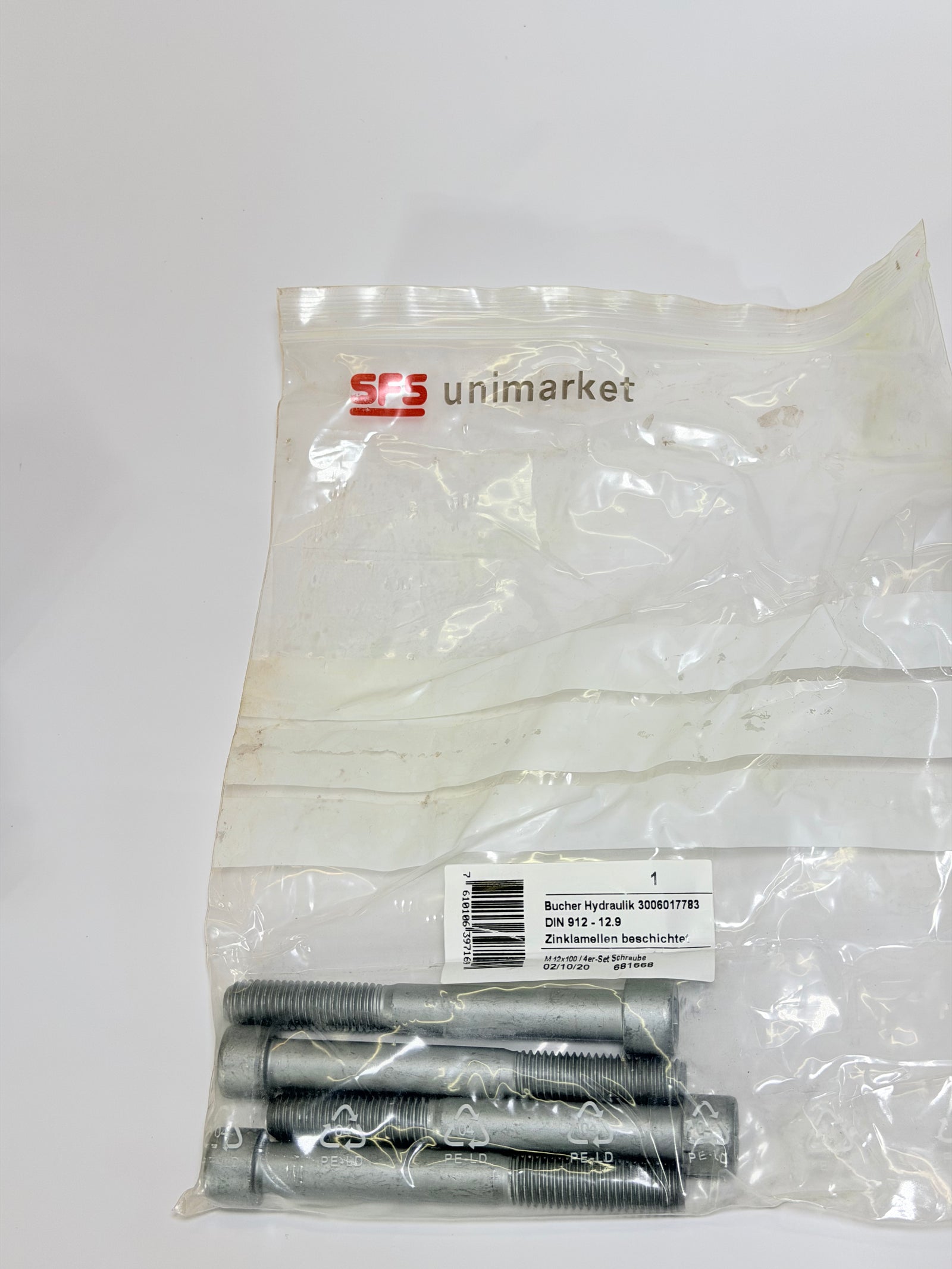

| D | Mounting Screws | Dacromet-coated fixing screws for superior corrosion protection. |
| S300 | Pilot Pressure Range | 300 bar factory secondary pressure relief valve setting. |
| L | Pilot Drain Line | External drain line (L) configuration for pilot oil routing. |
| G5 | Pilot Control Cover | G-type cover with specific orifice/damping combination 5 for stroke stabilization. |
| 0 | Special Options | Standard configuration with no added auxiliary custom features. |
| SVT230 | Secondary Relief Valve | SVT-type integrated secondary safety valve set to a nominal pressure threshold (typically 230 bar). |
