BRISTOL BABCOCK

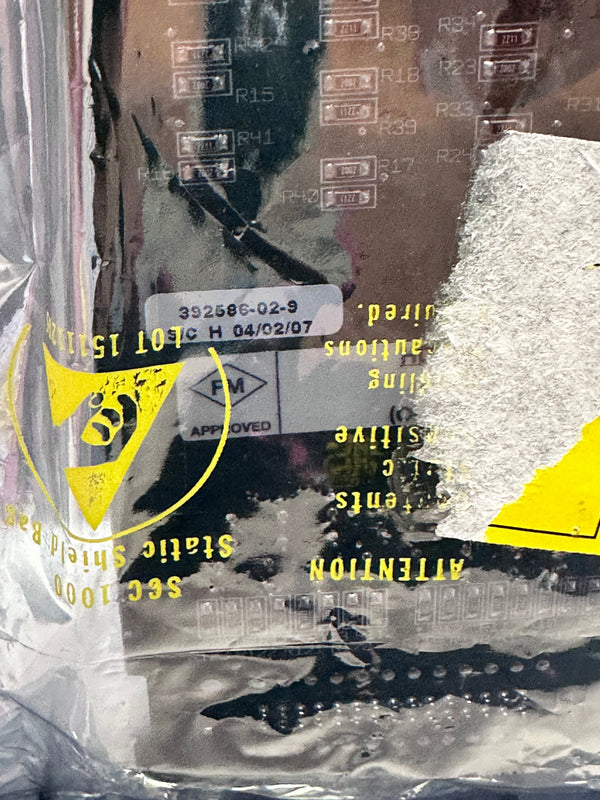

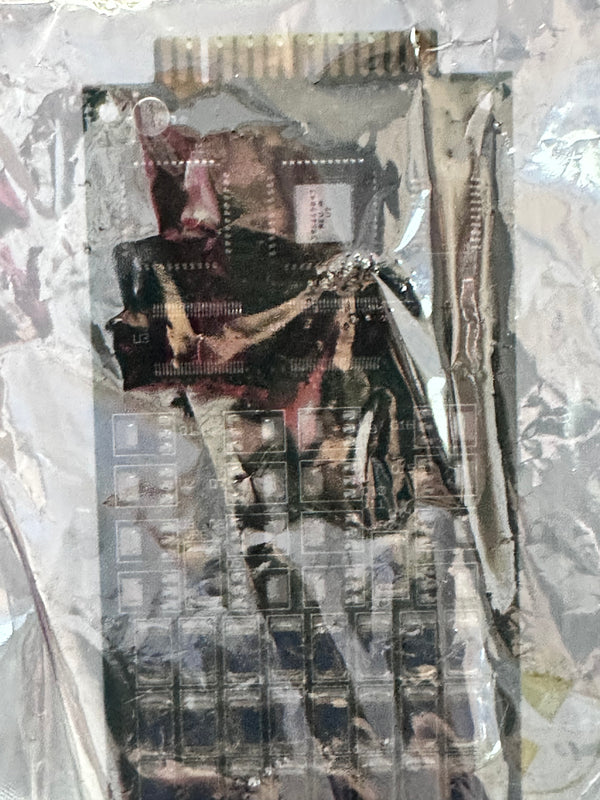

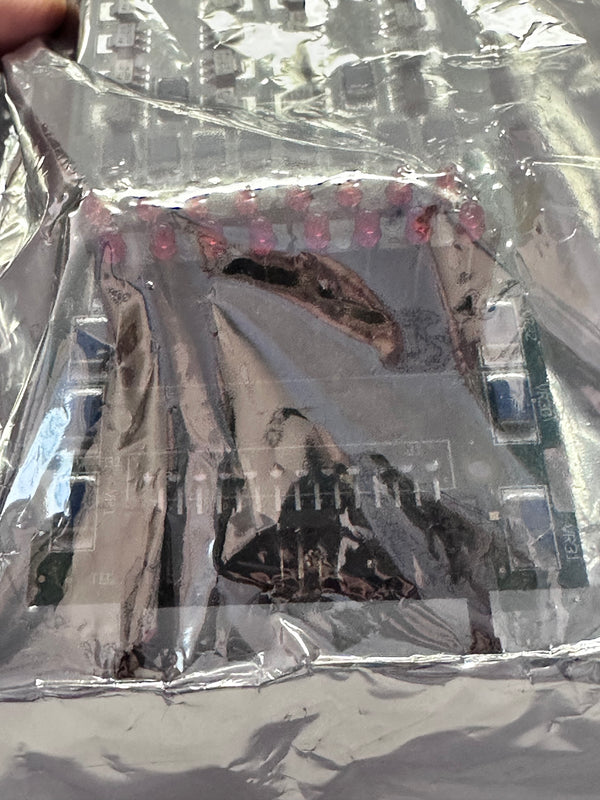

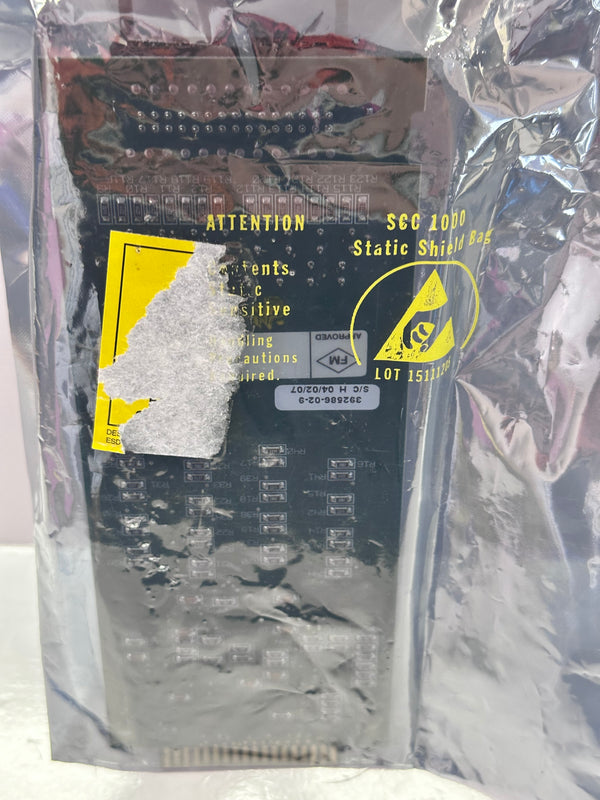

Bristol 392586-02-9 HDDO Remote-Termination Output PCB
- SKU
- P-BR-B-6508
$200.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 1.5 kg
Specifications
| Manufacturer | BRISTOL BABCOCK |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-BR-B-6508 |
| Weight | 1.5 kg |
Description
HDDO MODULE - Open Drain Output.
SPECIFICATIONS
Number of Outputs: 8-16
Output Configuration: Open Drain, 100 mA @ 35Vdc
Source Impedance: .45 Ohms
Surge Suppression:
Rugged - Surge Suppression
(Meets ANSI/IEEE C37.90-1978)
Common Mode - @ 30 V RMS
(for Open Collector)
Termination Options:
Local - TB1, TB2
Remote - J1
Operating Temperature: -20°C to +70°C (-4°F to +158°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
RFI Susceptibility: 10V/Meter 20MHz to 500MHz
HDDO Board Versions:
Local Termination
(392586-01-0)
Remote Termination (392586-02-9)
1 = For 3310/30/31/35
2 = For 3330/31/35
3GB-4 / HDDO Module
CI-3310/30/35 (11/2005)
For this listing, the source identifies 392586-02-9 as the remote-termination version; 392586-01-0 is the separate local-termination version. The source's 8–16 output count and numbered application notes are family-level entries. Confirm the exact channel configuration and controller compatibility before ordering.
