BRAINCHILD

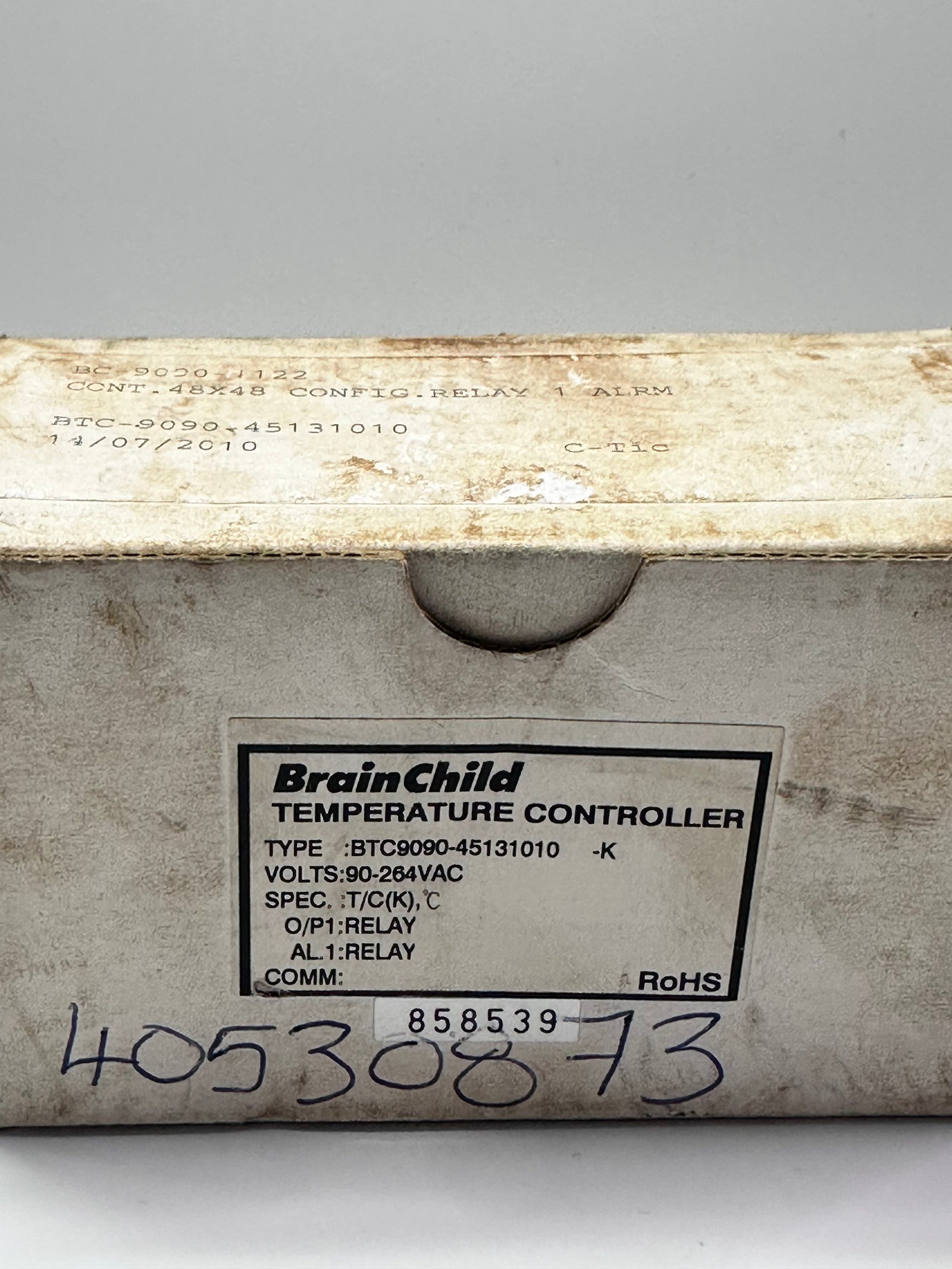

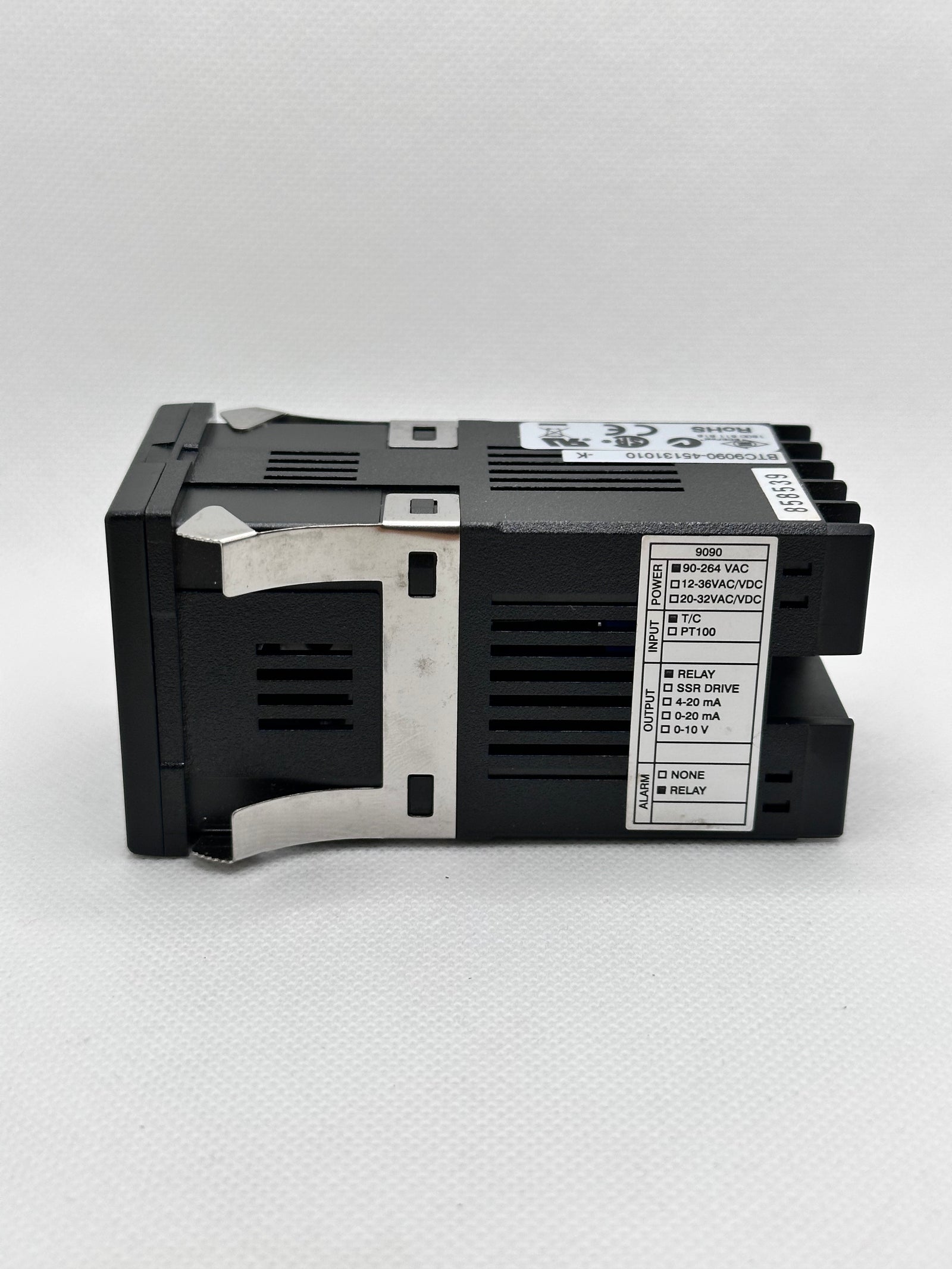

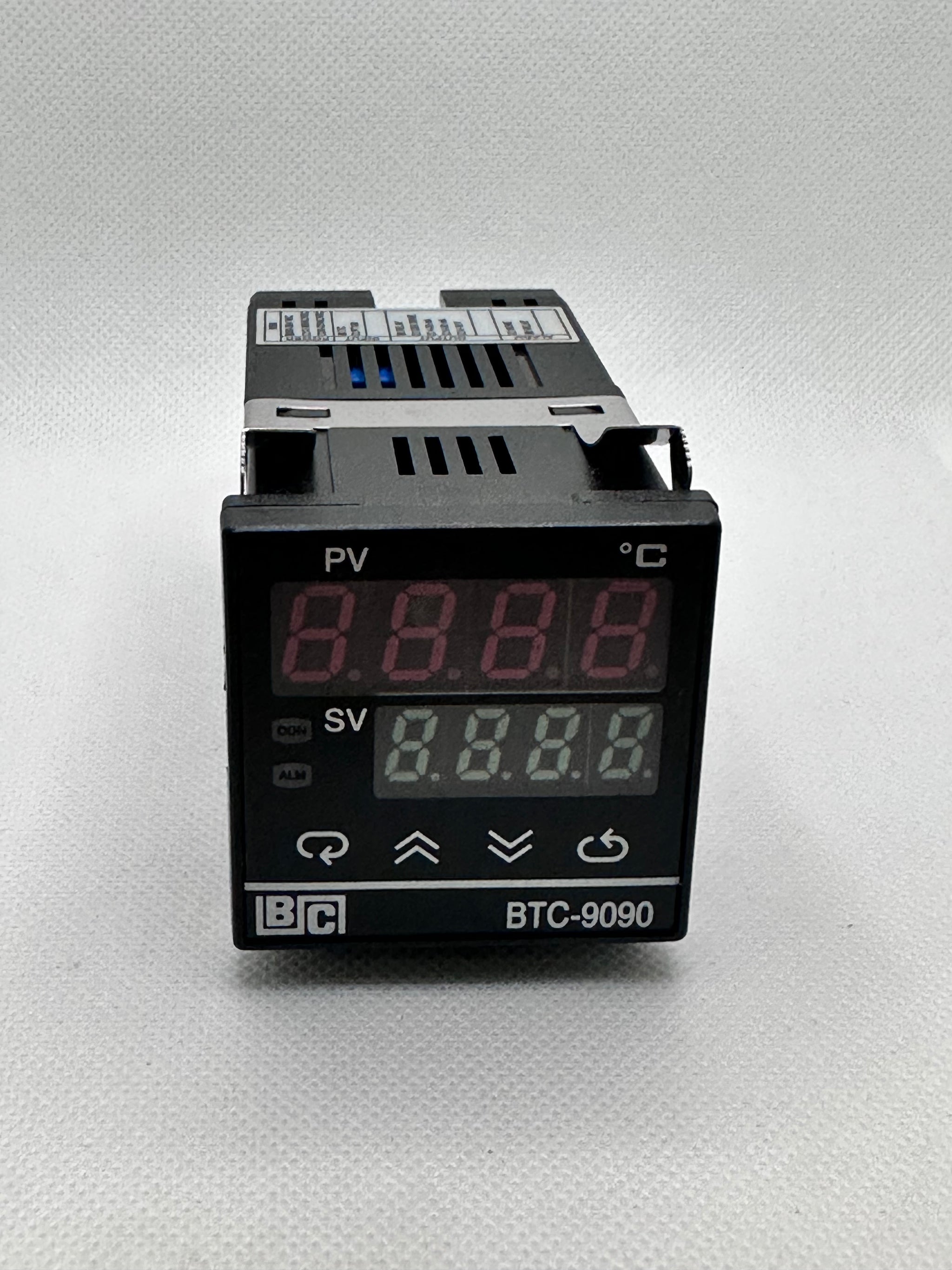

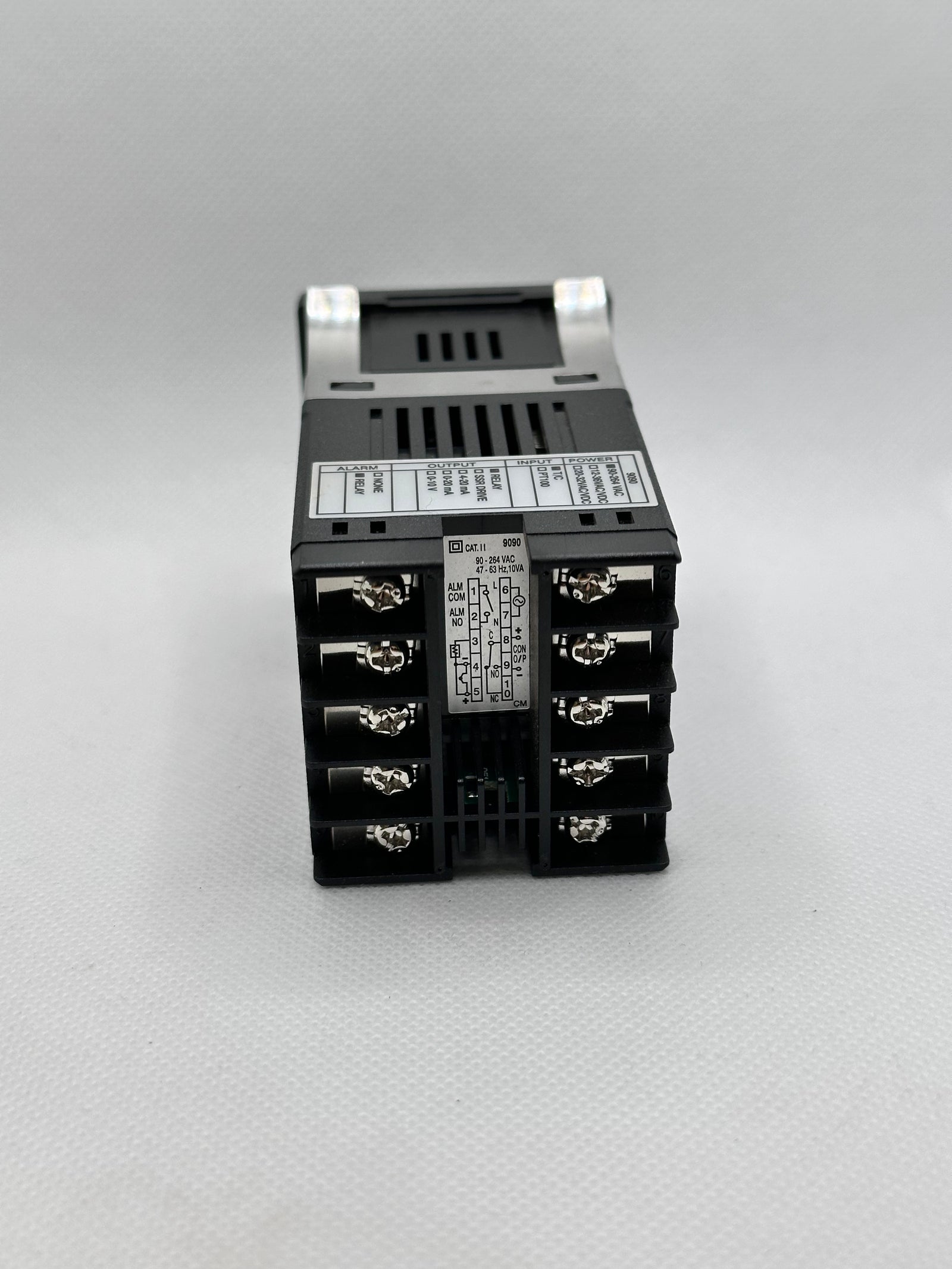

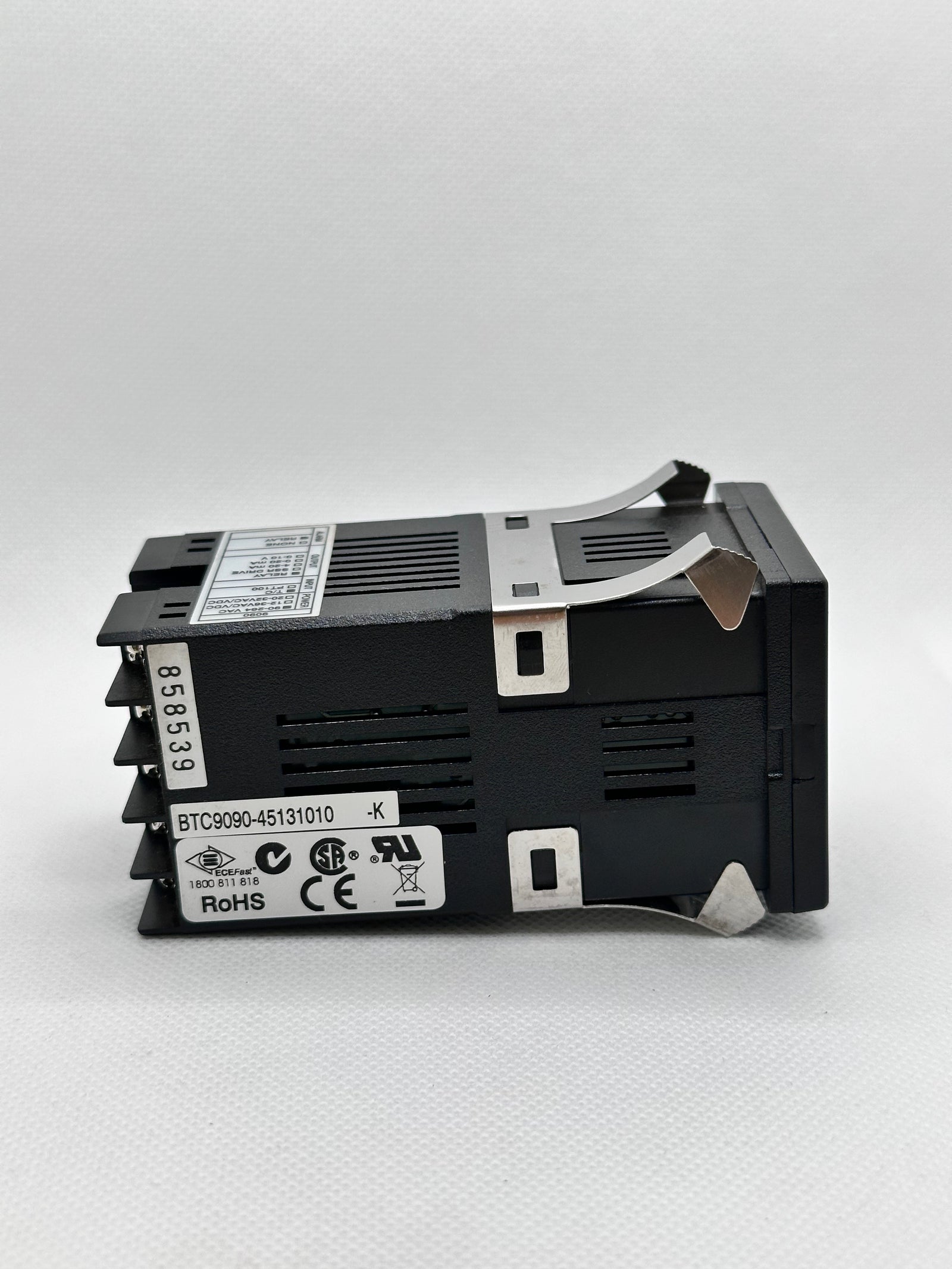

BrainChild BTC-9090 1/16 DIN Microprocessor Based PID Temperature Regulator - BTC9090-45131010-K
- SKU
- P-BR-B-7056
$220.00
Price includes GST.
Sold out
Warehouse pickup available
This one has sold, but we regularly land similar stock and can often source an equivalent.
Request this part or an equivalent- Weight
- 1.5 kg
Specifications
| Manufacturer | BRAINCHILD |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-BR-B-7056 |
| Weight | 1.5 kg |
Description
BTC-9090 -
Power Output (4) - 90-264 VAC
Signal Input (5) - TC
Range Code (9) - Other
Control Mode (3) - PID / ON-OFF Control
Output 1 option(1) - Relay rated 3A / 240VAC resistive
Output 2 option (0) - None
Alarm Option (1) - Relay rated 2A / 240VAC resistive
Communication (0) - None
| INPUT | |
|---|---|
| Thermocouple (T/C) | type J, K, T, E, B, R, S, N. |
| RTD | PT100 ohm RTD (DIN 43760/BS1904 or JIS) |
| Linear | 4-20, 0-20mA, 0-10V, etc. |
| Range | User configurable, refer to Table above. |
| Accuracy | Refer to Table above |
| Cold Junction Compensation | 0.1°C / °C ambient typical. |
| Sensor Break Protection | Protection mode configurable. |
| External Resistance | 100 ohms max. |
| Normal Mode Rejection | 60dB |
| Common Mode Rejection | 120dB |
| Sample Rate | 5 times / second |
| CONTROL | |
|---|---|
| Proportion Band | 0-100% of SPAN |
| Rest (Integral) | 0-3600 seconds |
| Rate (Derivative) | 0-1000 seconds |
| Ramp Rate | 0-2000°C / Hour (0-3600?F / Hour) |
| Dwell | 0-3600 minutes |
| ON-OFF | With adjustable hysterisis (0-20%of SPAN) |
| Cycle Time | 0-120 seconds |
| Control Action | Direct (for cooling) and reverse (for heating) |
| INTERFACE | |
|---|---|
| Process Display | 0.4" green LED, 4 digits |
| Status Indicator | Control out and alarm |
| POWER | |
|---|---|
| Rating | 90-240VAC,50/60Hz |
| Consumption | Less than 5VA |
| ENVIRONMENTAL & PHYSICAL | |
|---|---|
| Operating Temperature | -10°C ~ 50°C |
| Humidity | 0 to 90% RH (non-codensing) |
| Insulation | 20M ohms min. (500VDC) |
| Breakdown | AC2000V，50/60Hz，1 minute |
| Vibraton | 10-55Hz，amplitude 1mm |
| Shock | 200 m/s² (20g) |
| Weight | 110 grams |
| Dimension | 24(H)x48(W)x99mrn (depth behind panel) |
| Panel cutout | 22 +0.5 x 45 +0.5 mm |
