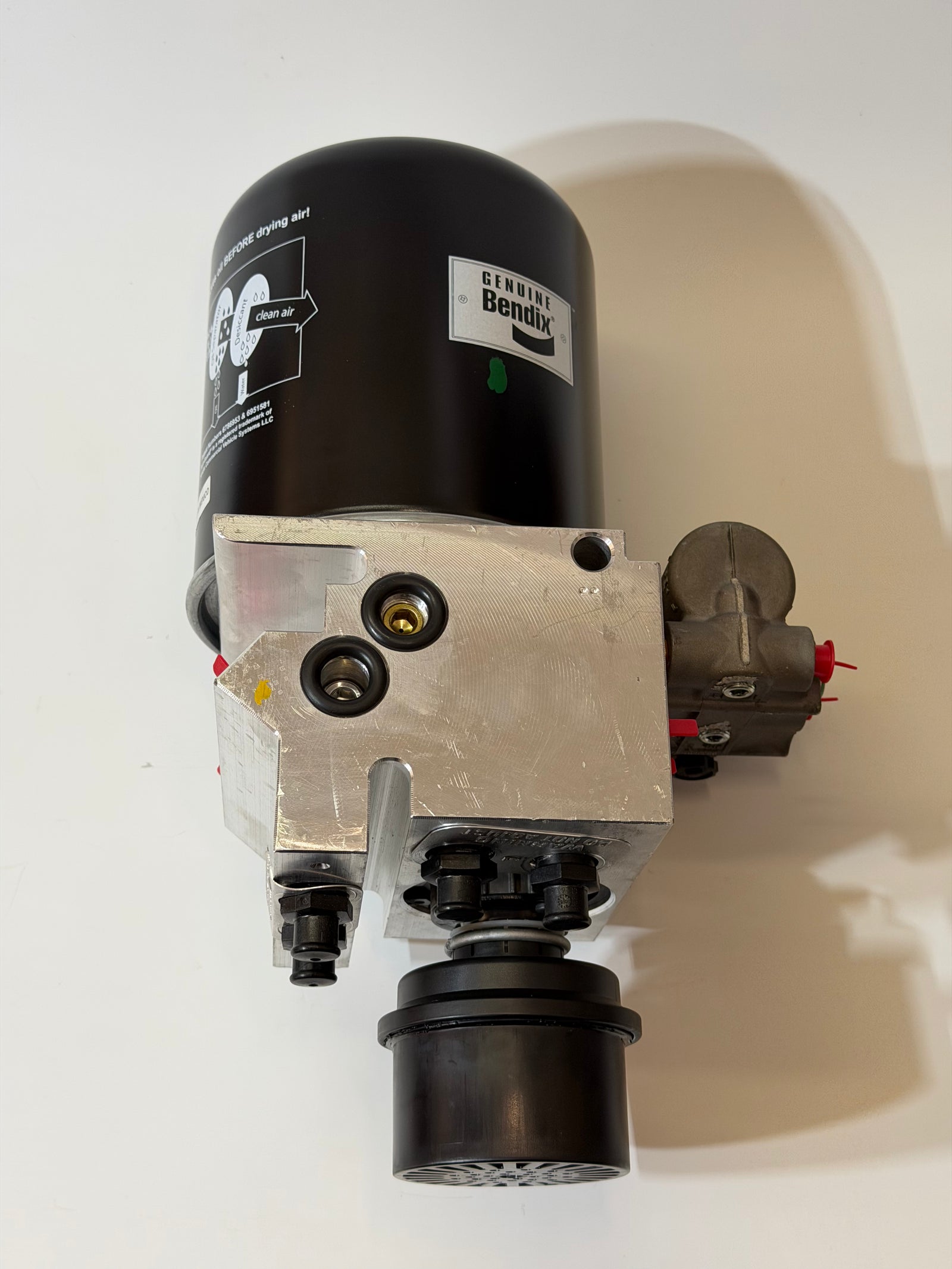

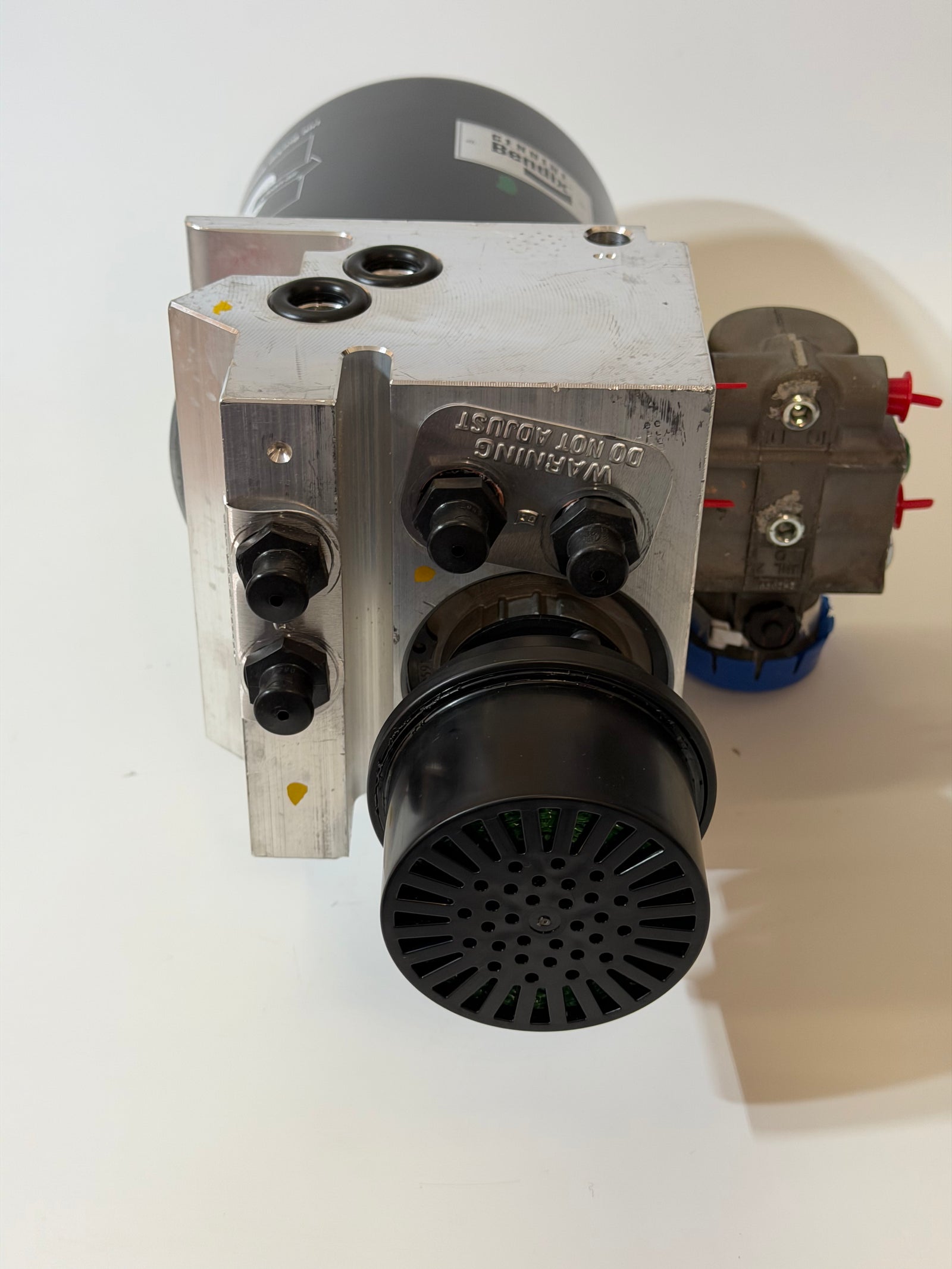

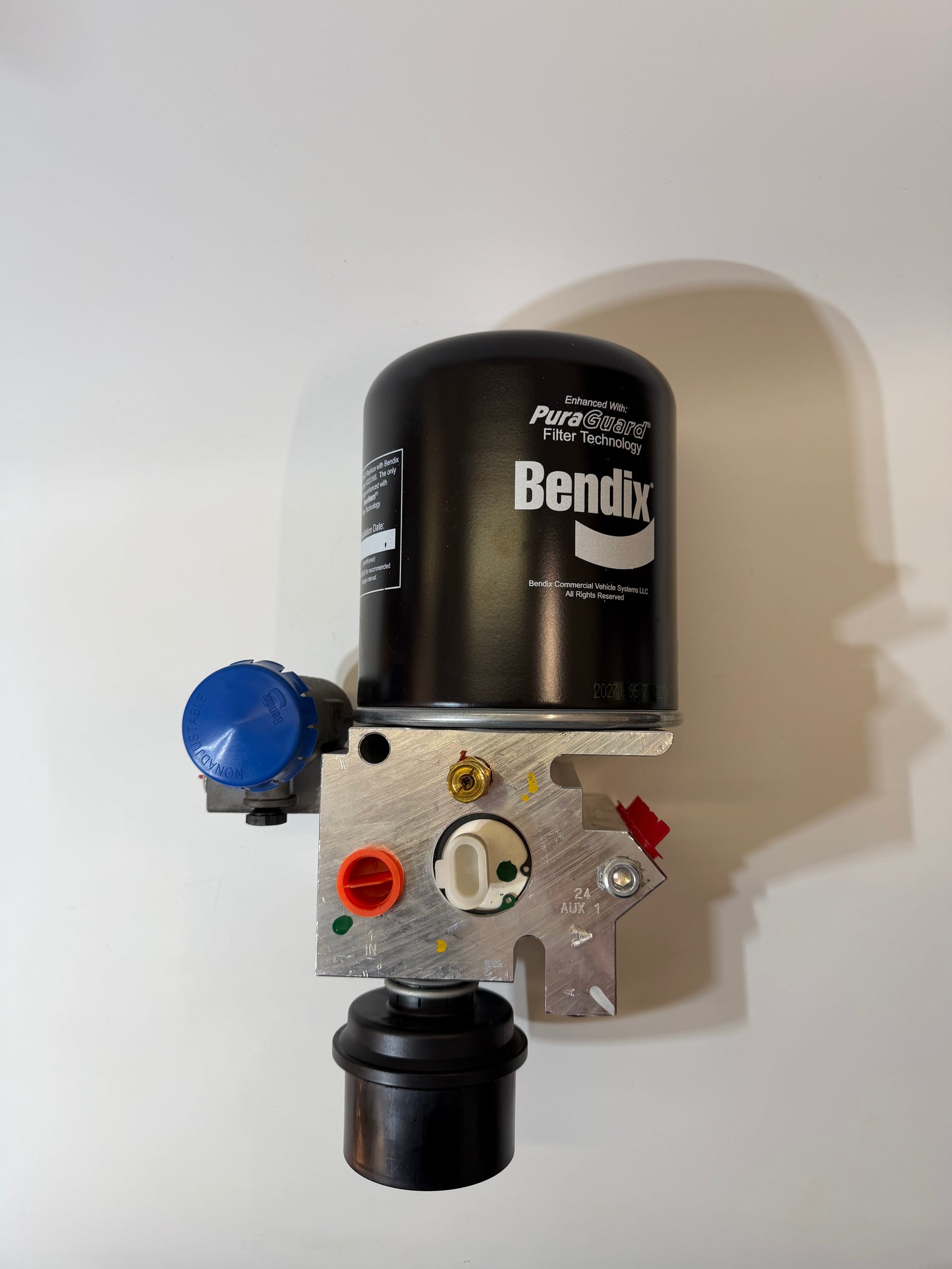

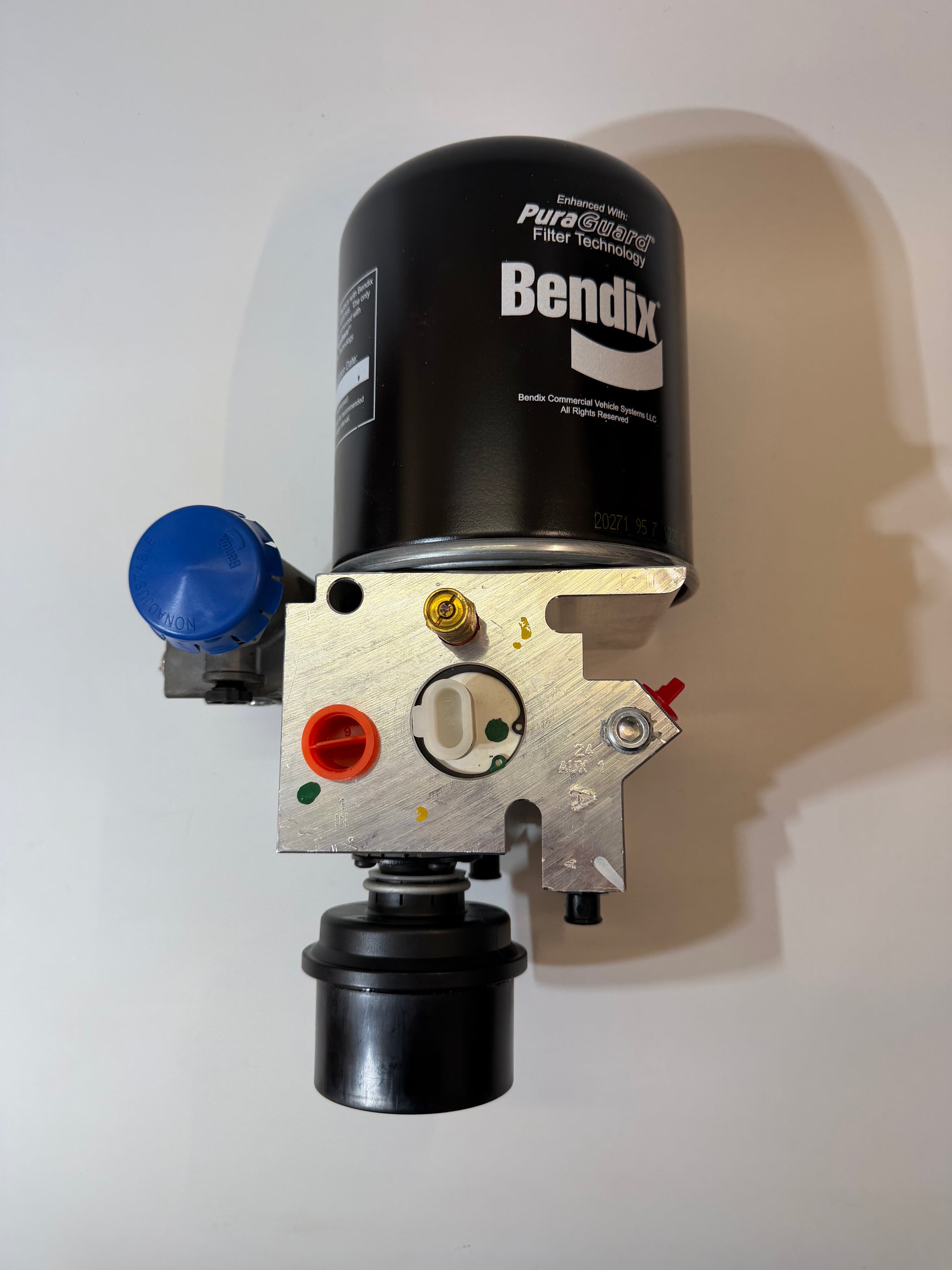

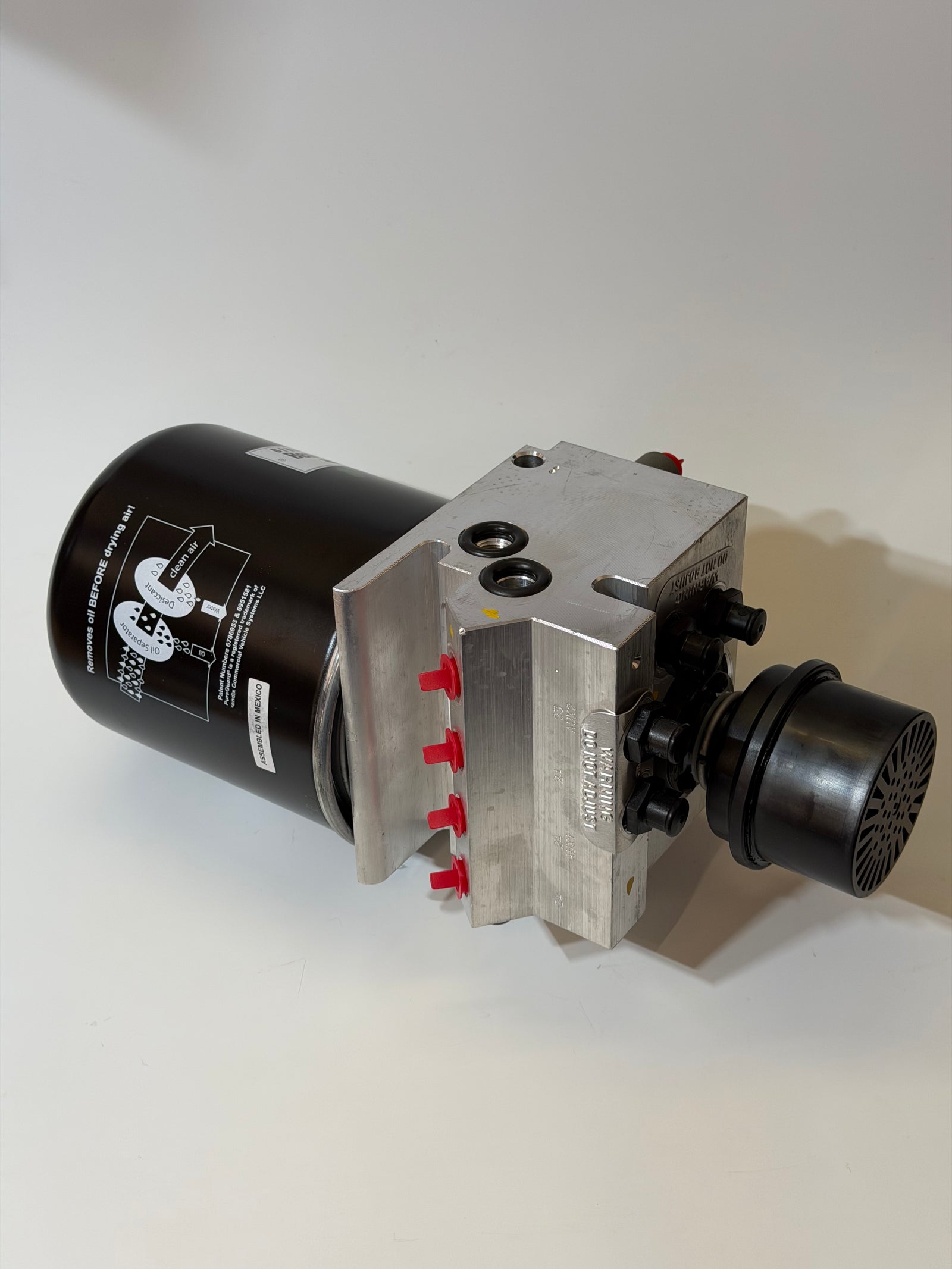

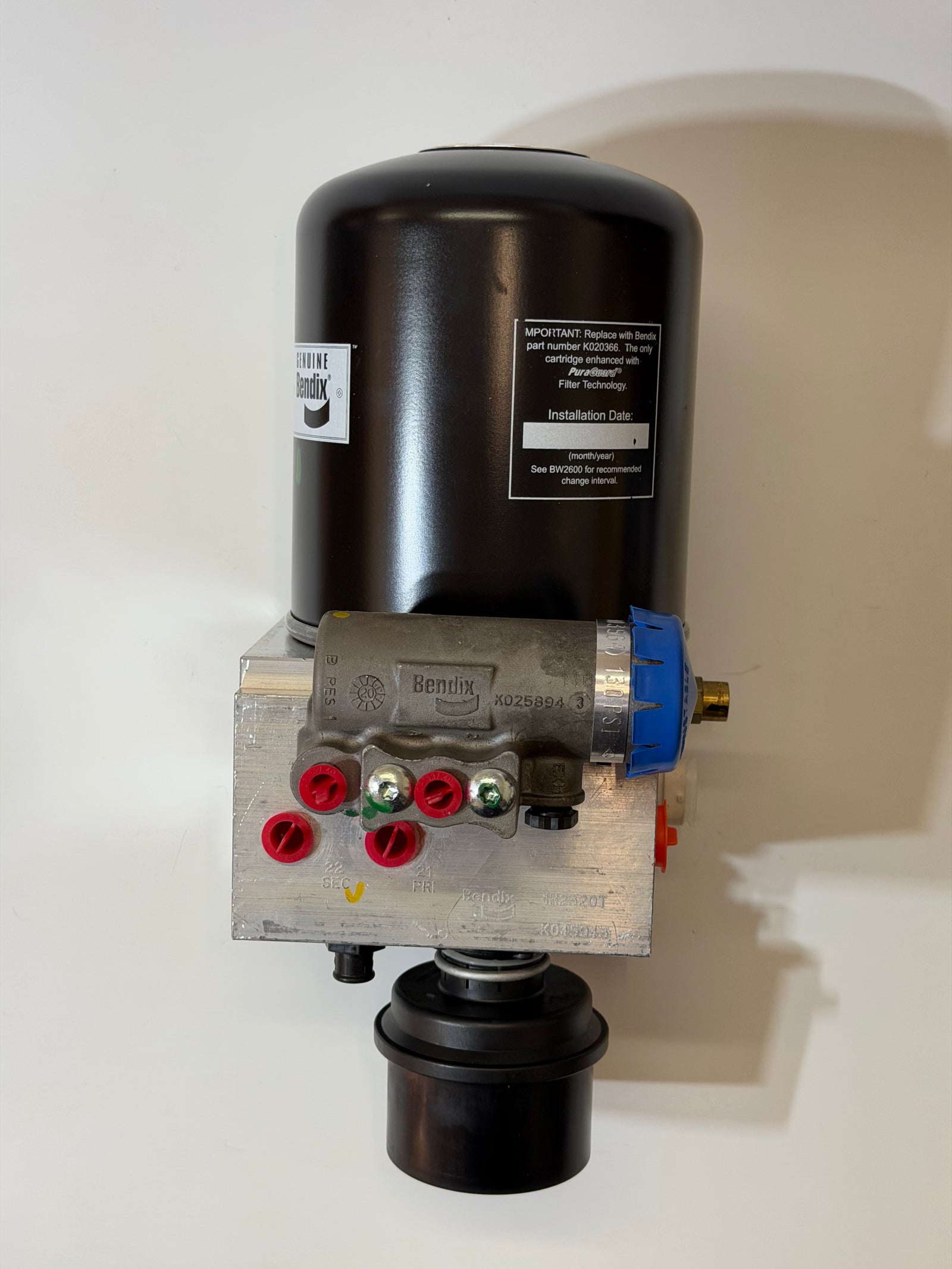

| Description (Long Product Description): | Air Dryer |
| Air Dryer Type: | Stand-Alone |

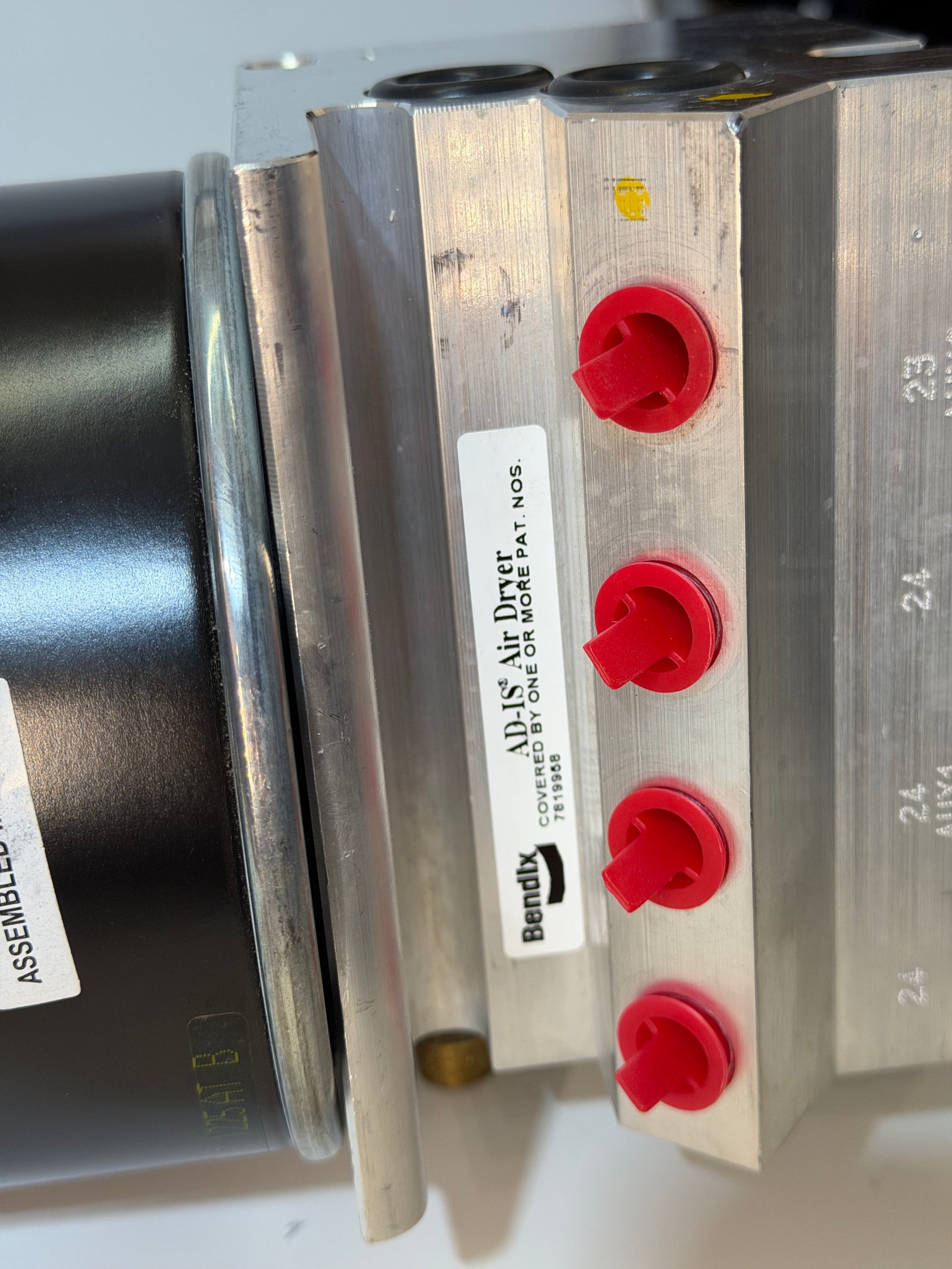

| Aux 1 Delivery Opening Pressure: | 109 Psi |
| Aux 1 Delivery Port 1: | 1/4-18 Npt |
| Aux 1 Delivery Port 2: | 1/4-18 Npt |
| Aux 1 Delivery Port 3: | 1/4-18 Npt |
| Aux 1 Delivery Port 4: | 1/4-18 Npt |
| Aux 2 Delivery Opening Pressure: | 109 Psi |
| Aux 2 Delivery Port: | 1/4-18 Npt |
| Cartridge Thread: | M39 X 1.5-6H Rh |
| Cartridge Type: | Puraguard (Coalescing) |
| Cautionary Note(S): | Pressure Protection Valve Configs Are Not Interchangeable. |
| Clearance To Remove Cartridge: | 1.00 In |
| Compressor Unloader Port: | Not Applicable To This Part |
| Cut-In Pressure: | 110 Psi |
| Cut-Out Pressure: | 130 Psi |
| Governor Included: | Yes |
| Governor Reservoir Port: | 1/8-27 Npt |
| Governor Type: | Non-Adjustable |
| Governor Unloader Port: | 1/8-27 Npt |
| Heater / Thermostat Rating: | 12V / 90W |
| Heater Connector Color: | White |
| Heater Connector Type: | Metri-Pack 280 Series 2-Way Sealed Connector (Male) |
| Market Indicator: | Aftermarket New |
| Maximum Inlet Temperature: | 160 Adegf (71 Adegc) |
| Minimum Operating Temperature: | -40 Adegf (-40 Adegc) |
| Mounting: | Mount To Purge Reservoir (Not Included) |
| Number Of Compartments: | Not Applicable To This Part |

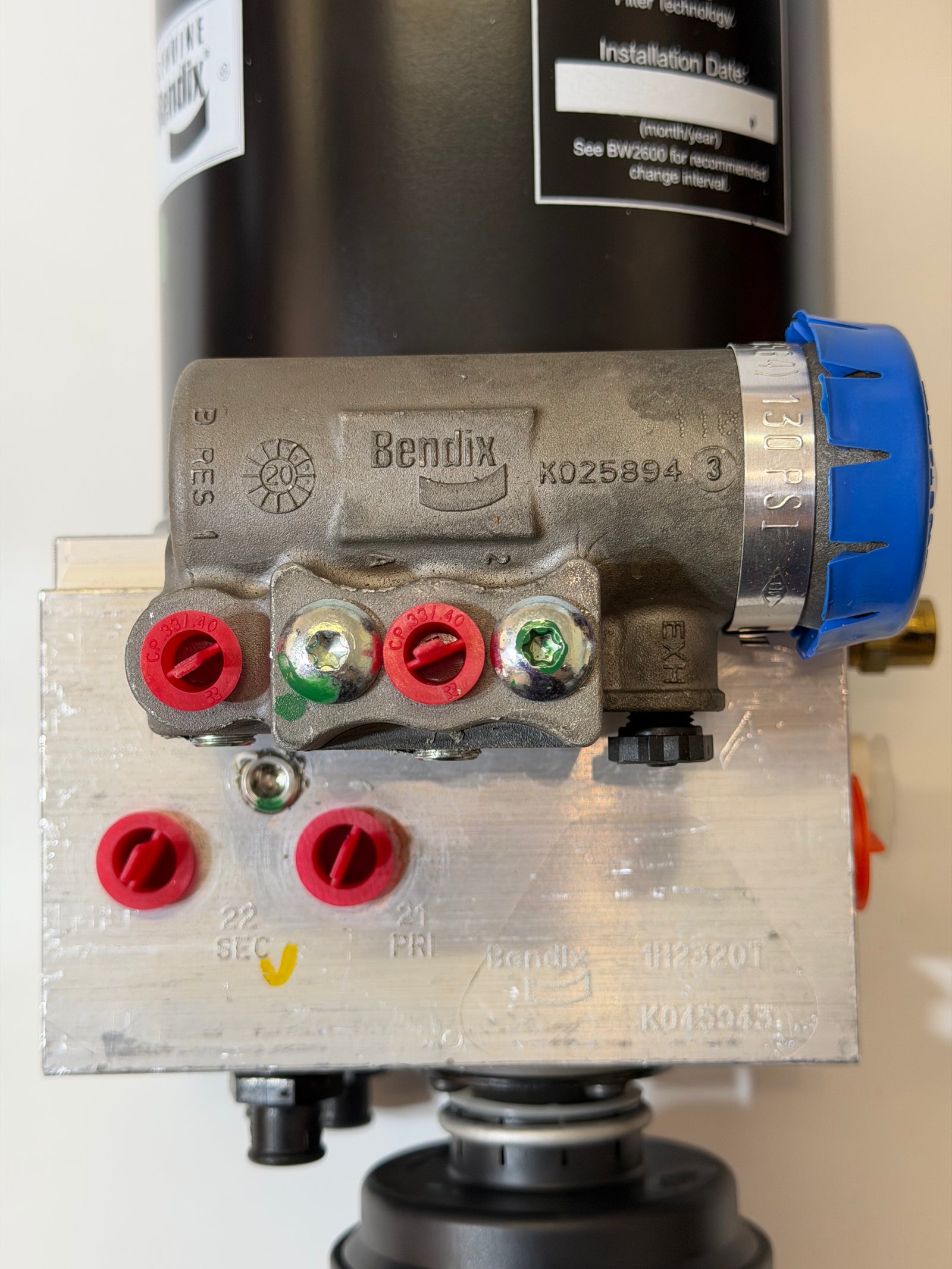

| Pressure Protection Valve Configuration: | 4 In Parallel |
| Pressure Range: | Not Applicable To This Part |
| Pri Delivery Opening Pressure: | 103 Psi |
| Pri Delivery Port 21: | 1/4-18 Npt |
| Purge Exhaust Port: | Standard (With Adapter / Silencer) |
| Purge Valve Type: | Hard Seat |
| Purge Volume: | Not Applicable To This Part |
| Remote Charge / Fill Port (Through Desiccant): | Not Applicable To This Part |
| Remote Charge / Fill Port 1 (After Desiccant): | Not Applicable To This Part |
| Remote Charge / Fill Port 2 (After Desiccant): | Not Applicable To This Part |
| Reservoir Diameter: | Not Applicable To This Part |
| Reservoir Fill Type: | Not Applicable To This Part |
| Reservoir Length: | Not Applicable To This Part |
| Reservoir Material: | Not Applicable To This Part |
| Safety Valve Opening Pressure: | 153 Psi |
| Sec Delivery Opening Pressure: | 109 Psi |
| Sec Delivery Port 22: | 1/4-18 Npt |
| Supply Port: | 1/2-14 Npt |
