LITTELFUSE

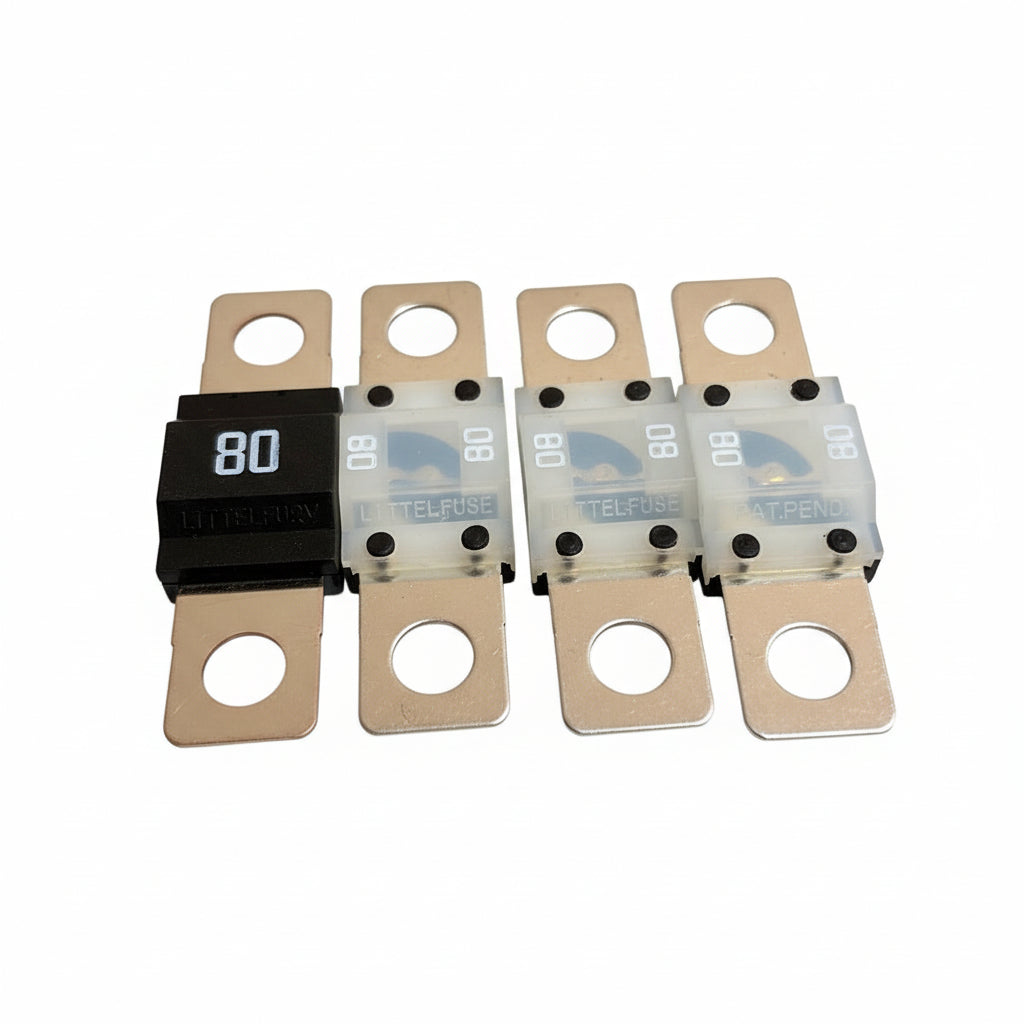

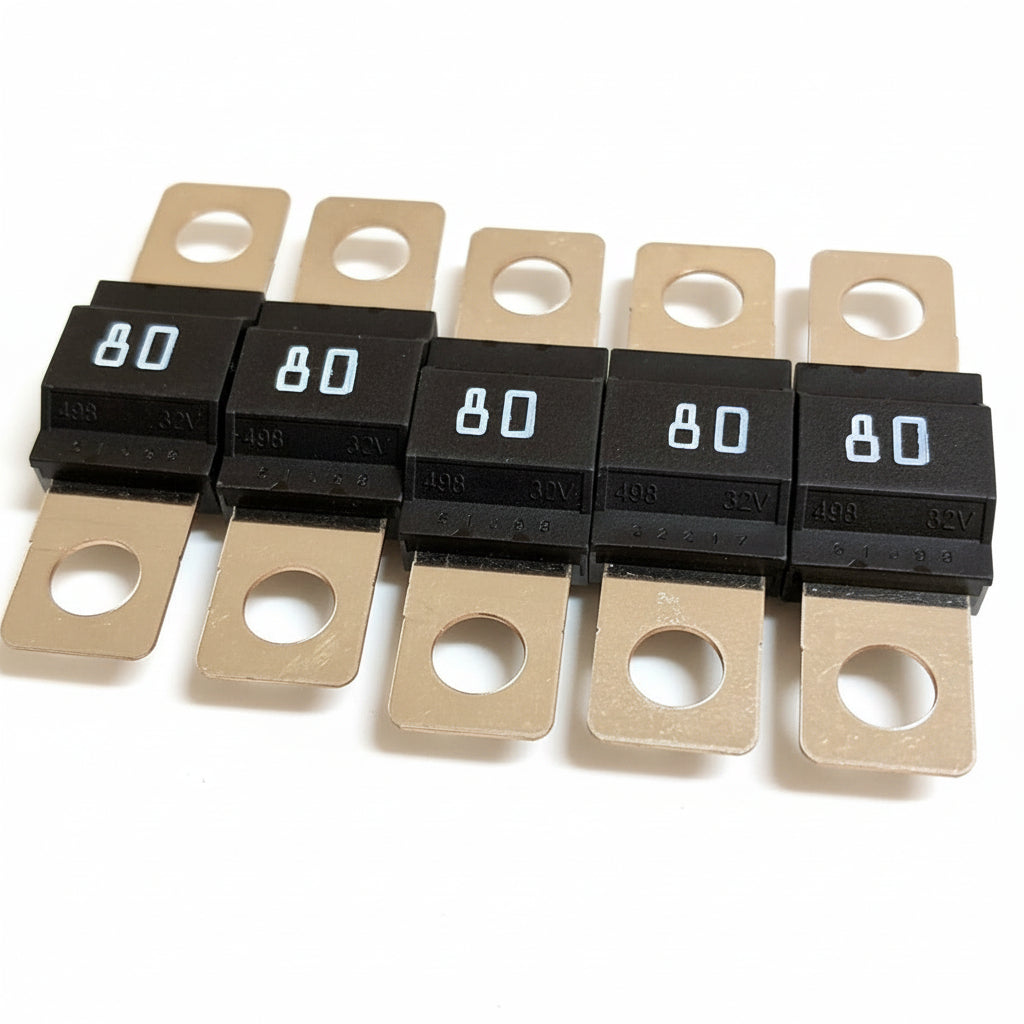

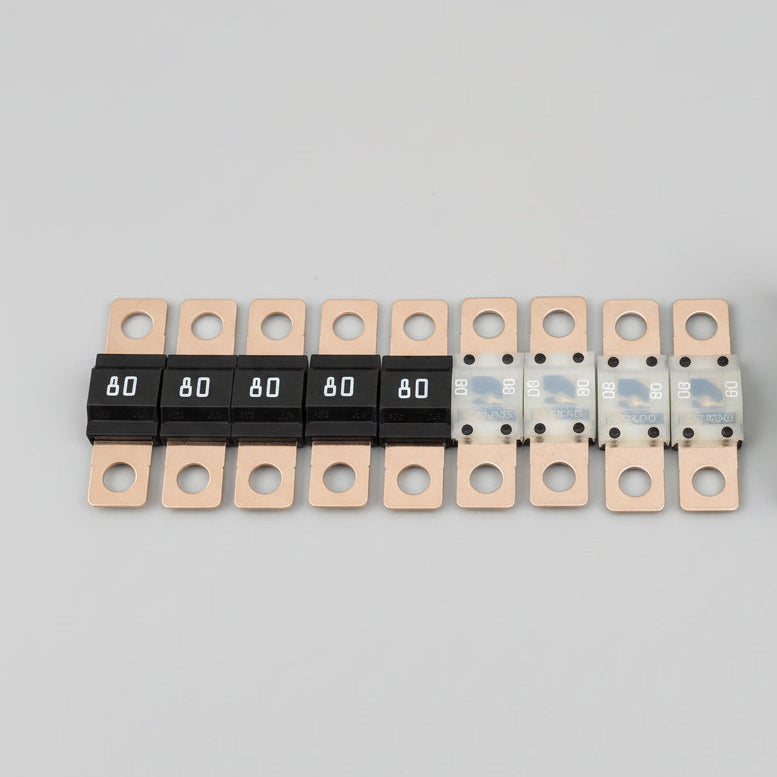

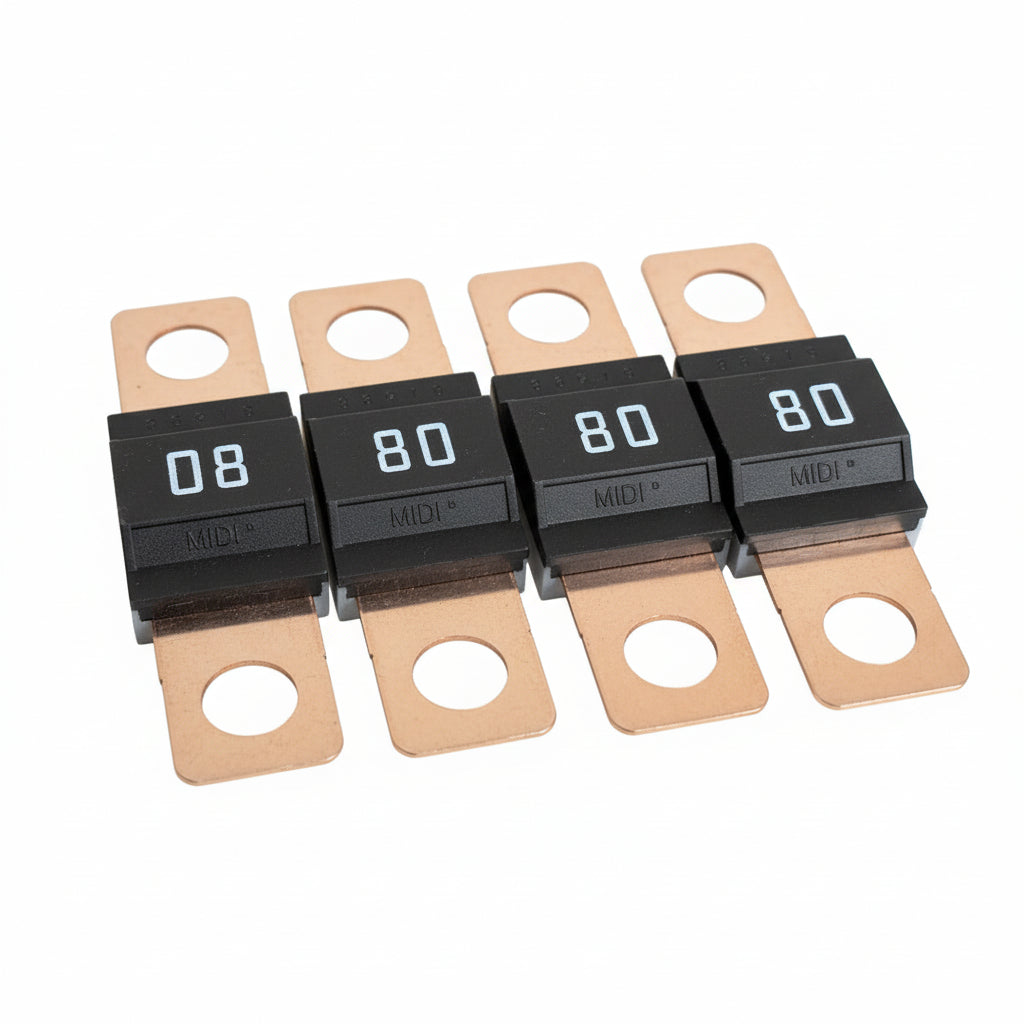

Littelfuse 0498080.MXT Series 498 MIDI Fuse, 80A 32V, Bag of 9
- SKU
- P-BA-L-1296
$16.60
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 1.0 kg
Specifications
| Manufacturer | LITTELFUSE |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-BA-L-1296 |
| Weight | 1.0 kg |
Description
This 80 A MIDI® fuse employs diffusion pill technology to offer time-delayed protection to high-current wiring harnesses. The bolt-down automotive fuse boasts a compact design, enabling greater circuit protection in less space.
MIDI REGULAR 32V CLEAR
Voltage Rating: 32 V DC
Interrupting Rating: 2000 A @ 32 V DC
Recommended Environmental
Temperature:
–40 ˚C to +125 ˚C
Terminals Material: Tin plated Copper
Black Housing Material: PA66-GF25
(U.L. 94 Flammability rating – V0)
Clear Housing Material: PA6/66
(U.L. 94 Flammability rating – HB)
Mounting Torque M5: 4.5 Nm +/- 1Nm
Mounting Torque M6: 6.0 Nm +/- 1Nm
Refers To: ISO 8820-5:2015
Comply With: Standard UL 248-1 as a Special
Purpose Fuses in UL file E71611 (40-
100A) and Directive 2011/65/EU
