ASCO

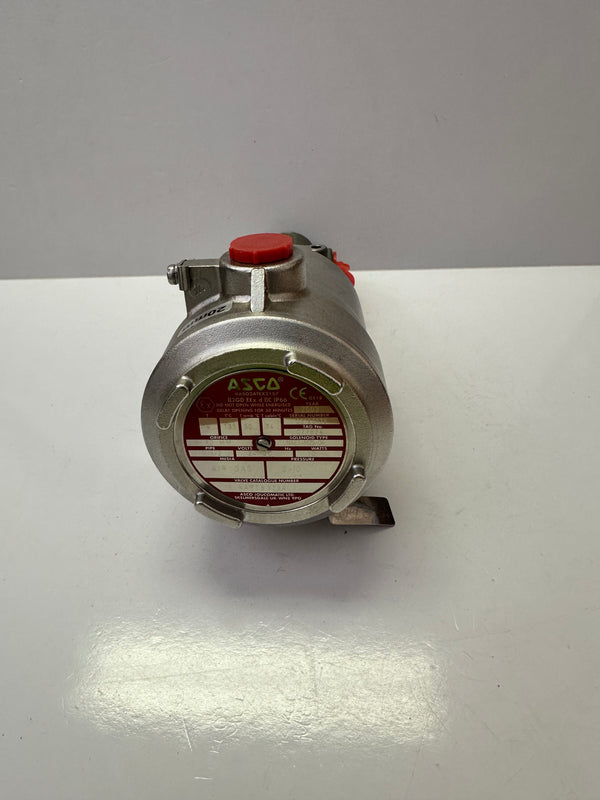

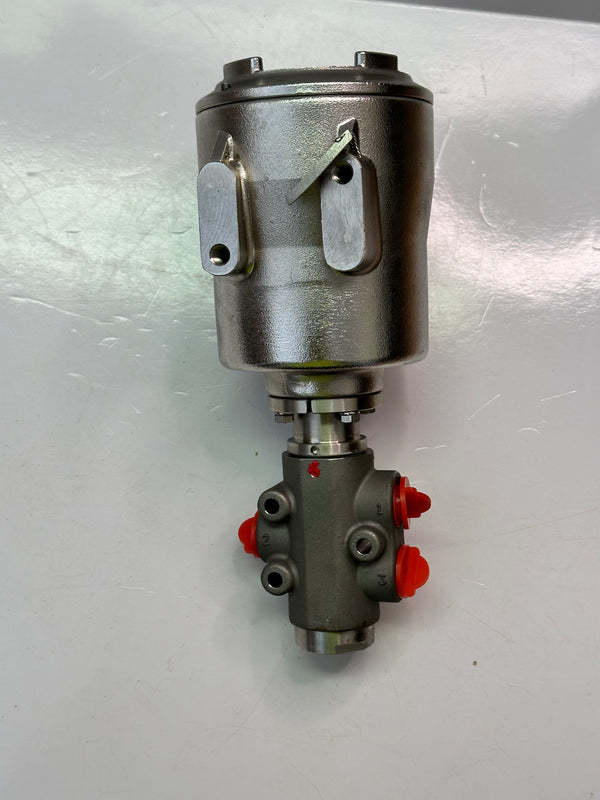

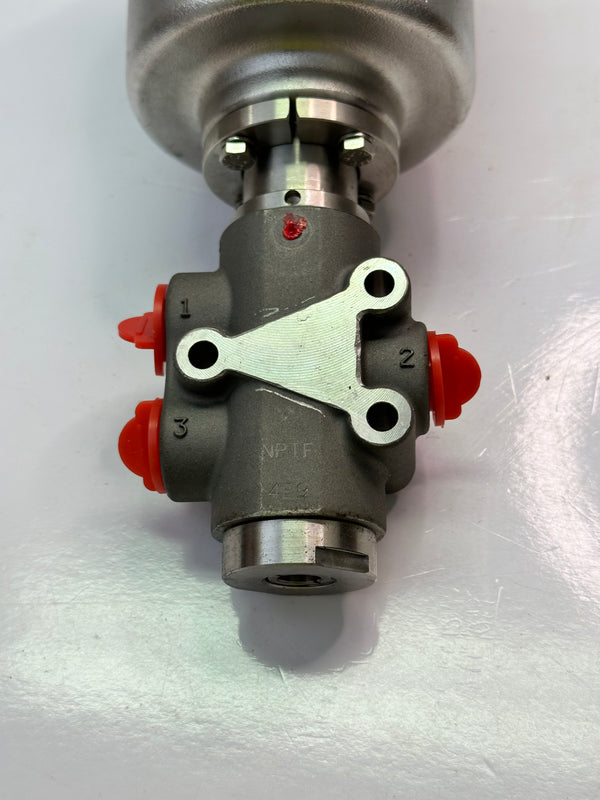

ASCO NAETB326A1 Air/Gas Solenoid Valve, 24 V DC, 10 Bar
- SKU
- P-AS-A-4569
$650.00
Price includes GST.
Low stock: 2 left
Warehouse pickup available
- Weight
- 5.0 kg
Specifications
| Manufacturer | ASCO |
|---|---|
| Product type | VALVES |
| SKU | P-AS-A-4569 |
| Weight | 5.0 kg |
Description
ASCO NAETB326A1 air/gas solenoid valve, listed at 24 V DC and 10 bar.

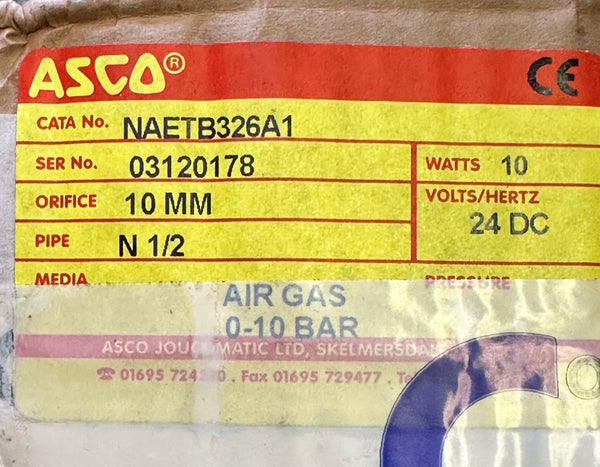

Source identification and specifications
- Serial No. 03120178.
- Solenoid type: NAET-M25-04.
- Pipe designation: N 1/2, retained as supplied without inferring a thread standard.
- Media: Air/Gas.
- Orifice: 10 mm.
- Additional tag rating: 10 WATTS, not independently verified.

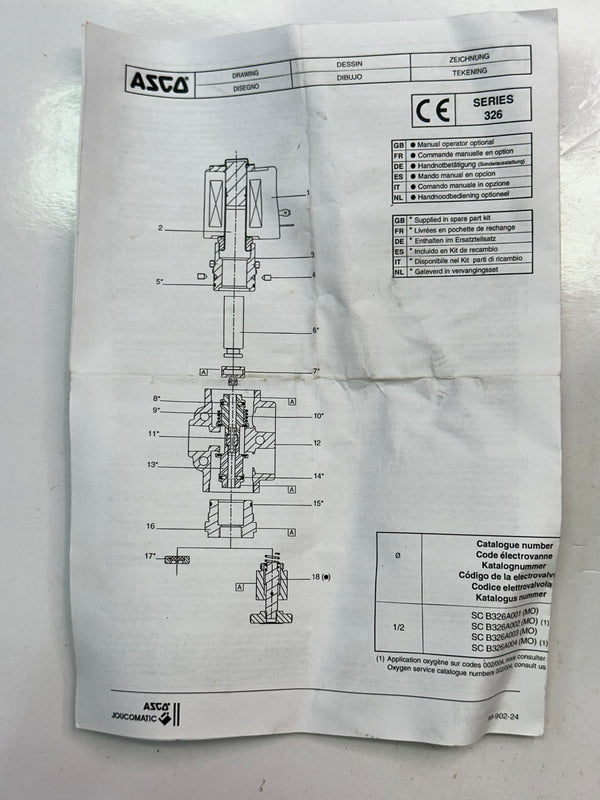

- Source series/brand context: 326 Series; Emerson.
Hazardous-area evidence required: the source records BASO2ATEX2157 and tags the product ATEX / explosion proof. The exact certification string is preserved, including the letter O. These entries do not establish the supplied unit’s protection marking, gas group, temperature class, special conditions or suitability for a particular hazardous area.
Additional original tag wording: A R GAS. Confirm the valve/coil identification, pipe connection, ratings and required certification before ordering.
