ALLEN-BRADLEY

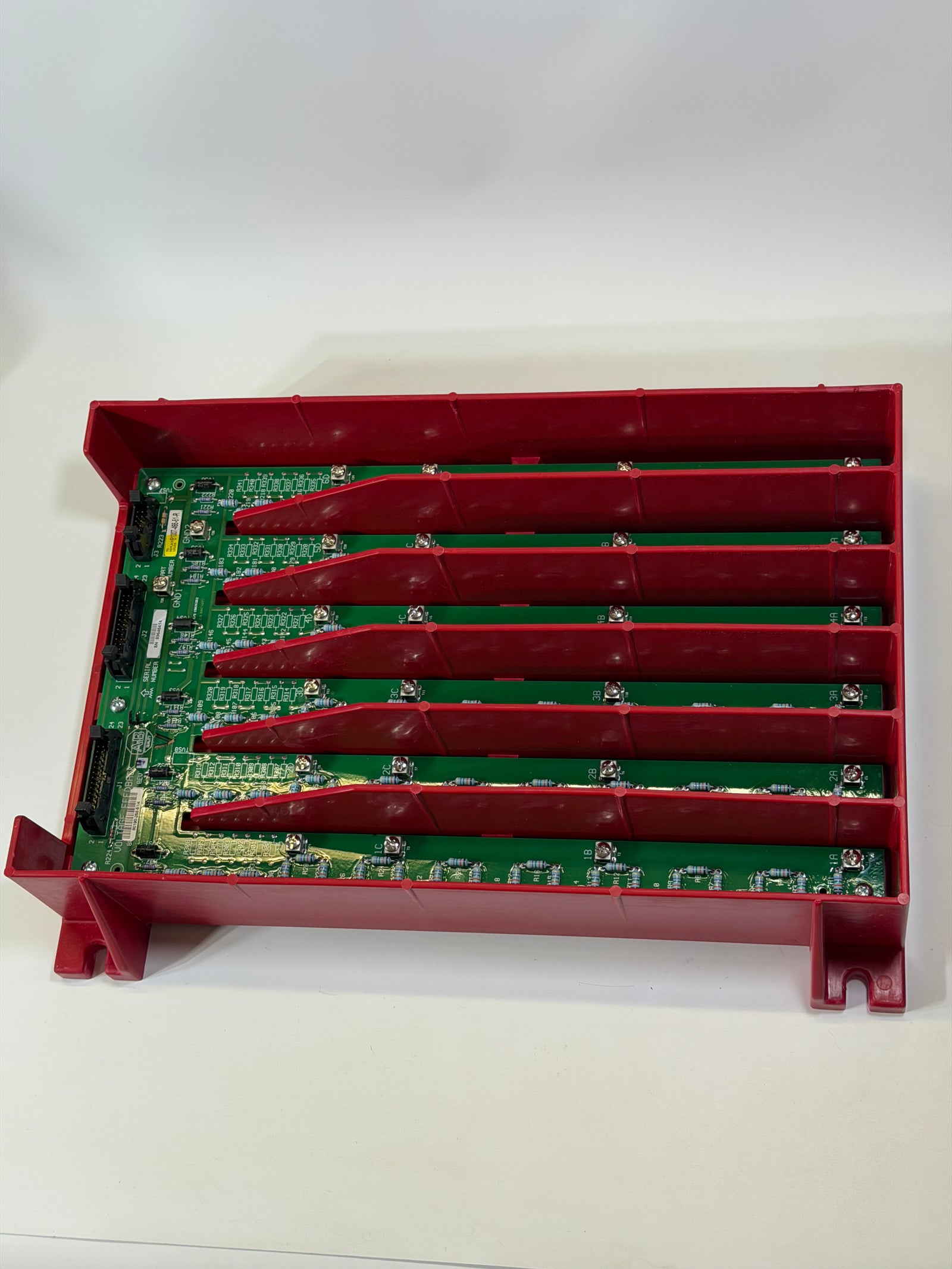

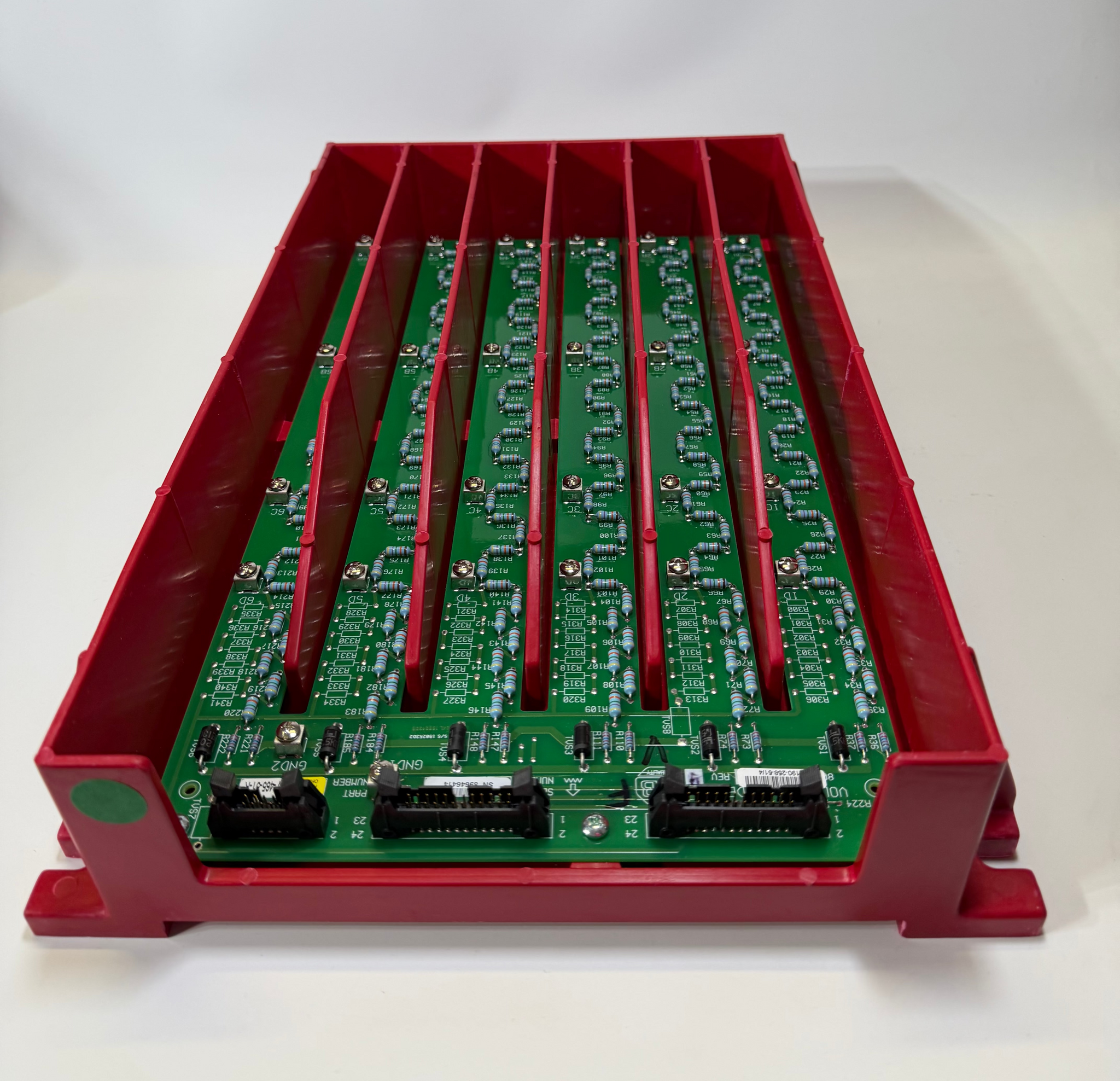

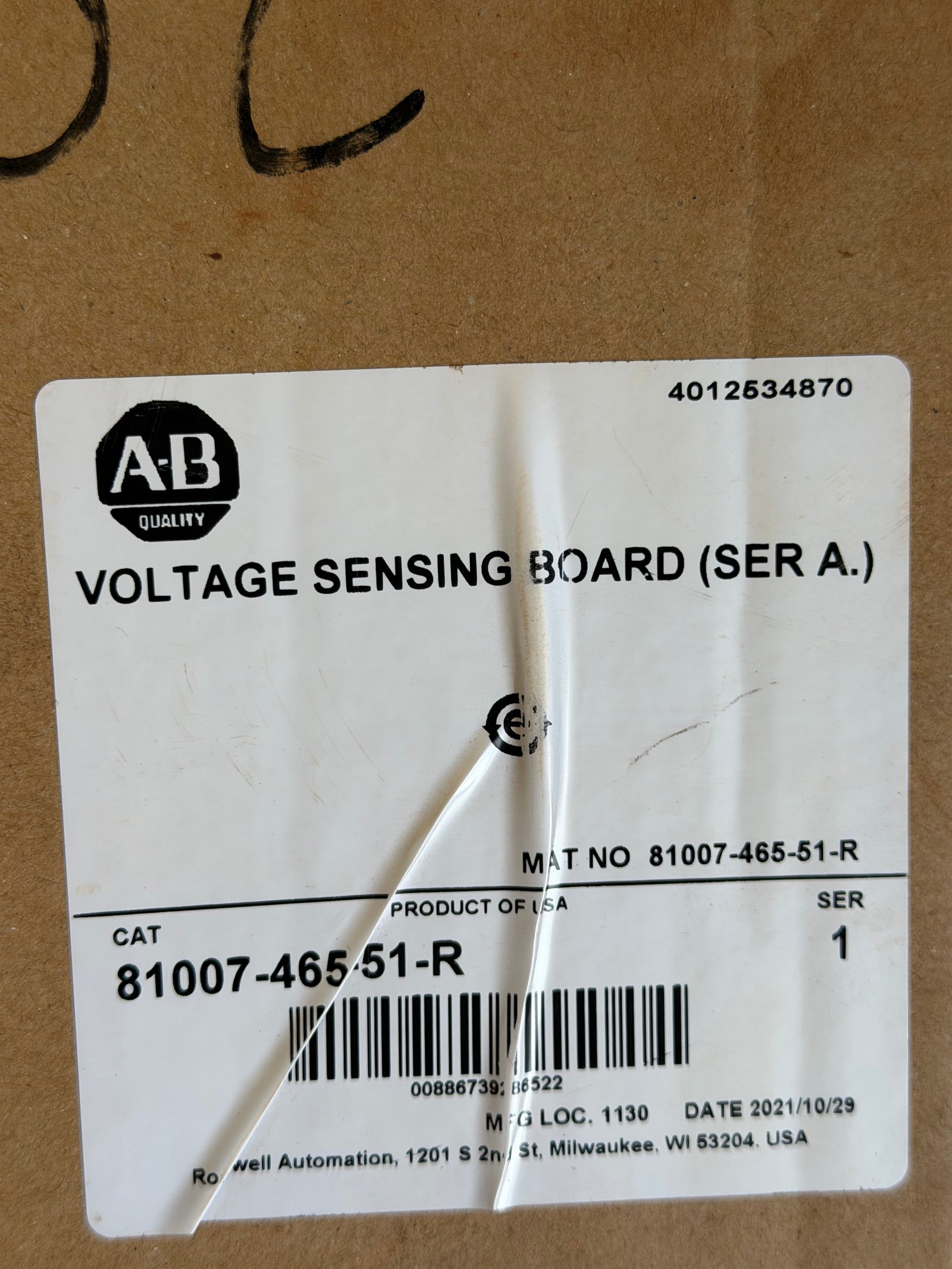

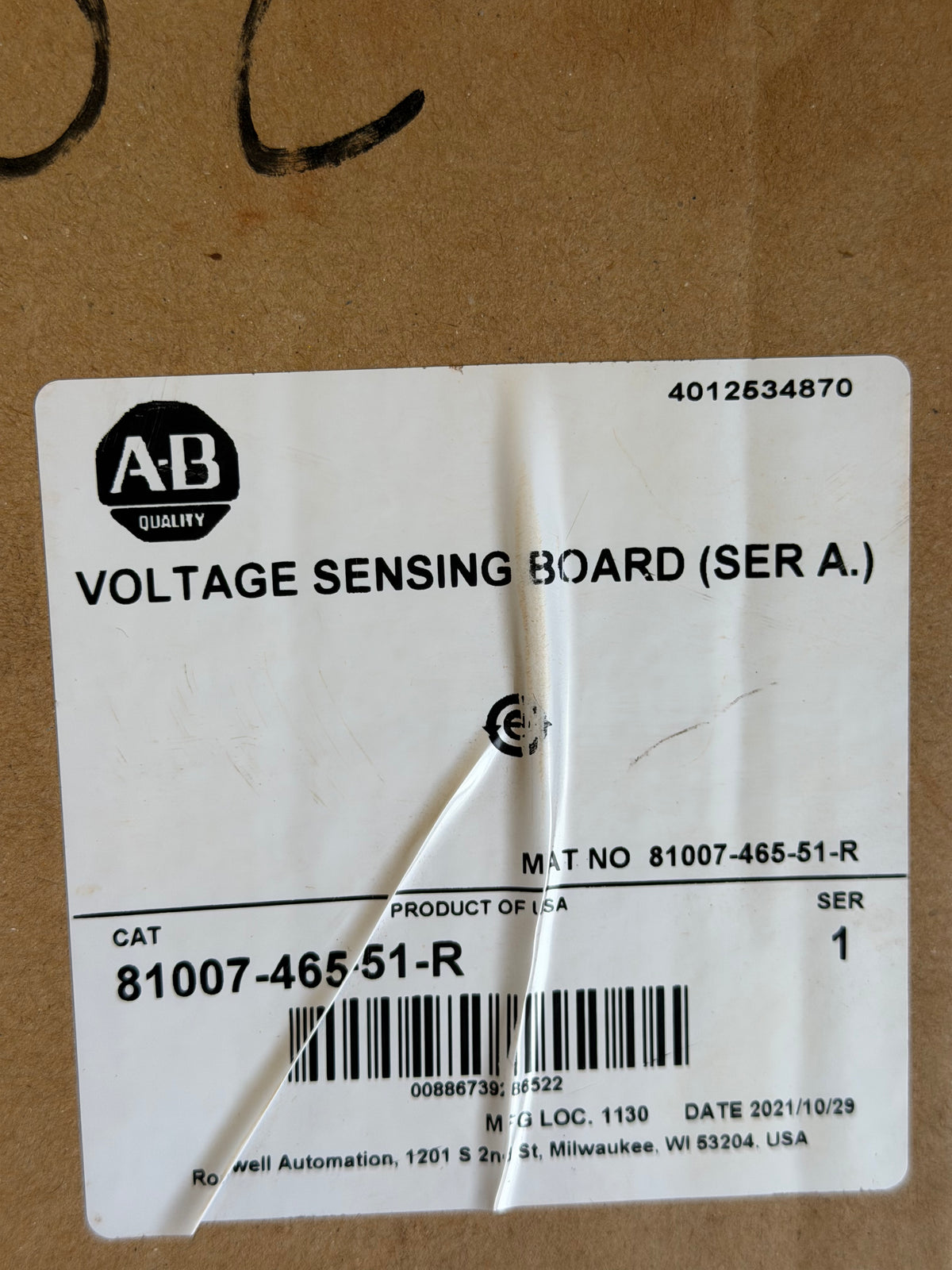

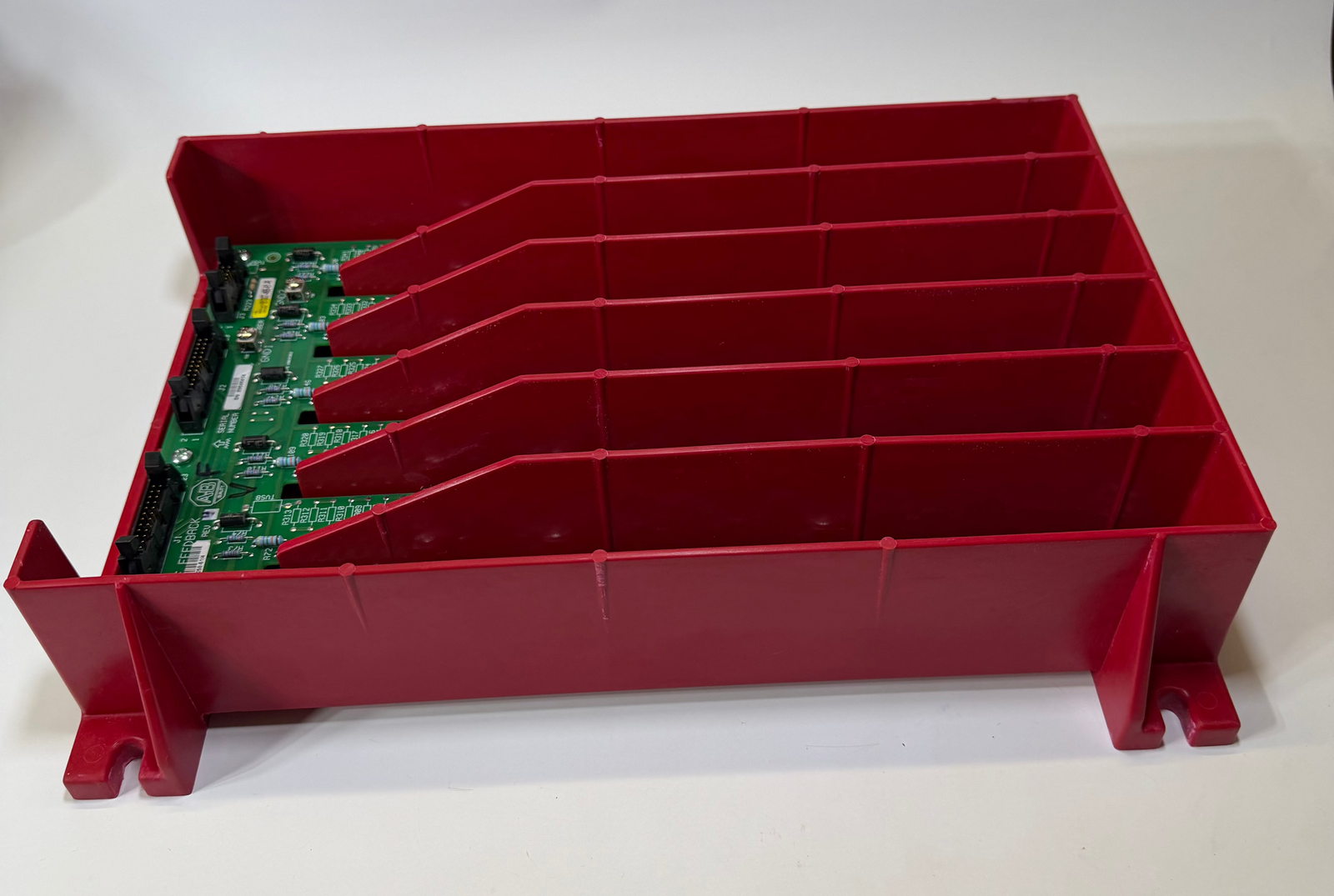

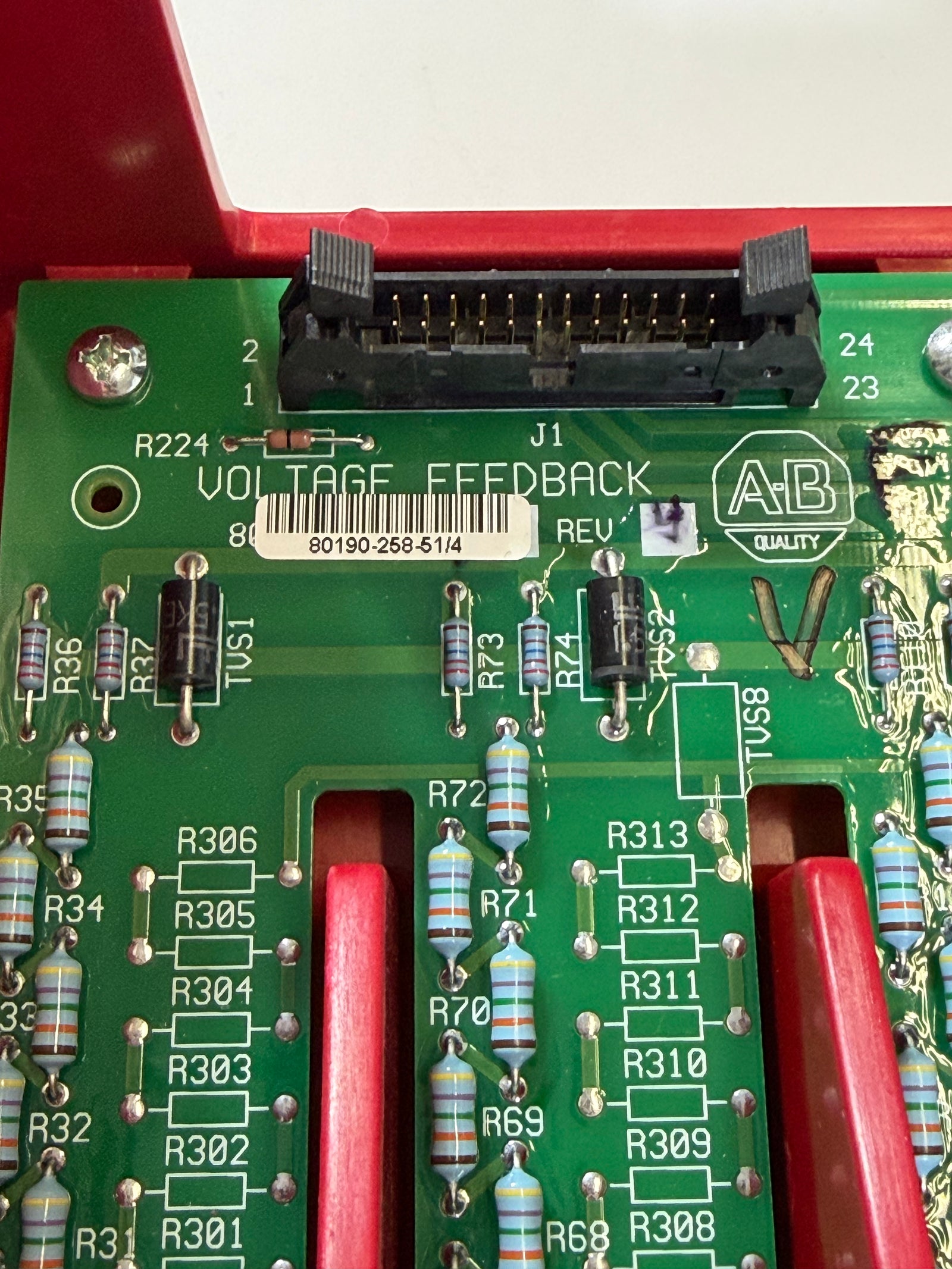

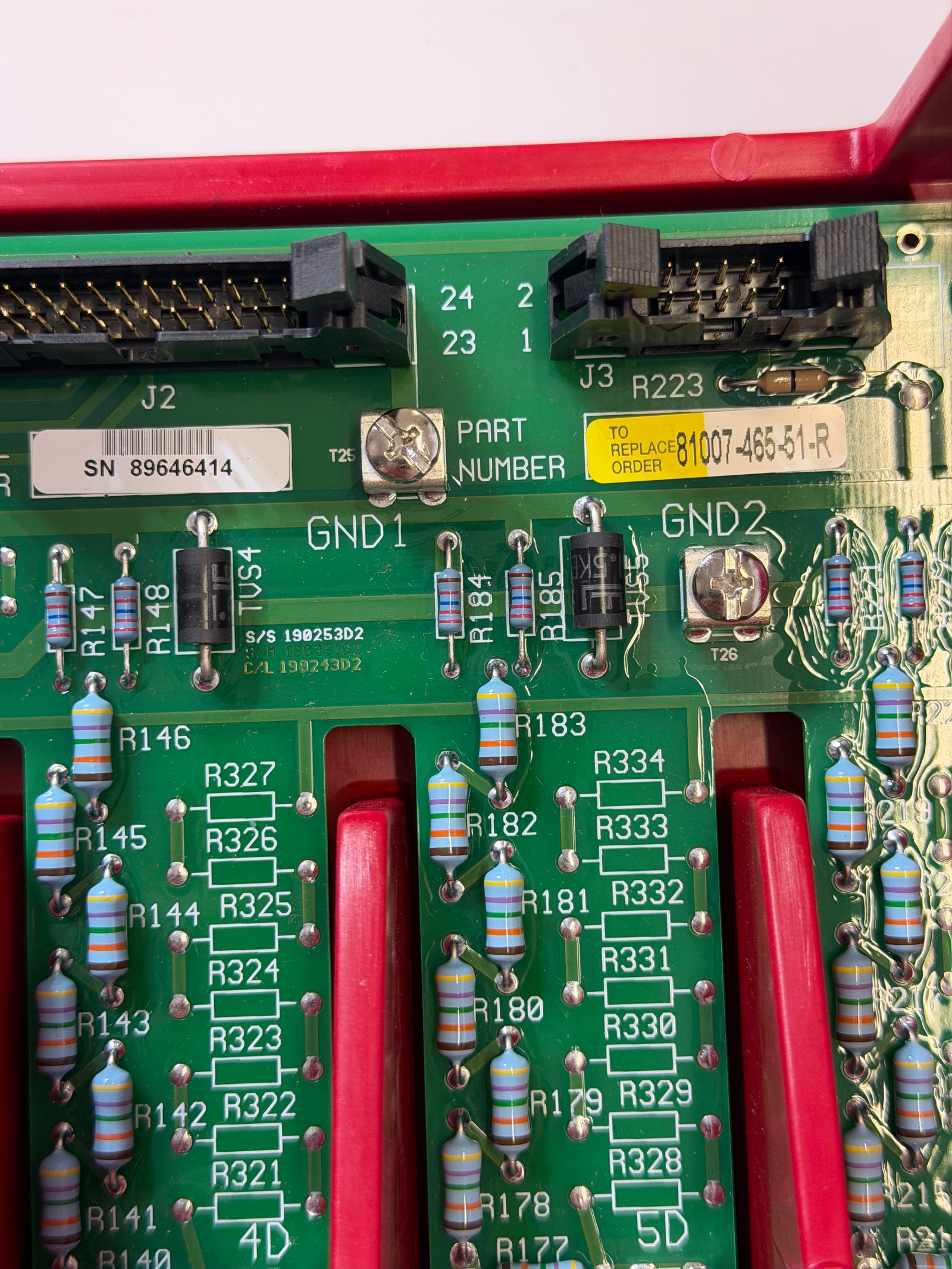

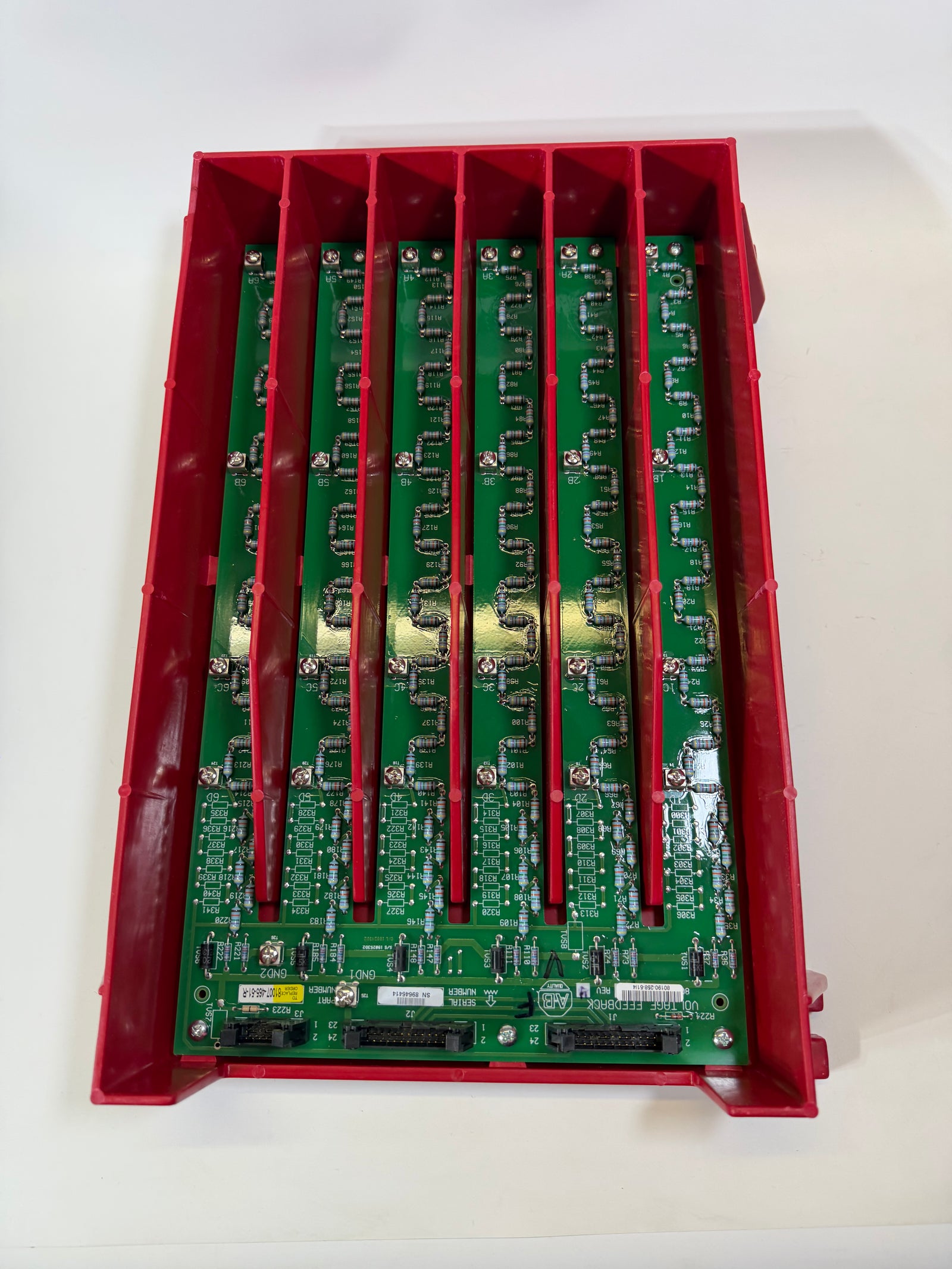

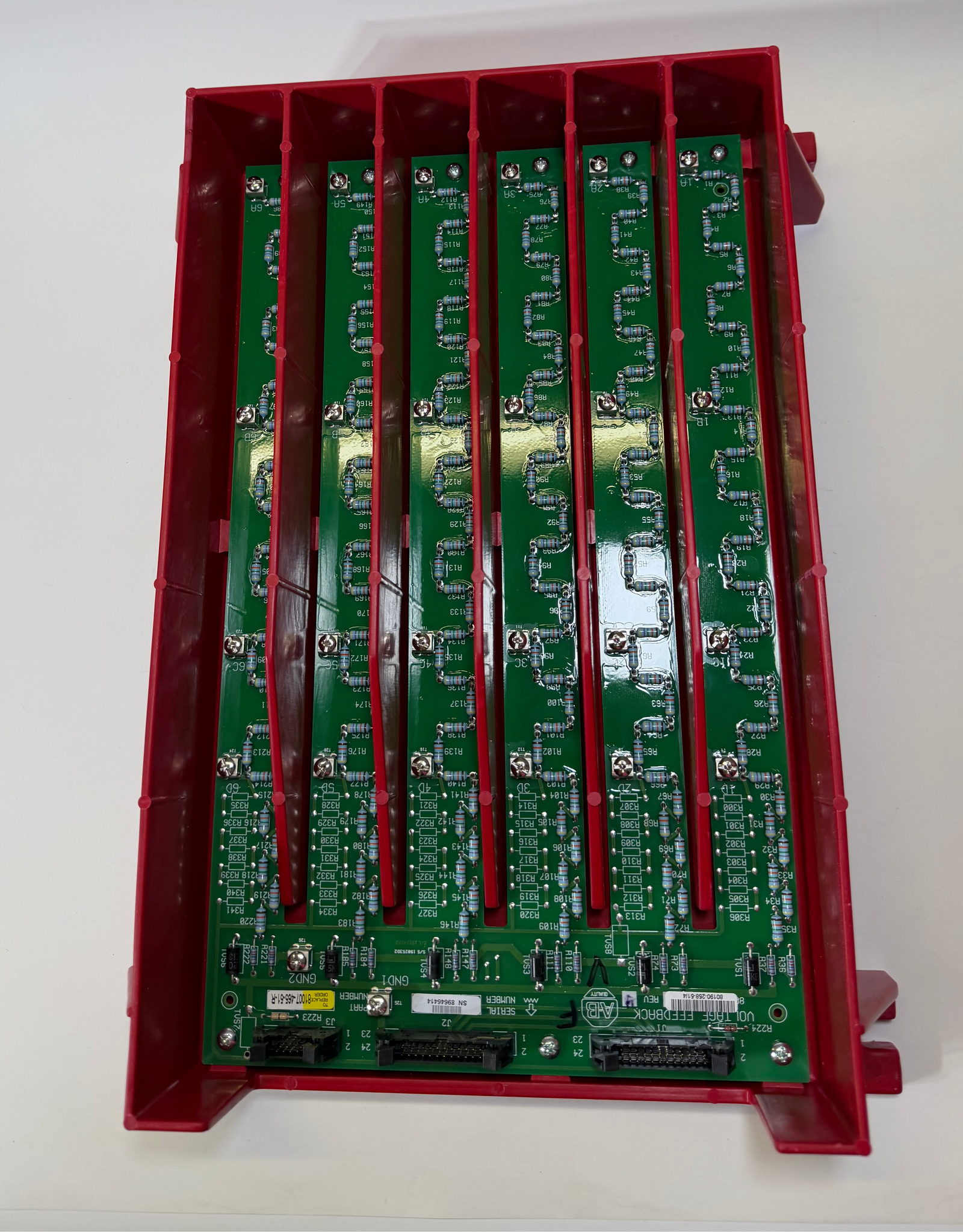

Allen-Bradley 81007-465-51-R Voltage Sensing Board
- SKU
- P-AL-A-8460
- Weight
- 5.0 kg
Specifications
| Manufacturer | ALLEN-BRADLEY |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-AL-A-8460 |
| Weight | 5.0 kg |
Description
Allen-Bradley 81007-465-51-R voltage-sensing board. The listing records PowerFlex 7000 and PC324 references.
The following specifications are copied from the existing record and require verification against the exact board documentation before selection or installation.
AC Voltage: 0–600 V AC
DC Voltage: 0–1000 V DC
Isolation Voltage: 2500 V AC
Output Signal: 0–10 V DC or 4–20 mA analog signal
Accuracy: ±1% full scale
Frequency Response: 50/60 Hz
Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +85°C
Humidity Tolerance: 5–95% RH (non-condensing)
Mounting: DIN rail or panel-mounted
Signal Conditioning
Filtering for noise reduction.
Overvoltage/undervoltage threshold detection (configurable).
LED Indicators
Power status, fault alerts (e.g., overvoltage).
Terminal Types
Screw terminals for robust industrial wiring (AWG 12–24).
