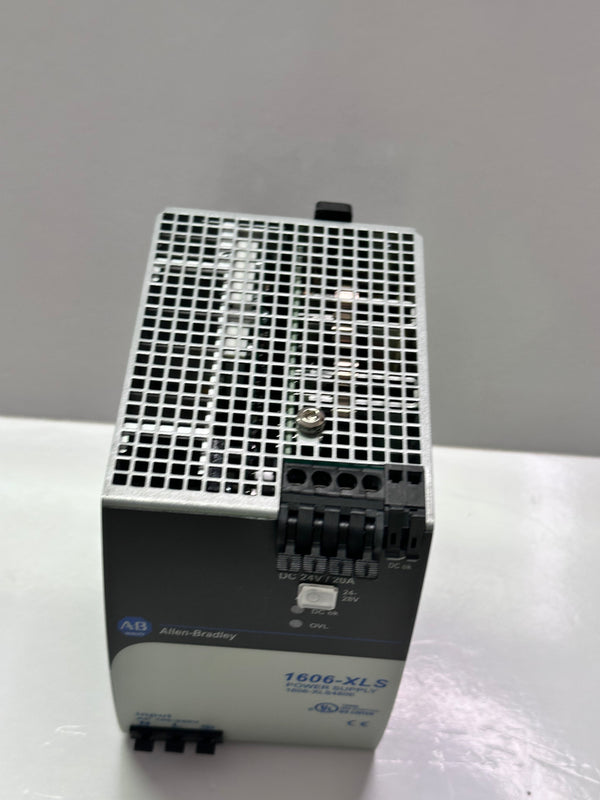

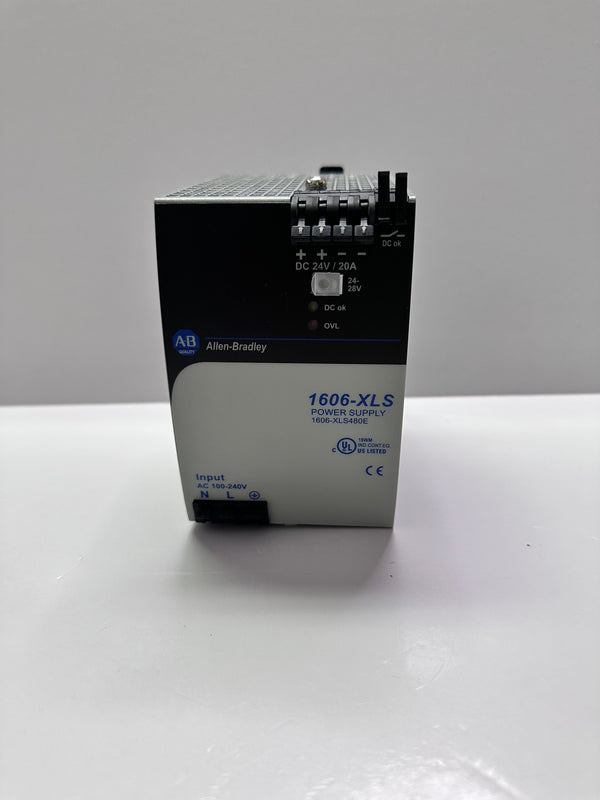

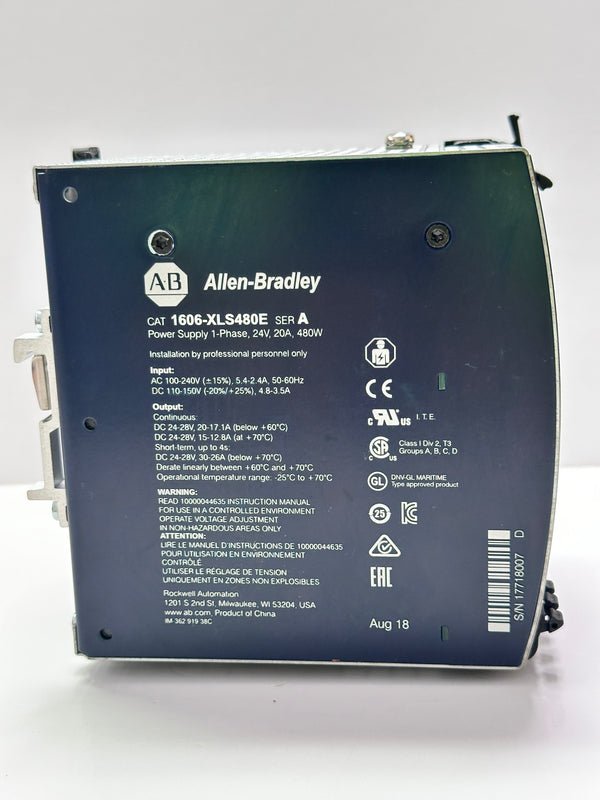

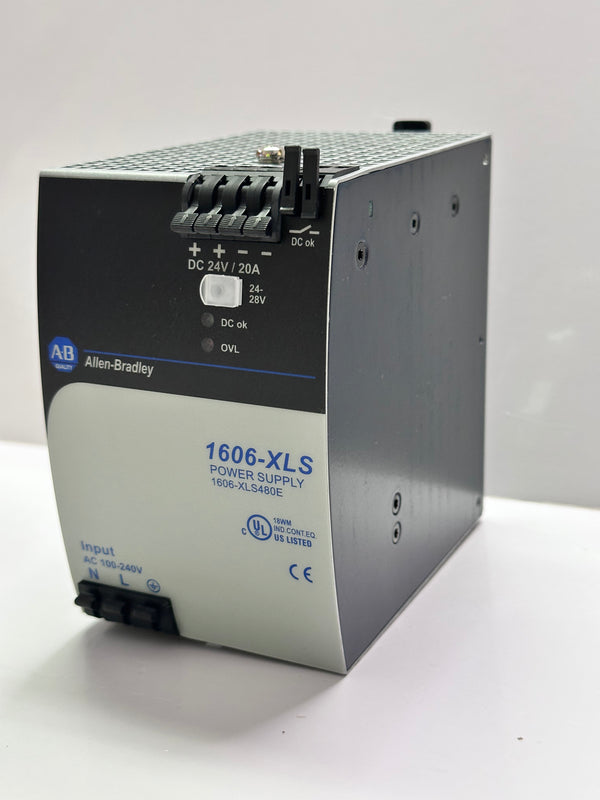

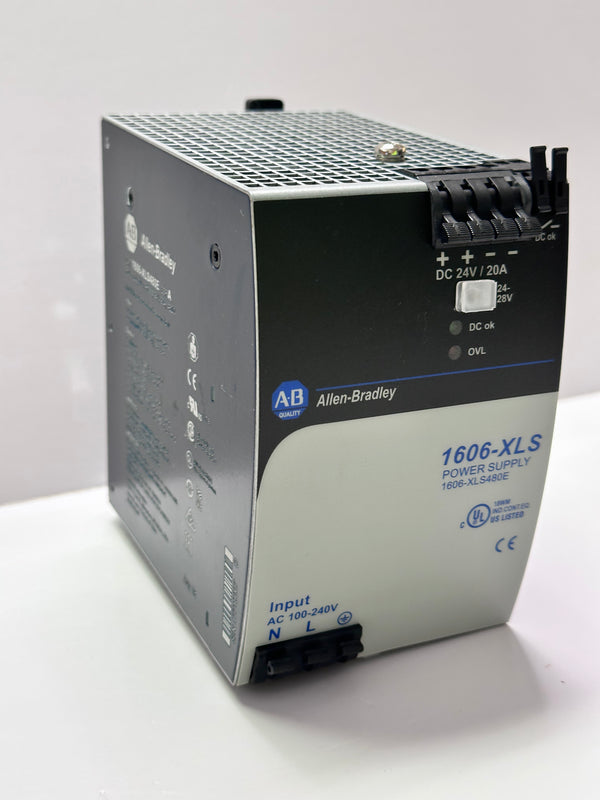

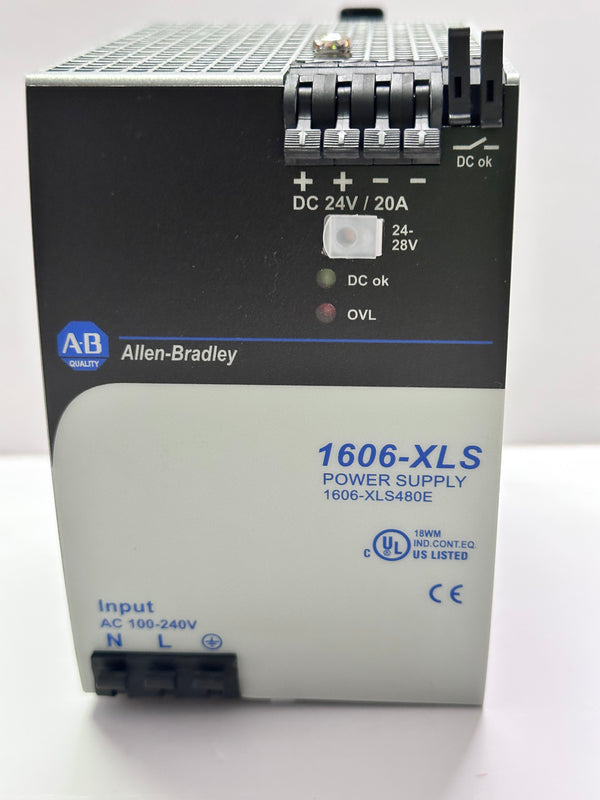

Allen-Bradley / NHP 1606-XLS480E 480W Power Supply

Allen-Bradley / NHP 1606-XLS480E switched-mode power supply, Bul. 1606-XLS series, listed rated output 480W and DIN-35 rail mounting.

Source technical specifications

• Service Information: Product is not repairable
• Product Series: Bul. 1606-XLS
• Standards Compliance: UL 508, IEC 60950, EN 60950, EN 50178
• Certifications: CE
• Component Type Power Distribution & Protection: Switched Mode Power Supply
• Inrush Current, Max: 9 A
• In, Nominal Current: 2.5 A
• Output Current, 24V DC: 20 A @24V DC
• Output Current, 28V DC: 17 A @28V DC
• Output Current, Rated (rms): 20 A
• Depth: 127 mm
• Input Frequency, Max: 63 Hz
• Input Frequency, Min: 47 Hz
• Input Frequency, Nom: 50/60 Hz
• Height: 124 mm
• Indicator Type: LED
• IP Rating: IP20

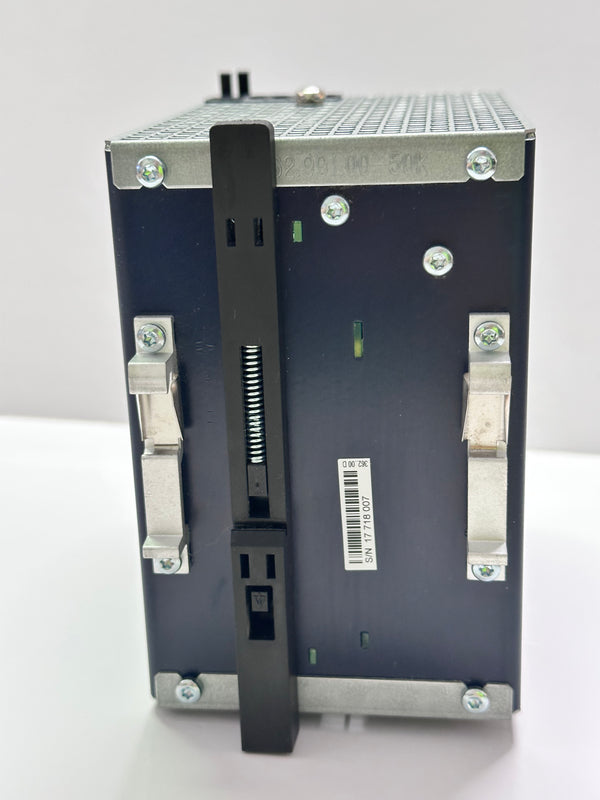

• Mounting: DIN-35 Rail Mount
• Pout, Real, Rated W: 480 W
• Input Type: AC: 1-Phase
• Hold-Up Time, Max: 51 ms
• Hold-Up Time, Min: 32 ms
• Un, Nominal Voltage, AC, L-L: 230 V AC
• Input Voltage, AC, Max: 240 V AC max
• Input Voltage, AC, Min: 100 V AC min
• Input Voltage, DC, Max: 150 V DC max
• Input Voltage, DC, Min: 110 V DC min
• Output Voltage, DC, Max: 28 V DC max
• Output Voltage, DC, Min: 24 V DC min
• Weight: 1.2 kg
• Width: 84 mm
• Efficiency, Electrical, Min: 92.4 %
• MTBF, Mean Time Before Failure, Min: 469000 hours
• Ripple Voltage, P-P, Max: 100 mVpp

Existing tags additionally record 00352873, 32151700 and 24-24V. The 24-24V tag differs from the listed 24–28 V DC output range and needs confirmation; the specification entries are retained as recorded. The 9 A figure is maximum inrush current, not the rated output current.

Confirm the unit label and required input/output duty before ordering. Listed compliance, CE, efficiency and MTBF figures are source specifications, not independent certification, current test results or a remaining-life guarantee. This is a power supply, not a motor controller.
