AIR TORQUE
Air Torque AT201U DB Double-Acting Pneumatic Actuator - 8 Bar
- SKU
- P-AI-A-0359
$395.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 5.0 kg
Specifications
| Manufacturer | AIR TORQUE |
|---|---|
| Product type | PNEUMATICS |
| SKU | P-AI-A-0359 |
| Weight | 5.0 kg |
Description
MODEL: AT201U DB

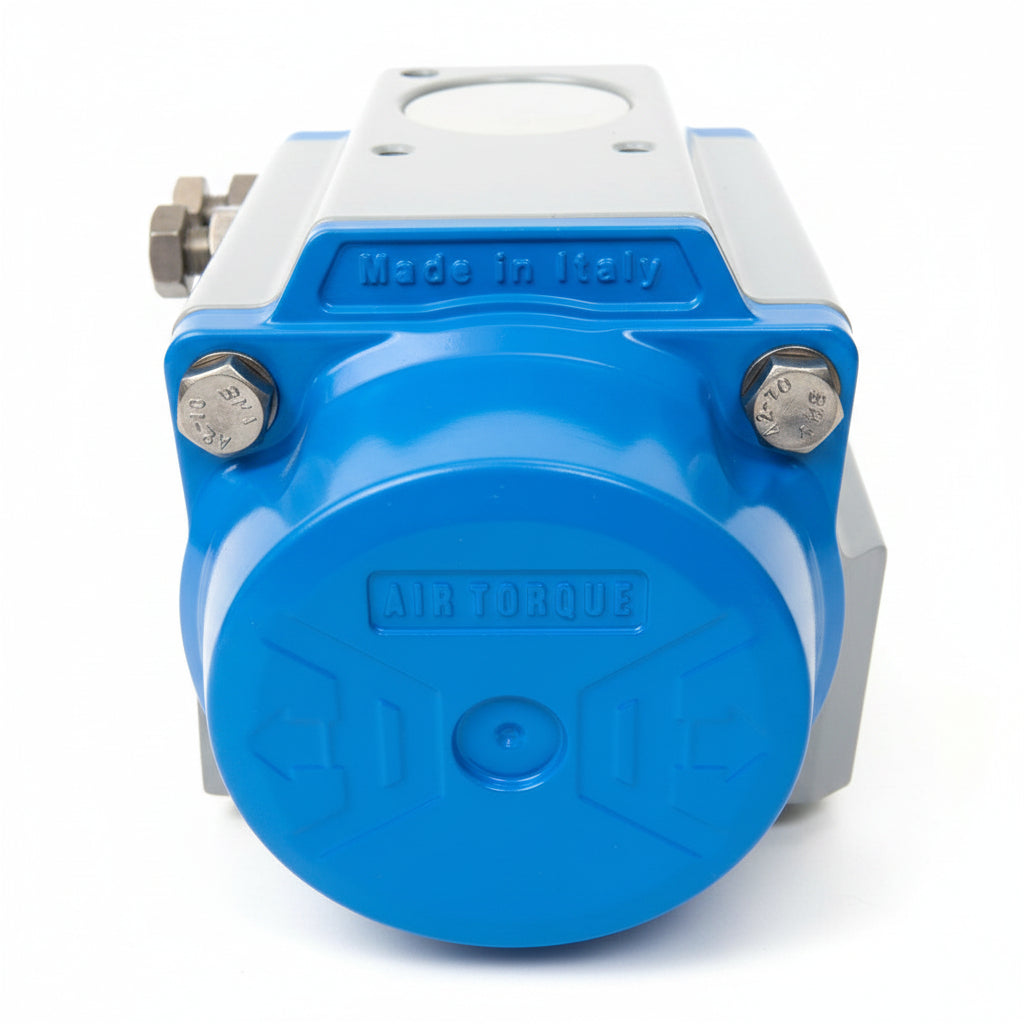

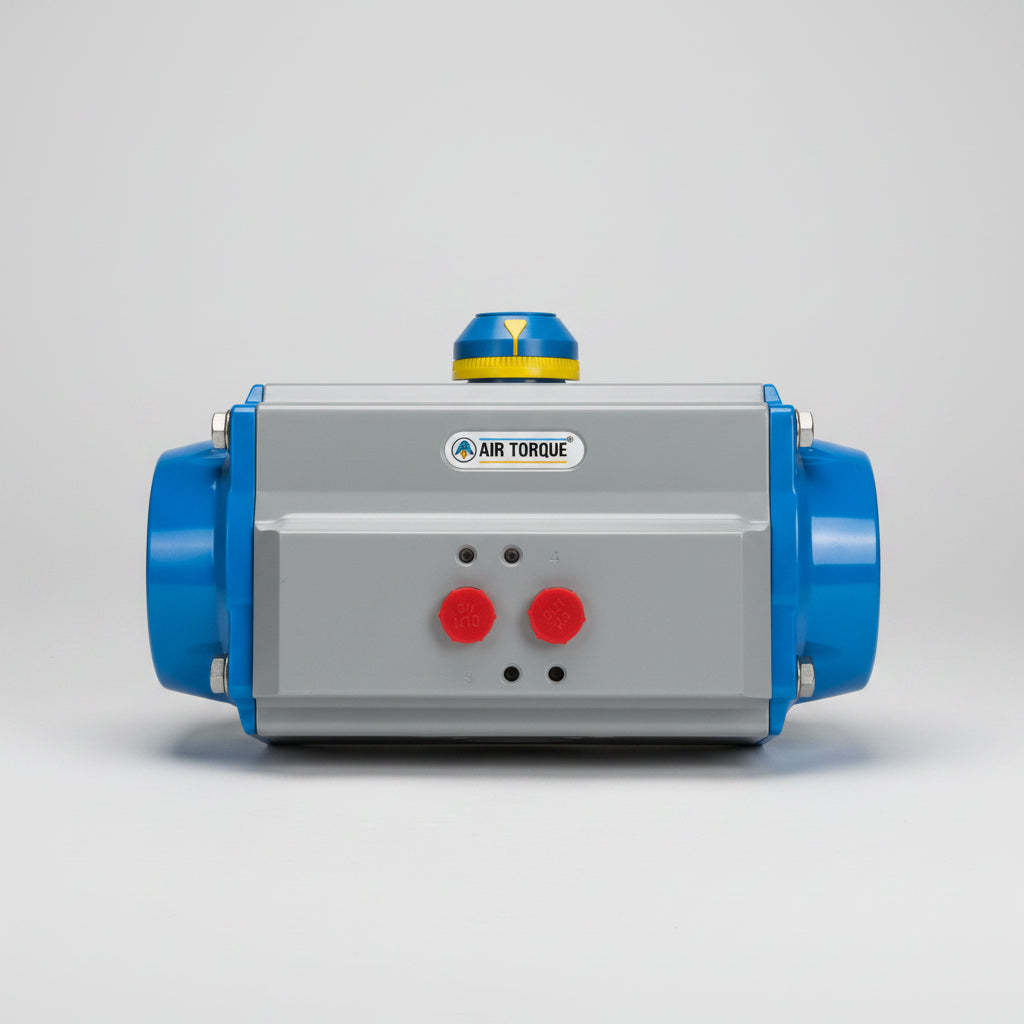

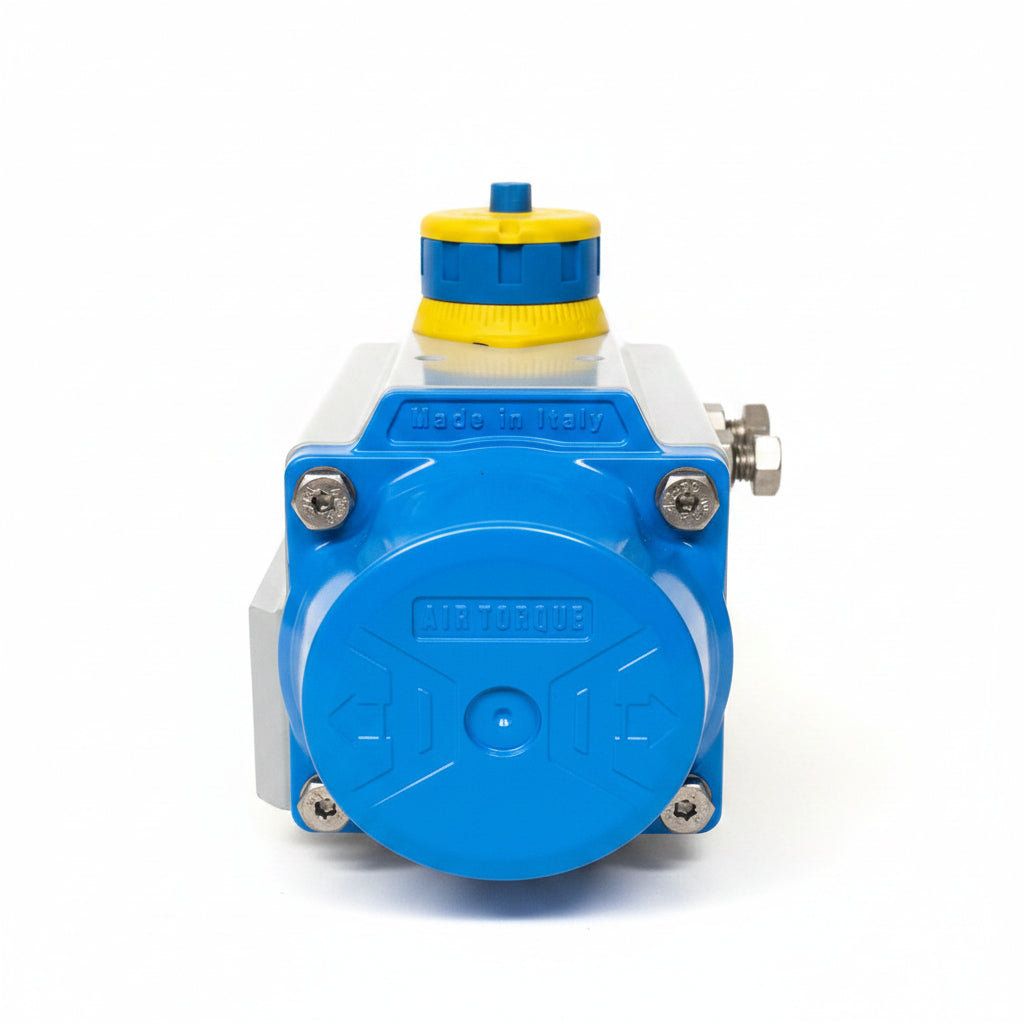

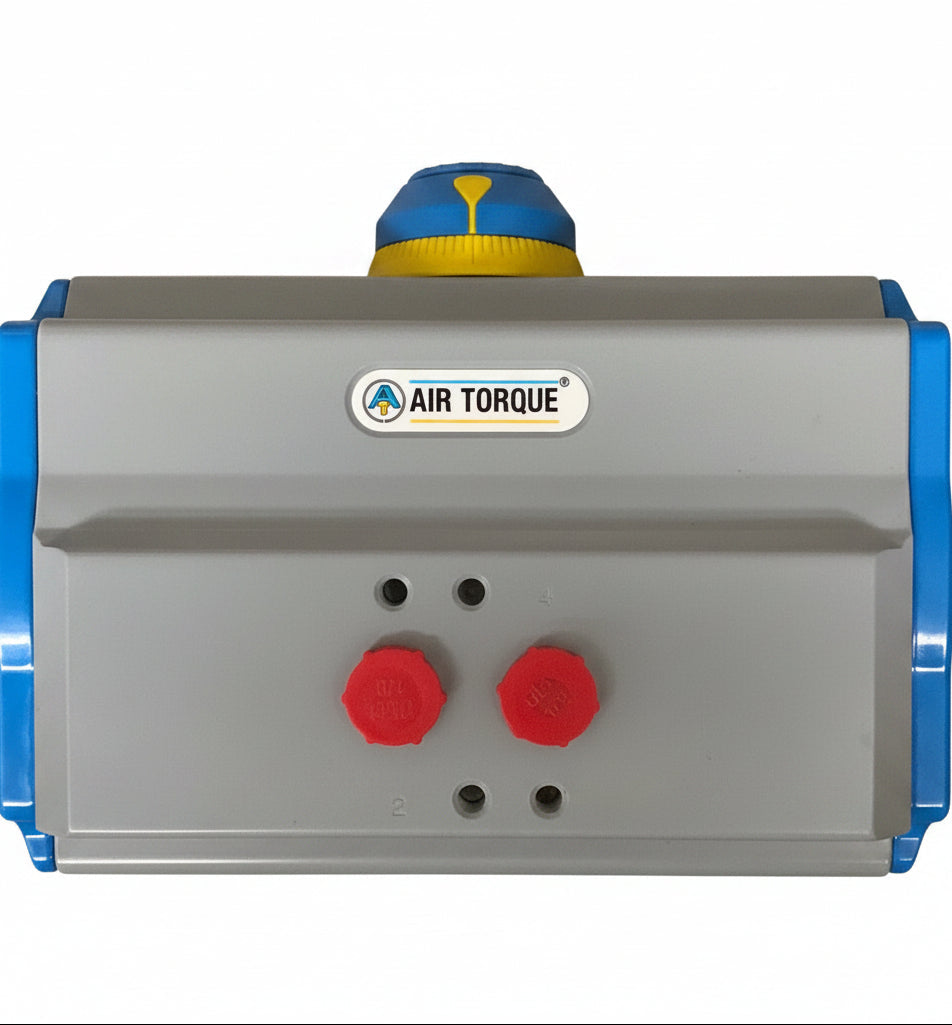

The main function of the Air Torque AT201UDB is to convert compressed air energy into a precise 90-degree angular or rotary mechanical motion. It is a double-acting rack-and-pinion pneumatic actuator built to automatically open and close industrial quarter-turn valves like ball, butterfly, or plug valves.

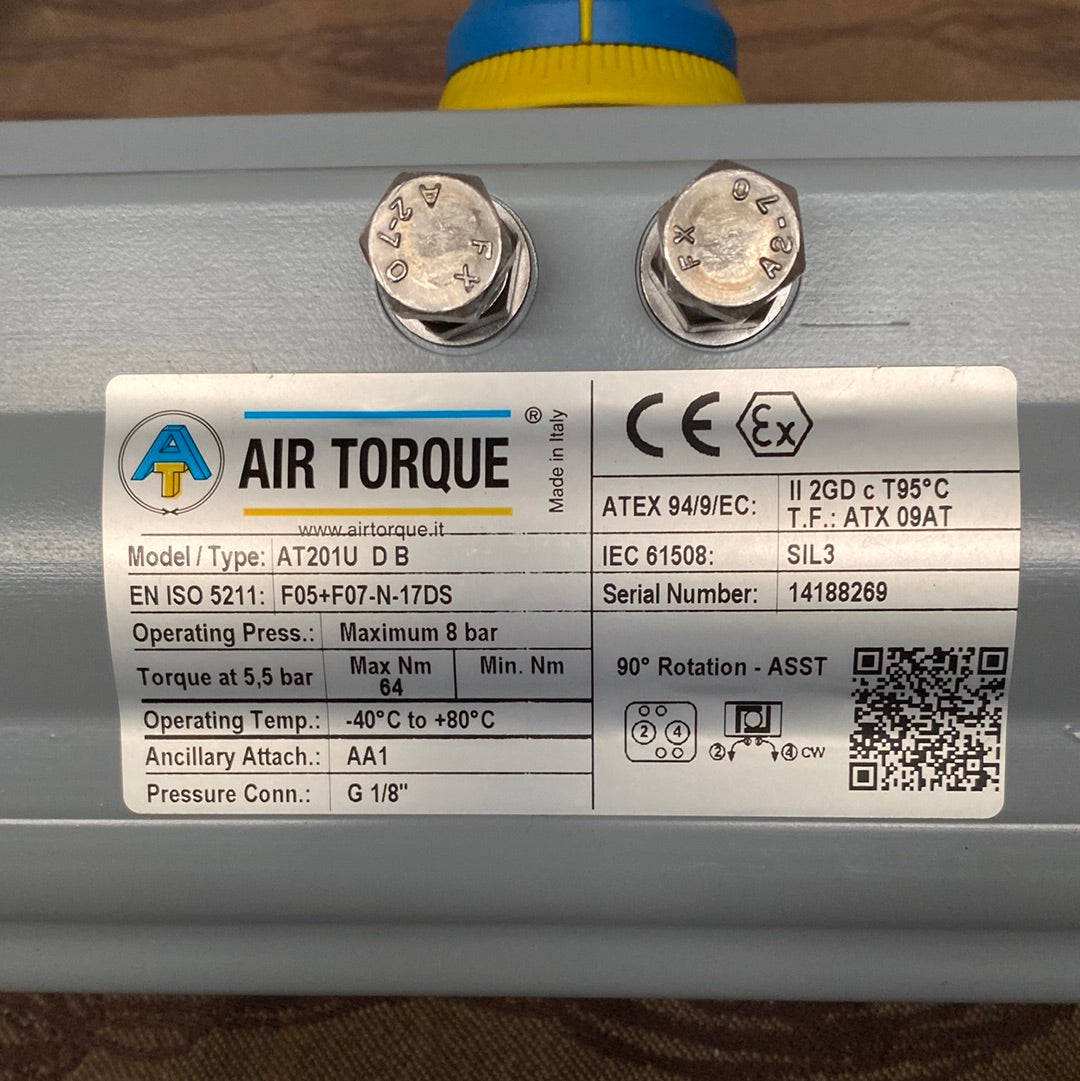

Max Operating Pressure: 8 bar
Output Torque: Maximum of 64 Nm at 5.5 Bar supply pressure.
Rotation Angle: 90°
Operating Temperature: -40°C to +80°C

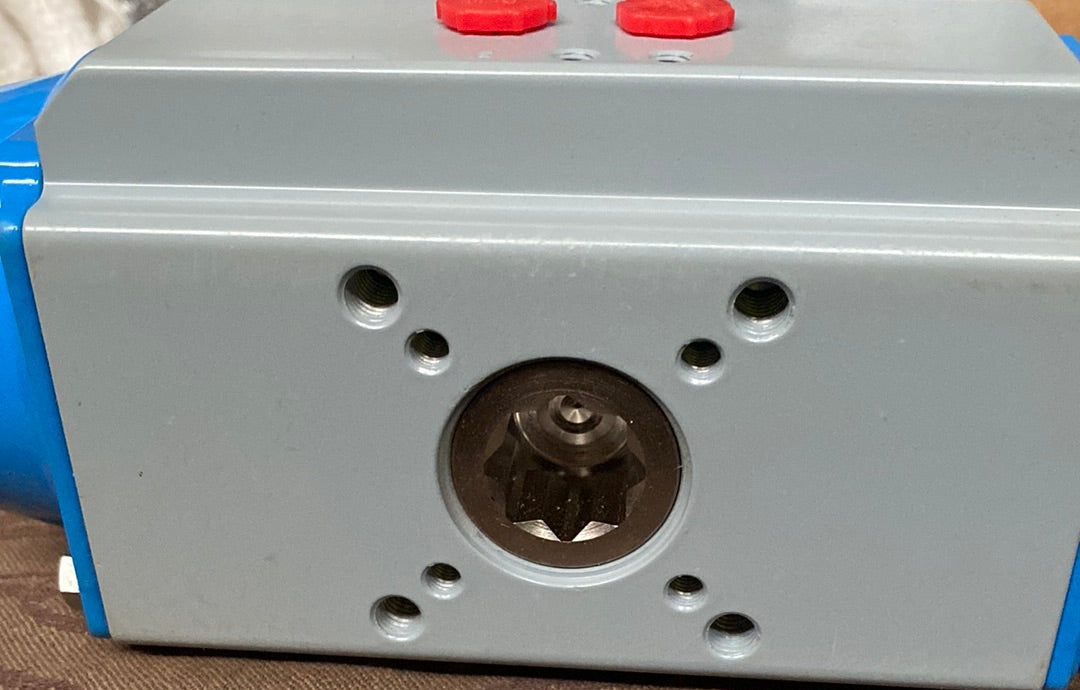

Mounting Flange: EN ISO 5211 (F05 + F07)
Pressure Connection: G 1/8"
Safety & Certifications: ATEX compliant and SIL3-capable (IEC 61508)
