ABB

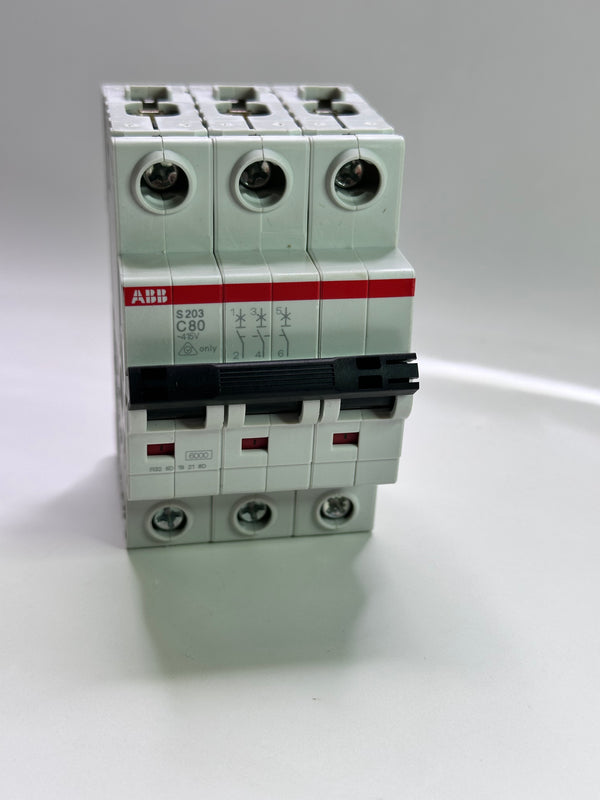

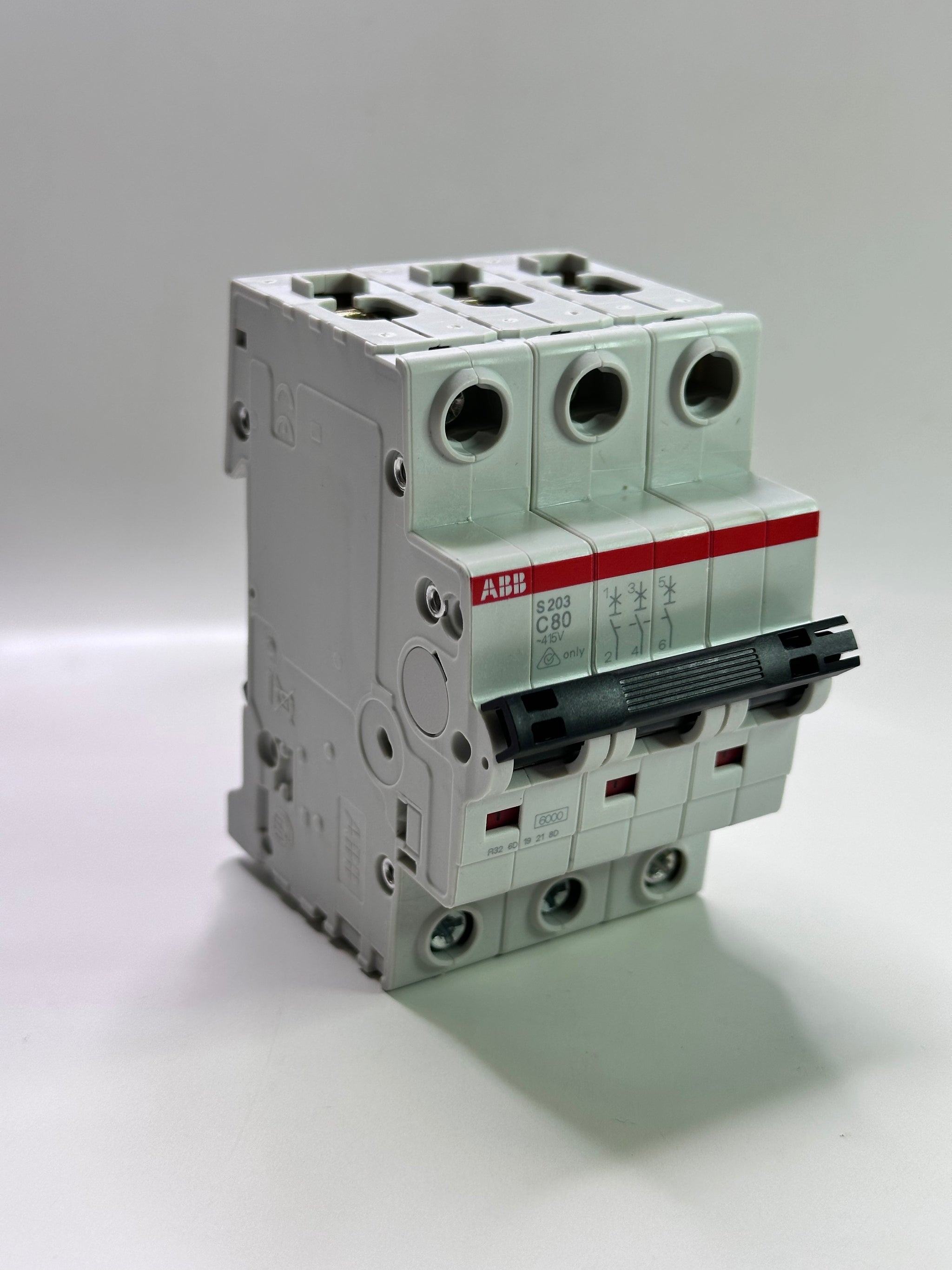

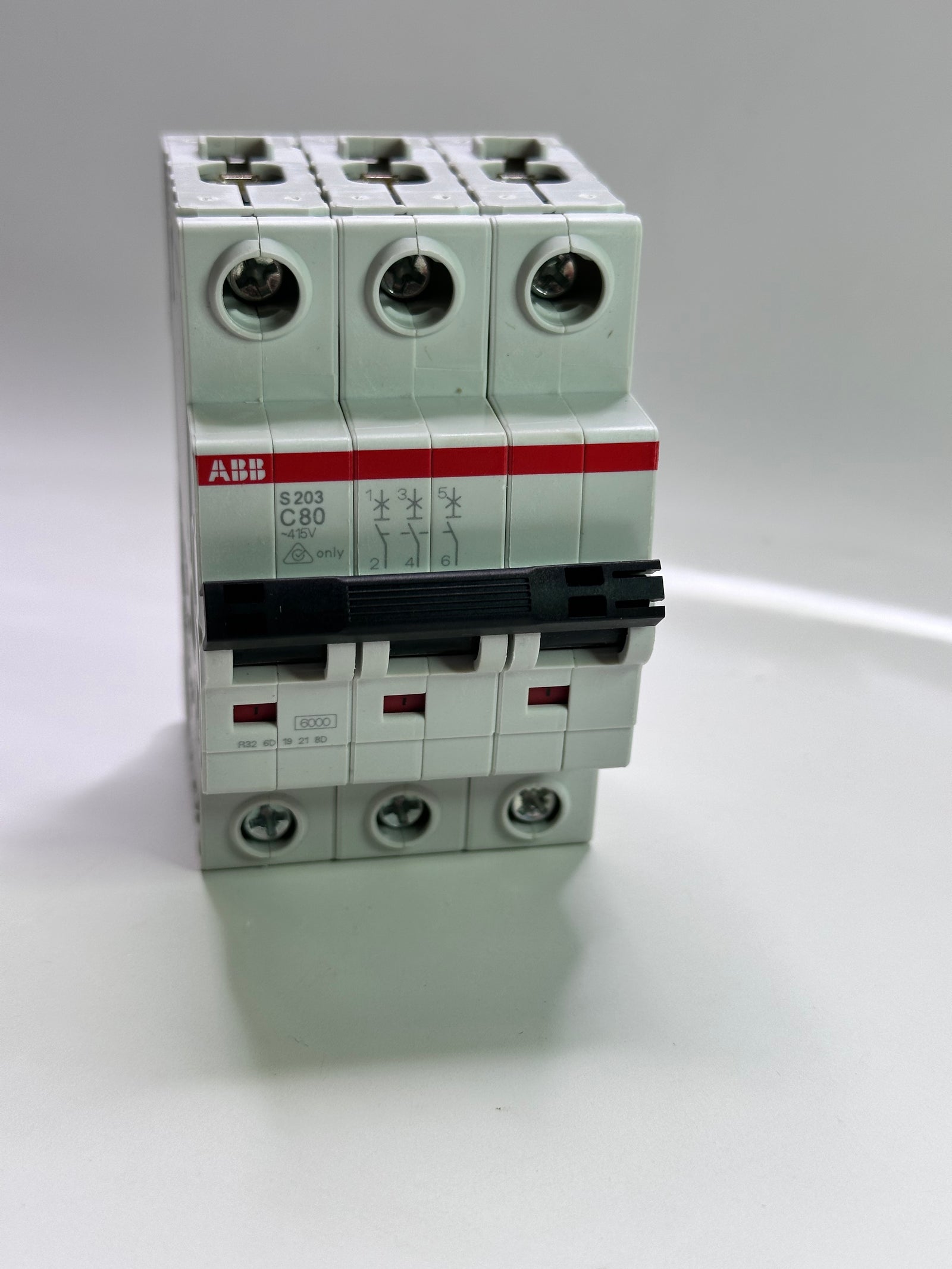

ABB S203-C80-415V Miniature Circuit Breaker - 2CDS253240R0804
- SKU
- P-AB-A-7822
$165.00
Price includes GST.
Low stock: 3 left
Warehouse pickup available
- Weight
- 2.0 kg
Specifications
| Manufacturer | ABB |
|---|---|
| Product type | Electrical |
| SKU | P-AB-A-7822 |
| Weight | 2.0 kg |
Description
| Product Type | Miniature Circuit Breaker |
| Brand | ABB |
| Series | S200 |
| Actuator Type | Toggle |
| Ambient Temperature | -25 to 55 deg C Operation, -40 to 70 deg C Storage |
| Application | Commercial and Industrial |
| Busbar Cross Section | 10 sq-mm Top, 10 sq-mm Bottom |
| Cable Cross Section | 35 sq-mm Top, 35 sq-mm Bottom |
| Collection | S200 |
| Curve Type | C |
| Degree of Pollution | IP3 |
| Degree of Protection | IP20 |
| Depth | 69 mm |
| Electrical Durability | 10000 Cycles |
| Height | 88 mm |
| Housing Colour | RAL 7035 Grey |
| Housing Material | Insulation Group II, RAL 7035 |
| Impulse Voltage | 4 kV |
| Mounting Type | DIN Rail |
| Number of Poles | 3 |
| Pole Width | 17.5 mm |
| Power Loss | 9.8 W |
| Rated Current | 80 A |
| Rated Frequency | 50/60 Hz |
| Rated Impulse Withstand Voltage | 4 kV |
| Rated Insulation Voltage | 440 V |
| Rated Short Circuit Current | 6 kA |
| Rated Voltage | 400/415 VAC |
| Standards and Approvals | AS/NZS 60898-1, AS/NZS 60947-2, UL 1077 |
| Terminal Type | Screw Clamp |
| Tightening Torque | 3 N-m |
| Trip Curve | C Curve |
| Width | 52.5 mm |
